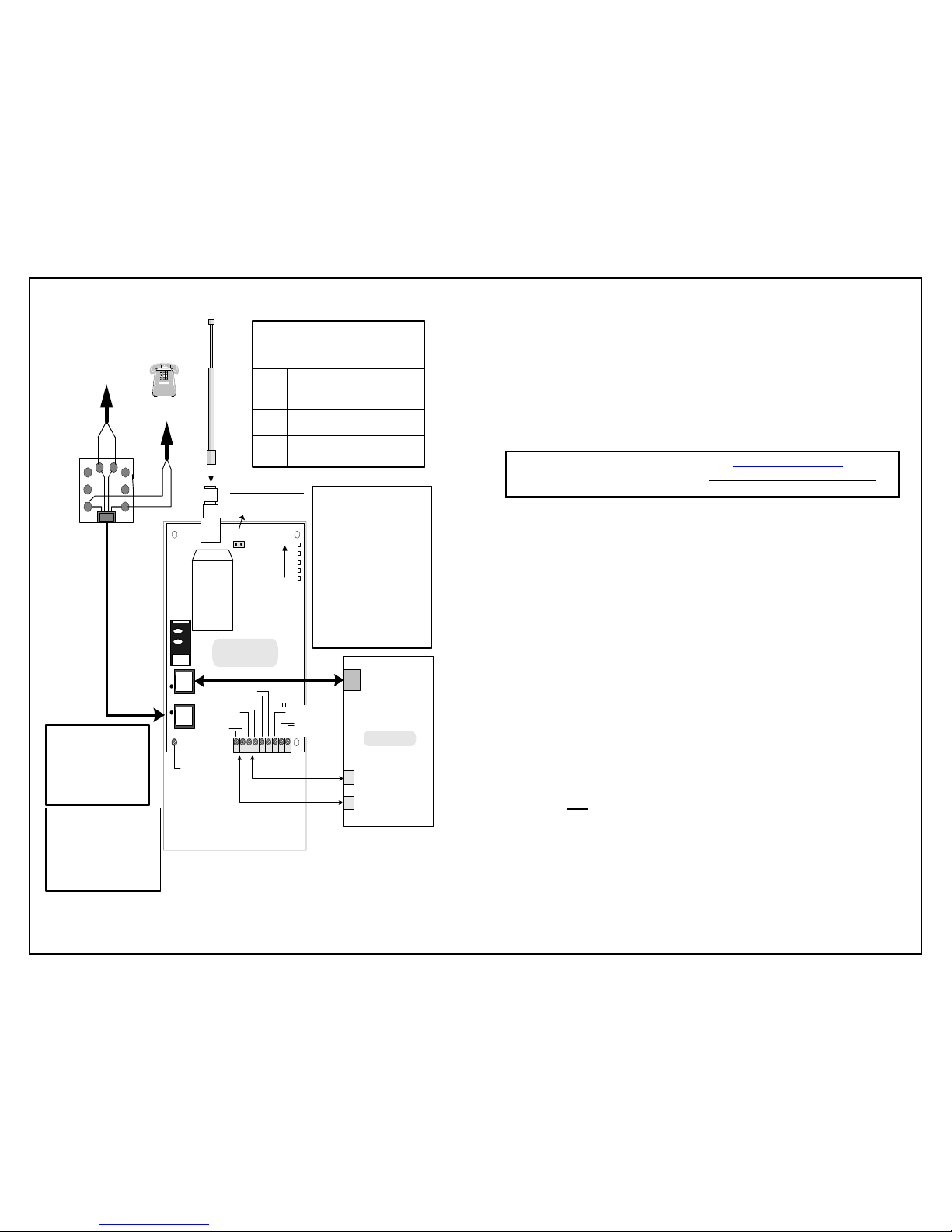

24 HOUR ZONE (N.C.)
24 HOUR ZONE (N.O.)
TELCO DIALER
ANTENNA
T
R
1234567
J6
TELGUARD
Digital TG-4
OPEN = NORMAL
SIGNAL
STRENGTH
LEDS
2
34 5 6
7
GREEN
R
8
1
T
RED
PREMISE
PHONE
INCOMING
TELCO
RJ31X
www.Telguard.com
REFER TO INSTALLATION AND OPERATING INSTRUCTIONS MANUAL.
THIS DEVICE COMPLIES WITH FCC RULES PART 68 AND 15.
TELULAR CORPORATION
420 Thornton Road, Suite 109
Lithia Springs, GA 30122
(800) 229-2326
Fax: 678-945-1651
8 9
+
_
JP
4
J7
SIM
J10
SHORTED = RSSI
HOST C/C
1
2
3
4
5
SYSTEM STATUS LEDS
NORMAL MODE
LED #1 GREEN
REGISTRATION (See Table)
LED #2 RED
SYSTEM TROUBLE, STC (See Table)
LED #3 YELLOW
ON = MODE 1 (TELCO Primary)
OFF = MODE 2 (CELL Primary)
FLASH = C/C OFF HOOK CELL
LED #4 RED
ON = WAITING FOR RESPONSE
If flashing with LED #1 = DENIED(NACK)
LED #5 GREEN
ON = RADIO INITIALIZING
FLASH = COMMUNICATING
SYSTEM TROUBLE,
STC (LED #2)
1 FLASH = AC LOW/MISSING
2 FLASH = LBC LOW BATTERY
3 FLASH = LFC LINE FAULT
4 FLASH = NSC NO SERVICE
5 FLASH = RFC RADIO FAILURE
6 FLASH = DTF DIAL TONE FAIL
REGISTRATION
(LED #1)
ON = UNIT REGISTERED
OFF = UNIT NOT REGISTERED
If flashing with LED #4 = DENIED
(NACK)
,
Call Technical Support.
If all LED's flashing = NO RESPONSE,
Check Signal Strength.
SYSTEM STATUS LEDS
RSSI MODE
RSSI Value LED's Lighted RF dBm
NO SVC LED 5*= flash, 4-2 = off n/a
1 LED 5 = on, 4-2 = off < -111 dBm
1 ½ LED 5 = on, 4 = flash, 3-2 = off > -110 dBm
2 LED 5-4 = on, 3-2 = off > -100 dBm
2 ½
LED 5-4 = on, 3 = flash, 2 = off
> -90 dBm
(Minimum Signal Recommended)
3 LED 5-3 = on, 2 = off > -80 dBm
3 ½ LED 5-3 = on , 2 = flash > -70 dBm
4 LED 5-2 = on > -60 dBm
*Note: LED #1 ON INDICATES MORE THAN ONE TOWER
AC
LED 6
CAUTION:
INCORRECT CONNECTIONS
MAY RESULT IN DAMAGE TO UNIT.
WARNING:
HIGH VOLTAGE
PRESENT ON PHONE
LINES.
DISCONNECT PRIOR
TO SERVICING.
LED MODE SELECT
EARTH
GROUND
STC2
(N.C.)
STC1
(N.O.)
BATTERY
(12V)
BLANK PIN
AC
(12V 800MA)
Telguard Digital model TG-4
QUICK INSTALLATION GUIDE
Installation Summary
There are six steps in installing Telguard properly. IF YOU DO NOT
PROCEED IN THE ORDER AND MANNER PRESCRIBED, YOU MAY
NOT COMPLETE THE INSTALLATION IN THE TIME ALLOCATED.
STEP 1: REGISTER FOR CELLULAR SERVICE
Complete the Activation Form online at www.Telguard.com or fax
the form to Telular Cellular Service prior to leaving for the job site.
Telular requires this information to register and activate the unit.
STEP 2: LOCATE UNIT AND MEASURE SIGNAL STRENGTH (RSSI)
Second, you will be confirming that Telguard has adequate cellular signal
strength. Put J10 across both pins, LEDS will now indicate signal strength,
minimum recommended is 2 ½ (2 on solid and the third flashing).
STEP 3: TRANSMIT C/C ALARMS OVER THE TELCO CONNECTION
Connect C/C and telco line to the Telguard. Trip a simple alarm on the C/C
and transmit over the telco line. This step is important to verify that the C/C
is programmed with valid account code and central station information
before transmitting signals through the cellular network.
STEP 4: PROGRAM,ACTIVATE &TRANSMIT C/C ALARMS OVER
THE CELLULAR RADIO NETWORK
Next, you will be programming the Telguard unless the default settings are
what you want. Then connect the C/C's digital dialer output to Telguard and
verify that alarm signals can be reliably sent over cellular to the central
station digital receiver. The incoming telco line is not connected to Telguard
during this step. A minimum of two alarm signals must be transmitted.
(NOTE: THE FIRST ALARM WILL CONFIRM REGISTRATION AND
ACTIVATE THE UNIT WITH THE TELULAR COMMUNICATION CENTER.
IT WILL NOT BE TRANSMITTED TO THE CENTRAL STATION.ALL
SIGNALS AFTER THE FIRST ARE SENT TO THE CENTRAL STATION.)
STEP 5: CONNECT SUPERVISORY TRIP OUTPUTS
Next, you will wire Telguard's supervisory trip outputs to the C/C and then test.
STEP 6: COMPLETE THE INSTALLATION
Your last step will be to check the jumper setting of J10 (LED mode, open =
normal), attach earth ground, and permanently mount the unit.
56033603
