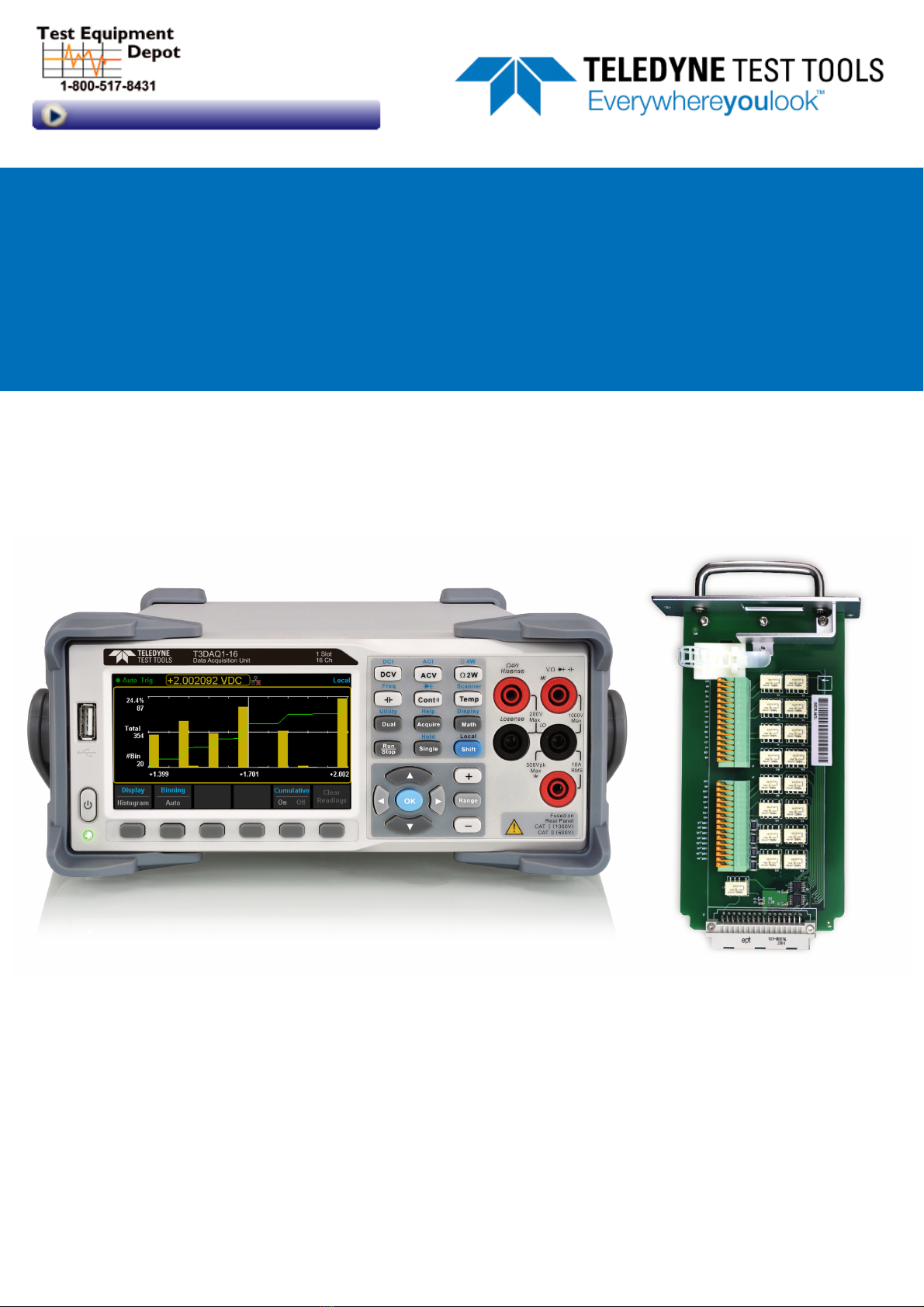

Teledyne T3DAQ1-16 Manuel utilisateur

T3DAQ1-16

Data Acquisition System

User Manual

5 Commonwealth Ave

Woburn, MA 01801

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

T3DAQ1-16 User Manual

General Safety Summary

Read the following precautions carefully to avoid any personal injuries, or damage to the instru-

ment or products connected to it. Use the instrument only as specified.

Use only the power cord supplied for the instrument.

Ground the instrument.

The instrument is grounded through the ground conductor of the power cord. To avoid electric

shock, always connect to grounded outlets. Make sure the instrument is grounded correctly before

connecting its input or output terminals.

Connect the signal wire correctly.

To avoid damage, observe input polarity and maximum voltage/current ratings at all times.

Observe all terminal ratings and signs on the instrument to avoid fire or electric shock.

Before connecting to the instrument, read the manual to understand the input/output ratings.

Do not operate with suspected failures.

If you suspect that the instrument is damaged, contact the Teledyne LeCroy service department

immediately.

Do not operate in wet/damp conditions.

Do not operate in an explosive atmosphere.

Keep the surface of the instrument clean and dry.

Avoid touching exposed circuits or wires.

Do not touch exposed contacts or components when the power is on.

Do not operate without covers.

Do not operate the instrument with covers or panels removed.

Use only the fuse specified for the instrument.

Use proper overvoltage protection.

Use anti-static protection.

Operate in an anti-static protected area. Ground measurement cable conductors before connecting

to the instrument to discharge any static electricity before connecting the cables to the instrument.

Observe ventilation requirements.

Ensure good ventilation. Check the vent and fan regularly to prevent overheating.

T3DAQ1-16 User Manual

Safety Terms and Symbols

The following terms may appear on the instrument:

DANGER: Direct injury or hazard may occur.

WARNING: Potential injury or hazard may occur.

CAUTION: Potential damage to instrument/property may occur.

CAT I1: IEC Measurement Category I, applicable for making measurements on ‘other’ circuits that

are not directly connected to mains. See p. v.

CAT II: IEC Measurement Category II, applicable for making measurements on circuits connected

directly to utilization points (socket outlets and similar points) of the low voltage mains installation.

See p. v.

1) CAT I as defined in IEC/EN 61010-031:2008.

Note that Measurement Category I was removed in IEC/EN 61010-031:2015 and replaced by ‘O’, indicating ”other cir-

cuits that are not directly connected to mains.”

Saftey Symbols

The following symbols may appear on the instrument:

T3DAQ1-16 User Manual

Operating Environment

Temperature: 0 °C to 40 °C

Humidity: 5% to 90% relative humidity (non-condensing) up to +30°C. Upper limit derates to 50%

relative humidity (non-condensing) at +40°C.

Altitude: ≤2000 m

Use indoors only.

Pollution Degree 2. Use in an operating environment where normally only dry, non-conductive

pollution occurs. Temporary conductivity caused by condensation should be expected.

AC Power

Input Voltage & Frequency:

100-120 V at 50/60 Hz

200-240 V at 50/60 Hz

Manual AC selection with a slide switch.

Power Consumption: 20 W maximum

Mains Supply Connector: CAT II per IEC/EN 61010-1:2010, instrument intended to be supplied

from the building wiring at utilization points (socket outlets and similar).

Fuse Type

Current Input Terminal: 250 VAC F 10 A, 3 AG

AC Mains: 250 VAC F 300 mA, 5x20 mm

iii

T3DAQ1-16 User Manual

Input Terminal Protection Limitation

Protection limitation is defined for the input terminal.

1. Main Input (HI and LO) Terminals

HI and LO terminals are used for Voltage, Resistance, Capacitance, Continuity, Frequency,

Diode and Temperature measurement. Two protection limitations are defined:

•HI-LO protection limitation: 1000 VDC or 750 VAC. This is the maximum measurable

voltage. The limitation can be expressed as 1000 Vpk.

•LO ground protection limitation: LO terminal can “float” 500 Vpk relative to the ground

safely. The maximum protection limitation of HI terminal relative to the ground is 1000

Vpk. Therefore, the sum of the “float” voltage and the measured voltage can’t exceed

1000 Vpk.

2. Sampling (HISense and LOSense) Terminals

HISense and LOSense terminals are used for 4-wire Resistance measurement. Two protec-

tion limitations are defined:

•HISense-LOSense protection limitation: 2000 Vpk.

•LOSense-LOSense protection limitation: 2 Vpk.

3. Current Input (I) Terminal

The Iterminal is used for current measurement. The maximum current which can go through

the Iterminal is limited to 10 A by the fuse on the back panel.

NOTE: Voltage on the current input terminal corresponds to voltage on the LO terminal. To

keep good protection, only use a fuse of the specified type and value to replace this fuse

T3DAQ1-16 User Manual

IEC Measurement Category II Overvoltage Protection

To avoid the danger of electric shock, the Data Acquisition Unit provides overvoltage protection for

line-voltage mains connections that meet both of the following conditions:

1. The HI and LO input terminals are connected to the mains under Measurement Category II

conditions described in the warning below.

2. The maximum line voltage of the mains does not exceed: 600 VAC for the instrument.

WARNING:

IEC Measurement Category II includes electrical devices connected to mains at an outlet on a

branch circuit, such as most small appliances, test equipment, and other devices that plug into a

branch outlet or socket.

The DAQ is capable of making measurements with the HI and LO inputs connected to mains in

such devices (≤600 VAC) or to the branch outlet itself.

However, the HI and LO terminals of the DAQ can’t be connected to mains in permanently installed

electrical devices such as the main circuit-breaker panels, sub-panel disconnected boxes and per-

manently wired motors. Such devices and circuits are prone to exceed the protection limits of the

DAQ.

Limits for Measurements on Other Circuits Not Directly Connected to Mains

Max. rated input voltage: 1000Vrms

Transient overvoltage: 4000Vpk

WARNING:

Voltages above 600 VAC can only be measured in circuits that are isolated from mains. However,

there may be transient over voltage in circuits that are isolated from mains. The DAQ is able to

withstand occasional transient overvoltage up to 4000 Vpk. Please don’t use this instrument to

measure circuits where transient overvoltage may exceed this level.

T3DAQ1-16 User Manual

Daily Maintenance and Cleaning

Maintenance

Protect the liquid crystal display from direct sunlight when storing or using the instrument.

NOTE: To avoid damage to the instrument or test leads, please don’t place them in mist, liquid or

solvent.

Cleaning

Regularly clean the instrument and test leads.

• Wipe the external dust off the instrument and test leads using a soft rag. Be careful not to

scratch the display screen when cleaning. Do not allow any liquid to enter the instrument.

• Use a damp soft rag to clean the instrument after removing the power plug. Use 75% iso-

propyl alcohol or water solvent to get a more thorough cleaning.

NOTE: To prevent the surface of the instrument or test leads from damage, please don’t use any

corrosive or chemical cleaning reagents. Please make sure the instrument is fully dry before re-

connecting the power to avoid short circuits or personal injury.

T3DAQ1-16 User Manual

Introdution to T3DAQ1-16

Teledyne Test Tools T3DAQ1-16 is a 16 channel Data Acquisition System incorporating the latest

4.3 inch (10.92 cm) dual-display technology which can be configured to show Data Histograms,

Data fluctuation Trends, Bar Graph, Statistics or the traditional Number mode, all in an easy to use

interface. The T3DAQ features 12 multi-purpose + 4 current channels and supports various mea-

surement functions. It provides a convenient and versatile solution for test applications that require

multiple measurement points or signals and is an ideal tool for R& D burn-in and production testing.

A great feature of the Teledyne Test Tools T3DAQ is its ability to make highly accurate True RMS

AC Voltage and Current measurements, meaning no loss of accuracy even when measuring com-

plex voltage and current waveforms.

The T3DAQ provides various measurement modes to satisfy a wide range of application require-

ments. 12 Multi-purpose channels can be configured individually for various scan requirements.

The Channel configuration function allows user to configure different parameters such as mea-

surement type, range, scan mode, number of scan cycles, and duration of scan. Similarly, the

scan control menu provides flexibility to schedule, start, and stop the scan. Scanning data can be

viewed live during a scan and can also be saved for future use. An internal 1 GB flash memory is

available for data logging and to save configuration files. The T3DAQ also features a USB Host

interface to use a USB flash drive to collect data without being connected to a PC.

The T3DAQ is equipped with LAN and USBTMC interfaces for remote control of the device. The

device can be controlled remotely using EasyDMM software. The graphical interface of the soft-

ware makes it easy to configure measurements, setup and execute scans or troubleshoot the

design. Live measurement data can be viewed in numeric digits or graphically by trend chart, bar

graph and histogram. The data can be manually or automatically exported as CSV files for further

analysis.

Main features:

• 4.3” TFT-LCD Display

• Dual display, Chinese and English Menu

• Built-in front panel accessible help system

• File management (support for U-disc and local storage)

• Real 6-5 digit (2,200,000 count) readings resolution

• True-RMS AC Voltage and AC Current measuring

• 1 GB flash memory for mass storage configuration files and data files

• Built-in cold terminal compensation for thermocouple

• Standard interface: USB Device, USB Host, LAN

• USB & LAN remote interfaces support common SCPI command set

vii

Contents

General Safety Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Daily Maintenance and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Introdution to T3DAQ1-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

1 Quick Start 1

General Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Handle Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Starting the DAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Measurement Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connecting to USB and LAN Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using the Built-in Help System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2 Function and Operation 22

Measurement Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Basic Measurement Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Dual-display Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Utility Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Acquire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Help System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Math Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Hold Measurement Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

3 Measurement Tutorial 90

Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Crest Factor Errors (non-sinusoidal inputs) . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Loading Errors (AC Voltage) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

viii

T3DAQ1-16 User Manual

4 General Troubleshooting 93

5 Appendix 95

Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Teledyne Test Tools is a brand and trademark of Teledyne LeCroy, Inc. Other product or brand

names are trademarks or requested trademarks of their respective holders. Specifications, prices,

availability and delivery subject to change without notice.

Table des matières

Autres manuels Teledyne Équipement de test

Teledyne

Teledyne T3HVD Manuel utilisateur

Teledyne

Teledyne T3DSO3000 Manuel utilisateur

Teledyne

Teledyne T3DSO1000A Series Manuel utilisateur

Teledyne

Teledyne ZD200 Manuel de la liste des pièces

Teledyne

Teledyne LeCroy T3DSO2000A Series Manuel utilisateur

Teledyne

Teledyne CD14 Manuel utilisateur

Teledyne

Teledyne waverunner xi-a series Manuel de la liste des pièces

Teledyne

Teledyne HDO8000A Manuel utilisateur

Teledyne

Teledyne PXP-100B Manuel utilisateur

Teledyne

Teledyne Everywhereyoulook T3DSOH1000 Manuel utilisateur

Teledyne

Teledyne HPM 4 Manuel utilisateur

Teledyne

Teledyne LeCroy Waverunner LT Series Feuille d'instructions

Teledyne

Teledyne LeCroy T3DSO2000A Series Manuel utilisateur

Teledyne

Teledyne GT Series Guide de démarrage rapide

Teledyne

Teledyne T3DSO2000 Manuel utilisateur

Teledyne

Teledyne CP030A Manuel utilisateur

Teledyne

Teledyne LabMaster 10 Zi Series Manuel de la liste des pièces

Teledyne

Teledyne T700 Manuel utilisateur

Teledyne

Teledyne Reson PDS Fiche technique

Teledyne

Teledyne T3NFP3 Manuel utilisateur

Teledyne

Teledyne HDO6000B Manuel utilisateur

Teledyne

Teledyne T3DSO1000 Manuel utilisateur

Teledyne

Teledyne HDO9000 Manuel utilisateur

Teledyne

Teledyne FST-040 Manuel utilisateur

Manuels Équipement de test populaires d'autres marques

SMART

SMART KANAAD SBT XTREME 3G Series Manuel utilisateur

Agilent Technologies

Agilent Technologies BERT Serial Manuel utilisateur

Agilent Technologies

Agilent Technologies N3280A Manuel utilisateur

Vernier

Vernier Go Direct Voltage Manuel utilisateur

Lifeloc

Lifeloc R.A.D.A.R. Manuel utilisateur

Fluke

Fluke T5-600 Instructions d'utilisation et d'installation

Mercury

Mercury TSL01 Manuel utilisateur

MAHA

MAHA MBT Series Manuel utilisateur

Fuji Electric

Fuji Electric P-61 Manuel utilisateur

ETC

ETC SealerAtor Manuel utilisateur

Skyfine

Skyfine ETHYWAY V2 Manuel utilisateur

Appion

Appion G5 Twin Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuel utilisateur

BW Technologies

BW Technologies MicroDock II Manuel utilisateur

Sun Nuclear

Sun Nuclear 1027 Manuel utilisateur

Biomark

Biomark HPR LITE READER Manuel utilisateur

Hioki

Hioki 3169-20 Manuel utilisateur

Ashcroft

Ashcroft ATE-100 Manuel utilisateur
