Elara™ DX-Series

Quick Install Guide

1 Check Contents

Make sure all of the items above are included in the camera kit.

This camera is a Class 1 Laser Product

that complies with IEC 60825-1:2014.

Caution

Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

Attention

L'utilisation des commandes ou reglages ou l'execution des procedures autres

que celles specifiees dans les presents exigences peuvent etre la cause d'une

exposition a un rayonnement dangereux.

427-0300-01-10 Rev 130

June 2021

This document does not contain any export-controlled information.

2 Prepare to Install the Camera

2.1 Install FLIR Discovery Network Assistant

Download the FLIR Discovery Network Assistant (DNA) tool to a computer on the

same VLAN to which you will connect the camera, and then unzip the file. The

DNA tool does not require a license to use and is a free download from

www.teledyneflir.com > Products > Security > Thermal Security Cameras > FLIR

Elara DX-Series.

2.2 Perform a Bench Test (Optional)

You can test the camera or configure it for networking before mounting it. Follow

the instructions in 3.4 Connect the Camera and 4.1 Configure for Networking, and

then continue with 2.3 Select a Location.

2.3 Select a Location

Select a suitable location to mount the camera.

For advice on positioning and orienting the camera and the optional wash system,

see the camera's installation and user guide and the wash system's instructions

manual.

Verify that the operating temperature range is between -40° ~ 60° C (-40° ~ 140°

F), 0-95% relative humidity (non-condensing).

For the list of mounting accessories available for the camera, see the FLIR

Security Cameras - Accessory Guide.

3 Install the Camera

3.1 Fit Mounting Hardware

If required, install the mounting hardware for the camera according to the

instructions in the camera's installation and user guide.

3.2 Route Network and Power

Properly install the power and network cabling in the mounting hardware so that it

is accessible when the camera is mounted.

Power: Universal Power over Ethernet (PoE) 60W 4 pair forced mode, 24 VAC,

or 24 VDC.

Ethernet: Cat5e or Cat6 cable. Ethernet is required for streaming video and

configuring the camera.

3.3 Mount and Secure the Camera

Mount and secure the camera according to the instructions in the camera's

installation and user guide.

If you are installing an optional wash kit, mount and secure it according to the

instructions in the camera's installation and user guide, and according to the wash

kit's instructions manual.

427-0300-01-10 Rev 130

June 2021

This document does not contain any export-controlled information.

3.4 Connect the Camera

Connectors

Connector

Connection

DEFAULT

To reset factory defaults at any time, press the Default

button for at least 20 seconds.

LAN

Attach a Cat 5e or Cat 6 cable from the network switch

to the RJ45 connector for a 10/100/1000 Mbps Ethernet

and PoE connection. If using PoE, use a FLIR CP-POE-

4P-60W-xx injector or a switch that supports Universal

PoE 60W 4 pair forced mode. For more information

about compatible injectors and recommended switches,

contact Teledyne FLIR support. Verify that the LAN

connector LEDs are steady green and flashing yellow.

AC24V

(DC24V) IN

If using a 24 VAC or 24 VDC power supply, connect it to

the three-pin power terminal block plug according to the

pin assignment shown.

14-pin

terminal

block

Attach wires from external alarm and audio I/O devices

to the 14-pin alarm/audio I/O terminal block plug

according to the pin assignment shown.

3-Pin Power

Terminal Block

24 VAC

24 VDC

L (Live; white; positive)

Pins 1 and 3

(polarity N/A)

Ground (Earth)

N (Neutral; black; negative)

427-0300-01-10 Rev 130

June 2021

This document does not contain any export-controlled information.

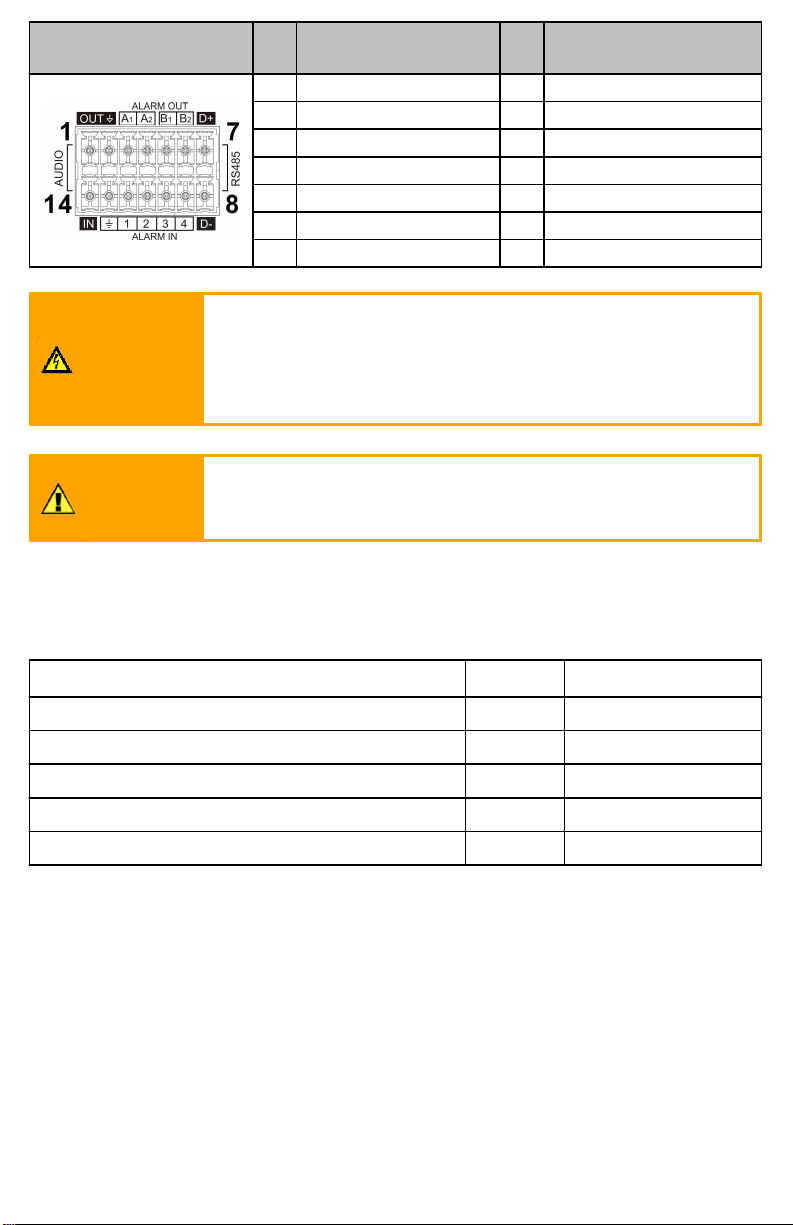

14-Pin Alarm/Audio I/O

Terminal Block

Definition

Audio-Out

Not used

Ground (Audio I/O)

Alarm-In 4

Alarm-Out A1

Alarm-In 3

Alarm-Out A2

Alarm-In 2

Alarm-Out B1

Alarm-In 1

Alarm-Out B2

Ground (Alarm I/O)

Not used

Audio-In

Warning!

This product contains a battery that is soldered to the PCB.

There is a risk of explosion if the battery is replaced by an

incorrect type. Do not replace the battery. The battery

should be disposed of in accordance with the battery

manufacturer’s instructions.

Caution

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

4 Configure the Camera

You can configure the camera using the DNA tool, the camera's web page, or a

VMS.

DNA tool

Camera's web page

Discover camera IP address

•

Configure IP address, mask, and gateway

•

Configure DNS settings, MTU, and Ethernet speed

•

Change user credentials

•

Configure more than one camera at the same time

•

For more information about using a VMS to configure one or more cameras at the

same time, see the VMS documentation.

4.1 Configure for Networking

By default, DHCP is enabled on the camera and a DHCP server on the network

assigns the camera an IP address. For example, if the camera is managed by a

FLIR Horizon or Meridian VMS and the VMS is configured as a DHCP server, the

VMS automatically assigns the camera an IP address.

If the camera is managed by a FLIR Latitude VMS or is on a network with static IP

addressing, you can manually specify the camera’s IP address using the DNA tool

or the camera's web page. The camera's default IP address is 192.168.0.250.

427-0300-01-10 Rev 130

June 2021

This document does not contain any export-controlled information.

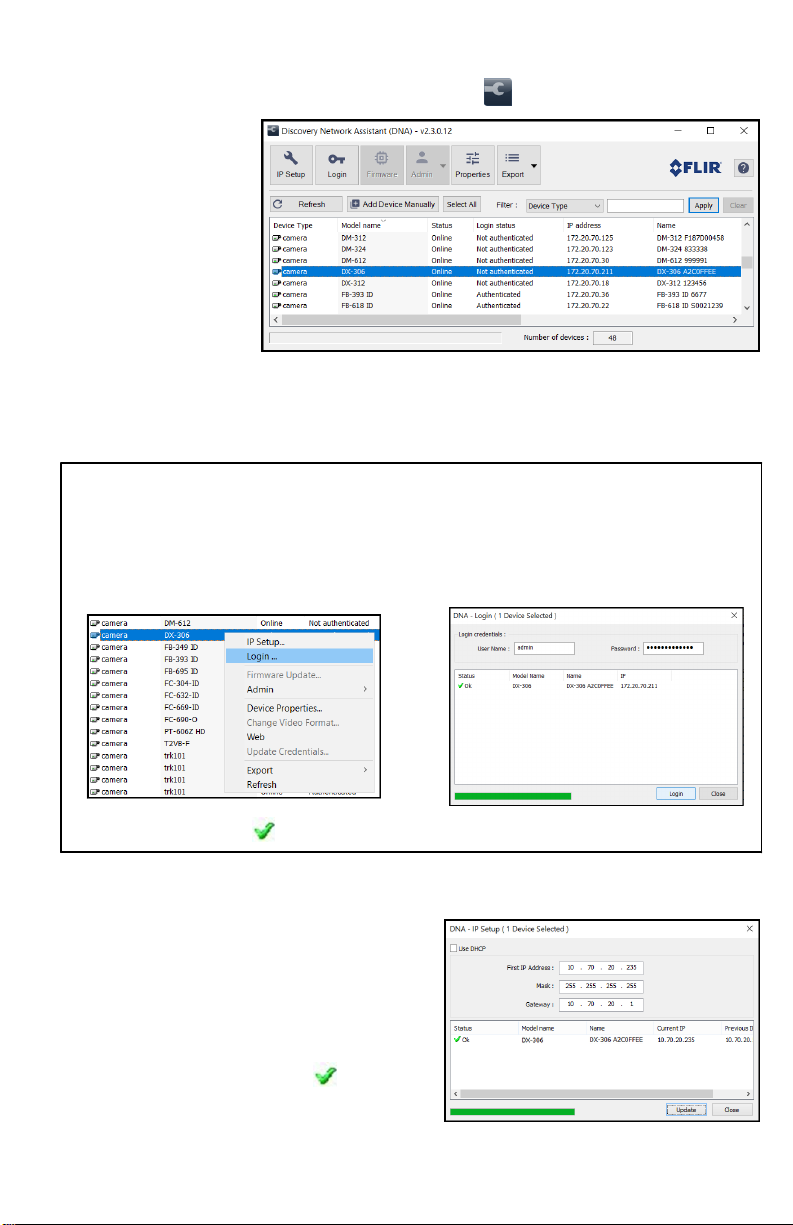

To configure the camera for networking using the DNA tool:

a. Make sure the camera and the PC are on the same LAN segment.

b. Run the DNA tool (DNA.exe) by double-clicking .

The Discover List

appears, showing

compatible

devices on the

VLAN and their

current IP

addresses.

In the DNA Discover List, verify that the camera's status is Online.

If this is the first time you are configuring the camera or if it is the first time after

resetting the camera to its factory defaults, DNA automatically authenticates

the camera with the default password for the camera's admin user (admin).

If the admin user password has been changed, authenticate the camera.

In the DNA Discover List, right-click the camera and select Login.

In the DNA - Login window, type the password for the admin user. If you do

not know the admin user password, contact the person who configured the

camera's users and passwords.

Click Login, wait for Ok status to appear, and then click Close.

In the DNA Discover List, verify that the camera's status is Authenticated.

d. Change the camera’s IP address.

Right-click the camera and select IP

Setup.

In the DNA - IP Setup window, clear

Use DHCP and specify the camera's IP

address. You can also specify the Mask

(default: 255.255.255.0) and Gateway.

Then, click Update, wait for Ok

status to appear, and then click Close.

427-0300-01-10 Rev 130

June 2021

This document does not contain any export-controlled information.

To configure the camera for networking using the camera’s web page:

a. Open the camera’s web page by double-clicking the camera in the DNA

Discover List or by typing the camera’s IP address in a web browser’s address

bar. The camera's web page supports Google Chrome®and other popular web

browsers.

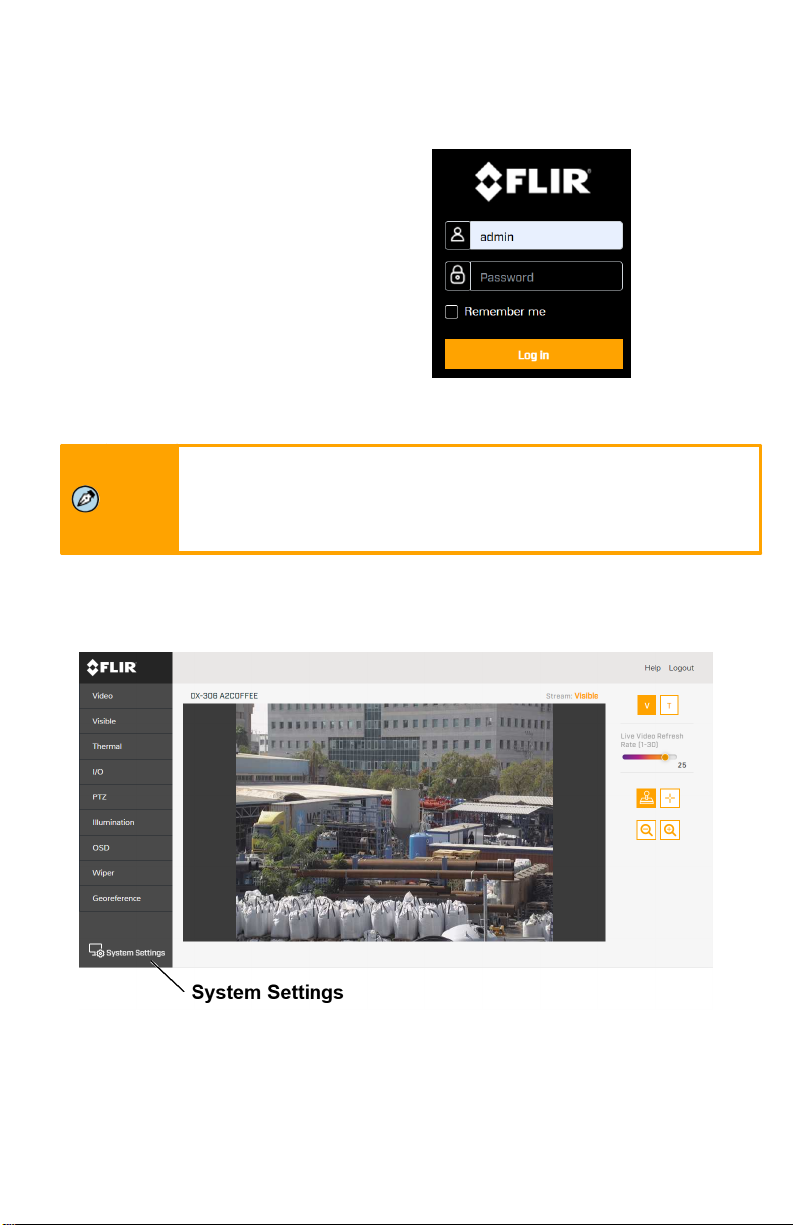

b. On the login screen, type admin

for the user name and the

password for the admin user

(default: admin).

c. When logging in to the camera for the first time or for the first time after

performing a factory default, specify a new password for the admin user.

Note

Use a strong password consisting of at least 12 characters and

at least one uppercase letter, one lowercase letter, and one

number. Passwords can include the following special

characters: |@#~!$&<>+_-.,*?= .

Log back in with the new password.

The camera's View Settings Home Page opens.

d. Click System Settings.

Make sure the Network page appears.

427-0300-01-10 Rev 130

June 2021

This document does not contain any export-controlled information.

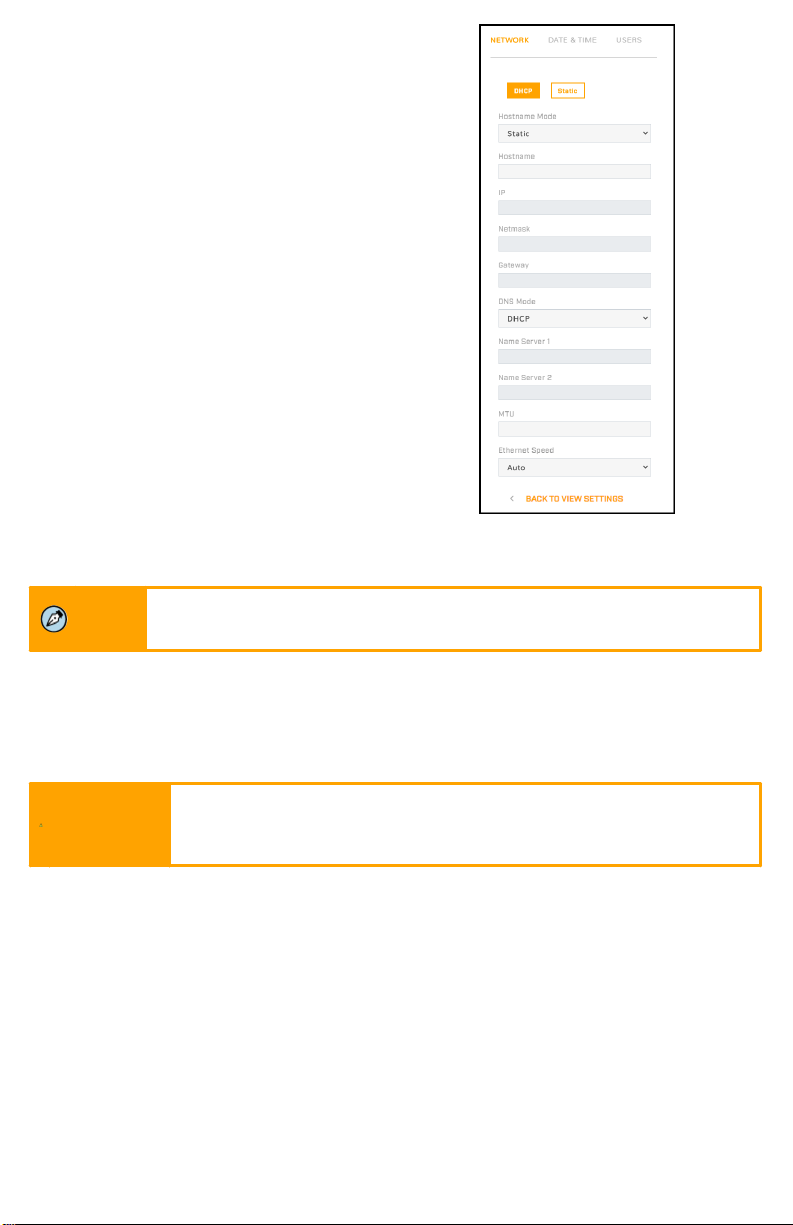

e. You can select Static and manually specify

the camera's Hostname, IP address,

Netmask, and Gateway. You can also

specify the DNS Mode, Name Servers,

MTU (maximum transmission unit), and

Ethernet Speed.

f. Click Save. If you have made any changes on the Network page, the camera

reboots.

Note

For more information about configuring the camera for networking,

see the camera’s installation and user guide.

4.2 Configure and Test the Optional Wash Kit

If you have mounted and connected an optional wash kit, configure and test it and

the camera's wiper according to the kit's instructions manual and according to the

camera's installation and user guide.

Caution

Before activating the wiper, make sure the lens windows are wet.

Using the wiper when the windows are dry causes irreparable

damage to the window coatings and voids the warranty.

4.3 Attach the Camera to a Supported VMS

After you have mounted the camera and discovered or defined its IP address, use

VMS Discovery/Attach procedures to attach the camera to a supported VMS.

427-0300-01-10 Rev 130

June 2021

This document does not contain any export-controlled information.

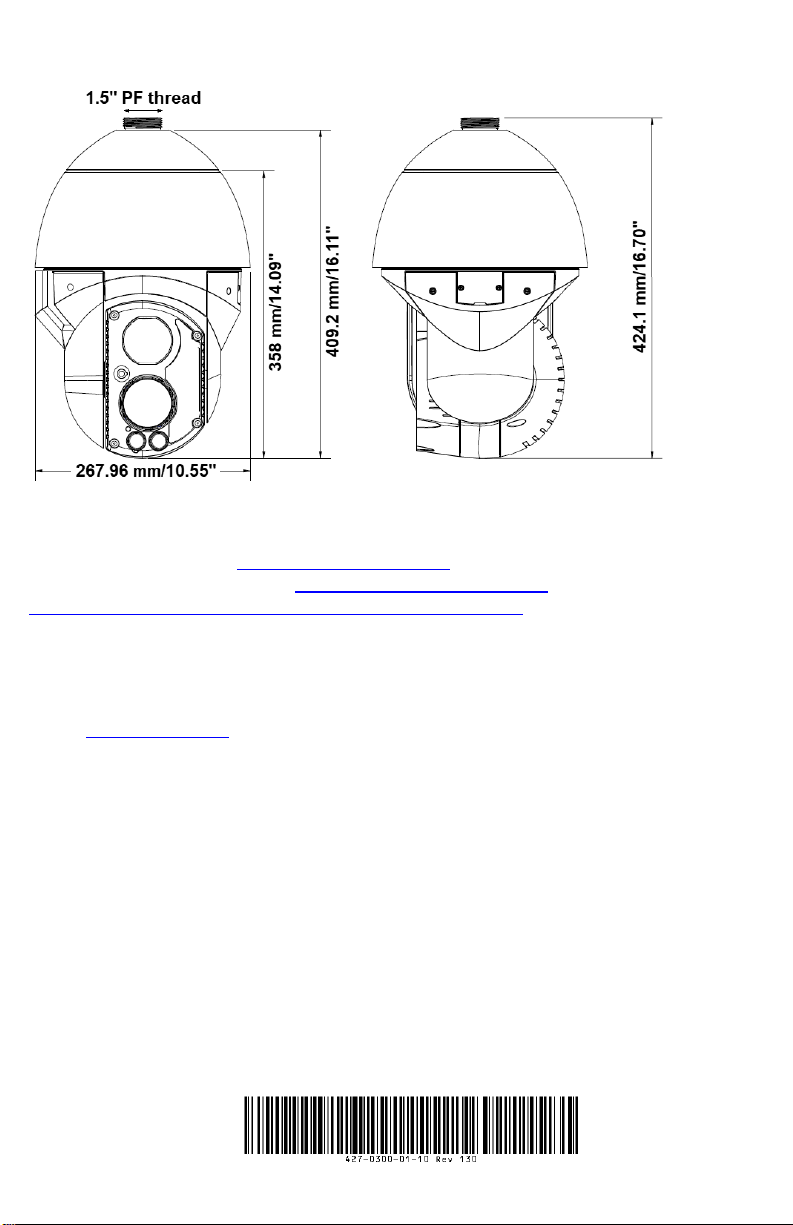

5 Camera Dimensions

Following are the Elara DX-Series camera’s dimensions.

Front View

Side View

6 Register the Product

For warranty information, see https://www.flir.com/support-

center/warranty/security/flir-security-product-warranties/.

7 Contact Information

Teledyne FLIR LLC

6769 Hollister Avenue

Goleta, CA 93117

USA

Support: https://support.flir.com/

Corporate Headquarters

27700 SW Parkway Ave.

Wilsonville, OR 97070

USA

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Teledyne Caméra de sécurité

Teledyne

Teledyne DALSA P3-80-12k40-00-R Manuel utilisateur

Teledyne

Teledyne Linea ML ML-FC-08K10T Manuel utilisateur

Teledyne

Teledyne FLIR Triton FH-Series Manuel utilisateur

Teledyne

Teledyne Quasar Gen III CP-6302-31-P Manuel utilisateur

Teledyne

Teledyne Piranha4 Manuel utilisateur

Teledyne

Teledyne SG-14 Manuel utilisateur

Teledyne

Teledyne M1 Series Instructions d'installation et d'utilisation

Teledyne

Teledyne DALSA HS-40-04k40-xx-R Manuel utilisateur

Teledyne

Teledyne Piranha4 4K Manuel utilisateur

Teledyne

Teledyne FLIR Quasar CM-640 1-IA Series Manuel utilisateur

Teledyne

Teledyne CP-6302-31-I Manuel utilisateur

Teledyne

Teledyne Quasar Premium Manuel utilisateur

Teledyne

Teledyne Quasar Gen III CP-6302-31-P Manuel utilisateur

Teledyne

Teledyne Quasar CP-6408-31-I Manuel utilisateur

Teledyne

Teledyne P2-2x-xxx40, P2-4x-xxx40, P2-2x-xxx30 Manuel utilisateur

Teledyne

Teledyne TS Series Manuel utilisateur

Teledyne

Teledyne CP-6302-30-R Manuel utilisateur

Teledyne

Teledyne Quasar CP-6408-21-I Manuel utilisateur

Teledyne

Teledyne Genie Monochrome Series Manuel utilisateur

Teledyne

Teledyne FLIR FC AI Series Manuel utilisateur

Teledyne

Teledyne CP-6302-31-I Manuel utilisateur

Teledyne

Teledyne Genie C640-1/2 Manuel utilisateur

Teledyne

Teledyne P4-CM-04K07D Manuel utilisateur

Teledyne

Teledyne CP-6302-30-R Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
