Teledyne T3PS36006 Manuel utilisateur

  

   

This manual contains proprietary information, which is protected by

copyrights. All rights are reserved. No part of this manual may be

photocopied, reproduced or translated to another language without

prior written consent of Teledyne LeCroy company.

The information in this manual was correct at the time of printing.

However, Teledyne LeCroy continues to improve products and

reserves the rights to change specification, equipment, and

maintenance procedures at any time without notice.

TABLE OF CONTENTS

Table of Contents

SAFETY INSTRUCTION .................................................... 4

OVERVIEW ...................................................................... 8

T3PS36006 Main Features....................................... 9

Front Panel Overview.............................................10

Rear Panel Overview ..............................................13

SETUP ........................................................................... 14

Installation Location ..............................................15

Power Up ...............................................................16

Over Voltage Protection Setup ...............................17

Load Cable Connection ..........................................19

Output On/Off ......................................................20

APPENDIX ..................................................................... 22

Specification..........................................................22

T3PS36006 Quick Start Guide

SAFETY INSTRUCTION

This chapter contains important safety instructions

that you must follow when operating T3PS36006

and when keeping it in storage. Read the

following before any operation to insure your

safety and to keep the best condition for

T3PS36006.

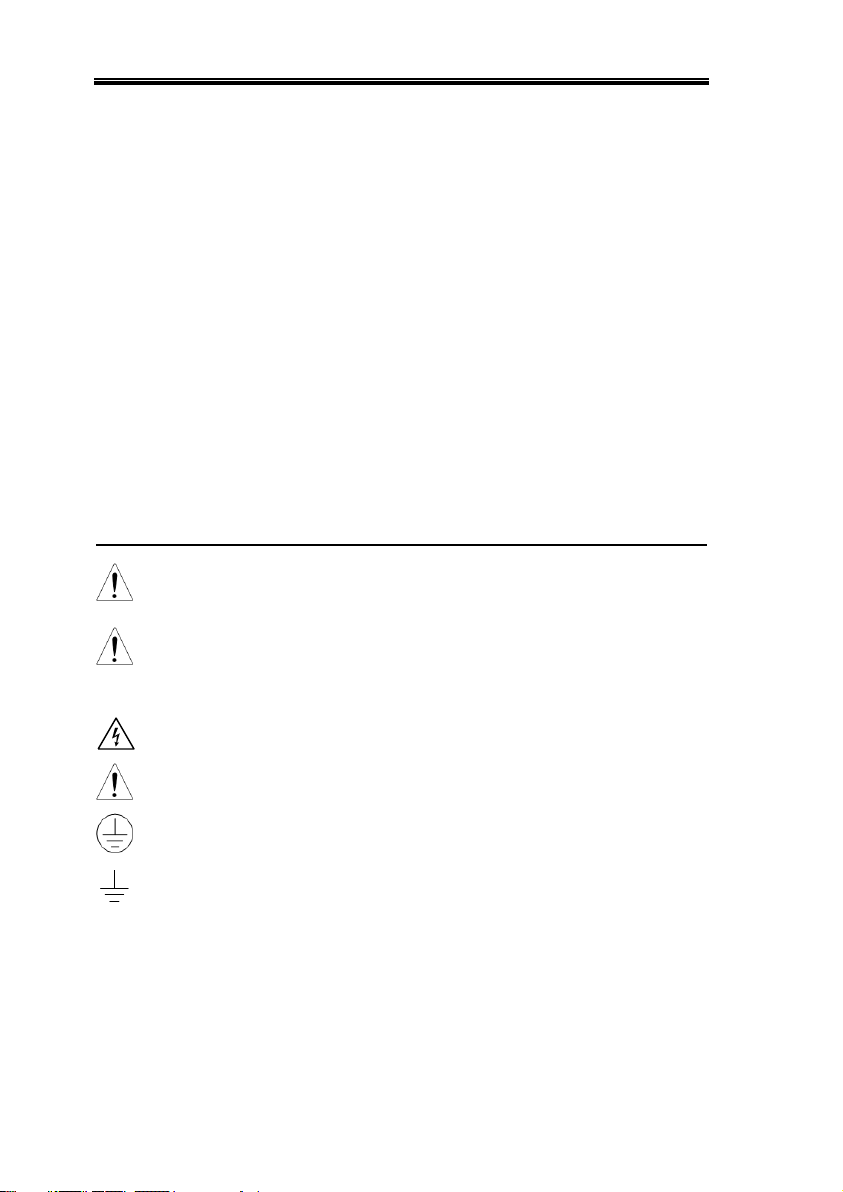

Safety Symbols

These safety symbols may appear in this manual or on T3PS36006.

WARNING

Warning: Identifies conditions or practices that

could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that

could result in damage to T3PS36006 or to other

properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Earth (ground) Terminal

SAFETY INSTRUCTION

Safety Guidelines

General Guideline

CAUTION

Do not place any heavy object on T3PS36006.

Avoid severe impacts or rough handling that

leads to damaging T3PS36006.

Do not discharge static electricity to T3PS36006.

Do not block or obstruct the cooling fan vent

opening.

Leave a space around T3PS36006, at least 3cm to

the left and right.

Do not perform measurement at circuits directly

connected to Mains (Note below).

Do not disassemble T3PS36006 unless you are

qualified as service personnel.

(Measurement categories) EN 61010-1:2010 specifies the

measurement categories and their requirements as follows.

T3PS36006 falls under category I.

Measurement category IV is for measurement performed at the

source of low-voltage installation.

Measurement category III is for measurement performed in the

building installation.

Measurement category II is for measurement performed on the

circuits directly connected to the low voltage installation.

Power Supply

WARNING

AC Input voltage: 115V/230V ±15%, 50/60Hz

Connect the protective grounding conductor of

the AC power cord to an earth ground, to avoid

electrical shock.

Fuse

WARNING

Fuse type: T10A/250V

Make sure the correct type of fuse is installed

before power up.

T3PS36006 Quick Start Guide

To ensure fire protection, replace the fuse only

with the specified type and rating.

Disconnect the power cord before fuse

replacement.

Make sure the cause of fuse blowout is fixed

before fuse replacement.

Cleaning

T3PS36006

Disconnect the power cord before cleaning.

Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

Do not use chemical or cleaner containing harsh

material such as benzene, toluene, xylene, and

acetone.

Operation

Environment

Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

Relative Humidity: < 80%

Altitude: < 2000m

Temperature: 0°C to 40°C

(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees

and their requirements as follows. T3PS36006 falls under degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or

gaseous (ionized gases), that may produce a reduction of dielectric

strength or surface resistivity”.

Pollution degree 1: No pollution or only dry, non-conductive

pollution occurs. The pollution has no influence.

Pollution degree 2: Normally only non-conductive pollution

occurs. Occasionally, however, a temporary conductivity caused

by condensation must be expected.

Pollution degree 3: Conductive pollution occurs, or dry, non-

conductive pollution occurs which becomes conductive due to

condensation which is expected. In such conditions, equipment

is normally protected against exposure to direct sunlight,

precipitation, and full wind pressure, but neither temperature

nor humidity is controlled.

Storage

environment

Location: Indoor

Relative Humidity: < 70%

Temperature: −10°C to 70°C

SAFETY INSTRUCTION

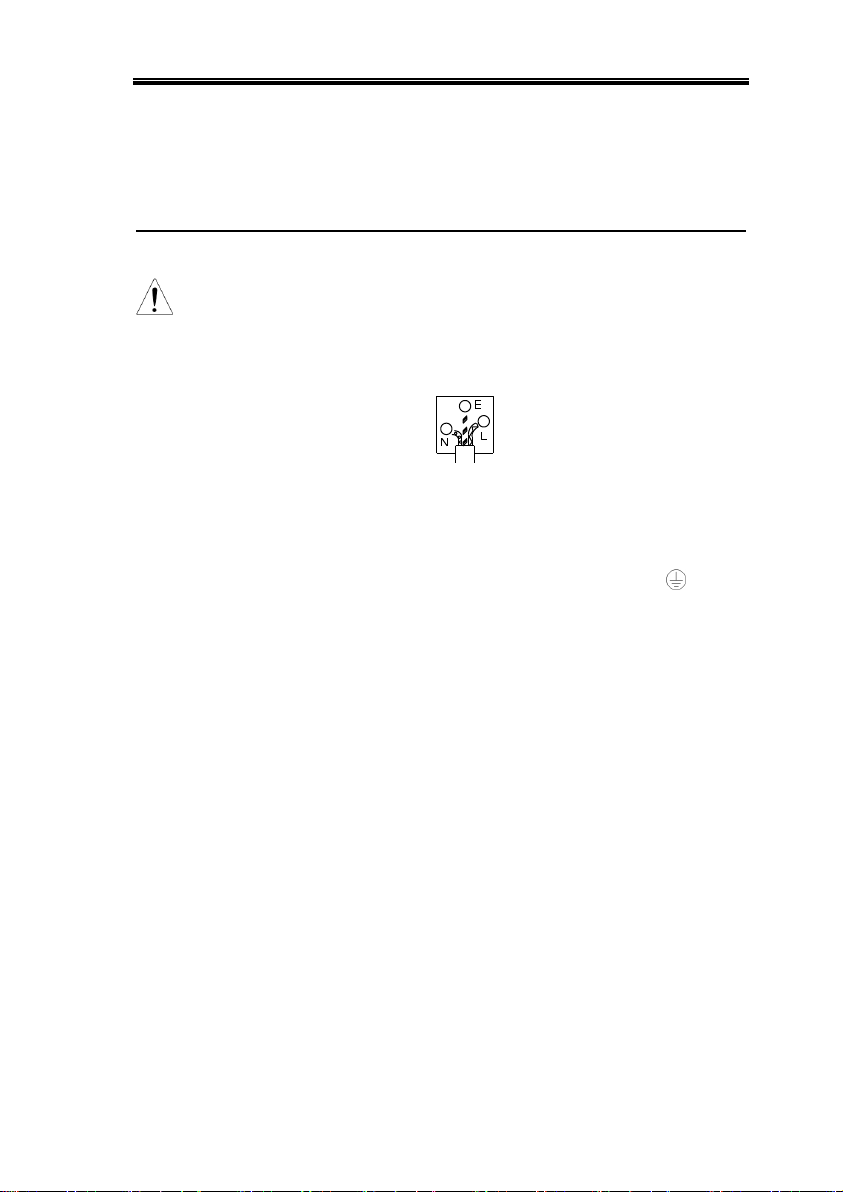

Power cord for the United Kingdom

When using T3PS36006 in the United Kingdom, make sure the

power cord meets the following safety instructions.

NOTE: This lead/appliance must only be wired by competent persons

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in this lead are coloured in accordance with

the following code:

Green/ Yellow:

Earth

Blue:

Neutral

Brown:

Live (Phase)

As the colours of the wires in main leads may not correspond with the

colours marking identified in your plug/appliance, proceed as follows:

The wire which is coloured Green & Yellow must be connected to the

Earth terminal marked with the letter E or by the earth symbol or

coloured Green or Green & Yellow.

The wire which is coloured Blue must be connected to the terminal

which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the terminal

marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment or

contact the supplier.

This cable/appliance should be protected by a suitably rated and

approved HBC mains fuse: refer to the rating information on the

equipment and/or user instructions for details. As a guide, cable of

0.75mm2should be protected by a 3A or 5A fuse. Larger conductors

would normally require 13A types, depending on the connection

method used.

Any moulded mains connector that requires removal /replacement

must be destroyed by removal of any fuse & fuse carrier and disposed

of immediately, as a plug with bared wires is hazardous if a engaged in

live socket. Any re-wiring must be carried out in accordance with the

information detailed on this label.

T3PS36006 Quick Start Guide

OVERVIEW

This chapter describes T3PS36006 in a nutshell,

including its main features and front / rear panel

introduction. After going through the overview,

follow the Setup chapter (page 14) to properly

power up and set operation environment.

T3PS36006 Main Features ....................................... 9

Front Panel Overview ............................................ 10

Rear Panel Overview ............................................. 13

OVERVIEW

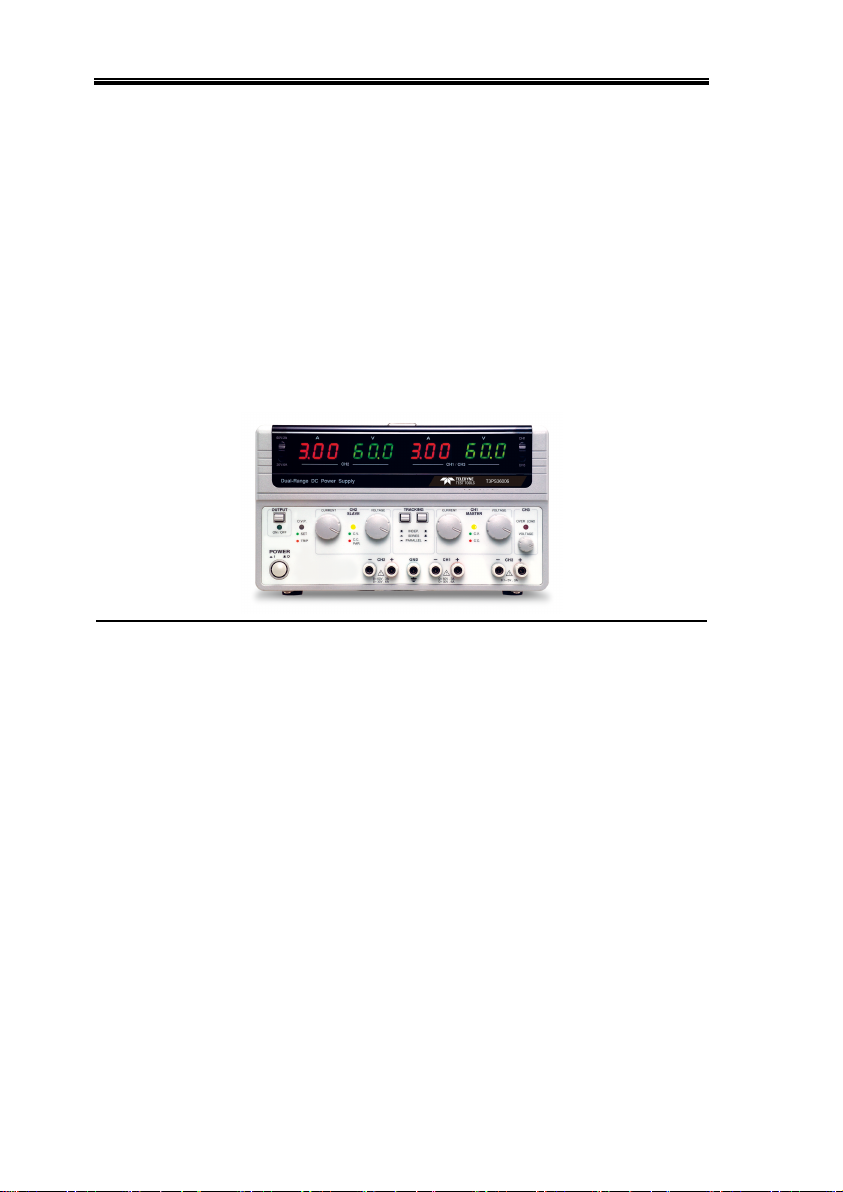

T3PS36006 Main Features

Performance

Low noise (≤ 50dB, Cooling fan controlled by

Heatsink temperature)

High efficiency power conversion, minimum

70% with full load

Fast Output On/Off response (≤100ms)

Low temperature coefficient

(≤100ppm/°C+3mV, ≤150ppm/°C+3mA)

Compact size, light weight (6kg)

Operation

Constant voltage operation

Constant current operation

Tracking Series operation

Tracking Parallel operation

Output On/Off control

3 outputs with full Voltage control

Output range selection for CH1 and CH2,

60V/3A or 30V/6A

LED display

Protection

Over voltage protection (OVP)

Overload protection

Reverse polarity protection

Interface

Remote control output On/Off terminal

T3PS36006 Quick Start Guide

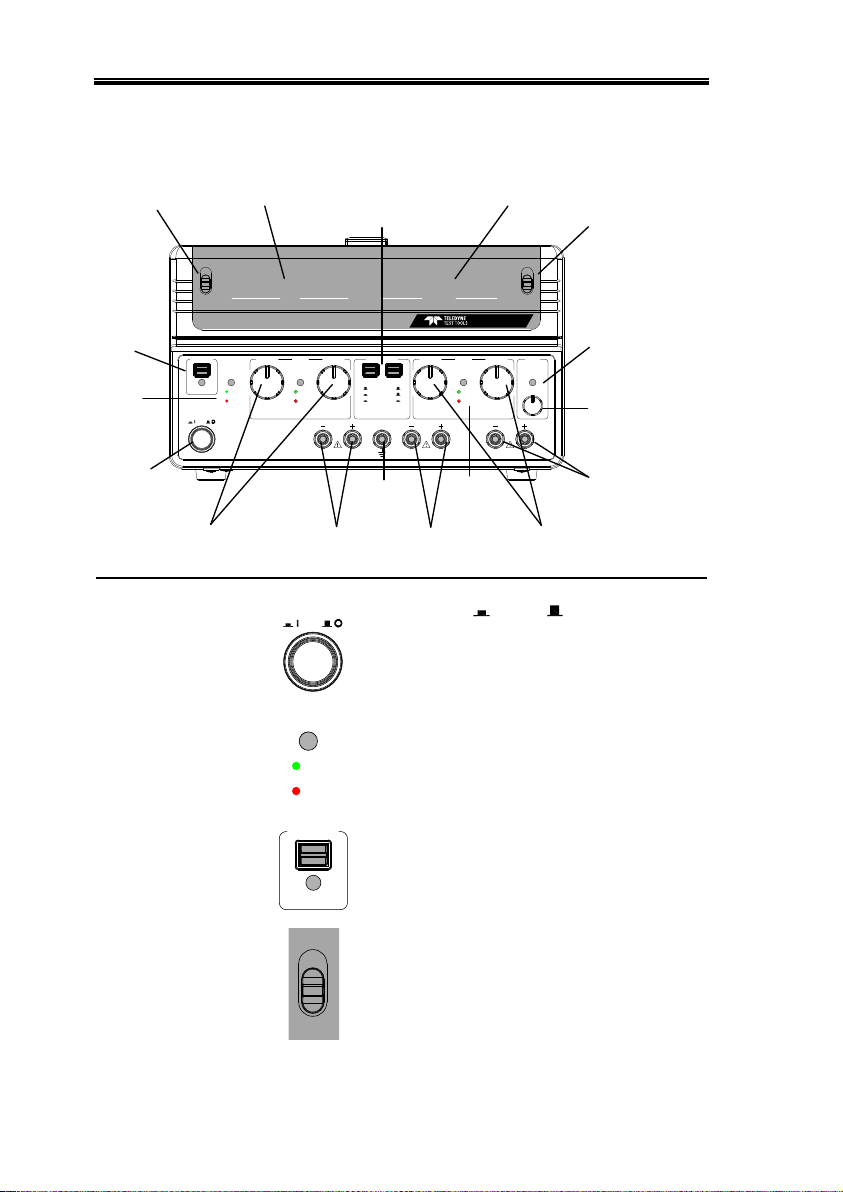

Front Panel Overview

VOLTAGE

VOLTAGE CURRENT

CURRENT

OVER LOAD

CH3

VOLTAGE

OUTPUT CH2 CH1

SLAVE MASTER

TRACKING

INDEP.

SERIES

PARALLEL

C.V.

O.V.P.

SET C.V.

C.C.

TRIP C.C.

PAR.

CH2 CH1 CH3GND

0.1-5V, 3A

0-60V, 3A

0-30V, 6A

0-60V, 3A

0-30V, 6A

ON / OFF

POWER

Dual-Range DC Power Supply

CH1

CH3

AVA

CH1 / CH3CH2

60V/3A

30V/6A

T3PS36006

CH2 Meter

Output Range

Switch CH1/CH3

Meter Switch

CH1/3 Meter

Output

Key

Power

Switch

OVP

Indicator

CH2 Output

Knob

CH2

Indicator

CH2 Output

Terminal

Ground

Terminal

Tracking Mode

Switches

CH3 Overload

Indicator

CH3 Voltage

Knob

CH3 Output

Terminal

CH1 Output

Knob

CH1

Indicator

CH1 Output

Terminal

Power switch

POWER

Turns On or Off the main

power.

OVP indicator

O.V.P.

SET

TRIP

Turns green during the OVP setup.

Turns red (tripped) when the

output Voltage exceeds the setting.

Output Key

OUTPUT

ON / OFF

Turns the output On (green) or Off

(gray), all three channels at once.

Output range

switch

60V/3A

30V/6A

Selects the output range, 60V/3A

or 30V/6A.

CH2 meter

Displays Channel 2 current (A) and voltage (V).

Table des matières

Autres manuels Teledyne Alimentation

Teledyne

Teledyne T3PS13206P Manuel utilisateur

Teledyne

Teledyne T3PS40381P Manuel utilisateur

Teledyne

Teledyne 913 Mode d'emploi

Teledyne

Teledyne T3PS13206 Manuel utilisateur

Teledyne

Teledyne Power Pod 400 Manuel utilisateur

Teledyne

Teledyne T3PS12415 Manuel utilisateur

Teledyne

Teledyne Battery-Backed Power Supply Mode d'emploi

Teledyne

Teledyne T3PS16081P Manuel utilisateur

Teledyne

Teledyne T3PS3000 Manuel utilisateur

Teledyne

Teledyne T3PSX3200P Series Manuel utilisateur

Teledyne

Teledyne T3PS40381P Manuel du propriétaire

Teledyne

Teledyne T3PS20051P Manuel utilisateur

Teledyne

Teledyne 3190 Series Manuel utilisateur

Teledyne

Teledyne HASTINGS 200 Series Manuel utilisateur

Teledyne

Teledyne LeCroy T3PS Series Manuel utilisateur

Teledyne

Teledyne T3PS30721P Manuel utilisateur

Teledyne

Teledyne Power Pod 400 Manuel utilisateur

Manuels Alimentation populaires d'autres marques

Monacor

Monacor PS-12CCD Manuel utilisateur

VOLTIMA

VOLTIMA MagicBox 15 Manuel utilisateur

Agilent Technologies

Agilent Technologies 6032A Manuel utilisateur

Miller

Miller Auto Deltaweld 452 Manuel utilisateur

BCP

BCP PUOUBK Feuille d'instructions

HC 2210 Manuel utilisateur

Puls

Puls CT5.241 Manuel utilisateur

OCZ

OCZ ZX1250W Manuel utilisateur

iseg

iseg ECH 238 Manuel utilisateur

Power

Power XXL A Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 6631B Manuel utilisateur

Renogy

Renogy PHOENIX 300 Manuel utilisateur

HP 6200B Manuel de service

Epson

Epson Stylus Scan 2500 Manuel d'utilisation

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuel utilisateur

Puls

Puls MiniLine ML50.100 Manuel utilisateur

Puls

Puls AS-Interface SLA4.100 Manuel utilisateur

Kenwood

Kenwood PS-60 Manuel utilisateur
