Tekvox Wunderbar Manuel utilisateur

www.tekvox.com

Wunderbar UHD All-In-One Conference Bar

Version: 79068-WB_2020V1.0

www.tekvox.com

Preface

Read this user manual carefully before using the product. Pictures shown in this manual are for

reference only. Different product model specifications may vary.

This manual is only for operation instruction, please contact the local distributor for maintenance

assistance. The functions described in this version were updated October 2020. In order to continue

improving the product, we reserve the right to make function or parameter changes without notice or

obligation. Please refer to the dealers for the latest details.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. It has

been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a commercial installation.

Operation of this equipment in a residential area is likely to cause interference, in which case the

user at their own expense will be required to take whatever measures may be necessary to correct

the interference.

Any changes or modifications not expressly approved by the manufacture would void the user’s

authority to operate the equipment.


www.tekvox.com
Table of Contents

Safety Precautions.......................................................................................................................4
Package List ................................................................................................................................5
Dimensions & Interface ................................................................................................................5
1 Dimensions..........................................................................................................................................5
2 Interface...............................................................................................................................................6
Product Introduction ....................................................................................................................7
1 Features...............................................................................................................................................7
Specifications & Installation.........................................................................................................9
1 Specifications......................................................................................................................................9
2 Installation .........................................................................................................................................10
2.1 Wall-Mount Instructions ..........................................................................................................10
2.2 Source Layout...........................................................................................................................11
Remote Control ..........................................................................................................................12
1 Remote Control Pairing ....................................................................................................................12
2 Remote Control Layout.....................................................................................................................13
3 Remote Control Operation................................................................................................................13
GUI Settings...............................................................................................................................14
1 Menu ..................................................................................................................................................14
2 Settings..............................................................................................................................................14
3 Noise Reduction................................................................................................................................15
4 Information........................................................................................................................................15
5 Restore Default .................................................................................................................................16
Maintenance & Troubleshooting.................................................................................................16
1 Maintenance......................................................................................................................................16
2 Troubleshooting................................................................................................................................16


www.tekvox.com

1. Safety Precautions

To ensure the best performance from the product, please read all instructions carefully before using

the device. Save this manual for further reference.

•Unpack the equipment carefully, and save the original box and packing material for possible

future shipment

•Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons

•Do not dismantle the housing or modify the module (electrical shock or burn hazard)

•Using supplies or parts not meeting the products’ specifications may cause damage,

deterioration or malfunction

•Refer all servicing to qualified service personnel

•To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product

near water

•Do not put any heavy items on the product’s power cable

•Do not remove the housing of the device as opening or removing housing may expose you to

dangerous voltage or other hazards

•Install the device in a place with sufficient ventilation to avoid damage caused by overheating

•Keep the module away from liquids

•Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object

or liquid falls or spills on to the housing, unplug the module immediately.

•Do not twist or pull by force ends of the optical cable. It can cause malfunction.

•Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device

before cleaning.

•Unplug the power cord when left unused for a long period of time

•Information on disposal for scrapped devices: do not burn or mix with general household

waste, please treat them as normal electrical wastes

www.tekvox.com

2. Package List

•Camera

•Power adapter

•Power cable

•Remote control

•USB cable

•Wall bracket

•User manual

Note: Please contact your distributor immediately if any damages or defects in the components are

found.

3. Dimensions & Interface

3.1 Dimensions

3.5”

Ø.39”

Ø2.42”

7.77”

23.66”

4.54”

5.25”

5.56”

4.54”

www.tekvox.com

3.2 Interface

No.

Description

DC 12V Interface

USB 3.0 Interface

Reset Button

HDMI Interface

USB 2.0 Interface

www.tekvox.com

4. Product Introduction

4.1 Features

Application

This product is specially designed for small and medium-sized meeting rooms, namely for huddle

rooms with 4 to 6 people.

All-in-one Design

The three-in-one design of a 4K ultra HD camera, beamforming microphone, and full-frequency

loudspeaker reduces wiring and allows for easier video communication.

Bluetooth 5.0

This product can be connected to mobile phone via Bluetooth as a microphone and speaker, and can

connect mobile phone calls to audio and video conferences.

4K UHD

The camera uses a 1/2.5 inch, 8.51M pixel high quality CMOS sensor for a 4K (3840x2160) @ 60fps

clear image, and is downward compatible with 1080P, 720P and other resolutions. It can meet the

needs of users for different video experiences, and can provide clearer, smoother, and more accurate

communication.

Wide Field-of-View (FoV)

With a 121° wide field of view (110° horizontal field of view), 5x zoom, optical lens customized for

conferences, and built-in electric head (horizontal and pitch ±15° motion range), there is no need to

worry about camera position as the camera will follow participants automatically.

Beamforming Microphone

The Beamforming (BF) microphone is built-in, with a pickup distance of ~20 feet. The low-distortion

transverse beamforming algorithm can direct the microphone directly to the speaker, which allows

for superior sound and clearer communication.

Audio 3A Algorithm

A Built-in audio 3A algorithm (AEC/AGC/ANS) can meet the communication needs of different room

layouts. Whether sitting at a conference table, sitting against a wall, or standing, users can expect a

comfortable calling experience.

Full Frequency Speaker

The full frequency Hi-Fi loudspeaker, with its professional acoustics design, reduces noise

interference and provides an outstanding sound quality.

www.tekvox.com

Plug and Play Type

Through the plug-and-play USB interface, connecting to the computer or business display screen is

easier than ever. Less wiring and convenient video communication makes the device easy to set up

and use.

Intelligent Analysis

A Built-in intelligent analysis algorithm listens to the speaker’s position, while automatic participant-

framing and speaker tracking switches the speaker’s screen to ensure that the speaker is always

clearly in the picture.

Rich Interfaces

Supports HDMI 2.0 and USB 3.0 audio/video outputs simultaneously.

Easy Installation

Flexible installation options for countertops, walls, and TV/display screens are available for quick

installation and deployment.

www.tekvox.com

5. Specifications & Installation

5.1 Specifications

Camera

Video Resolution

4K@60fps, 4K@30fps, 1080P@60fps, 1080P@30fps, 720P@60fps,

720P@30fps, etc

Sensor

1/2.5 inch, CMOS, 8.51M pixel

Lens

120° (DFOV), 110° (HFOV)

5x digital zoom

Pan Tilt: ±15°

PTZ

MPT + EPTZ

Digital Noise Reduction

2D & 3D Digital Noise Reduction

Signal-to-Noise Ratio

(SNR)

≥55dB

Back-Light

Compensation (BLC)

Supported

Audio

Full-Frequency Speaker

96dB Sound Pressure Level (SPL) @ 0.5m

Microphone Array

Beamforming microphone

Pick-up distance: Up to 20 feet (6m)

USB Features

Connection Type

USB 3.0 (compatible with USB 2.0)

Video Compression

Format

YUY2 / MJPG / NV12

USB Audio

32k sampling rate

Supports UAC 2.0

USB Communication

Protocol

UVC 1.1 ~ 1.5

UVC PTZ Control

Supported

Input/Output Interface

1 HDMI (19-pin, Female, Version 2.0)

1 USB 3.0 (Type-C)

1 USB 2.0 (Type-A)

Power Input

DC 12V, 1.5A (max)

General

Control Method

2.4G Remote Controller

Installation Method

Desktop, wall, TV, or other display device

Operating Temperature

32 ~ 104°F (0 ~ 40°C)

Storage Temperature

-40 ~ 140°F (-40 ~ 60°C)

Product Dimensions

23.7” (601mm) x 5.6” (141mm) x 4.5” (151mm)

Product Weight

5.5 lbs. (2.5kg)

Specifications are subject to change without notice

www.tekvox.com

5.2 Installation

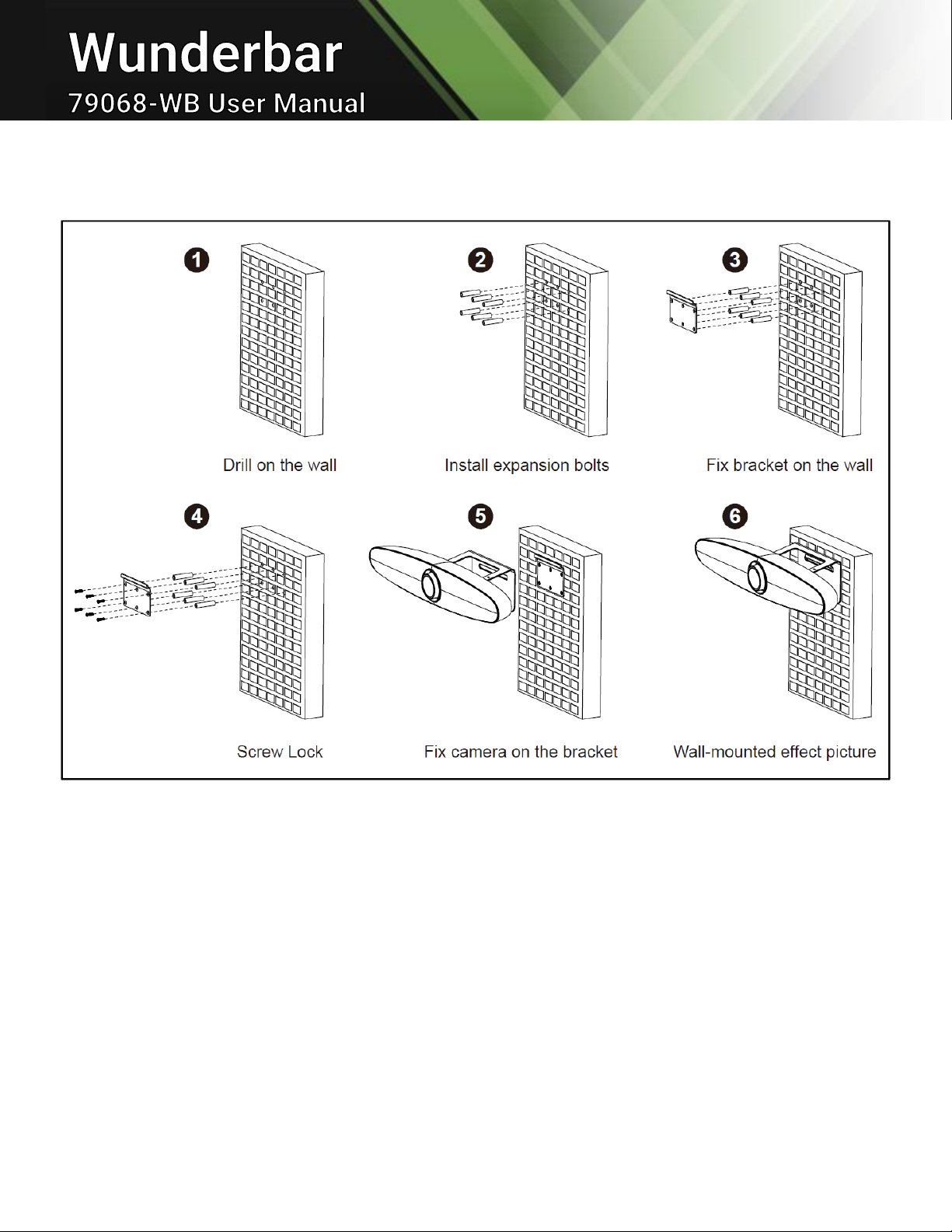

5.2.1 Wall-Mount Instructions
