Teko Astra-321 Manuel utilisateur

Astra-321

Electro-Contact Panic Button

User Guide

Manufacturer:

TEKO-TD

Prospekt Pobedy str. 19

420138 Kazan, Russia

+7(843) 528-03-69

[email protected]z www.teko.biz www.teko.biz/en

Made in Russia

Rev. 321-v1_2_instr_EN

1 FUNCTION

The detector is untended for manually switching

on the alarm signal by pressing the button and

transferring the alarm signal via 2-wire line.

2 SPECIFICATION

Switching voltage, V, max..............................72

Switching current, A, max .............................0.2

Overall dimensions, mm.....................87×60×30

Operating Conditions

Temperature range, °С........from - 30 up to +50

Relative air humidity, % ............up to 95 at +25 °С

Withoutmoisture condensation

3 DELIVERY SET

Delivery set includes: unlock key –2 pcs., user

guide –1 pcs.

4 OPERATION

The detector generates an alarm signal once

the detector button is pressed.

The button is mechanically locked in the

“Alarm” status by a spring.

A key is used to reset the detector to the

standby status.

5 INSTALLATION PLACE

The detector shall be mounted in a concealed,

discreet location for prompt and inconspicuous

use.

6 INSTALLATION PROCEDURE

1) Remove the

cover

2) Perform wiring

(see sec.7)

3) Install the cover

4) Perform detector

operability test

(see sec.8)

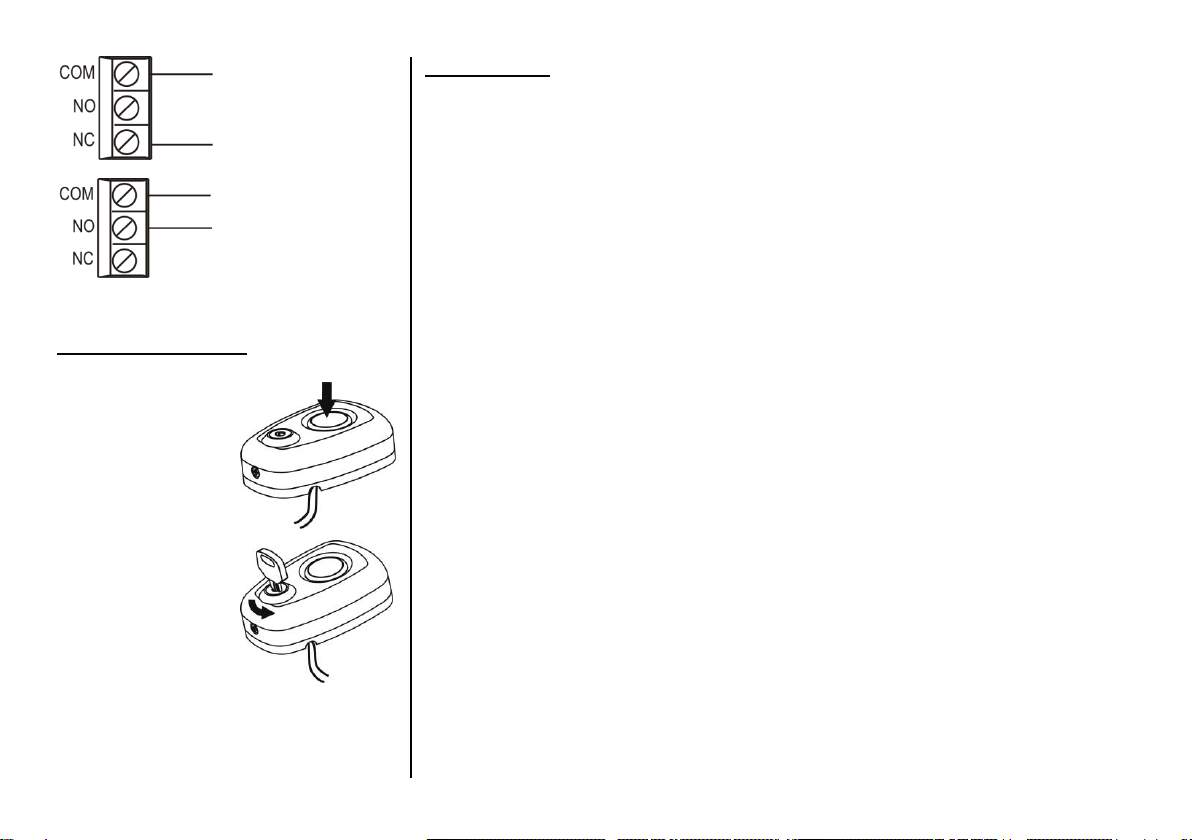

7 WIRING

Perform wiring to detector`s terminals in

accordance with control panel operating manual.

Normally closed

contacts

Normally opened

contacts

8 OPERABILITY TEST

1) Press the button.

The button shall

remain locked in

pressed position.

2) To restore the

detector to the

standby status,

turn the key.

9 WARRANTY

The operation warranty period is 2 years from the date

of operation start-up but no longer than 2 years 6

months from the date of manufacturing subject to the

requirements of Operating Manual.
