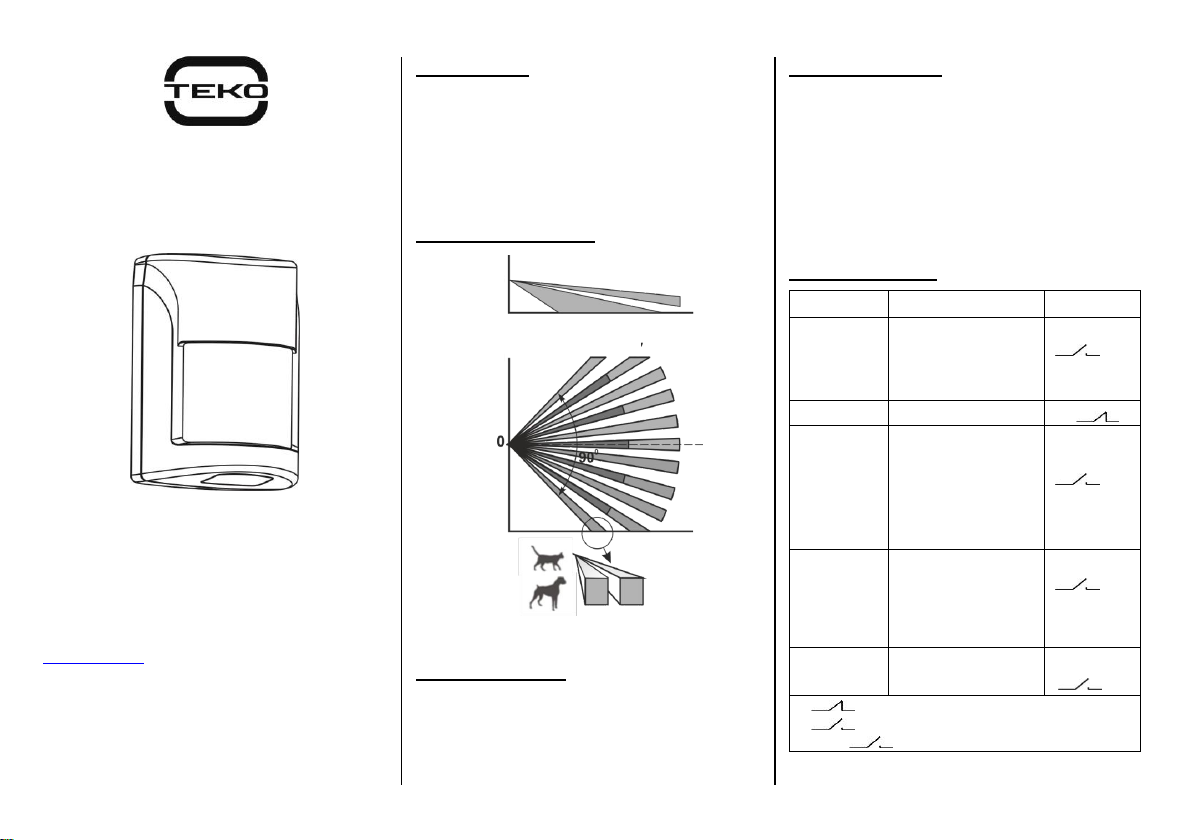

Teko Astra-517 ver.P Manuel utilisateur

«Astra-517 ver. Р»

Optic-Electronic PIR Motion

Detector

(Volumetric Lens)

User Guide

Manufacturer:

ZAO NTC TEKO

420108, Kazan, Russia

Gafuri 71

+7(843) 528-03-69

[email protected]

teko.biz

Made in Russia

Rev. 517p-v1_4_instr_en

1 FUNCTION

Detector is intended to detect unauthorized

access into enclosed protected area and to

generate alarm notification by opening of

signaling relay contacts.

The detector is resistant to the movement of

pets weighing up to 20 kg.

2 DETECTION ZONE

3 DELIVERY SET

Delivery set includes: dowel –2 pcs., screw –2

pcs., label –2 pcs., user guide –1 pcs.

4 SPECIFICATION

Range of detectable

moving speed, m/sec .................from 0.3 to 3.0

Power supply voltage, V................. from 8 to 15

Current consumption, mA, max..................... 15

Overall dimensions, mm.................70 ×51 ×41

Operation conditions

Temperature range, °С............ from - 30 to + 50

Relative air humidity, % .........up to 98 at + 25 °С

Without moisture condensation

5 NOTIFICATION

Notification

LED

Relay (TMP)

Boot mode

Flashes 1 time per

1 second after

turning on the pow-

er. Duration 60 sec

for

60 sec

Normal

Off

Alarm

Lights up 1 time

for 2.5 sec when

detecting a human

movement in the

detection zone

for

2,5 sec

Failure

until failure

elimination

Tampering

Off

ТМР

«» –relay closed,

« » –relay open,

«ТМP »–Tamper circuit open

Side view

Top view

2,4m

10m

6 INSTALLATION PLACE

1) Recommended installation height is 2.2-2.4 m.

2) Install detector on bearing walls and carriers.

3) Alarm loop and power supply wires should

be located far from power cables.

To eliminate false alarm hazards

It is recommended to close all doors, air-vents,

switch off fans, air-conditioners and other

sources of intense air flows in the room during

protection period.

Not recommended installation places

7 INSTALLATION

1) Remove cover

2) Remove PCB

3a) Installation on a

wall

3b)Installation in a

corner

Orient detector base strictly according to

the picture!

4) Fix the base on the wall. Install PCB.

5) Connect the wires (see section 8)

6) Perform TEST pass (see section 9)

8 WIRING

Perform wiring to detector`s terminals in

accordance with control panel operating manual.

+12V, GND –power supply terminals.

RELAY –terminals for detector connection to

hardwired zone;

TMP –detector tampering control terminals;

9 TEST-PASS

1) Turn on detector power. LED indicator will

start flashing for a maximum of 60 seconds.

2) Perform a TEST pass across the protected

area at a speed of 0.5 m/s to determine the

sensitive zones. At the moment of detection

(LED indicator will light up for 2.5 seconds),

stop, mark this position,

then go back one step

and continue moving.

Repeat the test pass in

the opposite direction.

10 WARRANTY

Warranty period of operation - 5 years from the

date of commissioning, but not more than 5

years 6 months from the date of manufacture,

and subject to the requirements of the current

operational documentation.

Squeeze

the caps of

the mount-

ing holes

Squeeze

the caps of

the mount-

ing holes

hooks
