teko Astra-4511 Manuel utilisateur
Astra-4511
Wireless manual fire call point
User Guide
Manufacturer:
TEKO-TD LLC
Prospekt Pobedy str. 19
420138 Kazan, Russia
+7(843) 528-03-69
www.security-hub.ru/en/
Made in Russia
Ver. 4511rk2-v2_2_instr_en
1 FUNCTION
The detector is intended to manually turn on
the fire alarm by pressing the drive element,
forming a notification of a fire and transfer the
notification to the Security Hub controller via
radio.
2 SPECIFICATION
Wieless coverage range,
line-of-sight, m, not less...............................100
Operating frequency range, MHz .................433
Supply voltage, V........................from 2,1 to 3,0
Overall dimensions, mm...............110 × 94 × 47
Operation conditions
Temperature range, °С............from - 10 to + 55
Relative air humidity, % ...........up to 93 at + 40 °С
Without moisture condensation
3 DELIVERY SET
Detector delivery set includes: mounting parts
(dowel –2 pcs., screw –2 pcs.,), special key for
open –1 pc., key pusher –1 pc., battery
(CR123A, 3V) - 2 pcs., user guide –1 copy.
4 INDICATION
NOTICE
INDICATION
Boot time
1xred flash then 1x white led
flash
Norm
1x red flash in 60 sec. period
Fire alarm
1x red flash every2 sec. until the
firefactoriseliminated.
2x flashing in a period of 25 sec.
when eliminating the fire factor
before receiving a command
from thecontroller
Test
1x red flash in every 2 sec.
during 30 sec. when receiv-
ing the test command from
the Astra-942 laser remote
control
Failure
3x red flash in 25 sec. period
Power failure
3x red flash in 25 sec. period
Tampering /
Restore tam-
pering
1xred flash
Search con-
nection
5x white flash in 1 sec.
No connection
2x white flash in 25 sec.
period
Reset
2x white flash in 1-2 sec.
NOTE
1 When the message “Power failure” appears,
the battery must be replaced within two months.
2 Indication of notifications "Power failure", "No
network", "Search for network" goes off 60
minutes after turning on the power supply. The
indication turns on again for 60 minutes after
receiving the "Test" command from the Astra-
942 laser tester.
5 ASSIGNING TO THE SYSTEM
1) Open the detector with a special key (in
delivery set).
2) Start assigning on the Security Hub mobile
or desktop app. Assigning starts for 45-60
sec.
3) Insert battery into the detector:
Secondary –first
Primary - next
4) Detector’s led start flashing: 5x white flash
in 1 sec.
Make sure that the assigning is successful on
the Security Hub mobile or desktop app. If as-
signing is unsuccessful, repeat the procedure.
6 RESET PROCEDURE
1) Open detector with a special key.
2) Close the DEL contacts - the red indicator
will turn on.
3) After turning off the red indicator, open the
DEL contacts.
4) The detector generates a notice “No con-
nection” and becomes available for as-
signing to the system.
7 INSTALLATION PLACE
The detector is installed in an accessible place
along escape routes, in corridors, on staircases,
at exits.

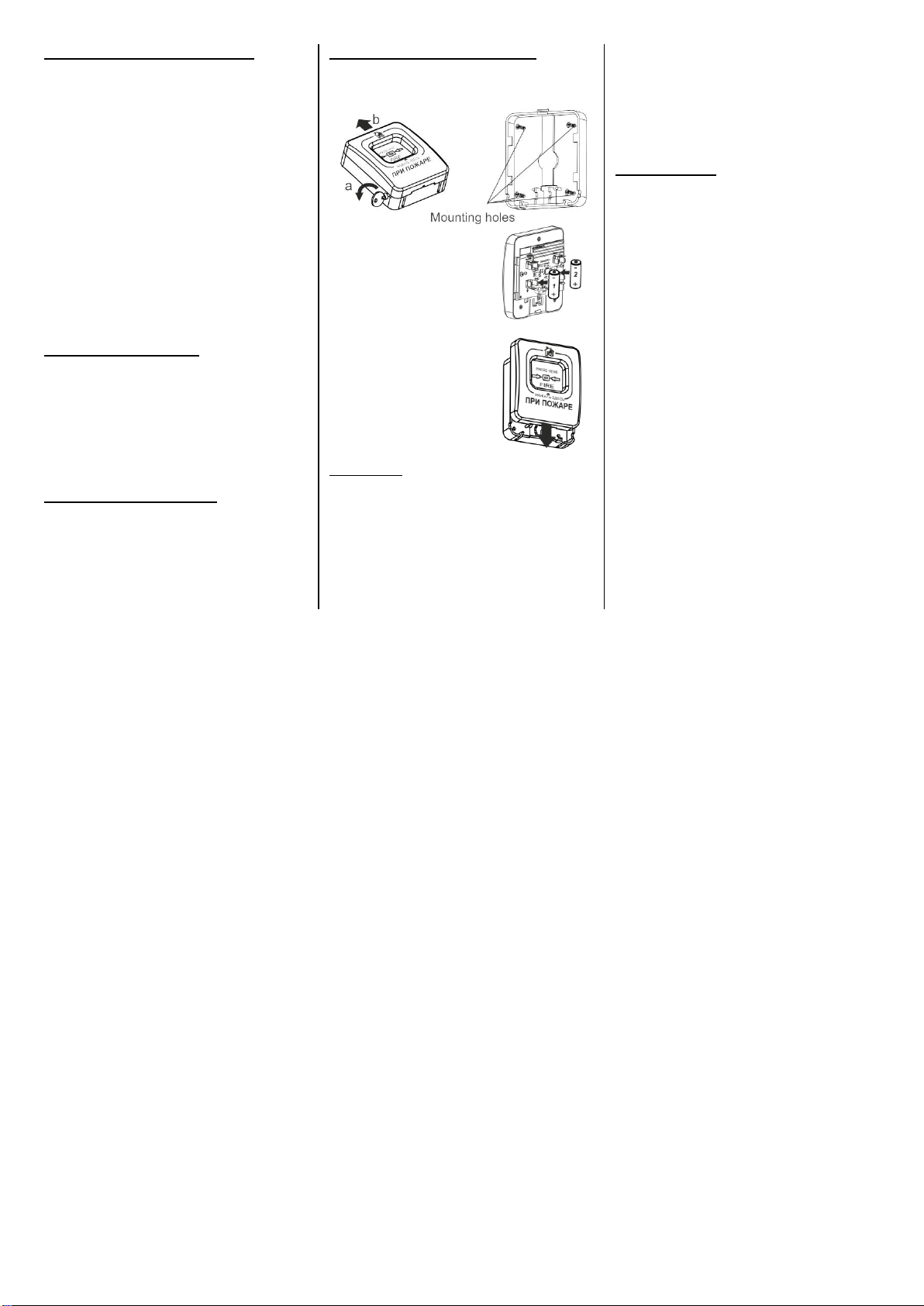

8 INSTALLATION PROCEDURE
1) Open the detector
using a special key.
2) Fix the base
3) Install the batteries if they
were removed (first backup
“Secondary”, then the main
“Primary”).
4) Assemble the detector by
aligning the grooves of
the cover and the base of
the detector and sliding
the cover down until the
latch locks.
5) Run detector test (see
section 9).
9 TESTING
The test is performed by the laser tester "Astra-
942" (not included in delivery set).
To activate the «Test»mode:
- press the red button of the laser tester;
- direct laser beam to the detector’s LED;
-irradiate the LED for 1 sec.
LED should turn on in red for 2 sec.
detector’s LED:
-normal work: 1x red flash in every 2 sec.
during 30 sec.
-if there is a defect or malfunction: 3x red flash
in 25 sec. period.
Security Hub mobile app: fire alarm notifi-
cation.
10 WARRANTY
The operation warranty period is 5 years from
the date of operation start-up but no longer than
5 years 6 months from the date of
manufacturing subject to the requirements of
User guide.
