Tecsun PL-390 Manuel utilisateur

TECSUN TECSUN

TECSUN ELECTRONIC IND. LTD.

OPERATION MANUAL

PL-390

FM stereo / SW / MW / LW DSP RECEIVER

SLEEP

Auto Tuning storage (ATS) status

TECSUN ELECTRONIC IND. LTD.

Address: Rm 11, 13/F, Block A, Hoi Luen Ind. Ctr.,

55 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong.

E-mail: [email protected]

Website: www.tecsun.com.cn

SPECIFICATIONS

PL-390 Functional Block Diagram

PL-390 is using DSP si4734 Microchips (from Silicon Labs in

USA) to digitalize the analog AM/FM broadcasting signal base

on the modern software technology and radio principles. It can

highly improve on radio's sensitivity, selectivity, S/N ratio and

anti-interference.

AMPLIFIER

CONTROLLER

CONTROL

INTERFACE

SW LPF

FM ANT

MW/LW

ANT

PL-390 Functional Block Diagram

PL-390 PL-390 29

SPECIFICATIONS

1. Frequency range

FM 87~108 MHz

Russia 64~108MHz

Japan 76~108 MHz

Eu, USA 87.5~108 MHz

MW 522~1620 (USA 520~1710) kHz

LW 153~513 kHz

SW 2300~21950 kHz

2. Sensitivity

F M (S/N=30dB) Less than 3μV

MW (S/N=26dB) Less than 1mV/m

LW (S/N=26dB) Less than 10mV/m

SW (S/N=26dB) Less than 20μV

3. Selectivity

F M ＞60 dB (±150kHz)

MW ＞60 dB (BW=3kHz, ±9kHz)

LW ＞60 dB (BW=3kHz, ±9kHz)

SW ＞60 dB (BW=3kHz, ±5kHz)

4. FM Stereo crosstalk Less than 35 dB

5. Memory 550

6. Output (Distortion 10%) 180 mW X 2

7. Power UM3 or AA X 3

USB 5V DC

8. Speaker (2 speakers) 57mm, 250mW/8 Ohm

9. Earphone Jack 3.5mm, 8~32 Ohm, Stereo type

10. Dimensions Approx. 186(W) X 89(H) X 29(D) mm

11. Weight 315g (Batteries not included)

TABLE OF CONTENTS

PL-390 1

Control Locations……………………………………………….

LCD display …………………………………………………….

How to turn ON/OFF the radio……………………….............

Tune in stations…………………………………………………

● Easy Tuning Mode (ETM)

● Manual tuning

● Auto browse station

● Direct Keypad entry

Working with station memories…………………....................

● Auto Tuning Storage (ATS)

● Manual storing station

● Semi-auto storing station

Listening to stored stations………………………..............…

Delete memory………………………………………...........…

Sleep function……………………………………............……

Clock Setting…………………………………….................…

Working with alarm function……….....................................

Snooze function...................................................................

How to change the display mode........................................

Key-lock function………………...........................................

Working with intelligent light………….....……………………

FM ST. (FM Stereo) ……………………….....................……

AM BW (Bandwidth) ………………………………..…………

System setting…………………………………………………

Intelligent charging function………………………….………

How to improve FM / SW reception....................................

Line-in function………………………………………………...

………………............

………………………………………………

"B" sound function list ........................................................

Specifications ……………………………………………....…

Important matters for using batteries

Trouble shooting

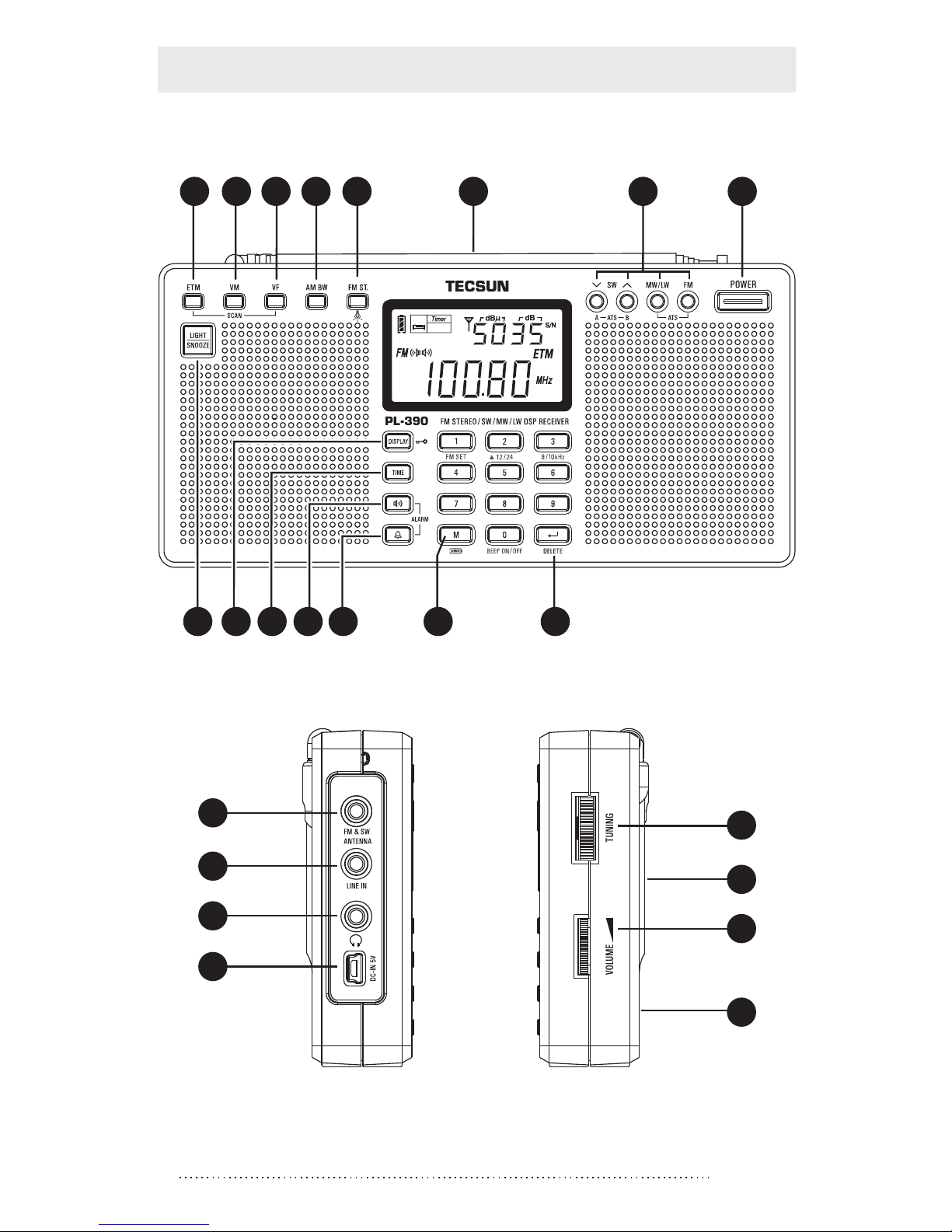

CONTROL LOCATIONS

125678

910 11 12 13 14 15

SLEEP

PL-3902

Power on/off button

Band Selector & ATS button

FM & SW Telescopic Antenna

FM Stereo button

AM / BW button

View frequency (VF) & SCAN button

View memory (VM) & SCAN button

Easy Tuning Mode

Light / Snooze button

Display mode / key lock button

Time Set

Alarm by Radio

Alarm by Buzzer

Memory button

Delete / Confirm [ ] button

FM & SW External Antenna Jack

Line in Jack

Earphone Jack

USB 5V DC-Jack

Multifunctional Tuning Knob

Back Stand

Volume Knob

Battery Compartment

23.

PL-390 3

LCD DISPLAY

Battery consumption indicator /

Charging indicator

2Sleep timer indicator

3Alarm on/off indicator

" " alarm on by radio

" " alarm on by buzzer

6Signal indicators

dBu: signal strength unit

dB : Signal to Noise Ratio

(S/N) unit

8SW meter band indicator

9ETM indicator

4Temperature (Temp.)

5AM, PM indicator for 12-hour

format clock

Tuning speed:

" " Slow Tuning

" " Fast Tuning

11 kHz: frequency unit for MW,

LW & SW

MHz: frequency unit for FM

15 Key-lock indicator

Digital number display (4 Digits)

With radio off: world time, alarm

time, temperature

With radio on: word time, signal

strength / SNR, alarm time,

temperature, local time, memory

address, meter band.

14 Digital number display

With radio off: local time

With radio on: frequency display,

band display

FM stereo status indicator

Band indicator

Alarm time indicator

Preset memory address

Rechargeable batteries indicator

SLEEP

12 4 6

15 14 13

PL-390

PL-390 5

HOW TO TURN ON/OFF THE RADIO

1. Open the battery compartment located on the back of the

unit, install 3 x AA alkaline batteries observing the battery

polarity diagram on the back of the radio. Close the

battery door.

2. Press the [POWER] button to turn on/off the radio.

Note:

If the radio is unable to be turned on. Please check if the

batteries were installed correctly, battery capacity is

sufficient or the lock function had been applied with " "

displays on screen (press & hold the [ ] button to

unlock.)

Press

Installing batteries

TUNE IN STATIONS

Press the [POWER] button to turn on your radio, then

select your desired band by pressing the [FM], [MW/LW]、

SW[ ] or [ ] button. In case of receiving FM/ SW

broadcasting, fully extend the telescopic antenna for a

better reception. When receiving MW and LW broadcasting,

please rotate the radio or change it's location to achieve

optimum reception. You can rotate the [VOLUME] knob to

adjust to appropriate volume from 0 to 30 levels.

Now, you can turn into your favorite stations with any of the

below tuning methods:

METHOD 1: ETM (EASY TUNING MODE)

ETM is the unique tuning method designed by Tecsun. It

skillfully combines the reception circuitry & control

procedure to pre-select the suspected radio station and

temporarily auto stores them into the ETM memory (not the

regular 550 memories). This highly enhances the efficiency

when tuning into radio stations. Employing ETM to tune

preferred frequencies. you can easily tune into your desired

stations from those preferred frequencies.

flashing

SLEEP

Frequency

changing

Preset station

number ETM

Notes: While operating ETM to search for stations, a few

stations might be missed if there is interference in the

surrounding. In this case, you can simply key-in the

frequency, then press the [ETM] button to manually store it

into ETM memory.

1. Press the [ETM] button with

[ETM] shows on screen to enter

Easy Tuning Mode.

2. Press & hold the [ETM] button until

the frequency start running to

auto scan and store stations into

ETM memory, within the present

band.

3. When the frequency stop running,

turn around the [TUNING] knob to

select those stored stations.

PL-3906

PL-390 7

Tips:

FM station: When you are in a different city or country, you

should perform the ETM function again in stead of using

ATS function, because this will not delete any of the

stations already stored within the memory.

MW station: It is recommendable to perform the ETM

function during night time, because there are usually many

stations starting broadcasting at night.

SW station: It is recommendable to perform the ETM

function in the morning, afternoon as well as night time,

because the transmitting signal of SW is very unstable and

usually there are more stations that start broadcasting in

the late afternoon.

METHOD 2: MANUAL TUNING

Frequency searching: Press the [VF] button to switch into

frequency mode, and then rotate the [TUNING] knob to

select your desired station.

Memory searching: Press the [VM] button to switch into

memory mode, and then rotate the [TUNING] knob to

select those stored stations.

FAST/SLOW tuning is shown in the chart below for each band.

0.01 MHz

1kHz

1 kHz

0.1 MHz

9 /10kHz

9 kHz

5 kHz

step

band

turning step

Slow tuning mode Fast tuning mode

turning step

PL-3908

METHOD 3: AUTO BROWSE STATION

1.Turn on the radio and press the

[VF] button to switch into

frequency mode.

2.Press & hold the [VF] button

with [ ] advancing to scan

from one station to another,

staying on each station for

about 5 seconds.

3.To stop the auto browse

function, simply press the [VF]

button

Note: While operating the “Auto Browse Station” function,

you can press the [M] button anytime to store the station

into memory, and the radio will keep on auto browsing the

next available station.

METHOD 4: DIRECT KEYPAD ENTRY

To search for frequency, turn on the radio and press the

[VF] button to switch into frequency mode, press the

numeric keys [0] - [9] to enter the station frequency directly.

To search for memory, press the [VM] button to switch into

memory mode, then press the numeric keys [0] - [9] to

enter the preset memory number directly.

Notes:

1. Ignore the decimal point for FM band when inputting the

frequency numbers.

For example, FM 89.3 MHz, just enter 8 9 3.

2. If the entered frequency rate is not within the covering

area, the display would display “Err” (error) symbol.

SLEEP

Auto browse station

advancing

Frequency

changing
