TECOM xDAQ-600 Manuel utilisateur
1
Copyright © 2020, All Rights Reserved.
Ver: D01 D/C: 109-0414
xDAQ-600 / xDAQ-600(P)
A Piezo Vibration Analysis and
Diagnosis Unit
Operation Manual
V1.1
xDAQ-600 / xDAQ-600 (P) Operation Manual
Page 2
目錄
Start Up............................................................................................................................................... 3
1. Device Info .................................................................................................................................... 4
1.1 Status Overview ............................................................................................................... 4
1.2 DHCP Client List ............................................................................................................... 4
1.3 System Log ........................................................................................................................ 5
1.4 Change Setting Log ........................................................................................................ 5
1.5 Device Alarm History...................................................................................................... 6
2. Settings .......................................................................................................................................... 7
2.1 LAN...................................................................................................................................... 7
2.2 WAN .................................................................................................................................... 7
2.3 Unit Pairing........................................................................................................................ 8
2.4 RS485 ................................................................................................................................ 11
2.5 Maintenance Info .......................................................................................................... 19
3. Wireless........................................................................................................................................ 21
3.1 WiFi Mode Setting......................................................................................................... 21
3.2 Basic Wireless Settings................................................................................................. 22
3.3 AP+STA Mode ................................................................................................................ 24
4. System Management ............................................................................................................... 28
4.1 Basic Settings.................................................................................................................. 28
4.2 Settings Management (Configuration File) ........................................................... 29
4.3 Certificate Update ......................................................................................................... 30
4.4 Firmware Update ........................................................................................................... 30
4.5 Log Level .......................................................................................................................... 31
xDAQ-600 / xDAQ-600 (P) Operation Manual
Page 3
Start Up
Users use the browser (default IP: 192.168.168.10, account: admin, password:
IP585xAdmin), and the homepage provides links to AG300 related functions.
System login screen:
After successful login, the system will list the current status information, the page is as
follows:
Users can set the project into four major items: "Device info", "Settings", "wireless",
and "System Management".
xDAQ-600 / xDAQ-600 (P) Operation Manual
Page 4
1. Device Info
The device information includes five items: "Status Overview", "DHCP Client List",
"System Log", "Change Setting Log", and "Device Alarm History".
1.1 Status Overview
Users can use this project to obtain basic system information and network settings.
The page is as shown in the figure above.
1.2 DHCP Client List
Users can use this project to obtain DHCP client data.
xDAQ-600 / xDAQ-600 (P) Operation Manual
Page 5
1.3 System Log
Users can use this project to obtain system log data.
1.4 Change Setting Log
The operation history is listed in the List directory. It can be exported via the "Export"
button.
xDAQ-600 / xDAQ-600 (P) Operation Manual
Page 6
1.5 Device Alarm History
Users can use this project to view the alarm records of all devices.
xDAQ-600 / xDAQ-600 (P) Operation Manual
Page 7
2. Settings
Usage settings include "LAN", "WAN", "Unit Paring", "RS485", "Maintenance info" sub-
items.
2.1 LAN
Users can use this project to set LAN settings, the page is shown as below:
2.2 WAN
Users can use this project to set up the WAN. The page is as shown below:
"Remote Access" can configure projects that allow remote access:
"Secure HTTP" can enable or disable remote HTTPS access
"Normal HTTP" can enable or disable remote HTTP access
"Remote Login" can enable or disable remote login
xDAQ-600 / xDAQ-600 (P) Operation Manual
Page 8
2.3 Unit Pairing
Users can register through the webpage, as shown below :
xDAQ-600 / xDAQ-600 (P) Operation Manual
Page 9
1. Press the "Add" button to automatically create a new terminal device.
2. Check the newly generated terminal device, and press the "Edit" key to enter the
editing screen, you can edit the various information of the terminal device.
-Name: Fill in the appropriate name according to personal needs.
-Type: Smartphone.
-Account: Please enter the number within 100 ~ 109, and this number cannot be
the same as other registered terminal equipment.
-Password: can be reconfigured according to personal needs.
xDAQ-600 / xDAQ-600 (P) Operation Manual
Page 10

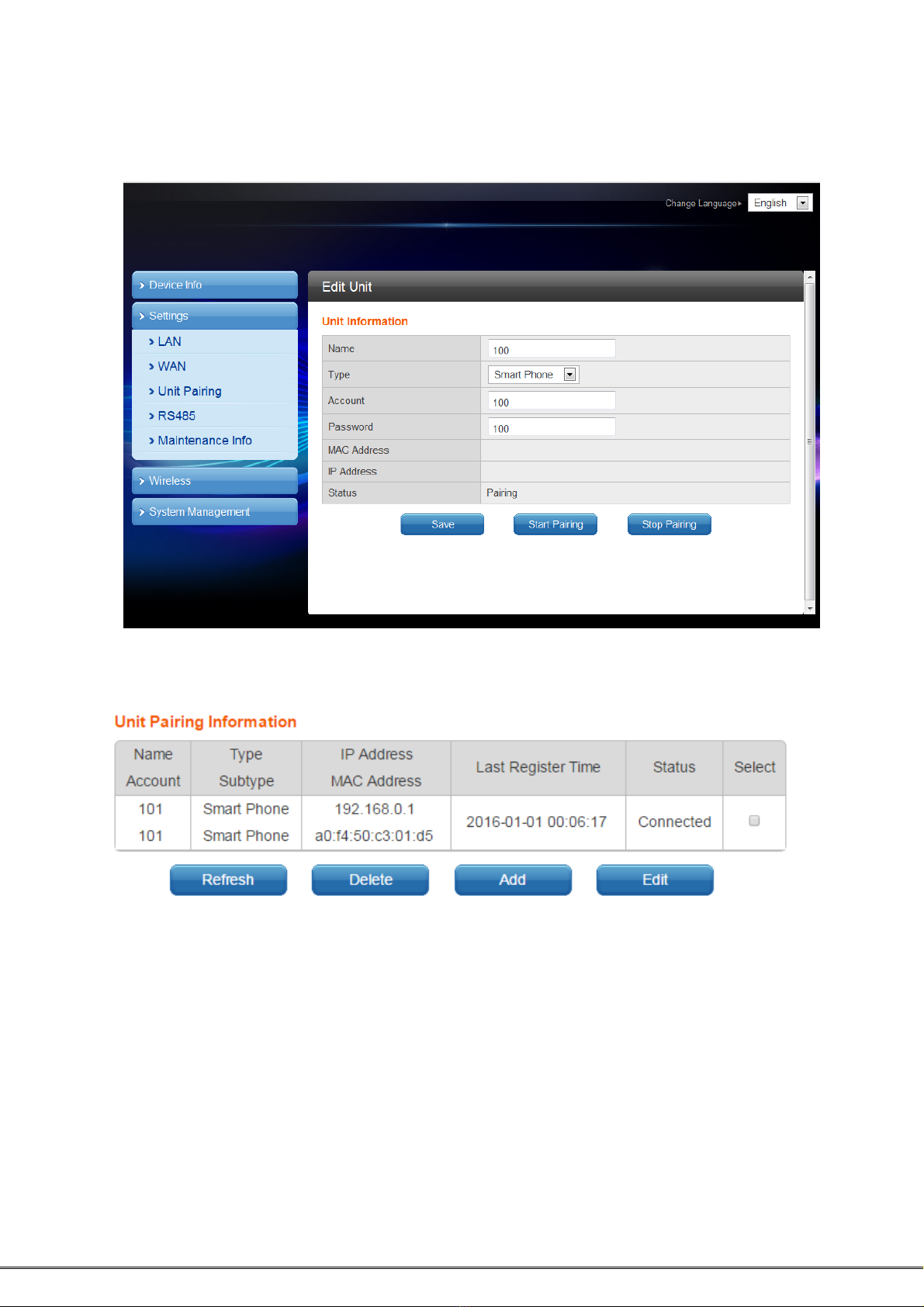

3. After editing the information, press the "Save" button, and then press the "Start
Pairing" button to enter the device registration program.
4. After successful registration, the status will show "Connected".
