84L VERTICAL FREEZER
USER’S MANUAL
Model : TVF84WMBM
To ensure proper use of the appliance and your safety, please read the
following user manual completely before operating this appliance.
UPRIGHT FREEZER
User Manual
TVF84WMBM
CONTENTS
Important Safety Instructions
Name of Parts and Usage
Packing List
Transporting the Appliance
Installation Instructions
Operating Instructions
Defrosting
Energy Saving Tips
Maintenance
Disconnection of the Appliance
Reversing the Door
Troubleshooting
Repair, Service & Warranty
Specifications
1
4
5
6
6
7
8
8
9
10
11
13
14
15
1
Important Safety Instructions
Warning:risk of fire / flammable materials.
•
Thank you for purchasing our product and thank you for placing your
confidence in us.
•
Read this manual carefully before use. Follow instructions and keep the
manual for future reference.
•
Follow the operating instructions and safety notices in this manual.
•
If any trouble arise, do not attempt to fix it yourself. Please contact TECO
service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
•
This freezer is designed and approved for use with flammable R600a
refrigerant.
•
The appliance is specifically constructed for domestic use only. The appliance
has not been designed or manufactured for professional use. TECO declines
all responsibility for damage deriving from improper use of the appliance. The
freezer has undergone the necessary tests on the tightness of the refrigeration
circuit and complies with the safety regulations for electrical appliances.
•
All images, illustrations and photos contained in this manual are for illustration
purposes only and may differ from your appliance.
Prohibition symbol
Warning symbol
Note symbol
This is a prohibition symbol.
Any incompliance with instructions marked with this
symbol may result in damage to the product or endanger
the personal safety of the user.
This is a warning symbol.
It is required to operate in strict observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special
caution. Insufficient caution may result in slight or
moderate injury, or damage to the product.
•This appliance contains a small quantity of flammable, non-synthetic
R600a refrigerant.
•The room for installing the appliance must be at least
1m3 per 8g of refrigerant. The amount of refrigerant in
the appliance can be found on the rating plate attached
to the appliance.
•If the refrigerant circuit should become damaged. Avoid
open flames and sources of ignition. Disconnect
the appliance from the mains power. Thoroughly
ventilate the room in which the appliance is situated
for several minutes.
1
2
•The refrigerator is designed to operate on a single phase power supply
within a voltage range of 220~240V/50Hz.
•This product is for indoor use only.
•Do not use extension cords or ungrounded (two prong) adapters.
•Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance.
•If the supply cord is damaged, it must be replaced by authorised TECO
service personal, service agent or similarly qualified persons in order to
avoid a hazard.
•Do not place electrical items or cooking equipment nearby. Keep away
from substances which could cause ignition and good ventilation
shall be always maintained.
•Do not place objects on top of the appliance which are magnetic, heavy
or filled with water.
•Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
•Do not store flammable, explosive, volatile and highly corrosive
materials in the refrigerator. Containers with flammable gases or liquids
can leak at low temperature. There is a risk of explosion or fire.
•Do not splash water on the appliance. It may cause malfunction or electric
shock.
•Always switch off and unplug appliance before cleaning.
•Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•The refrigeration system contains refrigerant. Do not allow any sharp
objects to come in contact with the refrigerant system.
•Do not use electrical appliances inside the food storage compartments of
the appliance.
•For appliances which use flammable insulation blowing gases, Please
keep the products away from the fire or similar glowing substance.
•This appliance is intended to be used in household and similar
applications such as:
ostaff kitchen areas in shops, offices and other working
environments;
ofarm houses and by clients in hotels, motels and other residential
type environments;
obed and breakfast type environments;
ocatering and similar non-retail applications.
3
3
Refrigerant and cyclopentane foaming material used for the
refrigerator are flammable. Therefore, when the refrigerator
is scrapped. it shall be kept away from any fire source and
be recovered by a special recovering company with
corresponding qualification other than be disposed by
combustion, so as to prevent damage to the environment or
any other harm.
When the refrigerator is scrapped, disassemble the
doors, and remove gasket of door and shelves; put the
doors and shelves in a proper place, so as to prevent
trapping of any child.
Correct Disposal of this product：
This marking indicates that this product should not be
disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To
return your used device, please use the return and
collection systems or contact the retailer where the
product was purchased. They can take this product for
environmental safe recycling.
•Contact your local authorities for correct method of disposal.
Dispose of all packaging in a responsible manner in accordance
with local regulations.
•This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
•Young children should be supervised to ensure that
they do not play with the appliance.
•Packing (e.g. wraps, polystyrene etc.) can be
dangerous for children. There is a risk of suffocation.
Keep packaging materials away from children.

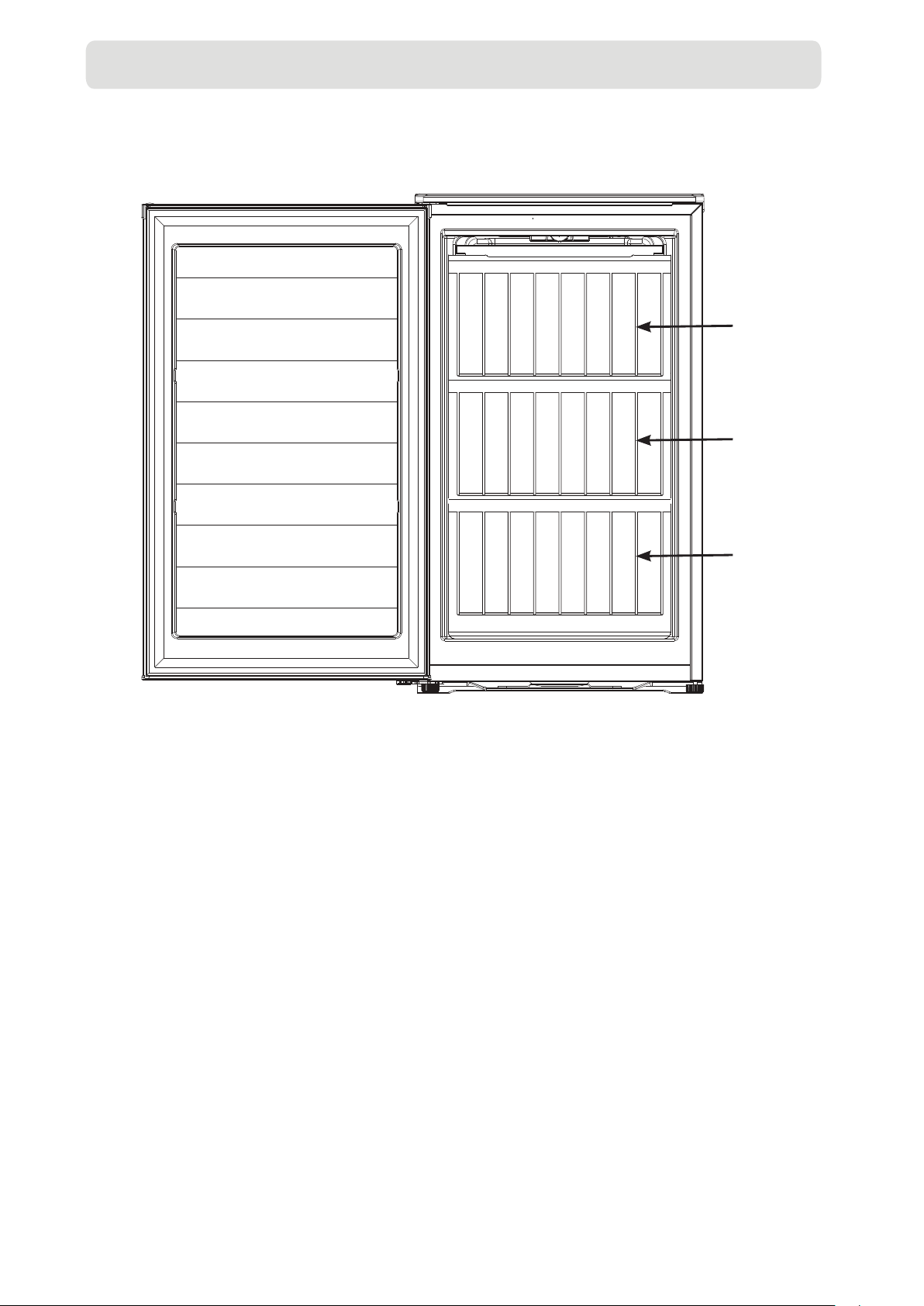

1. Storage Basket
The freezer you purchased is subject to continuous improvement,
which may not be completely consistent with the manual, however the
functions and operating methods will not change.
If you use the freezer for the rst time, remove any adhesive tapes.
Do not pull or push the drawers forcefully during use in case of damage.
1
1
1
Name of Parts and Usage
4
Check the packing list that all items have been included.
Note: Product speci cations are subject to change without prior notice.
Model TVF84WMBM
Storage Basket
User manual
3 pieces
1 copy
Part No.
(see pg.4)
1
Packing List
5
1.The appliance must be transported only in a vertical
position. The packing must be intact during the
transportation.
2. When unpacking and re-packing the appliance,
please memorise the position of each accessory of
the appliance when unpacking it. When re-packing the appliance for
transportation, ensure all accessories are secured before transportation.
3. Do not lift or pull the door during transportation
1. When moving the appliance, do not tilt >45 degrees (the angle of the
vertical direction). Please avoid strong vibration and impacts that could
cause damage to the appliance.
2. The freezer should be located on a rm and flat surface. An uneven
surface may cause excess operating noise or vibration.
(a) The noise may be increased if the floor is not rm.
(b) If the appliance is to be positioned on carpet flooring and heat
emitted from the appliance is a concern, place a solid sheet
under the appliance.
3. Choose a location which is not exposed to sunlight, high
temperature or humid, as humidity may cause staining.
4. It is recommended a clearance of at least 50mm away
from objects and walls on both sides and back. Ensure
the clearance above the appliance is not less than
200mm and at least 780mm clearance for the door to
swing open.
5. If the appliance is unstable, rotating either of the
front two legs in a clockwise direction will raise the
appliance. Turn them anticlockwise to lower.
6. When adjusting the front legs, ensure the
appliance slopes backwards slightly for keeping the door
closed.
7. Remove all internal packaging before operating.
200mm
50mm
50mm
Transporting the Appliance
Installation Instructions
6
PLACEMENT OF FOOD
1. There should always be some space between
items inside for air circulation.
2. Food should be kept in sealed packaging to
avoid becoming dry or spoilt.
3. Hot food should be cooled down before placing
into the appliance. Otherwise, the interior
temperature and power consumption will increase.
4. Reduce opening the door frequently.
This will increase the appliance efciently and reduce
power consumption.
Do not use any electronic equipment inside the appliance.
TEMPERATURE ADJUSTMENT
The temperature of the freezer can be controlled manually by adjusting
the thermostat dial located at the rear, near the compressor. The number
shown on the dial does not directly represent the temperature. Instead,
the larger the number is, the lower the interior temperature will be.
Turn the dial to position 3-4 (approx. -15
o
C) for normal use, turn it to
position 5-6 if a lower interior temperature (approx. -20
o
C) is required;
alternatively, to increase the interior temperature select position 2-1
(approx. -12
o
C).
The rst time you turn the unit on, set the temperature control to the
maximum position (6). After 24 to 48 hours, adjust the temperature control
to the setting that best suites your needs.
Do not store objects which are costly or subject to temperature
variations. e.g. medication or chemicals.
ICE MAKING
To make ice cubes, ll an ice tray with drinking water
and place it in the freezer. To remove ice cubes
easily, run water on the tray before gently twisting
and inverting the tray.
Operating Instructions
7
Heavy frost will effect the refrigerating process or internal temperature of
the appliance and increase the power consumption. Thus, defrosting is
required if the frost is >5mm thick. Defrosting is a manual process.
Please follow these steps:
1. Switch off and disconnect the appliance.
2. Remove all food from the ice box and freezer compartments.
3. Remove the freezer drawer.
4. Open the door and wait for the ice to defrost.
5. When de-icing, a scraper or plastic utensil may be used. Never use
metal instruments or electrical appliances to de-ice the ice box.
6. To speed up the defrosting process, you can place a bowl of hot water
in the compartment and close the door.
7. When defrosting is complete, clean the appliance.
8. Replace the shelf and food before restoring power.
Do not use an electric heater or hair dryer to increase
the defrost process. It may destroy the cooling system.
1. Adjust the temperature control to a setting that is acceptable for the
storage of the food. This will reduce the power consumption.
2. Only open the door when required. Frequently opening the door will
increase power consumption.
3. Maintain good air circulation within the freezer.
7
Defrosting
Energy Saving Tips
8
Table des matières
Autres manuels TECO Congélateur
