Tecnospiro 3arm 2 Series Manuel de la liste des pièces

INSTRUCTIONS OPERATING

SERIES 2

ARM Nº

CONFIGURATION

WEIGHT RANGE

YEAR OF MANUFACTURE

Polígon Industrial Pla dels Vinyats, B

08250 Sant Joan de Vilatorrada (Barcelona) SPAIN

+34 938764242 / 93 8764359

¬+34 938767738 / 93 8764044

e-mail: 3arm@3arm.net

http: // www.3arm.net

CONTENTS

Series 2 2

Introduction 3

Safety information 4

Description 6

Arm and headmember selection 7

Operation 9

Maintenance 10

Spare parts 11

Exploded View and Parts list 12

SUPPORT Accessories 21

Notes

Certificate “CE” of Conformance 25

INTRODUCTION

Series 2 3

Dear customer,

We would like to congratulate you on your purchase and thank you for enabling us to

continue in our work of offering our customers an easy, reliable and versatile way of doing

any kind of manufacturing tasks.

We hope these easy instructions help you in operating and using your chosen device.

Please pay close attention to the installation and maintenance instructions detailed in

these pages.

We hope you use your device for many years and come to view your purchase of this

3ARM as an excellent investment.

SAFETY INSTRUCTIONS

Series 2 4

This operating manual contains very important information for everybody involved in the

safety during the installation, setting in operation and maintenance of this product. Despite

you feel known with similar products you must read this manual before working with the

equipment.

DANGER

Danger. Used to

indicate the

presence of a

danger that

causes severe

damages, the

death or important

material damages

if you ignore the

warning.

WARNING

NOTICE

Warning. Used to

indicate the

presence of a

danger that can

cause severe

damages, the

death or important

material damages

if you ignore the

warning.

CAUTION

Caution.Used to

indicate the

presence of a

danger that

causes or can

cause severe

personal or

material damages

if the warning is

ignored.

Notice. Used to

inform important

information for the

installations,

setting in operation

or maintenance,

but it is not related

with dangers.

Not leave the arm floating when it is not used. Fix the tilting arm together the radial arm by

means the fixation clip.

You must use the protection equipment according the manufacturer instructions of the tool

fixed in the arm.

•Operators must keep out of the vertical route of the arm.

•Do not exceed the weight limits marked in the arm and the main page of this

manual.

•In case of change of the load, loose the damper (see page 9). Please, bear the

possible going up movement in mind when you take out the load.

•Do not put your hand in the area below the lifter sheath when repositioning this in its

lowest positions.

•Do not put your fingers in the upper part of the cross unit or in the lower part of the

headmember when the arm is nearing its most raised position.

•Do not put your fingers in the lower part of the cross unit or in the upper part of the

headmember when the arm is nearing its lowest position.

•To make sure the tool is totally fixed before starting to work.

CAUTION

SAFETY INSTRUCTIONS

Series 2

The elevator equipments are subjected to different rules in each country. These

regulations could not be described in this instructions manual.

Operators working closer to the suspension weight or with an arm with tooling must keep

out of its vertical route. From the safety point view, all operations must be done without

any damage if the equipment fails.

The owner or user has the responsibility to decide the suitable use of the product. We

recommend the checking of the current rules in each sector, activity, country, etc.

Read the instructions before using it.

It is very important to familiarize the operators with the right use of these products or

similar and be able to work with them. They must have basic knowledge of:

•To work with common manual tools.

•Safety procedure, cautions and habits of safe jobs.

Tecnospiro Machine Tool does not know the procedures and applications that the

customer can apply to the arm, and damages and/or results of them. If you make working

operations or maintenance not described for the manufacturer, be sure that you are not in

danger. If you have any doubt or query, please do not hesitate to contact with the

authorized supplier. .

WARNING

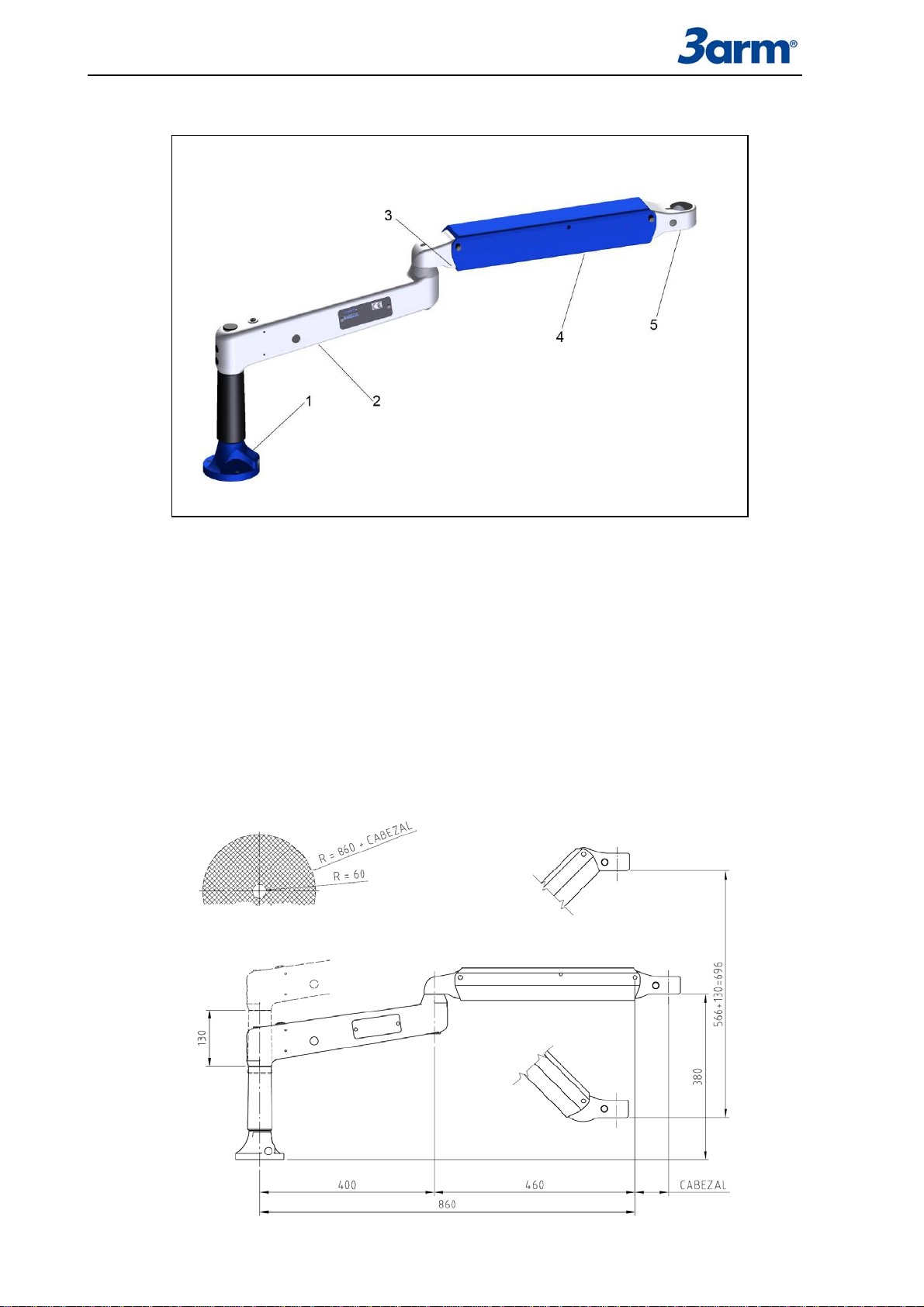

DESCRIPTION

Series 2 6

1.- Base 2.- Radial arm

3.- Cross unit 4.- Tilting arm

5.- Headmember

The machine consists of a pendular parallelogram that is balanced by a pneumatic spring,

plus a radial arm. The gas spring and radial arm assembly fixes the motor head (6 options)

and keeps it perpendicular to the working area.

WORKING AREA

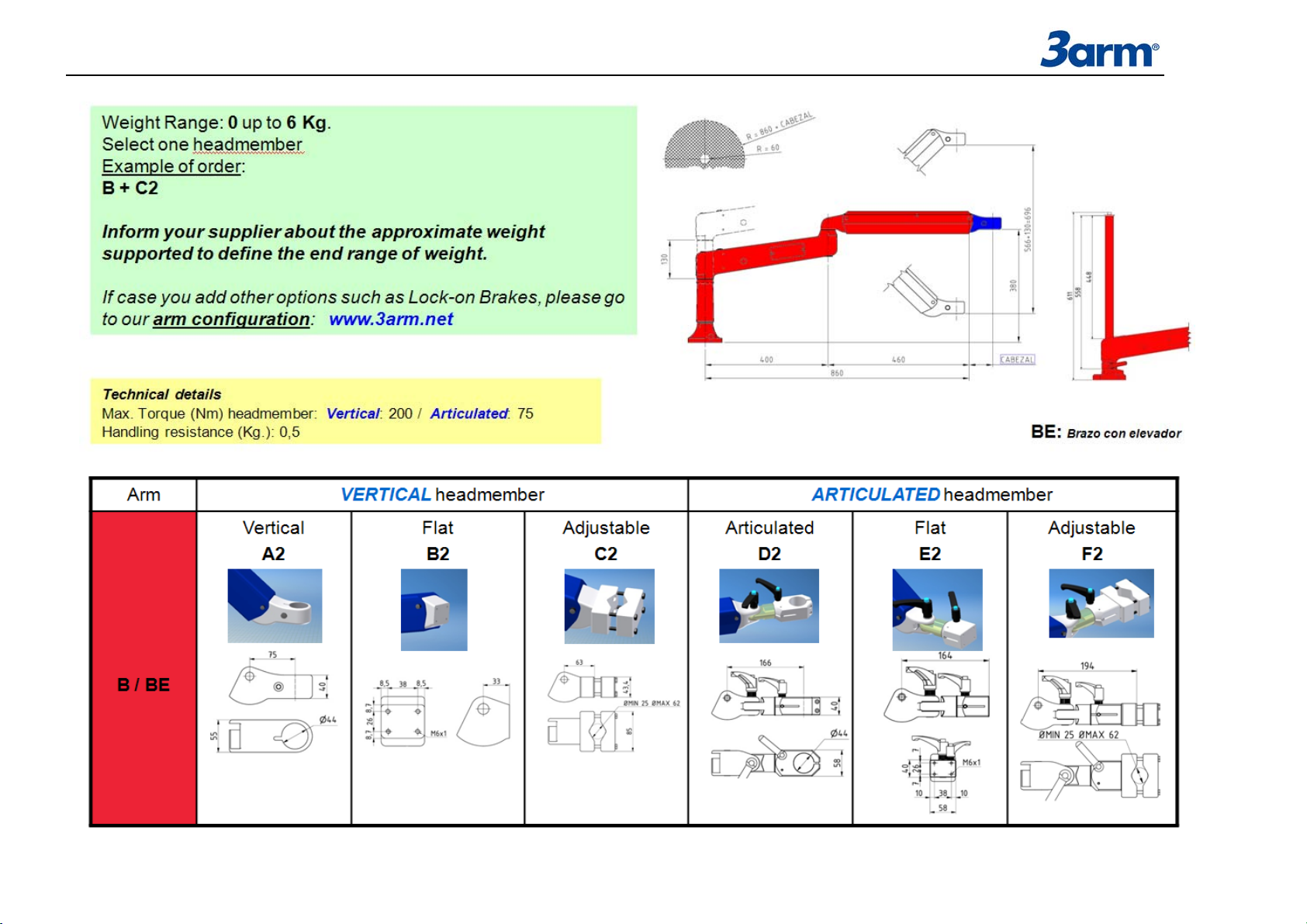

ARM and HEADMEMBER SELECTION

Series2 7

METRIC / KG

OARM and HEADMEMBER SELECTION

Arm VERTICAL headmember ARTICULATED headmember

B / BE

Vertical

A2 Flat

B2 Adjustable

C2 Articulated

D2 Flat

E2 Adjustable

BE: Radial arm with

regulating base

INCHES / LB.

OARM and HEADMEMBER SELECTION

INSTALLATION

1. Attach the machine base plate to the work table by means of three M8 screws or a

clamp.

2. Fit the radial arm into the base axis, tighten the 2 Allen M5 and cover them with the

two plastic caps.

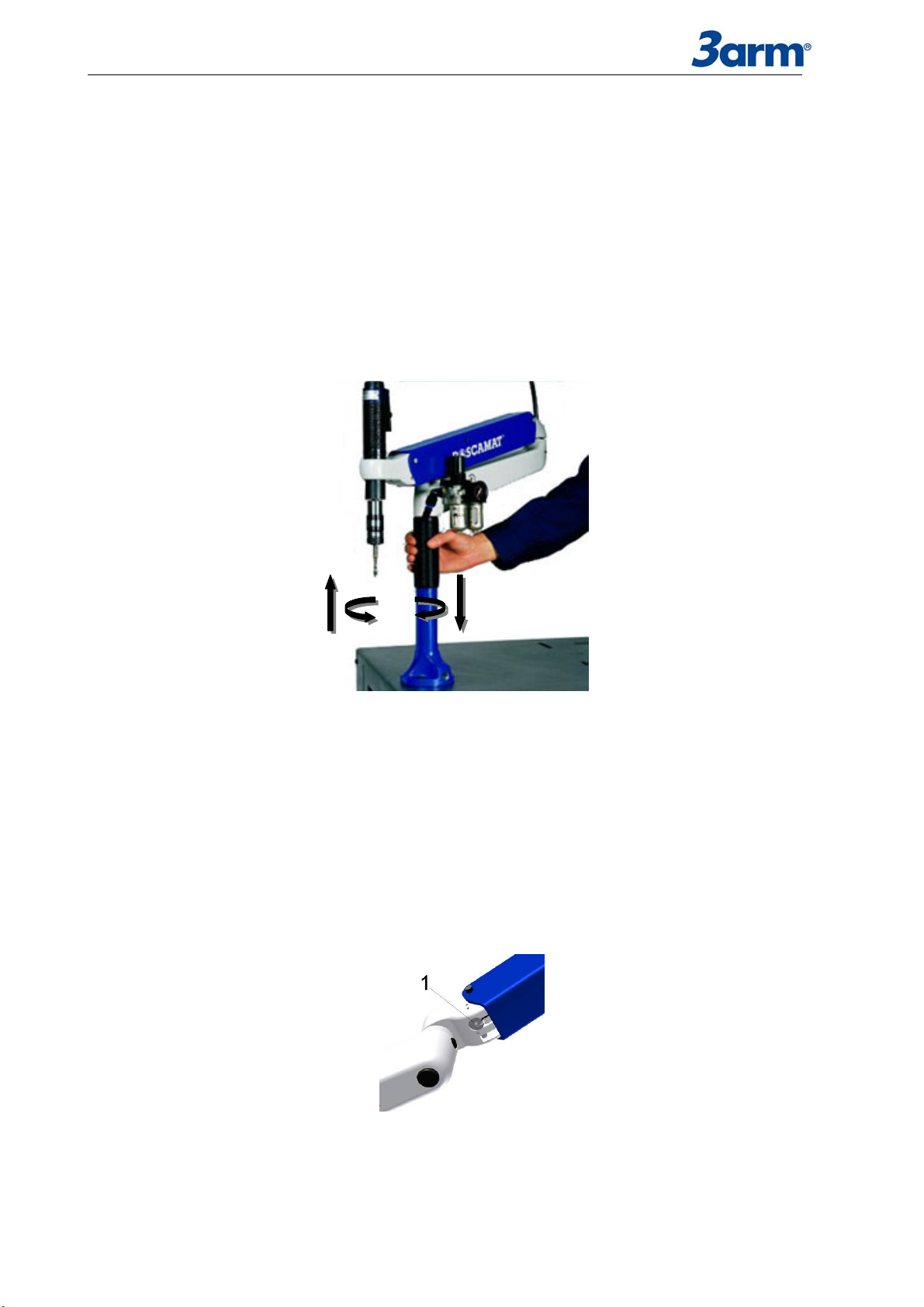

WORK WITH HIGH PIECES

Hold the base casing, pull it up and turn it 90º to fix it. The machine will be 130 mm higher,

and now it is ready to work.

ARM BALANCE

Regulating the internal strain damper different weights at the arm end are balanced.

•Using an ALLEN key of 5mm, take up or let down the thread regulating shank (1)

located in the lower part of the cross unit.

oDown (turn left): More strain to the damper.

oUp (turn right): Less strain to the damper.

MAINTENANCE

The arm DOES NOT need maintenance and it is difficult to have anomalies if you make a

correct use of it, although we specify the main and easy repairs that you can do.

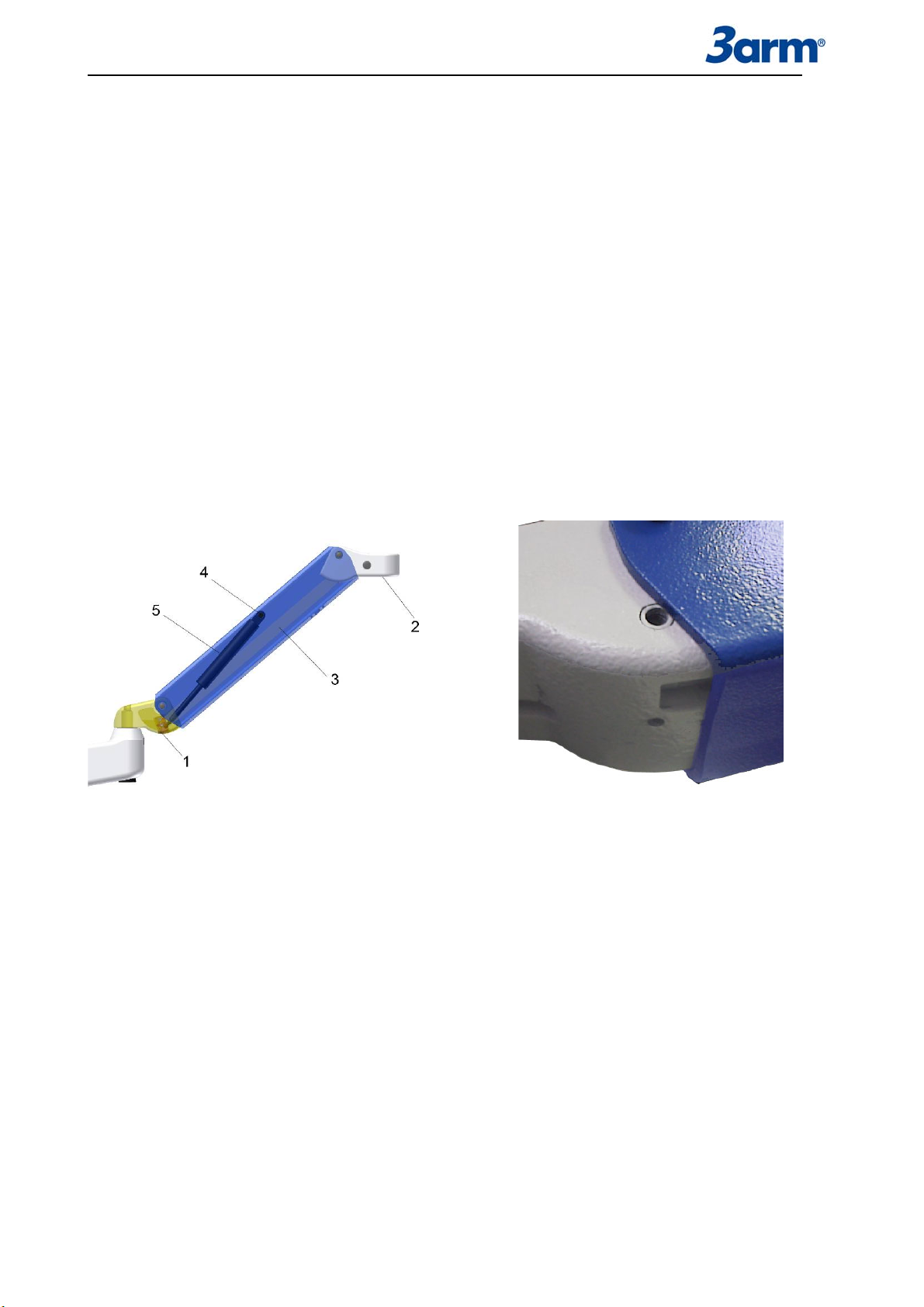

DAMPER REPLACEMENT

1. Let down the damper regulating assembly (1), located below the cross unit.

2. Take out the headmember (2).

2.1.Remove the screws that hold the headmember to the arm

2.2.Use the screw M5 to take out the stay spindle (figure 2). For doing this operation,

the arm must be located in its lowest position. Then, loosen the screw rod (located

below the headmember) that fixes the stay spindle.

3. Take out the spindle of the arm damper (4).

4. Take up the damper regulating assembly.

5. Take out the damper (5).

6. Reverse the process for the reassembling.

Figure 1

Figure 2
