TKLS • USER MANUAL 1

FUEL LEVEL SENSOR

USER MANUAL

DOCUMENT

VERSION

1.11

TKLS • USER MANUAL

Table of content

Software Copyright Notice .............................................................................................................................. 3

Safe Operation and Installation .................................................................................................................... 3

Introduction ............................................................................................................................................................4

Product Overview................................................................................................................................................ 5

Technical Specication...................................................................................................................................... 6

Scope of Supply................................................................................................................................................... 8

Components of Sensor ..................................................................................................................................... 9

Interface Connectors....................................................................................................................................... 10

Getting started ....................................................................................................................................................11

Sensor Connection .......................................................................................................................................... 15

Power Supply Connection ............................................................................................................................ 16

RS-485 (TIA/EIA-485-A) Bus Connection ............................................................................................ 17

Frequency Output Connection.................................................................................................................... 18

Auto calibration.................................................................................................................................................. 19

Error Codes......................................................................................................................................................... 22

Sensor Conguration...................................................................................................................................... 23

Driver Installation.............................................................................................................................................. 24

Modbus Register Mapping............................................................................................................................ 25

Appendix .............................................................................................................................................................. 26

TKLS • USER MANUAL 3

Software Copyright Notice

Products of TechnoKom referred to in this Manual may incorporate software stored in

semiconductor memory or other media, copyrights to which belong to TechnoKom or third

parties. Laws of the Russian Federation and other countries secure certain exclusive rights

of TechnoKom and third parties to the software, which is subjected to copyright, for example,

exclusive rights for distribution or reproduction.

Therefore, any alteration, reverse engineering, distribution or reproduction of any software

incorporated in TechnoKom products, is prohibited to the extent provided by law.

Furthermore, purchase of TechnoKom products does not imply direct, indirect or other

granting of any licenses related to copyrights, patents and patent applications of TechnoKom

or any third party, except for an ordinary, nonexclusive free license for use, which is granted

in virtue of law upon each sale of the product.

The communication protocol between the AutoGRAPH Series on-board vehicle tracking

controllers and the TKLS fuel level sensors (AutoGRAPH Hardware Interface Protocol)

is considered to be condential information and intellectual property of TechnoKom. The

AutoGRAPH Hardware Interface Protocol (AGHIP) shall be transferred by TechnoKom to

integrators and software manufacturers only upon signing a Condentiality Undertaking.

Unauthorized distribution of the AutoGRAPH Hardware Interface Protocol is strictly prohibited.

Safe Operation and Installation

This section contains important information for effective and safe operation of TKLS fuel level

sensors. Please read the information below before using the sensor.

• Sensors with damaged insulation of conductive parts, testing probe and body must not

be used.

• Operational conditions of the TKLS such as electrical and environmental characteristics

and condition of measured liquid should t the requirements contained in this User Manual.

Otherwise, the manufacturer will not be responsible for sensor safety and functional

efciency.

• All connections should be made when the sensor and external devices to be connected to

the sensor are disconnected from the power supply.

TKLS • USER MANUAL

This User Manual applies to the TKLS fuel level sensor (hereafter – TKLS, sensor) produced

by TechnoKom Ltd. It contains installation and connection procedures of the TKLS, as well as

its function and control.

This Manual is intended for specialists who are aware of the maintenance and installation

principles typical for motor vehicles and are procient in using the electronic and electrical

equipment of various vehicles.

To ensure the best performance of the TKLS, it should be installed and set up only by qualied

specialists.

The TKLS sensor can operate both as a part of a fuel monitoring system and as a part of a

eet management system. For proper operation of the TKLS sensor, the customer should be

aware of the operating principles of these systems as a whole, as well as understanding the

functions of its individual components

Introduction

IMPORTANT

All information on functions, functional capabilities and other specications related to TKLS fuel level

sensors, as well as all information contained in this User Manual is based on current data (at time of

writing) and is deemed to be valid as of the date of publication.

TechnoKom reserves the right to modify the information or specications without prior notice or

commitment.

VERSION HISTORY

This table provides a summary of the document revision.

Version Description Date

1.8 Added instruction on auto calibration 07/2015

1.8.1 Corrected auto calibration station diagram 07/2015

1.8.2 Added information about the empty/full tanks calibration 08/2015

1.9 Added the section “Sensor empty/full tank calibration”

Corrected the frequency output connection diagram 12/2015

1.10 Updated Modbus Register Mapping 02/2016

1.11 Updated sections “Sensor Connection”, “Sensor conguration” 07/2016

TKLS • USER MANUAL 5

Product Overview

The TKLS fuel level sensor is designed to measure fuel level in a vehicle fuel tank and transfer

this information to external devices via one of the supported interfaces. The TKLS can be

used as a replacement of the factory-tted standard fuel level sensor or as an additional

sensor for fuel level monitoring.

The TKLS supports data transfer via RS-485 bus, in AGHIP, LLS and Modbus protocols, and

via frequency output as pulses proportional to measured fuel level, PWM signal or periodic

sequence.

In addition to fuel level, the sensor measures ambient temperature and sends the readings

to an external device.

Any device equipped with RS-485 which supports data exchange in AGHIP, LLS or Modbus

protocols can operate as an external device (for example, a level indicator or a eet

management device).

TKLS fuel level sensors support AGHIP protocol which is communication protocol between

AutoGRAPH hardware which enables transmission of additional data, as well as readings of

the sensor built-in inclinometer.

Also connected to AutoGRAPH eet management system, TKLS-L sensor is able to load a

new rmware and new conguration from remote server via GPRS.

TKLS • USER MANUAL

Description Value

Output Interface RS-485 (TIA/EIA-485-A),

Frequency output

Protocols for RS-485 AGHIP1/ LLS / ModBus

Bluetooth (BLE) Yes

Built-in Accelerometer / Inclinometer Yes

Automatic calibration Yes

Self-diagnostic Yes

Error Report Yes

Remote Conguration via Bluetooth Yes

Remote Conguration via RS-485 Yes

Remote Firmware Update Yes

Logging Yes

Temperature Measuring2Yes

Digital Input, numbers 1

Frequency Output

Output Frequency Range, Hz 100…3000

Output Type Open collector

Maximum Load Current, mA 200

Measuring Features

Operational Liquids Gasoline, fuel oil

Level Measuring Accuracy, % ≤1

Resolution, bit 12

Temperature Measuring Range, °С -40…+85

Temperature Measuring Accuracy, °С ±1

Operational Conditions

Operational Voltage, V +7…+60

Power Consumption at 12 VDC, mA < 30

Operational Temperature, °С -40…+85

Protection Class IP69K

Technical Specification

TKLS • USER MANUAL 7

1The AGHIP protocol is the AutoGRAPH Hardware Interface Protocol used by AutoGRAPH onboard controllers to communicate with TKLS sensors and

providing exchange of additional information, e.g. inclinometer readings, error reports and etc. In order to establish the communication between the

AutoGRAPH controller and the TKLS sensor in AGHIP protocol, it is sucient to enable the protocol in the controller as it is enabled in theTKLS by default and

does not require any sensor re-conguration. It means that if the device, which theTKLS is connected to, initiates the communication in the AGHIP protocol,

the sensor will automatically recognize it even if other protocol is enabled in the sensor.

2The function is available only for AGHIP and LLS protocols. When theTKLS is connected to the AutoGRAPH on-board controller, the“Wide record”option

should be enabled in the controller’s settings in order the controller to be able to read temperature readings.

Probe Length, mm 750 / 1000 / 1500 / 2000

Mounting SAE 5-bolt pattern

Average Life Time, years 10

TKLS • USER MANUAL

№Description Qty

1“TKLS” Fuel Level Sensor with Plastic Cover 1 pc.

2Mounting Kit* 1 set

3Signal Cable in Corrugated Pipe 7,5 m.

4Warranty Certicate 1 pc.

Scope of Supply

*The mounting kit includes following tools:

Seal gasket – 1 pc.

Self-tapping screws with mounted washer and sealing, M5 size – 5 pc.

Rivet nut, knurled, M5 size – 5 pc.

Machine screw, M5 size – 5 pc.

Plastic seal – 1 pc.

Meter seal (for connector) – 1 pc.

End cap (spare) – 1 pc.

Fuse with holder – 1 pc.

The gure given above shows just an example of the scope of supply which can dier from the real set delivered with the TKLS sensor.

TKLS • USER MANUAL 9

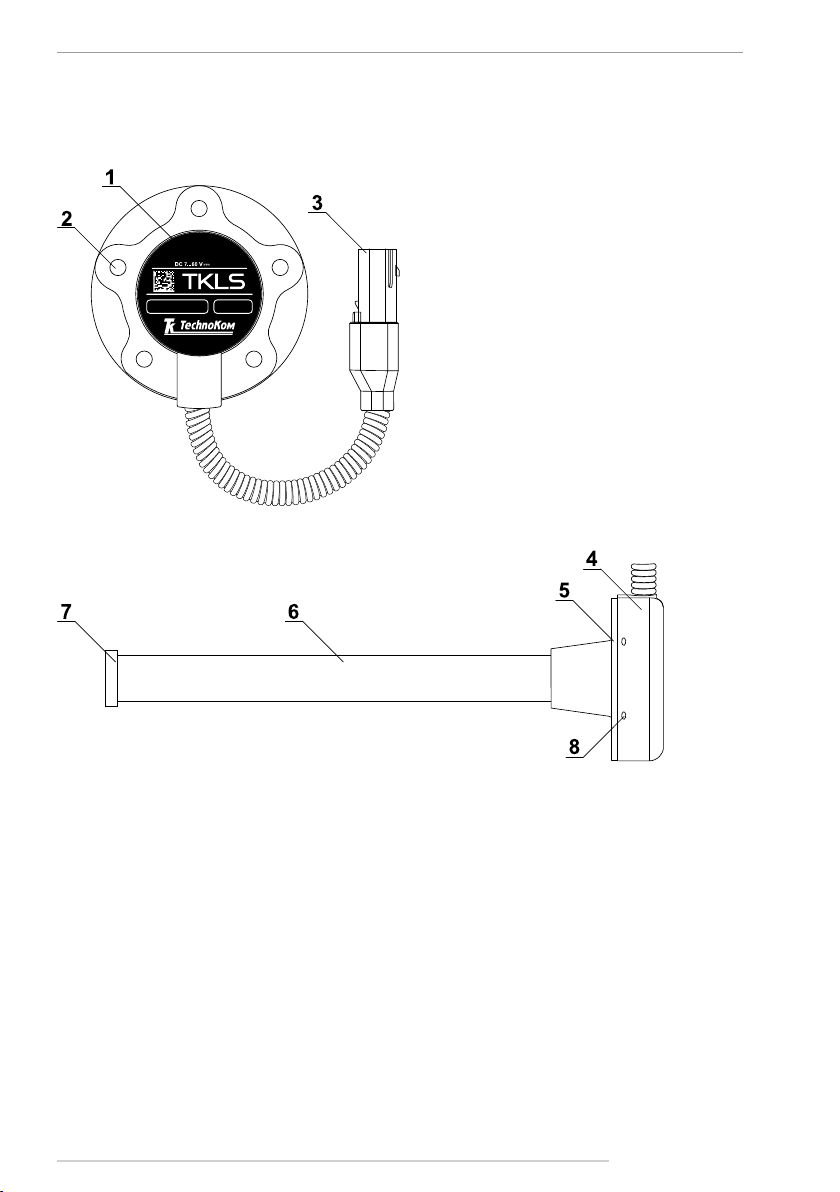

Components of Sensor

1. Product identication1.

2. Mounting hole (x5).

3. Interface Connector 1 (male).

4. Sensor cover.

5. Seal gasket.

6. Measuring probe.

7. End cap2.

8. Sealing hole (x4).

1 Device designation contains trademark and contact details of the manufacturer, device description, serial number and release date of the device.

2The sensor is supplied with a transport plug, which should be removed before sensor installation.

FUEL

LEVEL SENSOR

02/2015S/N 10003135

30 mA

www .tkls.eu

TKLS • USER MANUAL

Interface Connectors

№Wire Colour Assignment

1Red +Vin

2Orange RS-485 (A)

3Gray Frequency output (ОК)

4Black -Vin

5Brown RS-485 (B)

6White Digital input (active low)

Interface Connector 1 (male)

View from side of pins

Connector 2 (female)

View from side of sockets. This is the connector of

the signal cable supplied with the sensor.

Both connectors are keyed to prevent wrong orientation.
