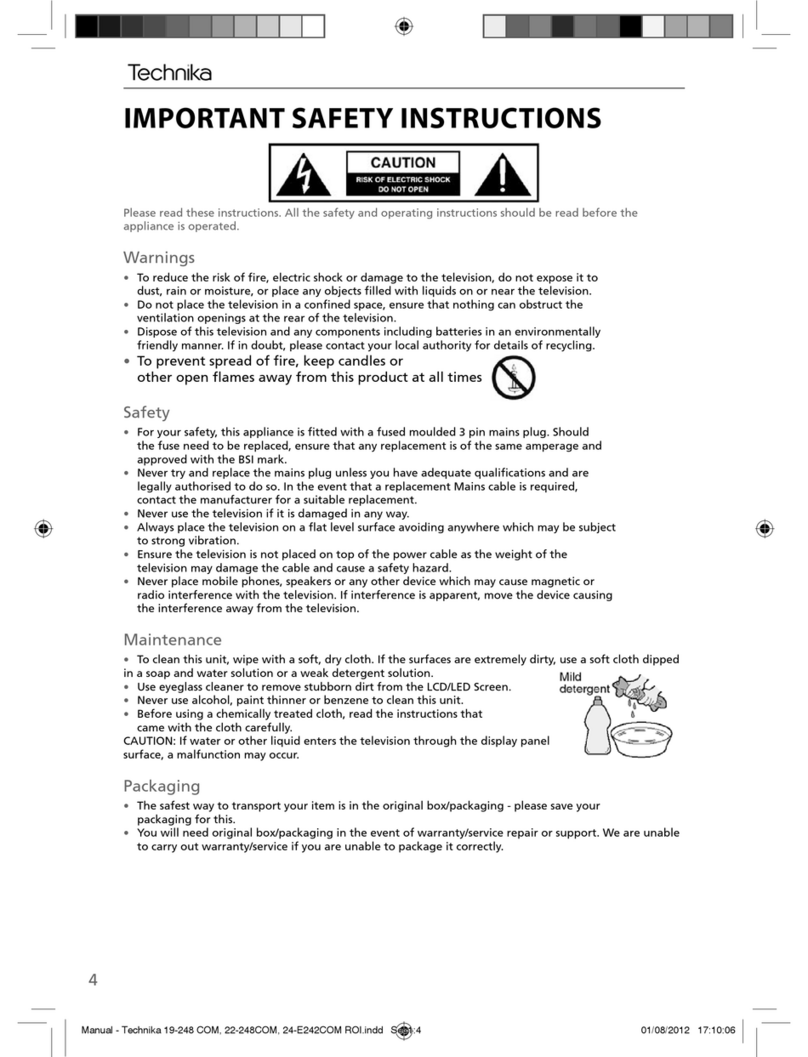

Please read these instructions. All the safety and operating instructions should be read before the

appliance is operated.

Warnings

• To reduce the risk of ﬁre, electric shock or damage to the television, do not expose it to

dust, rain or moisture, or place any objects ﬁlled with liquids on or near the television.

• Do not place the television in a conﬁned space, ensure that nothing can obstruct the

ventilation openings at the rear of the television.

• Dispose of this television and any components including batteries in an environmentally

friendly manner. If in doubt, please contact your local authority for details of recycling.

• To prevent spread of ﬁre, keep candles or

other open ﬂames away from this product at all times

Safety

• For your safety, this appliance is ﬁtted with a fused moulded 3 pin mains plug. Should

the fuse need to be replaced, ensure that any replacement is of the same amperage and

approved with the BSI mark.

• Never try and replace the mains plug unless you have adequate qualiﬁcations and are

legally authorised to do so. In the event that a replacement Mains cable is required,

contact the manufacturer for a suitable replacement.

• Never use the television if it is damaged in any way.

• Always place the television on a ﬂat level surface avoiding anywhere which may be subject

to strong vibration.

• Ensure the television is not placed on top of the power cable as the weight of the

television may damage the cable and cause a safety hazard.

• Never place mobile phones, speakers or any other device which may cause magnetic or

radio interference with the television. If interference is apparent, move the device causing

the interference away from the television.

Maintenance

• To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped

in a soap and water solution or a weak detergent solution.

• Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.

• Never use alcohol, paint thinner or benzene to clean this unit.

• Before using a chemically treated cloth, read the instructions that

came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel

surface, a malfunction may occur.

Packaging

• The safest way to transport your item is in the original box/packaging - please save your

packaging for this.

• You will need original box/packaging in the event of warranty/service repair or support. We are unable

to carry out warranty/service if you are unable to package it correctly.

IMPORTANT SAFETY INSTRUCTIONS

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:4Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:4 17-Feb-12 12:00:45 PM17-Feb-12 12:00:45 PM

IMPORTANT SAFETY INSTRUCTIONS

Please read these instructions. All the safety and operating instructions should be read before the

appliance is operated.

Important Information Regarding Use of Video Games, Computers,

Captions or Other Fixed Image Displays

The extended use of ﬁxed image program material can cause a permanent “shadow image” on the LCD

panel.

This background image is viewable on normal programs in the form of a stationary ﬁxed image. This type

of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum viewing level.

2. Do not display the ﬁxed image for extended periods of time.

3. Turn the power off when not in actual use.

Examples of images that you need to watch out for are as follows (this is not an exhaustive list):

• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are

bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

• Time Displays

• Teletext: Do not view a stationary page for long period of time

• TV/DVD Menus: e.g. Listings of DVD disk content

• Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or

videos.

Important - Once ‘shadow image/screen burn’ occurs, it will never disappear and is not repairable under

warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Separate

disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in

store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate

disposal facilities exist. Check with your Local Authority or retailer for recycling advice.

Batteries

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old and new batteries.

• Dispose of batteries in an environmentally friendly way.

• Certain regions may regulate the disposal of batteries.

Please consult your local authority. Cd

CAUTION:

THIS UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED.

WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK

INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1

LASER PRODUCT

This caution label is located on the rear panel of the unit

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:5Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:5 17-Feb-12 12:00:46 PM17-Feb-12 12:00:46 PM

CONTENTS

Manufacturers Guarantee Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

What is included in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Attaching/Detaching the stand and wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Getting Started - Initial Set Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

TV Buttons and Input Source Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

TV Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-21

Channel Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Time Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Feature Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7 Day TV Guide / USB Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

USB Mode / Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-27

Using your TV with a digital set top box . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Technical Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:7Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:7 17-Feb-12 12:00:46 PM17-Feb-12 12:00:46 PM

What is included in the box

Please save your packaging as you will need this in the event of warranty/service repair or support. We

are unable to carry out warranty/service if you are unable to package it correctly. The safest way to

package your item in the event of warranty/service repair is in it’s original box/packaging.

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories:

1 x User Guide

1 x Quick Start Guide

2 x AAA Batteries

1 x TV

1 x Stand

1 x RF Cable

1 x Remote Control

User Guide

Quick Start

Guide

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:8Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:8 17-Feb-12 12:00:47 PM17-Feb-12 12:00:47 PM

Attaching / Detaching the stand and wall mounting

ATTACHING/DETACHING THE STAND

Attaching the Stand

1) Insert the TV into the stand at 45 degrees 2) Twist the TV into the CLOSE

position until it clicks into place

Detaching the Stand

1) To remove the base, press close button and rotate 45 degrees.

2) Remove the 4 screws highlighted

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling

where there could be any electric wires, water or gas pipes.

ﬁg 1

ﬁg 2

For optimum viewing,

if wall mounting the TV

higher than eye level,

the TV should be tilted

downwards so that the

TV’s screen is ‘face on’.

See ﬁg 1 and 2

Important – If wall mounting this TV, only

use the screws already provided in the wall

mounting holes. Using other screws which

are longer could cause irreparable damage to

internal parts.

Viewing angle

INCORRECT

CORRECT

Wall mounting the TV

This television requires a VESA 100 wall mount, or equivalent.

1) Remove the four screws highlighted below.

2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes

are indicated in the picture below.

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:9Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:9 17-Feb-12 12:00:57 PM17-Feb-12 12:00:57 PM

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:10Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:10 17-Feb-12 12:00:59 PM17-Feb-12 12:00:59 PM

GETTING STARTED  INITIAL SET UP

1) Using the RF cable supplied, connect the TV

to the TV Aerial wall socket (Fig A)

2) Connect the power cable to the Electrical

outlet (Fig B)

4) You will now be welcomed with the initial

set-up screen.

If it does not appear, on the remote control,

please press [MENU] then 8-8-8-8 and the

menu will appear.

Press OK on the remote control and tuning

will start.

5) After tuning the following screen will

appear.

If you are missing channels, the reason for this is likely to be signal strength, you should

consider connecting signal booster and re-tuning the TV.

Getting Started - Initial Set Up

Fig A

Fig B

3) Insert the batteries supplied into the

Remote control and press the Standby

button to power on the TV

As part of our ongoing development to reduce power consumption, we have added an extra function to this Television

called ‘Ecohome’ (you will see this during the ﬁrst time installation set up). Power consumption using the Ecohome

function is approximately 15% lower than some other modes. The picture brightness is reduced using the Ecohome

function. If this function is not suitable for your viewing environment, you can select other modes as necessary. (Please

note, ‘Professional’ mode is for optimum default picture settings, however, power consumption is approximately 15%

higher than ‘Ecohome’ mode)

Please refer to the user guide section ‘Picture settings’ in order to change the mode to one that maybe more suitable for

your environment. There is also a shortcut button on the remote control called ‘P-Mode’ should you wish to change to

another mode.

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:11Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:11 17-Feb-12 12:00:59 PM17-Feb-12 12:00:59 PM

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:12Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:12 17-Feb-12 12:01:00 PM17-Feb-12 12:01:00 PM

Remote Control

REMOTE CONTROL

STANDBY - Switch on TV when in standby or vice versa

MUTE - Mute the sound or vice versa

TV/RADIO - Switch to Freeview and switch between TV and radio

in Freeview mode

TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)

ATV - Switch to analogue TV source

USB - Switch to USB Source

DVD - Switch to DVD source

EJECT - Eject disc in DVD mode

S.MODE - Scrolls through sound mode options

P.MODE - Scrolls through picture mode options

- To restart the current chapter

- To advance forward to the next chapter

- To stop the playback

- To play in fast rewind mode

- To play in fast forward mode

- To play/pause

SOURCE/AV - To display the input/source menu

INFO - Press once for now/next channel information

Press twice for programme information about current

programme

- Allows you to navigate the on-screen menus and

adjust the system settings to your preference

MENU - To display OSD menu

EXIT - To exit all menus

NUMBER BUTTONS - 0 – 9 to select a TV channel directly.

- To return to the previous channel viewed

FAV - To display favourites menu

VOL - To increase / decrease the sound level

SUBTITLE - To switch the dialogue at the bottom of the screen

(on/off)

ASPECT - To switch the screen between the different picture

formats

AUDIO - To change the audio language (if available)

SLEEP - Press repeatedly to cycle through the sleep options

CH To increase or decrease the channel being watched

GOTO - DVD mode - To go to a speciﬁc chapter

A-B Repeat - DVD mode - Press once to set point, press a second

time to return to point

ANGLE - DVD mode - Select different angle of DVD (if available)

REPEAT - DVD mode - To repeat playback

D.DIS - DVD mode - To display the current disc information

ZOOM - DVD mode - To zoom in

**SIZE - Teletext mode - To change the display size in Teletext

mode

DISPLAY - To switch off the screen when listening to radio

DVD SETUP/TEXT - DVD mode - To display the DVD setup menu

**Teletext mode - To enter Teletext

D.MENU/INDEX - DVD mode - To display the DVD disc menu

**Teletext mode - To display the index page

TITLE/REVEAL - DVD mode - To display the DVD title menu

**Teletext mode - To reveal or hide the hidden words.

HOLD - Teletext mode - Hold current page which is displayed

** Teletext function is only available in analogue

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:13Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:13 17-Feb-12 12:01:01 PM17-Feb-12 12:01:01 PM

COA X

(Audio Out) YPb Pr IN

CONNECTIONS

Connections

HDMI 1 HDMI input

VIDEO Video and Audio input for Video&Component

R/L- Audio / RCA audio input for Video&Component(YPbPr)

Component HD Component HD Input

RF IN RF / TV Aerial Input

USB USB port

HDMI 2 HDMI input

CI CARD IN Common Interface Card Input

HEADPHONES 3.5mm Headphone output

ABC D

Y Pr R

VIDEO L

Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:14Manual - Technika 19-248 COM, 22-248COM, 24-E242COM.indd Sec1:14 17-Feb-12 12:01:02 PM17-Feb-12 12:01:02 PM

Autres manuels pour 19-248COM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Technika TV

Technika

Technika 32-210 Manuel utilisateur

Technika

Technika 42-2030 Manuel utilisateur

Technika

Technika 19-248COMI Manuel utilisateur

Technika

Technika LCD 32-56L Manuel utilisateur

Technika

Technika 16-849 Manuel utilisateur

Technika

Technika 32-2010 Manuel utilisateur

Technika

Technika 43551FIRE Manuel utilisateur

Technika

Technika 28E21B-HDR/DVD Manuel utilisateur

Technika

Technika 23-231-BB Manuel utilisateur

Technika

Technika 16-850 Manuel utilisateur

Technika

Technika 19-251 Manuel utilisateur

Technika

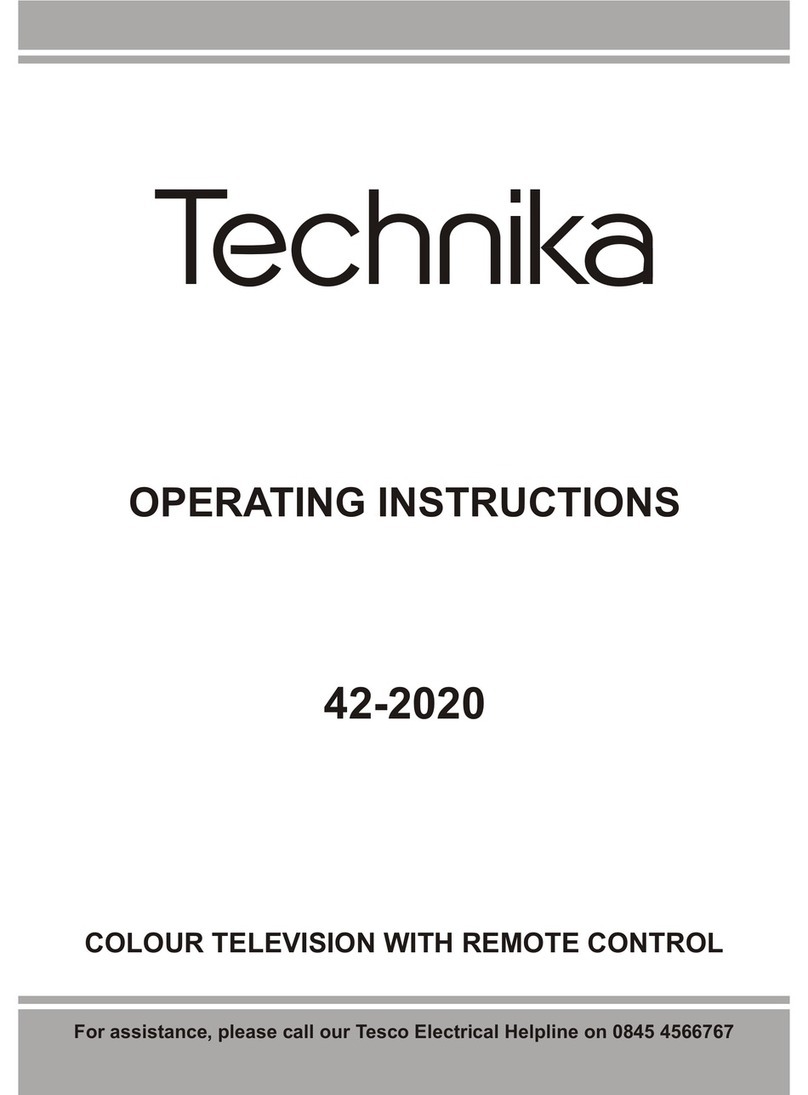

Technika 42-2020 Manuel utilisateur

Technika

Technika LCD32-909V Manuel utilisateur

Technika

Technika 19-228 Manuel utilisateur

Technika

Technika LCD19-915 Manuel utilisateur

Technika

Technika LCD32-209V Manuel utilisateur

Technika

Technika LCD22-921 Manuel utilisateur

Technika

Technika 32-248I Manuel utilisateur

Technika

Technika 32-2011 Manuel utilisateur

Technika

Technika 42-8533D Manuel utilisateur

Technika

Technika 32G22B-HD Manuel utilisateur

Technika

Technika LCD32-209X Manuel utilisateur

Technika

Technika LCD26-920 Manuel utilisateur

Technika

Technika 22-910 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
