Congratulations on purchasing this television. We hope you have many

years of trouble free enjoyment from your purchase.

Your product is covered under the manufacturers guarantee for 12 months

from date of purchase.

In the event of a fault being diagnosed, please refer to the frequently

asked questions/troubleshooting section at the rear of this user guide.

If you are still unable to remedy the fault, try resetting the TV

to factory settings, (details in this user guide) or contact the helpline.

In the event that a fault is diagnosed, the helpline will arrange to collect

the TV from your home or work address, return it to our service centre,

repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Sky Media UK LTD – Helpline Information

Telephone UK 0871 2000 463 ROI 01443 3940

Email: [email protected]

Internet: www.skymediauk.co.uk

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

On the web site, you can register your product and guarantee, if you

do it within 7 days of purchase, you will also receive an extra FREE

3 months warranty, making the warranty 15 months from date of purchase.

You must retain all packaging materials as you will need these in the event of

warranty/service support.

If you need to call the helpline, you will need the following information.

Model Number ___________________(Can be found on the front of this user guide)

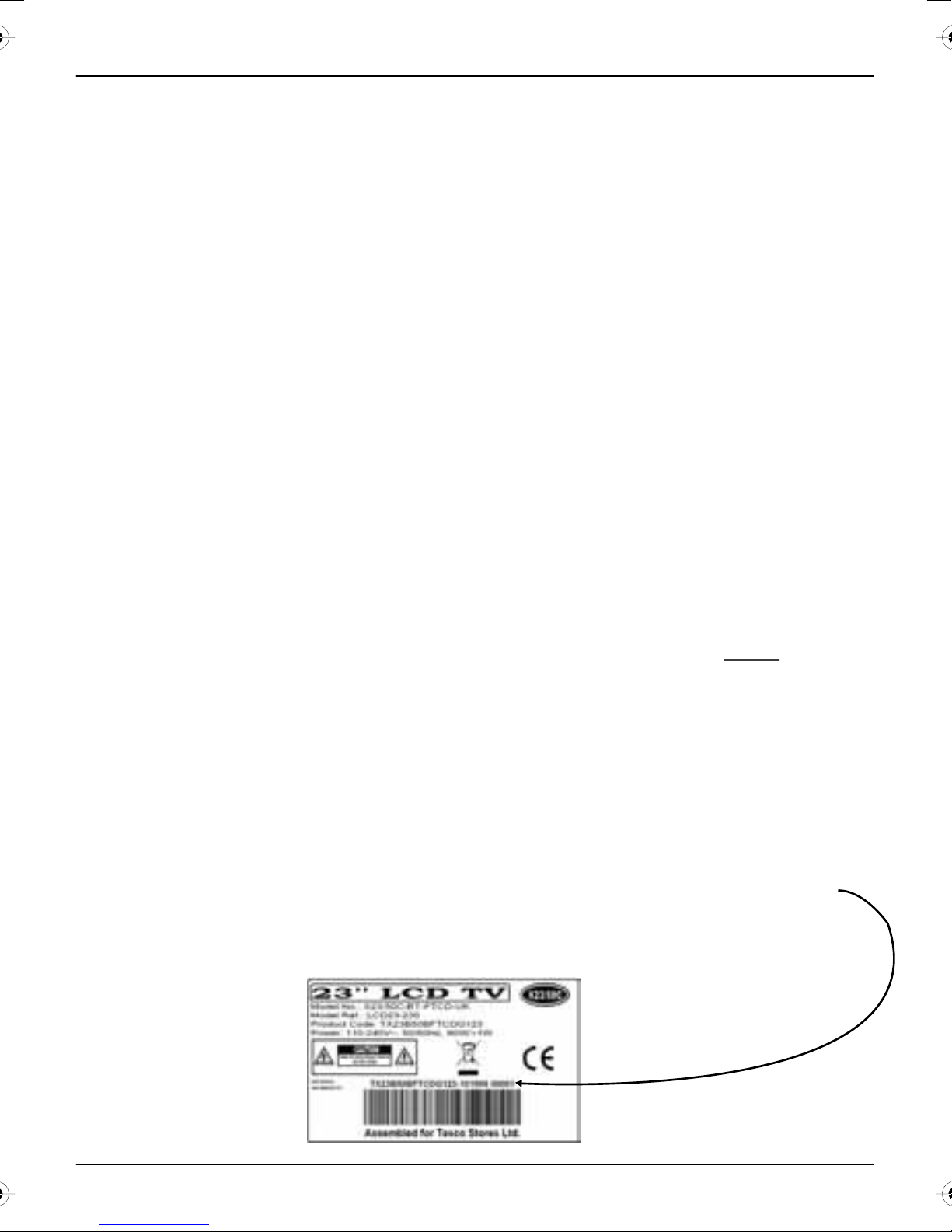

Serial Number __________________________ (Can be found on rear of TV)

Date of purchase __________________________ (Can be found on sales receipt)

216_17 full hd english manual 01Page 1 14. 7. 2009 8:19:01

User Guide

216_17 english manual 02.pdf 3. 11. 2008 13:57:03

IDTV

Important information regarding the digital TV switchover

Television in the UK is going digital, bringing us all more choice and new services. Starting late

2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

How the switchover affects your TV equipment.

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply

connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or

whether you will have to wait until the switchover at www.digitaluk.co.uk)

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune

your TV in order to continue receiving your existing TV channels and also to pick up new ones. Digital UK, the

body leading the digital switchover, will advise you when you need to retune during the switchover.

How to retune.

Retuning your TV is a very quick and simple process. We recommend that you retune

every few months to ensure you are receiving the very latest TV and radio channels

that are broadcast.

•In digital/freeview mode, on the remote control press ‘menu’ quickly followed by 8-8-8-8 (so

press the number 8 four times)

•You will now enter the ‘First time installation’ mode. (if you do not, please refer to the section

called ‘getting started’ later in this user guide)

•Simply press ‘OK’ or ‘Enter’ on the remote control and your TV will retune.

If you do not retune your TV when advised to do so by Digital UK, you may lose some or all of your channels

until you do re-tune.

If you are missing any channels, it may be that they are not available in your area, or that your TV aerial

needs upgrading.

For help and support regarding the digital switchover, please contact Digital UK:

Telephone: 08456 50 50 50 (calls charged at local call rate, approx 3p per minute daytime or 1p per minute evenings from a BT landline)

Digital UK website: www.digitaluk.co.uk

If you require technical or warranty support on this television, please contact the manufacturer helpline, do

not contact Digital UK unless your query is regarding the digital switchover.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is

highlighted in yellow and press ‘OK’ on your remote .If after

this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

English

216_17 english manual 03 new.pdfPage 1 3. 11. 2008 14:03:08

User Guide

WARNINGS

Caution

This television contains no user serviceable parts. Please refer to the manufacturer

or authorised repair agent in the event of malfunction. Do not remove the back cover

from the television.

Warning

To reduce the risk of fire, electric shock or damage to the television, do not expose

it to dust, rain or moisture, or place any objects filled with liquids on or near the television.

Do not place the television in a confined space, ensure that nothing can obstruct

the ventilation openings at the rear of the television.

Do not place naked flames on or near the television.

Dispose of this television and any components including batteries in an environmentally

friendly manner. If in doubt, please contact your local authority for details of recycling.

Your LCD TV should be cleaned using a dry or slightly damp cloth. You should not use

an alcohol based cleaner

Safety

For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should

the fuse need to be replaced, ensure that any replacement is of the same amperage

and approved with the BSI mark. ( )

Never try and replace the mains plug unless you have adequate qualifications and are

legally authorised to do so. In the event that a replacement Mains cable is required,

contact the manufacturer for a suitable replacement.

Never use the television if it is damaged in any way.

Always place the television on a flat level surface avoiding anywhere which may

be subject to strong vibration. Ensure the television is not placed on top of the power

cable as the weight of the television may damage the cable and cause a safety hazard.

Never place mobile phones, speakers or any other device which may cause magnetic

or radio interference with the television. If interference is apparent, move the device

causing the interference away from the television.

Packaging

Please save the packaging for the television as you will need this in the event

of warranty/service repair or support. We are unable to carry out warranty/service

if you are unable to package it correctly. The safest way to package your item in the

event of warranty/service repair is in its original box/packaging

216_17 english manual 04 new.pdfPage 1 3. 11. 2008 15:26:23

IDTV

216_17 english manual 05 new.pdfPage 1 5. 11. 2008 10:12:06

User Guide

216_17 english manual 06 new.pdfPage 1 3. 11. 2008 14:10:10

IDTV

CONTENTS

SETTING UP YOUR TV

- Digital Switchover Re-Tune 2

- What is included in the box 8

-Attaching/Detaching the

Stand & Wall mounting 9

- Tuning in TV 10

- Remote control buttons and their

functions 11

- TV buttons and their functions 12

- Inputs and Connections 13

TV MENU OPERATION

- Picture Settings Menu 14 - 15

- Sound Setttings Menu 16

- Tuning Settings Menu 17

- Common Inferface Slot 18

- Timer Settings Menu 18

- Sleep Timer 18

- On Screen Display Timer 18

- General Settings Menu 19

- On Screen Menu Language 19

- Adjusting Picture Format 19

- Blue Screen 19

- System Lock 19

- First Time Installation 20

- Reset Television to Factory Settings 20

CHANNEL SERVICES

- Using Electronic Program Guide 20

- Using Digital TV teletext 21

- Using Analogue TV teletext 21

PC OPERATION

- Using with a PC or Laptop 22 - 23

DVD MENU OPERATION

- System Setup 24

- Changing Regions 25

- Audio Setup 25

- Digital Setup 25

GENERAL INFORMATION

- Using with Sky Digital/Virgin Media 26

- Connecting a Games Console 27

- Frequently Asked Questions 28

- Technical Specifications 29

- Index 30

Customer Support/Technical Helpline

Sky Media UK LTD

Telephone UK ROI: 01443 3940:0871 2000 463

Email: [email protected]

If you experience any problems with this Television,

Please contact the helpline.

216_17 full hd english manual 07Page 1 20. 7. 2009 13:23:16

User Guide

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories:

1x - User Guide Book 1x - Remote control + AAA batteries

1x - Quick Start Guide 1x - TV

1x - Stand 1x - 3.5mm jack to phono cable

1x - RF lead

Please save your packaging as you will need this in the event

of warranty/service repair or support. We are unable to carry out

warranty/service if you are unable to package it correctly. The safest way

to package your item in the event of warranty/service repair

is in it’s original box/packaging.

PICT URE

FORM AT

INFO

VOL CH

GUIDE

X23_50 full hd english manual paPage 1 1. 10. 2009 13:28:17

IDTV

Model No. 23-230

User Guide

IDTV

Quick Start Guide – Model 23-230

Online support: www.skymediauk.co.uk email: [email protected]

y@ypp

4RF cable supplied, connect the TV to the TV Aerial

wall socket (Fig A) then connect the Power cable

to your TV and Electrical outlet (Fig B)

6Insert the batteries supplied into the Remote control and press

the Power/Standby button to power on the TV

FigB

You will now be welcomed with the initial set

up screen Press

FigA

FigB

IMPORTANT:- If your TV signal is inadequate to receive a

good Digital signal, you will need to connect a 'Signal

booster' between your TV and TV Aerial Socket. See section

7You will now be welcomed with the initial set-up screen. Press

OK on the remote control and tuning will start. If after tuning

some channels are missing, please refer to section 6.

Remote control

butto

FigA

FigB

5Switch on the television using the power on/off switch

located on the side or underside of the TV.

Connect a 'Si

nal booster' as shown below.

Remote control

buttons

FigA

FigB

Remote control

buttons

FigA

FigB

On/Off Switch

Once the 'Signal booster' is connected, retune the TV in order to

receive all of the channels.

Remote control

buttons

FigA

FigB

On/Off Switch

Remote control

buttons

FigA

FigB

On/Off Switch

Remote control

buttons

FigA

FigB

On/Off Switch

X23/MAN/0009

Fault Cause Solution

LED/Power on indicator light on TV not working Nopower being received to TV Ensure power outlet is switched on, check Power on/off switch on TV is switched on

No channels found or screen displays ‘no signal’ TV not receiving any signal Connect to loft/external aerial and retune TV

Some channels missing or picture appears ‘blocky’ Signal too weak If signal reception is below 85%, connect a signal booster (15-20Db) and retune (see
