Techni Mobili RTA-957D Manuel utilisateur

Thank you for purchasing our product.

MODEL RTA-957D

ASSEMBLY INSTRUCTIONS

REV.CMN-6659-0722

P.1 RTA-957D P.1

•Please read carefully the assembly instructions

before the installation.

•Do not discard this manual or any of the packaging

material until the unit has been completely

assembled.

•Might require of two people for the assembly.

P.2 RTA-957D P.2

x1 2

x1 3

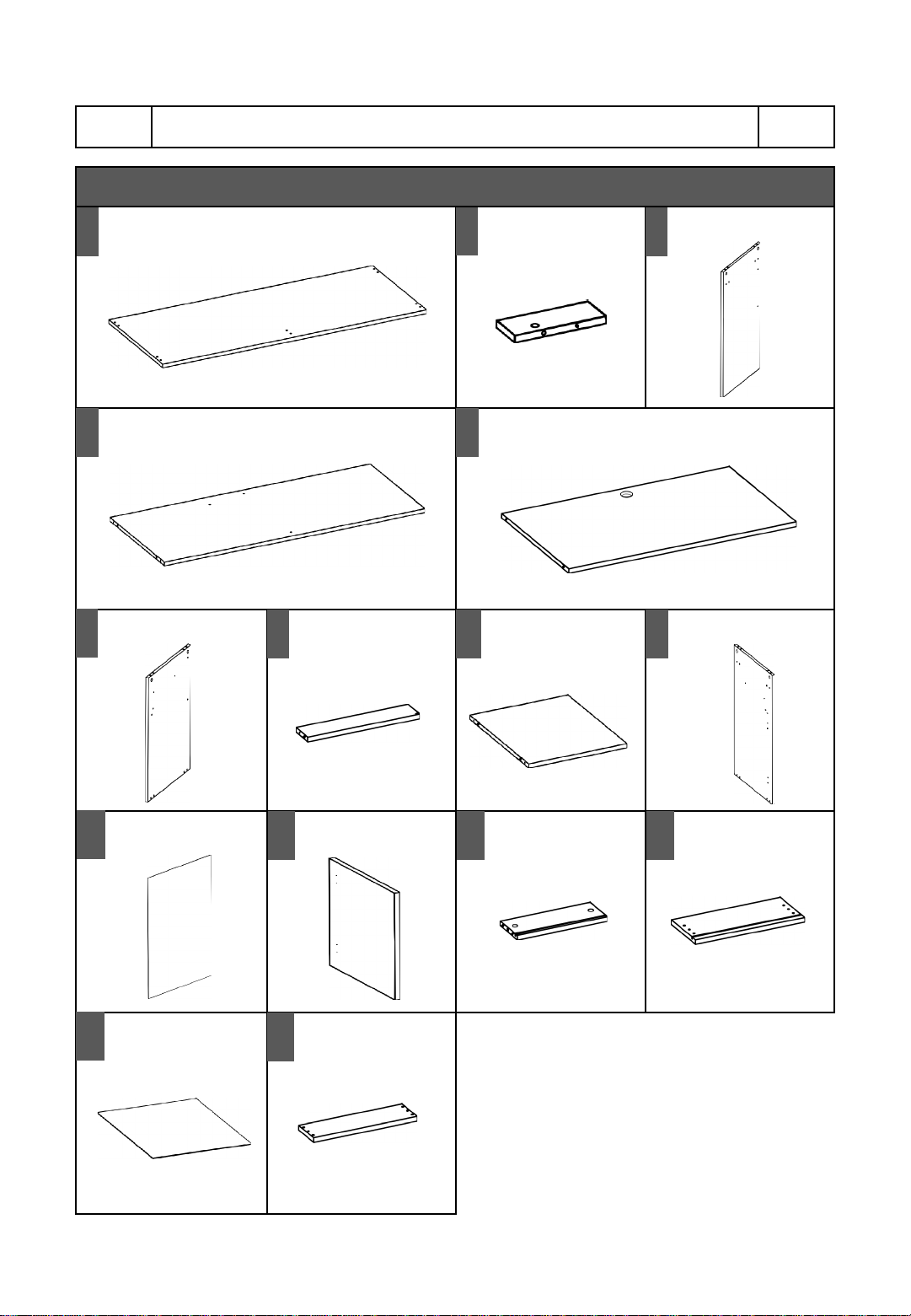

Main panel Top support panel Left side panel

MAIN PARTS LIST

x1 5

Big shelf panel Left back panel

x1 7

Middle side panel Right support panel 8

x1 9

Lower panel Right side panel

x1 11

Right back board Door panel 12

x2 13

Drawer side panel Drawer front panel

x1 15

Drawer bottom

board Drawer back panel

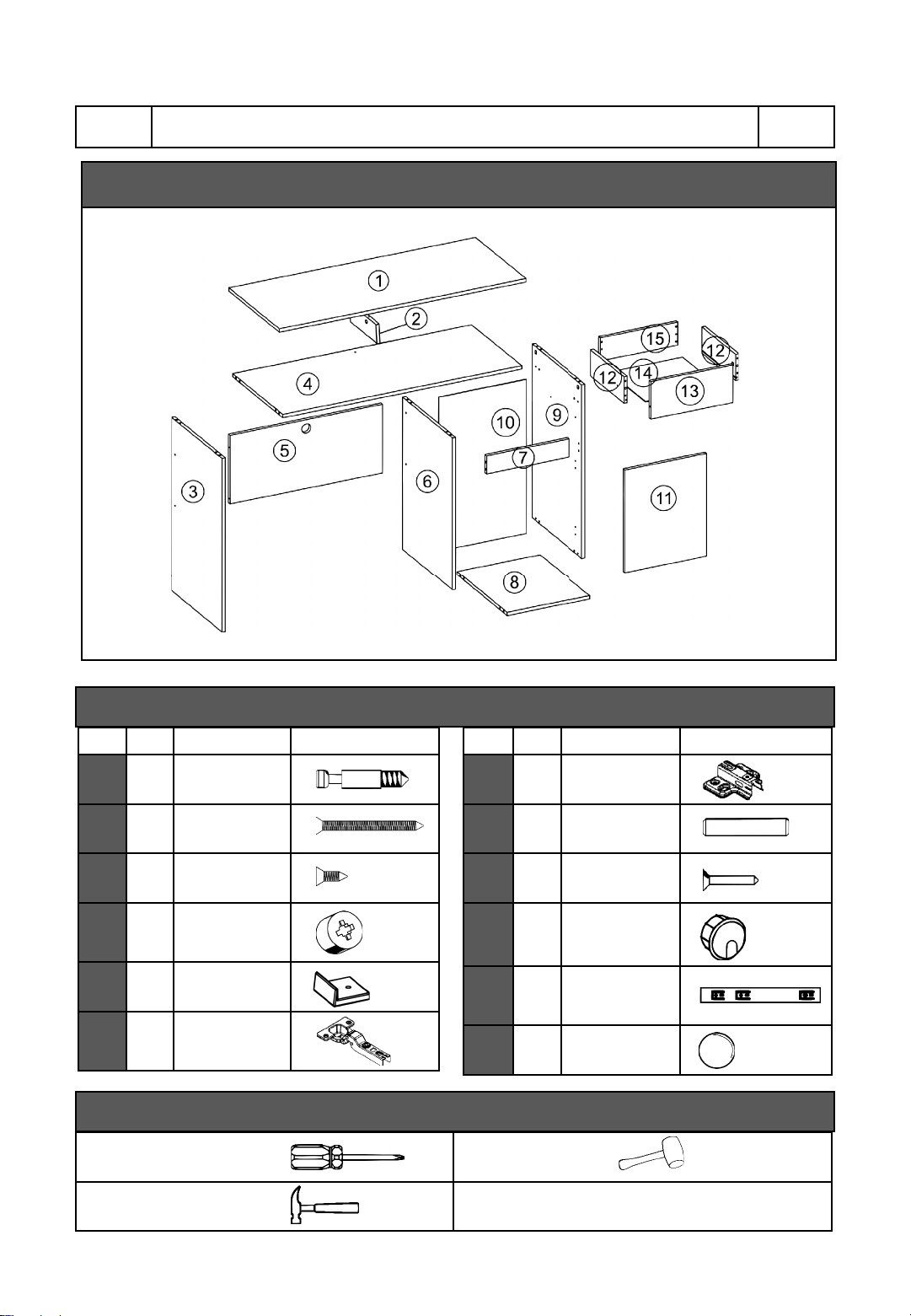

MAIN PARTS LAYOUT (FOR REFERENCE):

P.3 RTA-957D P.3

LIST OF INCLUDED HARDWARE

PART QTY ITEM

A11Bolt

B15 M4x50

C16 M3.5x12

D11Cam lock

E6Glide (foot)

F2Articulated

Hinge

PART QTY ITEM

G2Fixed Hinge

H25 Wooden dowel

M6x30

I30 Nail 10x10

J1Grommet

(Cable

management)

K2Slider

L22 Self-adhesive

sticker

TOOLS THAT ARE REQUIRED (But not included)

Phillips Screwdriver Mallet

Hammer

P.4 RTA-957D P.4

☛

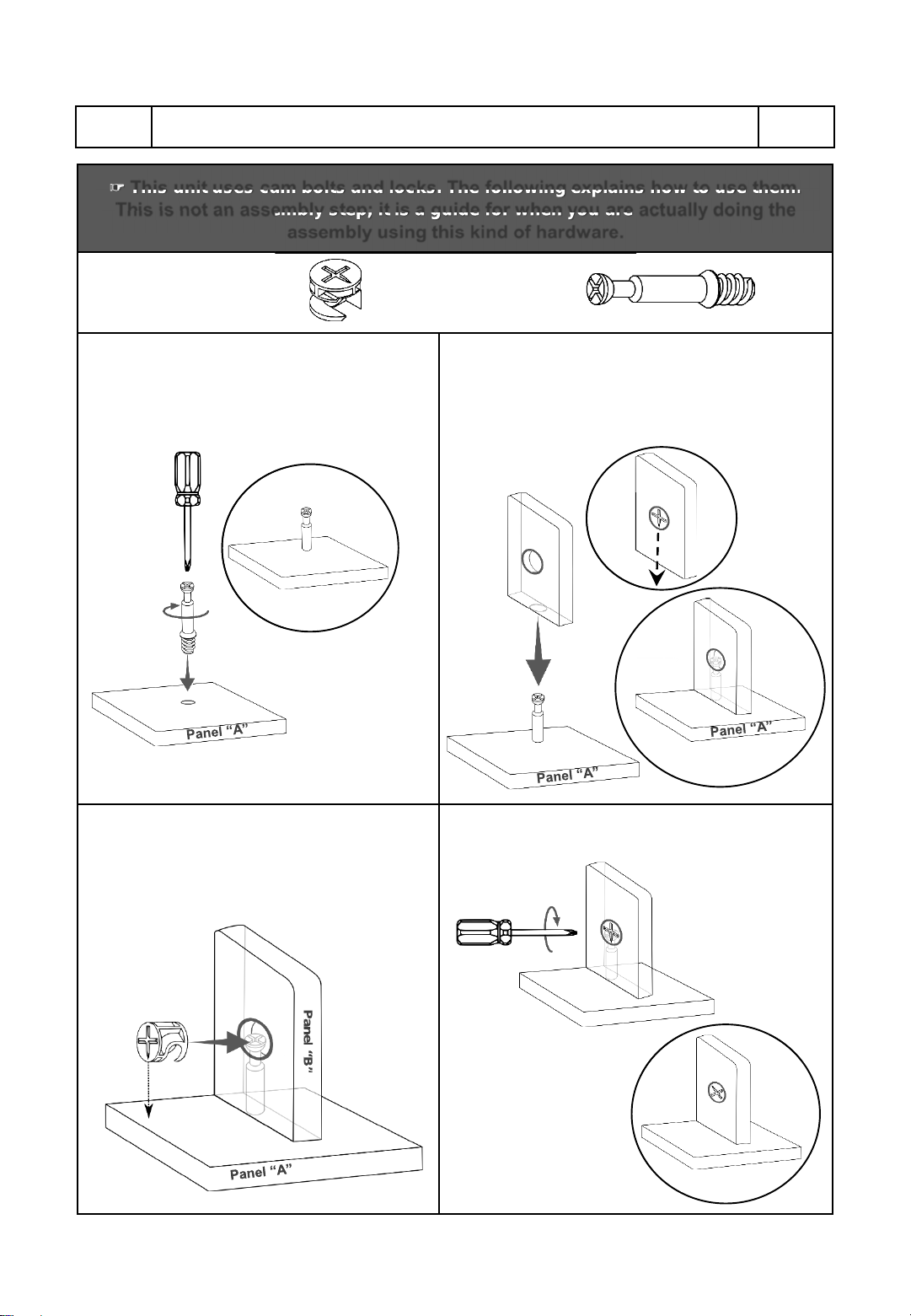

This unit uses cam bolts and locks. The following explains how to use them.

☛

This unit uses cam bolts and locks. The following explains how to use them.

This is not an assembly step; it is a guide for when you are actually doing the

assembly using this kind of hardware.

Cam Bolt

Cam Lock

1. Screw the bolt into the corresponding hole

on panel “A”.

3. Insert the cam lock on panel “B” making

sure it goes aligned to receive the bolt’s head. 4. Turn the cam lock clockwise. This will lock the

parts together and will close any gaps.

Alignment: The cross points

towards the panel “A” with the bolt.

2. Join panel “B” to panel “A”. If panel “B” comes

with the cam lock pre-installed, make sure it is

aligned to receive the bolt’s head (refer to point

3). There might be a very small gap between the

panels which is normal.

Panel “B”

Panel

“B”

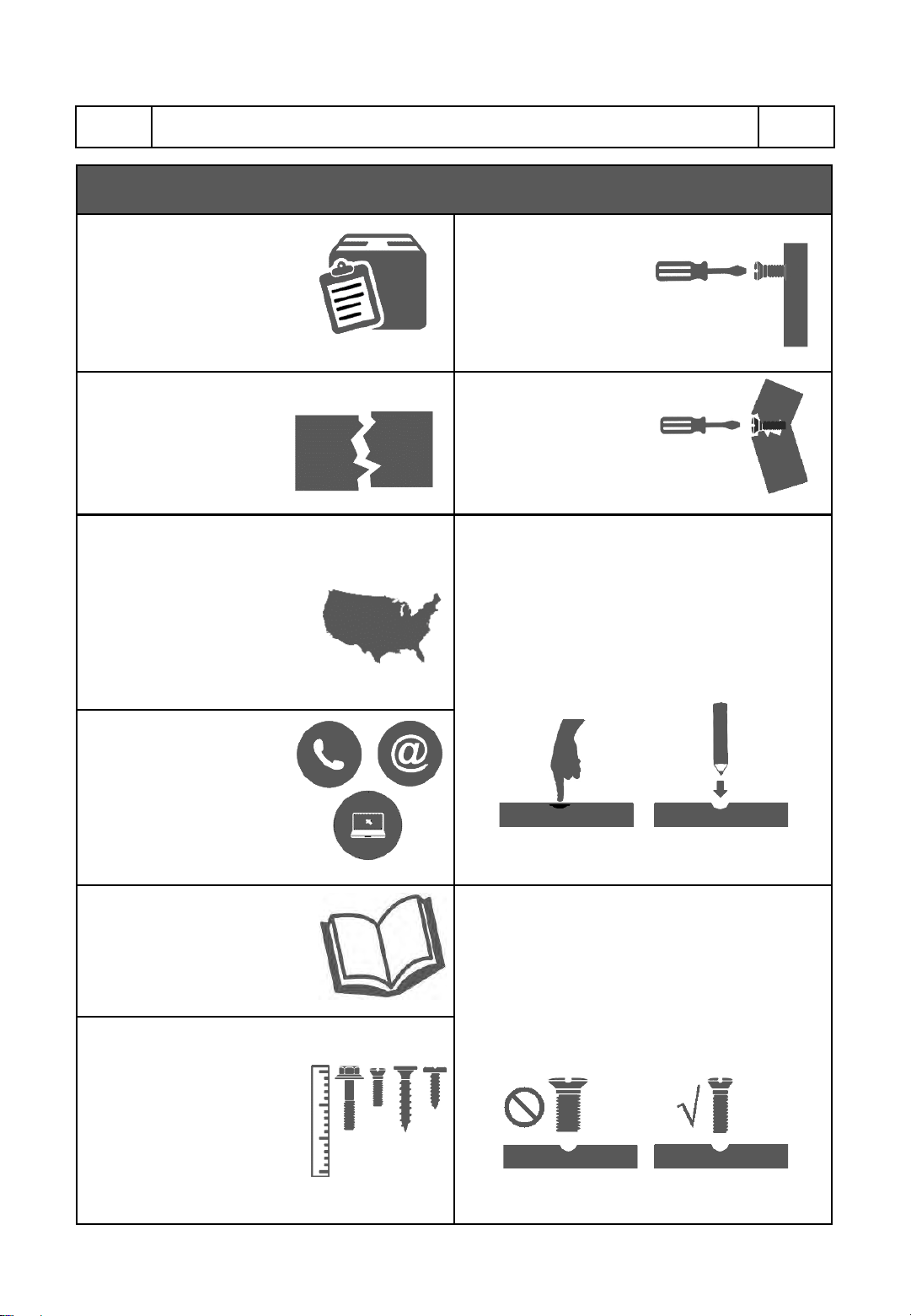

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.

❶Do aquick inventory

to make sure the package

contains all the parts and

hardware listed in the

assembly instructions.

❷Missing, damaged

and defective parts can

be replaced at no cost

to you. Please refer to

the last pages on this

manual.

❹If during assembly

you find an issue or

need clarification, please

contact our Customer

Service for assistance.

Please refer to the last

pages on this manual.

❺On each step read the

instructions and analyze

the illustrations thoroughly

before proceeding to do the

assembly.

❽Do not overtighten

or force the screws as

they might break, strip,

damage the threads of

the holes or get stuck

inside the part.

❻Make sure you

understand which

hardware will be used on

each step.Using the

wrong size of screw, bolt

or pin might strip the

threads or cause damage

to the part in which it is

being used.

❼To avoid

misalignments, always

leave the screws loose

and tighten them until

all pieces are

positioned correctly.

❾Sometimes the laminate might cover

partially or entirely the hole on apanel.If there

is no visible hole for the screw, pass and press

the tip of your finger over the area where the

hole should be located to feel the indentation,

and once found, carefully pierce the laminate to

reveal the hole underneath.

❿If the hole seems too small for the screw,

first make sure you are using the correct size of

screw and that it’s been installed in the correct

hole.If the hole still appears to be too small,

carefully pierce the laminate to reveal the

hole’s actual size.

P.5 RTA-957D P.5

❸The replacement parts

service is limited to the

48 contiguous United States.

If you reside in Alaska,

Hawaii, Puerto Rico,

U.S. territories or other

countries, please contact the

supplier from where the unit

was purchased.

ASSEMBLY STEPS

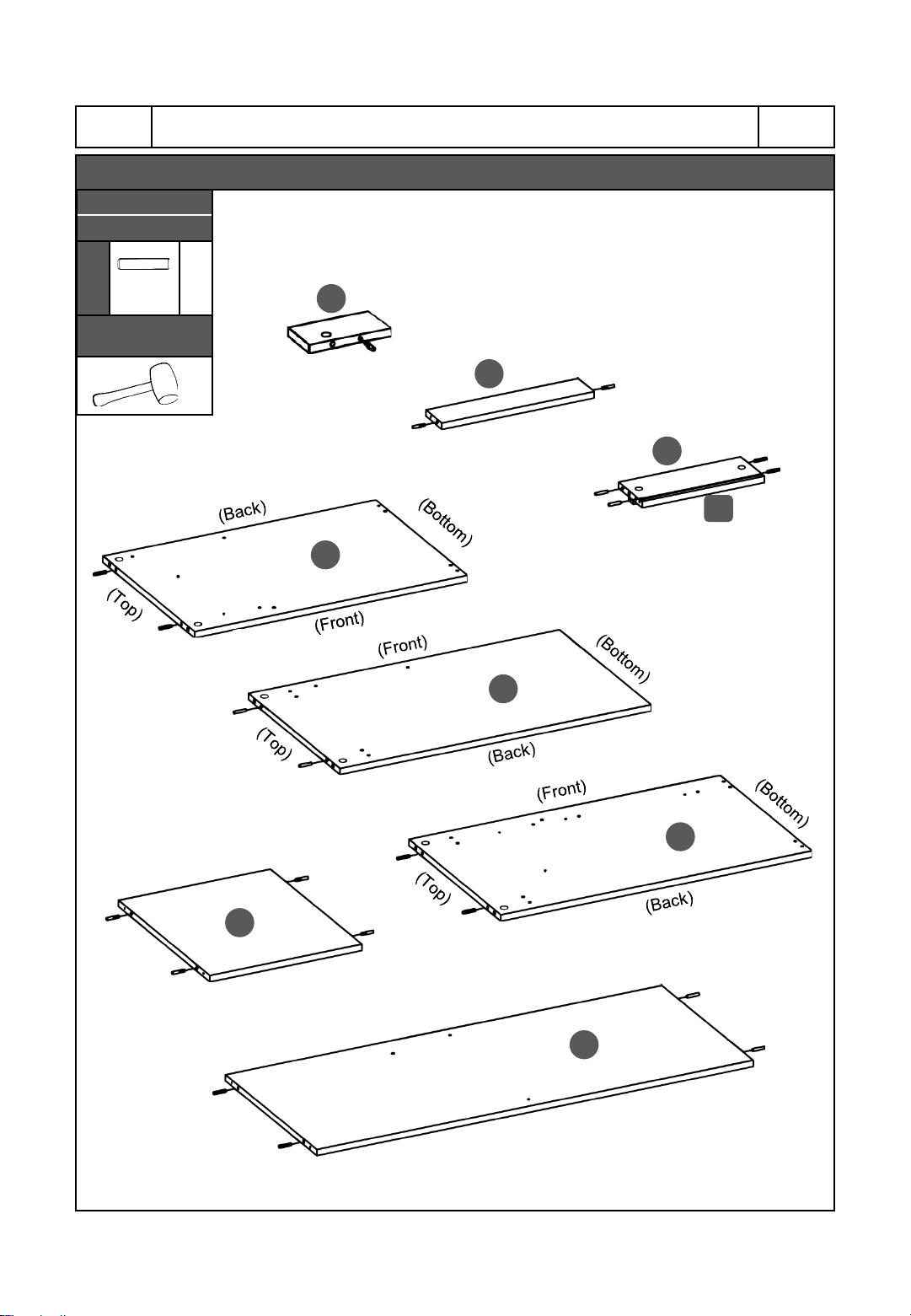

Install the dowels H into the indicated holes on panels 2, 3, 4, 6, 7, 8, 9

and 12.

P.6 RTA-957D P.6

STEP 1

Hardware:

HM6x30

Dowel

Pcs

Tools required

(But not included)

P.7 RTA-957D P.7

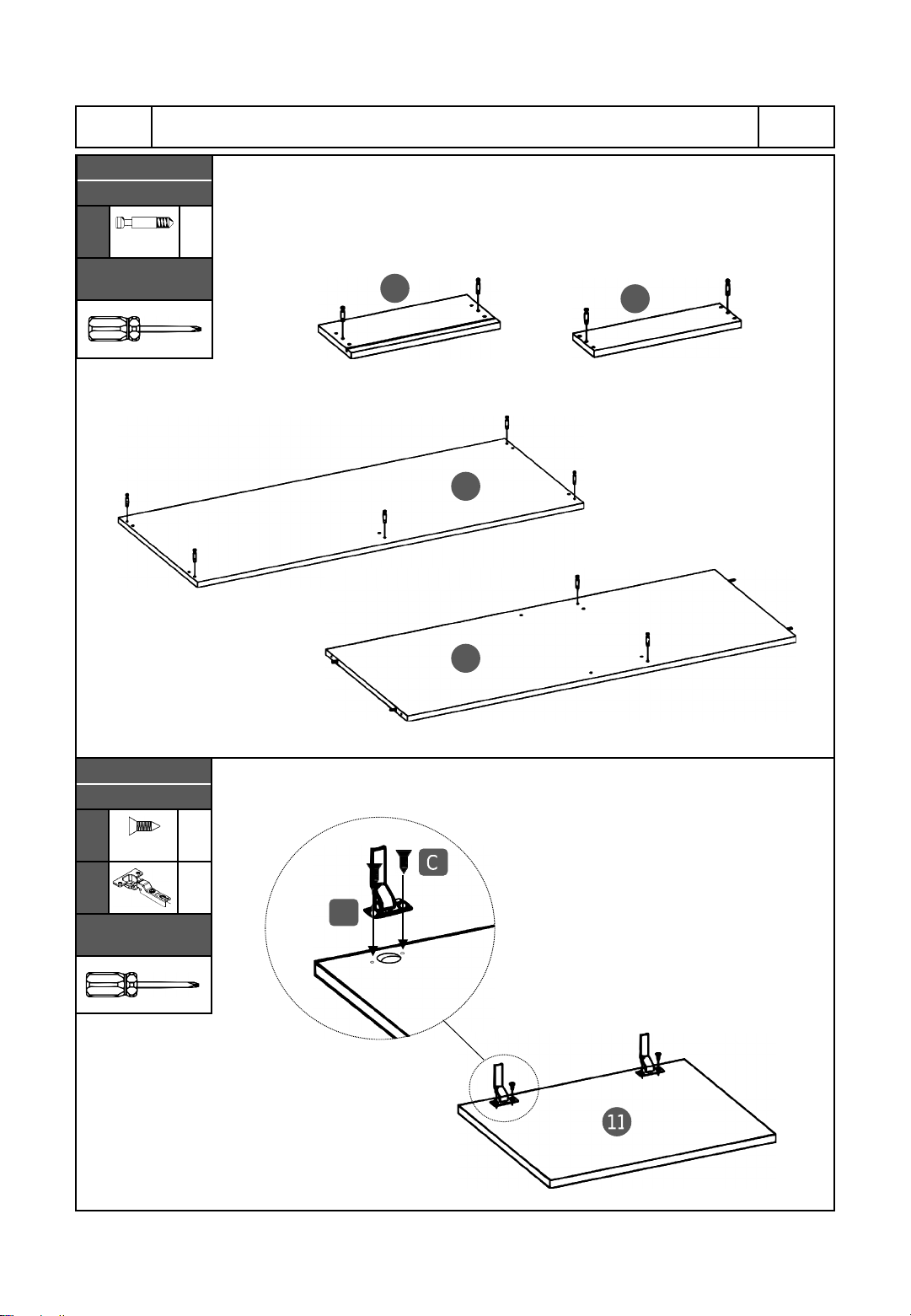

Install the bolts A into the indicated holes on panels 1, 4, 13,and 15.

Attach the hinges F to the door 11 with screws C.

STEP 2

Hardware:

ABolt 11

Pcs

Tools required

(But not included)

STEP 3

Hardware:

CM3.5x12 4

Pcs

Tools required

(But not included)

P.8 RTA-957D P.8

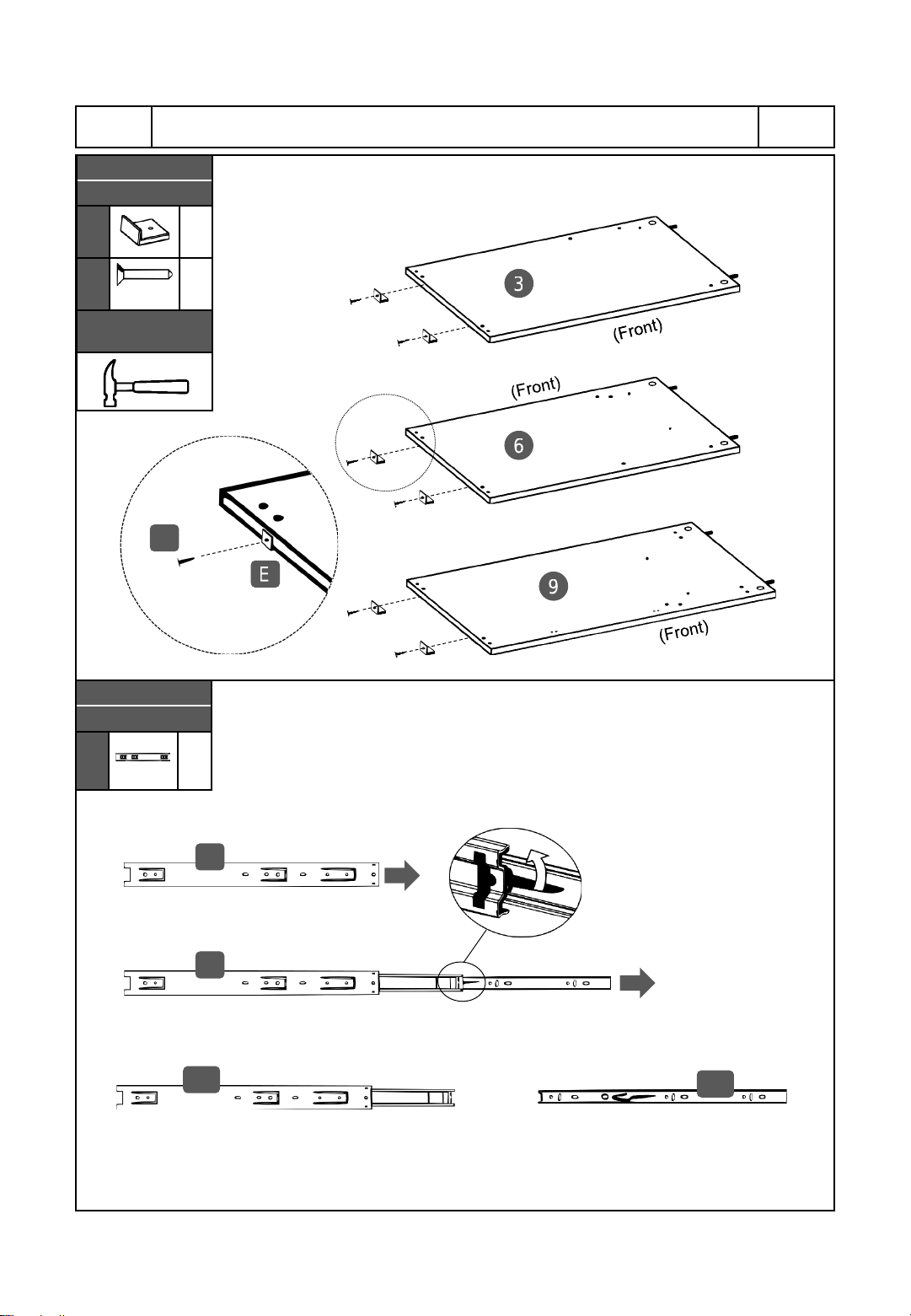

Attach the plastic glides Eto the bottom of the panels 3, 6and 9with

nails I.

STEP 4

Hardware:

Pcs

INail 6

Pcs

Tools required

(But not included)

(Top)

•Grab the sliders K and extend them completely towards the RIGHT.

•In between the smaller piece and the middle piece there is a black

plastic lever sticking out, with the tip of your thumb press the lever UP

and at the same time pull out the smaller piece away from the rest.

•The slider will now be split into piece K-1 (big) and K-2 (small).

(Front)

The “Big” pieces K-1 will be used on big

panels 6 and 9. The “Small” pieces K-2 will be used on

small panels 12.

STEP 5

Hardware:

KSliders

Pcs

(Front)

(Front) (Front)

K-1 K-2

P.9 RTA-957D P.9

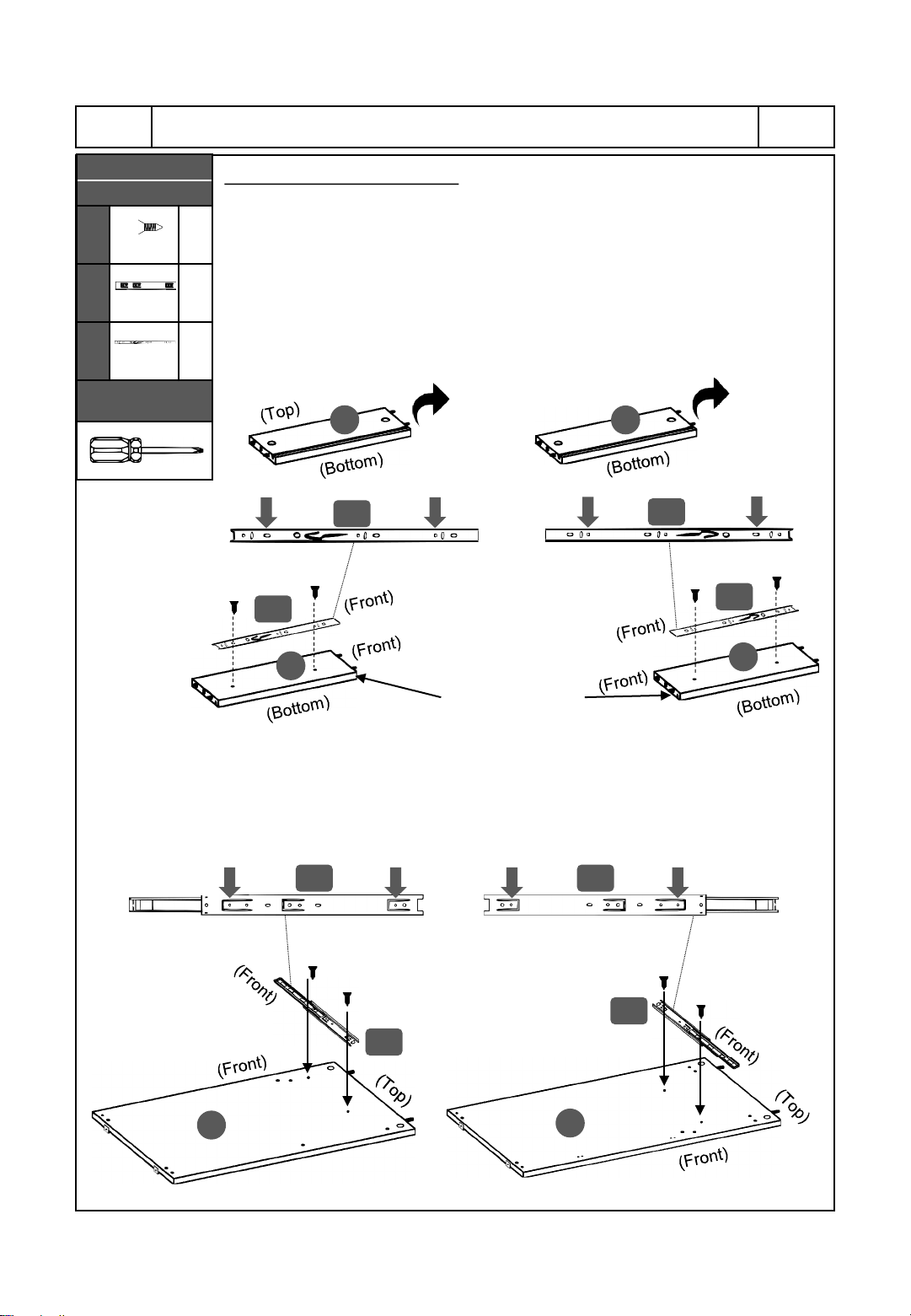

Important notes for this step:

1. Both panels 12 are exactly the same, however, one will be used as

RIGHT side and the other as LEFT side.

2. All the pieces of sliders K-1 and K-2 have a front end that will need

to face towards the front of the panels.

•Flip the panels 12 and assemble to them the small sliders K-2 with

screws C, but oriented opposite on each panel. Make sure that the

grooves on the other side are located at the BOTTOM.

•Assemble the big sliders K-1 to the panels 6and 9 on the top sets of holes with

screws C. Attach first the back hole (2nd from the back end), then open the slider

slowly until you are able to see the front hole (1st from the front end). You might

need to slide away the piece with the ball bearings to clear the view of the hole.

The grooves go

at the bottom

(Front)

12 Flip Flip

STEP 6

Hardware:

CM3.5x12

Pcs

K-1 Big

Pcs

K-2 Small

Pcs

Tools required

(But not included)

K-1

K-2 K-2

(Front) K-2

K-2

K-1 K-1
