Technaxx®* User Manual

Nature Wild Cam 8MP TX-125

The Declaration of Conformity for this device is under the Internet link:

www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the device

the first time, read the user manual carefully.

Service phone No. for technical support: 01805 012643 (14 cent/minute from

German fixed-line and 42 cent/minute from mobile networks).

Free Email: support@technaxx.de

Keep this user manual for future reference or product sharing carefully. Do the same

with the original accessories for this product. In case of warranty, please contact the

dealer or the store where you bought this product. Warranty 2 years

Enjoy your product * Share your experience and opinion on one

of the well-known internet portals

Contents

Features........................................................................................................ 1

Camera overview........................................................................................... 2

Power supply................................................................................................. 2

Inserting the memory card............................................................................. 3

Basic Operations ........................................................................................... 3

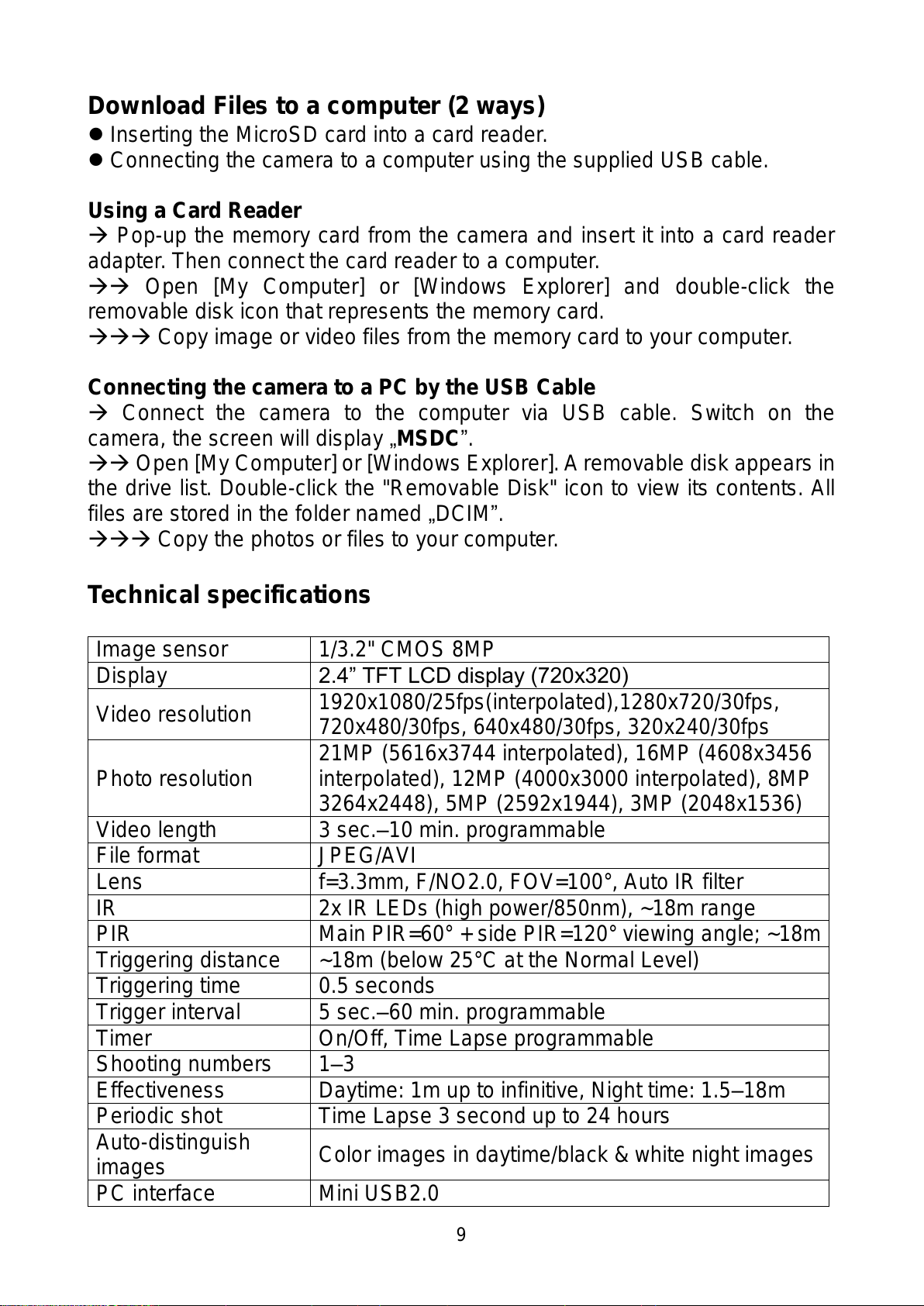

Download Files to a computer (2 ways)......................................................... 9

Technical specifications ................................................................................. 9

Features

Security camera battery operated for indoor and outdoor use

Ideal for recording and observing the wildlife and for monitoring houses

FullHD video resolution 1080p

2.4” TFT LCD display (720x320)

1/3.2" CMOS sensor with 8MP

Select functions: video, photo, video & photo

PIR sensor (~18m) & IR range (~18m) for night recordings

Triggering time 0.5 seconds

Built-in micophone & speaker

MicroSD card** up to 32GB (**not included in delivery)

Camera protection class IP56 (dust proof & heavy splash water proof)

All manuals and user guides at all-guides.com

Camera overview

Inside view

Front view

Display screen

Down Button

Up button / Video button

MicroSD card slot

Shot Button

AV Jack

Right Button

Mini USB connector

OK Button

OFF-TEST-ON Mode

Speaker

Infrared LEDs

Menu Button

Lens

Left Button

Front PIR sensor (motion sensor)

Playback Button

Side PIR sensor (motion sensor

Power supply

Before use, install 8x pieces of AA batteries* 1.5V (*included) in the correct

polarity. Open the camera case and remove the battery cover.

Extended Information for Power supply

The device does not work with a battery voltage lower than 4V.

The battery life with default video length of 15 seconds will be: 8 hours in

day mode or 1.5 hours in night mode & 2000 videos in day mode or 400

videos in night mode (8xAA batteries installed).

All manuals and user guides at all-guides.com

Inserting the memory card

The camera has no built-in memory, therefore insert a formated (with FAT32)

MicroSD card** up to 32GB (**not included) for saving files. We suggest to use

class 6 or above high speed card.

Attention: Do not insert the MicroSD card forcibly; refer to the marking on the

camera. The MicroSD card should have same temperature like the ambient

temperature. The camera will be short-circuiting influenced by environment

temperature and humidity. Notice protection for the camera when using it

outdoor.

If the capacity of MicroSD card is full, the camera will stop recording

automatically. The LEDs will go out (when Endless Capture is OFF).

Press the edge of the card gently to pop-out the MicroSD card.

Basic Operations

Turn On and Off the camera

First time start in Test mode select the device language. Not possible in ON

mode!

Switch the MODE button to “Test” to turn on the camera for settings.

Switch the MODE button to “ON” to turn the camera in recording mode.

Switch the MODE button to “Off” to turn off the camera.

System Setup

Switch MODE button to “Test”, then you can set the system parameters.

Press Up/Down button to switch between Video and Photo mode for

manual use in Test mode.

 Press Menu button to open the setup menu.

 Press Up/Down button to scroll through all menus. Then press OK

button to enter the options interface.

 Press Up/Down button to scan all options. And press OK button to

confirm options.

 Press MENU button again to turn back to last menu or exit the

setup menu.

Setup menu and function as below:

Mode: [Photo] / [Video] / [Photo & Video] (default). Select and press OK

button to confirm.

Set the

working mode

Photo mode

Camera only takes pictures.

Video mode

Camera only records video.

Photo & Video mode

(default)

Camera will take a photo first,

and then start to record video.

All manuals and user guides at all-guides.com

Photo Resolution: Set the image resolution: the bigger the resolution the

higher the sharpness! (It will take bigger space either.)

[21MP: 5616x3744] / [16MP: 4608x3456] / [12MP: 4000x3000] / [8M:

3264x2448] (default) / [5M: 2592x1944] / [3M: 2048x1536]

Select and press OK button to confirm.

Photo Series:

Set photo number

of continuous

shooting

Photo mode

Camera will take photos continuously

Options: [1 photo] (default) / [2 photos in series] /

[3 photos in series].

Select and press OK button to confirm.

Video Resolution: [1920x1080] (default) / [1280x720] / [720x480] / [640x480]

/ [320x240]. Select and press OK button to confirm. Set the video resolution:

the bigger the resolution the shorter the recording time.

TL-Video Resolution: Set the resolution for the Time Lapse [2592x1944] /

[2048x1536] and press OK button to confirm.

Video length / Audio recording

Video length

Set the duration of recording a video clip shortest time is 3

sec. / longest time is 10 min.

Options: 3 sec. –10 min. (default is 15 sec.)

Select and press OK button to confirm.

Audio

recording

Open this function camera will record audio when

recording video.

Options: [On] (default) / [Off].

Select and press OK button to confirm.

Shot Lag: 5 sec. –60 min. Select and press OK to confirm.

“Short Lag” is the time between the current video and the next video. Set the

time of delay shooting when the camera detects the motion. Within the

selected time, the camera will not record any image or video. It can avoid

storing too much of the same event and saving more storage. (Default is 5

seconds.)

IR Distance: (set the distance of infrared induction): [Near] / [Middle] (default)

/ [Far]. Select and press OK button to confirm.

Note: Maybe you have to adjust the right option for your personal use.

Side motion sensors: [on] (default) / [off] Select and press OK button to

confirm. The side motion sensors extend the motion detection, when set to

“On”.

All manuals and user guides at all-guides.com

Sensitivity Motion Sensors options: [Low] / [Middle] (default) / [High].

Select and press OK button to confirm.

Test the sensitivity and find the correct detection zone for your purpose. Set

the sensitivity of the sensor. Note: The temperature can also influence the

sensor sensitivity.

Low

Set the sensitivity to low if you want to record indoors (small

environment) or in cold environment.

Middle

Set the sensitivity to middle if you want to record outdoor (normal

environment).

High

Set the sensitivity to high if you want to record outdoors (huge

environment) or the temperature is mild.

Target Recording Time

Set the target recording time of the

day. With this option you can

preselect when recordings should

been taken.

As shown in right picture, you can set

the start and stop time. The camera

will work just in the set time slot. In

other time, the camera will keep in

standby state.

Options: [On] / [Off] (default).

Press OK to confirm.

Note: If start time and stop time are the same, the working time is 24 hours.

Time Lapse Recording

Set the interval time of taking

pictures. The camera will take

pictures automatically as per set time

interval. For example, set the interval

time to 1 hour, the camera will take a

photo each hour. If you want to

observe that a plant blooms, the

camera will take 24 photos in 24

hours to record the whole process of

blooming.

Options: [On] / [Off] (default).

Press OK to confirm.

Set

Target recording time

Start：Stop：

Hr：Min Hr：Min

00 00 00 00

MENU Back OK Select

Settings

Set time lapse

Hr：Min ：Sec

00 00 30

Notification:Motion

sensors deactivated

MENU Back OK Select

All manuals and user guides at all-guides.com

TL (Time Lapse) Video

You can set the interval time. The

time range is from 3 second to 24

hours.

For example, set the interval to 1

hour, the camera will take a photo

each hour. If the camera works for 24

hours, there will be 24 photos. These

photos will be converted into a video.

Options: [On] / [Off] (default).

Press OK to confirm.

Language: (set the language display on screen):[English] / [German] /

[Danish] / [Finnish] / [Swedish] / [Dutch] / [Spanish] / [French] / [Italian] /

[Portuguese].

Select and press OK button to confirm.

Endless Capture: [On] / [Off] (default). Select and press OK button to

confirm.

If you activate Endless Capture the device will capture photo or/and video,

depending on the mode you choose, until the storage of the MicroSD card is

reached.

When the storage is full the recording will move on what means that the oldest

file (photo/video) will be deleted, every time a new motion is detected.

Time & Date: [Set time & date] / [Time format] / [Date format].

Select and press OK button to confirm.

Set time & date

Press Up/Down button to adjust the values.

Select and press OK button to confirm.

Time format: selected

between 24h (default) & 12h.

Press Up/Down button to adjust the values.

Select and press OK button to confirm.

Date format: select between

[dd/mm/yyyy] (default) /

[yyyy/mm/dd] / [mm/dd/yyyy].

Press Up/Down button to adjust the values.

Select and press OK button to confirm.

Photo Stamp: (stamp the date & time on the photos or not): [Time & date]

(default) / [Date] / [Off]. Select and press OK button to confirm.

Settings

Set time lapse

Hr：Min ：Sec

00 00 30

Notification:Motion

sensors deactivated

MENU Back OK Select

All manuals and user guides at all-guides.com

Password Protection: [On] / [Off] (default). Select and press OK button to

confirm.

Set the power-on password of the camera. The password is four digits, each

digit ranges from 0 to 9. Attention: If you set the password, write it down to

make sure that you do not forget it!

Forgot password? Contact: support@technaxx.de

Beep Sound: [On] / [Off] (default). Select and press OK button to confirm.

Open den Beep sound menu to turn On or Off the confirmation sound of the

buttons.

Format Memory Card: [Yes] / [No] (default). Select and press OK button to

confirm.

Attention: Formatting the memory card (FAT 32) will delete all data

permanently. Before using a new memory card or a card that has been used in

another device previously, please format the memory card.

Serial No.: [On] / [Off] (default). Select and press OK button to confirm.

Set the unique serial number for the camera. The number is four digits, each

digit ranges from 0 to 9.

Reset Settings: [On] / [Off] (default). Select and press OK button to

confirm.

Restore the camera to factory default settings including password, serial

number and so on.

Version: Look up the Firmware information of the camera.

Take Photos, Record Video, Playback: Switch the Mode Button to “Test”. In

this mode, you can take photos, record video and playback files manually.

Take Photos: Press Capture button to switch to photo mode. Press Shot

button to take a picture.

Record Video: Press Video button to switch to video mode. Press Shot

button to start to record a video clip. Press Shot button again to stop

recording.

Playback: Press Playback button (10) to enter the playback interface.

Press Up/Down button to scroll through photos or videos. When you want to

playback video, press OK button to play the video. Press OK button again to

have a pause. Press Menu button to stop playback. Press Playback button (10)

again to exit the playback mode. Under “Playback”press the Menu button 

All manuals and user guides at all-guides.com

Select from the following options:

Delete the current

photo or video

Options: [Cancel] / [Delete]

Press OK to confirm

Delete all files

Delete all photo and video

files saved on the memory

card.

Options: [Cancel] / [Delete]

Press OK to confirm

Activate slide show

Playback the photos in

slide way.

Each photo display 3 sec.

Press OK button to stop playing.

Write protect

Lock the file. It can avoid

accident deletion.

Options: [Write-protect

current file] / [Write-protect

all files] / [Unlock current file]

/ [Unlock all files].

Select and press OK button to confirm.

Working Mode

Switch the Mode Button to “On”. After turn on the camera, the screen will

display 15 seconds countdown. Then the LEDs and screen will go out. The

camera begins to operate independently and enter standby mode.

If the wild animals enter the detection range of the motion sensors, the

camera will be activated and detect the motion trail. If the wild animals

continue to move to the detection zone of the sensor, the camera will take

photos or record video automatically.

When the wild animals leave the detection zone of the sensors, the camera

will be deactivated and turn back to standby mode.

Night Mode

During the night, the infrared LEDs will turn on automatically, to provide

necessary light for taking pictures/videos. This makes it is possible to taking

picture at a distance about 3–18m without overexposing the night.

However, reflective objects such as traffic signs can cause overexposure if

they are located within the recording range. In night mode, the pictures just

can display white and black. When record a video for long time in the evening,

the low voltage may have a great influence on the stability of the machine.

Attention: Do not record video with low battery voltage in the evening.

All manuals and user guides at all-guides.com

Download Files to a computer (2 ways)

Inserting the MicroSD card into a card reader.

Connecting the camera to a computer using the supplied USB cable.

Using a Card Reader

Pop-up the memory card from the camera and insert it into a card reader

adapter. Then connect the card reader to a computer.

 Open [My Computer] or [Windows Explorer] and double-click the

removable disk icon that represents the memory card.

 Copy image or video files from the memory card to your computer.

Connecting the camera to a PC by the USB Cable

Connect the camera to the computer via USB cable. Switch on the

camera, the screen will display „MSDC”.

 Open [My Computer] or [Windows Explorer]. A removable disk appears in

the drive list. Double-click the "Removable Disk" icon to view its contents. All

files are stored in the folder named „DCIM”.

 Copy the photos or files to your computer.

Technical specifications

Image sensor

1/3.2" CMOS 8MP

Display

2.4” TFT LCD display (720x320)

Video resolution

1920x1080/25fps(interpolated),1280x720/30fps,

720x480/30fps, 640x480/30fps, 320x240/30fps

Photo resolution

21MP (5616x3744 interpolated), 16MP (4608x3456

interpolated), 12MP (4000x3000 interpolated), 8MP

3264x2448), 5MP (2592x1944), 3MP (2048x1536)

Video length

3 sec.–10 min. programmable

File format

JPEG/AVI

Lens

f=3.3mm, F/NO2.0, FOV=100°, Auto IR filter

2x IR LEDs (high power/850nm), ~18m range

PIR

Main PIR=60° + side PIR=120° viewing angle; ~18m

Triggering distance

~18m (below 25°C at the Normal Level)

Triggering time

0.5 seconds

Trigger interval

5 sec.–60 min. programmable

Timer

On/Off, Time Lapse programmable

Shooting numbers

1–3

Effectiveness

Daytime: 1m up to infinitive, Night time: 1.5–18m

Periodic shot

Time Lapse 3 second up to 24 hours

Auto-distinguish

images

Color images in daytime/black & white night images

PC interface

Mini USB2.0

All manuals and user guides at all-guides.com

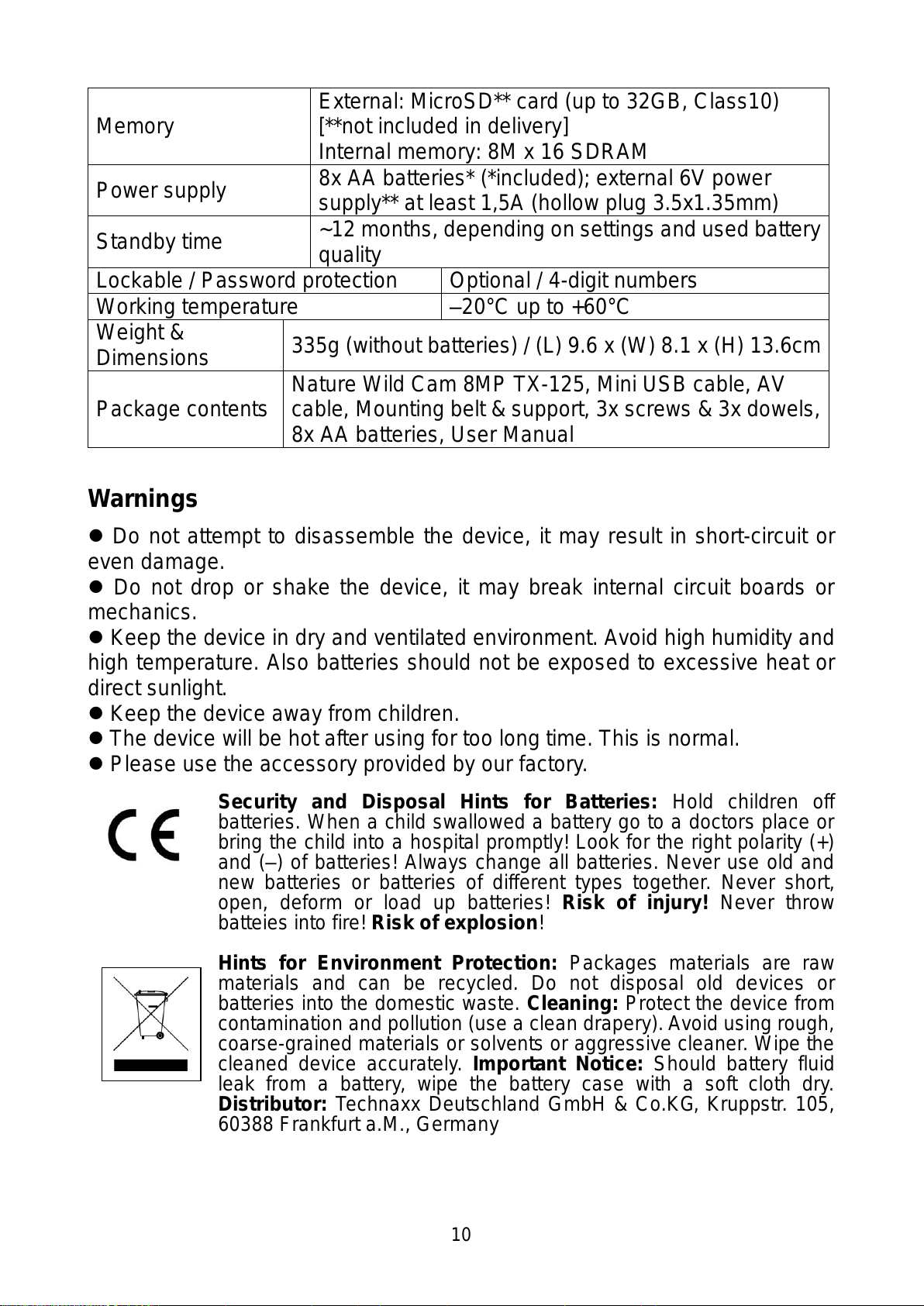

Memory

External: MicroSD** card (up to 32GB, Class10)

[**not included in delivery]

Internal memory: 8M x 16 SDRAM

Power supply

8x AA batteries* (*included); external 6V power

supply** at least 1,5A (hollow plug 3.5x1.35mm)

Standby time

~12 months, depending on settings and used battery

quality

Lockable / Password protection

Optional / 4-digit numbers

Working temperature

–20°C up to +60°C

Weight &

Dimensions

335g (without batteries) / (L) 9.6 x (W) 8.1 x (H) 13.6cm

Package contents

Nature Wild Cam 8MP TX-125, Mini USB cable, AV

cable, Mounting belt & support, 3x screws & 3x dowels,

8x AA batteries, User Manual

Warnings

Do not attempt to disassemble the device, it may result in short-circuit or

even damage.

Do not drop or shake the device, it may break internal circuit boards or

mechanics.

Keep the device in dry and ventilated environment. Avoid high humidity and

high temperature. Also batteries should not be exposed to excessive heat or

direct sunlight.

Keep the device away from children.

The device will be hot after using for too long time. This is normal.

Please use the accessory provided by our factory.

Security and Disposal Hints for Batteries: Hold children off

batteries. When a child swallowed a battery go to a doctors place or

bring the child into a hospital promptly! Look for the right polarity (+)

and (–) of batteries! Always change all batteries. Never use old and

new batteries or batteries of different types together. Never short,

open, deform or load up batteries! Risk of injury! Never throw

batteies into fire! Risk of explosion!

Hints for Environment Protection: Packages materials are raw

materials and can be recycled. Do not disposal old devices or

batteries into the domestic waste. Cleaning: Protect the device from

contamination and pollution (use a clean drapery). Avoid using rough,

coarse-grained materials or solvents or aggressive cleaner. Wipe the

cleaned device accurately. Important Notice: Should battery fluid

leak from a battery, wipe the battery case with a soft cloth dry.

Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105,

60388 Frankfurt a.M., Germany

All manuals and user guides at all-guides.com

Table des matières

Autres manuels Technaxx Caméra de repérage

Technaxx

Technaxx 8MP TX-125 Manuel utilisateur

Manuels Caméra de repérage populaires d'autres marques

Nestbox

Nestbox C13 Manuel utilisateur

Wildview

Wildview STC-TGL1 Manuel utilisateur

Stealth Cam

Stealth Cam CORE STC-Z3IRTL Manuel utilisateur

Suntek

Suntek HC-800M Manuel utilisateur

Spypoint

Spypoint G4 Manuel utilisateur

Duramaxx

Duramaxx 10029765 Manuel utilisateur

Brecom

Brecom C2400 Manuel utilisateur

BlazeVideo

BlazeVideo A280W Manuel utilisateur

Bestok

Bestok 5210GM Manuel utilisateur

GardePro

GardePro X60P Manuel utilisateur

Delta-Opti

Delta-Opti HC-SG880MK-18MHD Manuel utilisateur

PNI

PNI HUNTING 280C Manuel utilisateur

Muddy

Muddy Pro-Cam 14 Manuel utilisateur

Bresser

Bresser 3310006 Manuel utilisateur

Recon Outdoors

Recon Outdoors HS410 Manuel utilisateur

Braun

Braun 57660 Manuel utilisateur

Wildgame

Wildgame Shadow Manuel utilisateur

Spypoint

Spypoint FLEX Manuel utilisateur
