Technaxx®* User Manual

Wireless Rear Camera System TX-110

Suitable for most of cars (& vans, SUVs, minibuses, caravans, etc.)

as assistance for reverse parking.

This system should be an aid and should NOT replace the need to drive

carefully.

Under no circumstances will the manufacturer or supplier accept any

responsibility or can held liable for any direct or indirect, incidental or

consequential damage, or for injuries resulting from installing or use of

this system.

The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares

that this device, to which this user manual belongs, complies with the

essential requirements of the standards referred to the Directive RED

2014/53/EU. The Declaration of Conformity you find here:

www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”). Before

using the device the first time, read the user manual carefully.

Keep this user manual for future reference or product sharing carefully. Do

the same with the original accessories for this product. In case of warranty,

please contact the dealer or the store where you bought this product.

Warranty 2 years

Features

Inconspicuous reversing camera in license plate holder

Suitable for most vehicles as assistance for reverse parking

Wireless video transmission or via cable (6m)

IR LED for clear night vision ~4m

Adjustable camera alignements & 110° viewing angle

Power supply of the camera by connection to the reverse light

Power supply of the monitor via the cigarette lighter socket

IP67 camera protection class (dustproof & protection against

temporary immersion)

3.5" TFT LCD monitor with 320x240 pixel

Distance display on the monitor

License plate holder suitable for single-line EC registration

(52x11cm)

Complete installation set

More safety in reverse driving

Technical specifications

License plate holder with camera

Image sensor / Resolution CMOS / 640x480 pixel

Viewing angle 110°

Min. illumination 0.5Lux / automatic white balance

IR night vision distance ~4m

Power supply Connection via transmitter

Max. current 140mA (incl. transmitter)

Protection class IP67

Weight / Dimensions 264g / (L) 52.8 x (W) 4.0 x (H) 13.7cm

Wireless Transmitter

Modulation FM (Frequency Modulation)

Bandwidth 18MHz

Transmission frequency 2.468GHz

Max. radiated output power

6mW

Weight / Dimensions 72g / (L) 9.5 x (W) 4.0 x (H) 1.4cm

Monitor

Display / Resolution ColorTFT 8.89cm(3.5”)/320x240pixel

Transmission frequency 2.4GHz

Video system PAL/NTSC

Sensitivity ≦–85dBm

Input voltage DC 12V

Max. current 250mA

Transmission distance ~10m openspace (no interferences)

Operating temperature –10°C up to +50°C

Humidity 85%RHmax.

Weight / Dimensions 165g / (L) 10.8 x (W) 3.7 x (H) 7.5cm

Packing

Contents

License plate holder with camera, Monitor, Suction

cup holder, Wireless transmitter with power

connection for camera, 12V power supply for monitor,

Video cable for direct connection, Mounting material,

User Manual

Product overview

The rear view camera sends a video signal from the camera on

channel 4 in the 2.4GHz frequency range (specified for such video

transmissions) to the monitor. In case another Bluetooth handsfree

device is installed in your vehicle, it works in the same frequency

range as the camera. If that handsfree device is activated, it may

cause disturbances. Therefore we recommend to deactivate that

other Bluetooth handsfree device while using the reversing system.

Video cable (included): In order to give you the possibility to use a

reversing camera despite another Bluetooth handsfree device in

your vehicle, a video cable is included. With this cable the video

signal can be transmitted to the monitor. So connect alternatively

the video cable to the camera and lay it inconspicuously in the

vehicle. For permanent operation with the video cable, remove the

antenna from the monitor.

License plate holder with camera

Infrared-LED 3 Holder

Camera 4 Connection cable

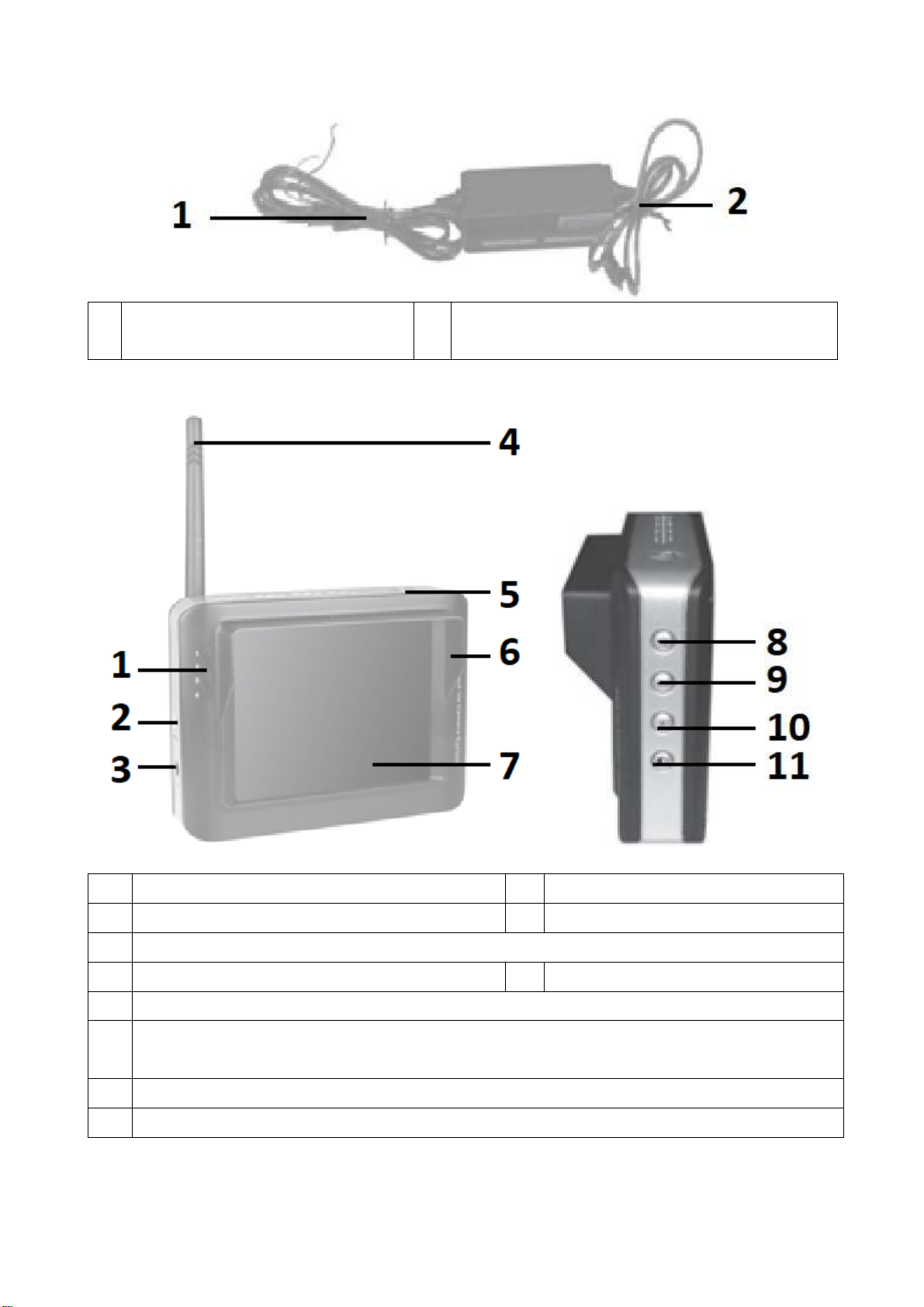

Wireless Transmitter

Connection cable to

reverse light 2 Connection cable to camera

(wired connection to monitor)

Monitor

1 Channel 2 Video-In (AV) 2.5mm

3 DC 12V power input 3.5mm 4 Antenna

5 On/Off press to turn the screen on/off

6 Anti glare 7 Display (3.5”)

8 Image rotation pressing repeatedly will rotate the image

9 Channel selector switch to switch the receivde channel

(channel 4 is default setting)

Brightness press to adjust the screen brightness

Contrast press to adjust the screen contrast

Commissioning

Check the functionality of the components before installation (a

installed product is excluded from the return). Preparing and

installing the license plate holder and the transmitter unit.

NOTE: You may need a voltmeter to measure the polarity of the

reversing light.

Break the two locks carefully out of the holder.

Remove the transport locks carefully. Use a sharp knife or a

tong.

 Attach the license plate holder to the vehicle instead of your

previous license plate holder.

 Insert the camera cable into the trunk compartment and

connect it to the transmitter unit.

 Attach the transmitter unit steady and firm in the trunk

compartment.

 Connect the black connection cable of the wireless

transmitter to the negative pole of the reversing light.

 Connect the red connection cable of the wireless

transmitter to the positive pole of the reversing light.

Installing the monitor

Attach the suction cup to the windshield.

Connect the monitor to the electrical system (onboard voltage).

Use the DC 12V connection cable or alternatively the connection

cable for direct connection to the electrical system (onboard

voltage).

 If not already preset, switch the monitor to channel 4.

 Set the camera at an angle where you have a good view to

the rear, depending on the height of the license plate holder from

the ground. The displayed lines on the monitor give you an

indication of the distance. Definitely control the distance with a

folding ruler.

 Then tighten the screws on both sides of the camera.

1 Hollow connector to the monitor

2 Connect black to vehicle mass

3 Connect red with +12V

NOTE: If your 12V connection has a permanent plus, switch off

the monitor when you leave the vehicle. In a parked car the

temperature can easily rise up very high in direct sunlight. To

avoid damages on the monitor, store it in e.g. the glove

compartment.

Using the cable clamps

The pictures explains how to use the supplied cable clamps.

1. Put the cable from

the car you want to

connect the wireless

transmitter with into

the clamp.

2. Insert the 2nd

cable (red or black

cable of the wireless

transmitter).

3. Close the clamp.

Insert the license plate in the holder

The following drawings show in sequence the insertion of the

license plate.

1. Step

Slide the license plate into the upper

opening.

 Press the number plate towards

the holder.

2. Step

 Slide the license plate down

until it stops.

3. Step

 Insert the locks from above

into the holder.

(You carefully broke them out of the

holder in the first step.)

Safety regulations

The reversing system is an aid and does not relieve the driver of his

duty of care in road traffic according to STVO. Please read these

instructions carefully before first use.

General information

Never place the device on an unstable surface. Dropping may

damage the device. The device is not in the hands of children. It is not

a toy. Also observe the safety instructions and the operating

instructions of the other devices to which the device is connected. In

commercial facilities, the accident prevention regulations of the

Association of Professional Associations for Electrical Installations and

Equipment must be observed. In schools, training centers, hobby or

self-help workshops, the operation of electronic products is to be

monitored responsibly by trained personnel. The seller assumes no

responsibility for damage that occurs during the use of the device, as

well as for complaints by third parties.

Environmental conditions

Avoid heavy mechanical stress on the device. Protect it from vibration,

hard knocks, do not drop it or shake it. Do not expose the device to

high temperatures (over 50°C) and strong temperature fluctuations.

Protect it from direct solar radiation and proximity to radiators. IP67

camera protection class (dustproof & protection against temporary

immersion). The monitor and the transmitter may only be operated

indoors. It cannot be completely ruled out that some paints, plastics or

other care products attack the material of the housing or accessories.

Disorders: If an object or liquid gets into the device, have the device

checked by an authorized technician before continuing to use it. We

recommend that you contact our service center.

Packing material: Keep children away from packaging material. There

is danger of suffocation.

Cleaning and care: Always store the device in a clean, dry place when

not in use. Use a dry, soft cloth to clean the exterior surfaces.

Interference by wireless transmission: The device operates at a

frequency of 2468 MHz. This frequency can also be used by other

devices that transmit video wireless. It can thus come in individual cases

to disturbances.

Hints for Environment Protection: Packages

materials are raw materials and can be recycled. Do

not disposal old devices or batteries into the domestic

waste. Cleaning: Protect the device from

contamination and pollution (use a clean drapery).

Avoid using rough, coarse-grained materials or

solvents/aggressive cleaner. Wipe the cleaned device

accurately. Distributor: Technaxx Deutschland

GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M.,

Germany

Service phone No. for technical support: 01805 012643 (14 cent/minute from

German fixed-line and 42 cent/minute from mobile networks).

Free Email: sup[email protected]

Enjoy your product * Share your experience and opinion on one of the

well-known internet portals.

Autres manuels Technaxx Accessoires automobiles

Technaxx

Technaxx TX-159 Manuel utilisateur

Technaxx

Technaxx TE15 Manuel utilisateur

Technaxx

Technaxx BT-X30 Manuel utilisateur

Technaxx

Technaxx TX-134 Manuel utilisateur

Technaxx

Technaxx BT-X22 Manuel utilisateur

Technaxx

Technaxx TX-140 Manuel utilisateur

Technaxx

Technaxx TE13 Manuel utilisateur

Technaxx

Technaxx Pro TX-168 Manuel utilisateur

Technaxx

Technaxx BT-X22 Manuel utilisateur

Technaxx

Technaxx FMT1200BT Manuel utilisateur

Technaxx

Technaxx TX-119 Manuel utilisateur

Technaxx

Technaxx MusicMan BT–X25 Manuel utilisateur

Technaxx

Technaxx TX-111 Manuel utilisateur

Technaxx

Technaxx TX-90 Manuel utilisateur

Technaxx

Technaxx BT-X22 Manuel utilisateur

Technaxx

Technaxx TX-168 Manuel utilisateur

Technaxx

Technaxx TX-123 Manuel utilisateur

Technaxx

Technaxx TE17 Manuel utilisateur

Technaxx

Technaxx TX-170 Manuel utilisateur

Technaxx

Technaxx TX-169 Manuel utilisateur

Manuels Accessoires automobiles populaires d'autres marques

James Baroud

James Baroud Odyssey Manuel utilisateur

Motorola

Motorola i50sx Manuel utilisateur

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuel utilisateur

Feniex

Feniex T3 Manuel utilisateur

Renault

Renault 77 11 423 180 Manuel utilisateur

Kia

Kia E8300-4D000 Manuel utilisateur

Brink

Brink 756843 Manuel utilisateur

Whispbar

Whispbar K085W Manuel utilisateur

v.link

v.link CI-VL2-PC-HSD Manuel utilisateur

Viking

Viking Stack-Rack Guide de configuration rapide

Aries

Aries 203015 Manuel utilisateur

Choetech

Choetech AT0005 Manuel utilisateur

ZZ2

ZZ2 ZZAIR-PRO Manuel utilisateur

Holman

Holman 4A80L Manuel utilisateur

Thule

Thule 2075 Manuel utilisateur

Motorola

Motorola T325 Manuel utilisateur

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guide d'installation

DV8

DV8 FBJL-02 Manuel utilisateur
