TECHFIT B380 Manuel utilisateur

MAGNETIC UPRIGHT BIKE

OWNER’S MANUAL

BENUTZERHANDBUCH

MANUALUL UTILIZATORULUI

IMPORTANT: Read all instructions carefully before using this product. Retain this

owner’s manual for future reference.

The specifications of this product may vary from this photo, subject to change without

notice.

EN. TABLE OF CONTENTS

SAFETY INSTRUCTIONS.......................................................................................................3

PARTS LIST ..............................................................................................................................4

HARDWARE PACKING LIST.................................................................................................5

TOOLS.......................................................................................................................................5

OVERVIEW DRAWING...........................................................................................................6

ASSEMBLY INSTRUCTIONS.................................................................................................7

OPERATING THE COMPUTER............................................................................................11

MAINTENANCE....................................................................................................................12

TROUBLESHOOTING...........................................................................................................13

WARM UPAND COOL DOWN ROUTINE..........................................................................14

D. INHAL TCVERZIECHNIS

SICHERHEITSHINWEISE.....................................................................................................18

LISTE DER BESTANDTEILE ...............................................................................................19

LISTE DER GESCHMIEDETEN DICHTUNGEN................................................................21

WERKZEUGE.........................................................................................................................21

GRAPHISCHE DARSTELLUN .............................................................................................22

MONTAGEANLEITUNG.......................................................................................................23

BETRIEB DES COMPUTERS ...............................................................................................27

INSTANDHALTUNG .............................................................................................................28

RO. CUPRINS

INSTRUCŢIUNI PRIVIND SIGURANŢA ............................................................................34

LISTA DE COMPONENTE....................................................................................................35

LISTA DE ARTICOLE DE FIERĂRIE DIN GARNITURĂ ..................................................37

UNELTE ..................................................................................................................................39

DESEN DE PREZENTARE....................................................................................................40

INSTRUCŢIUNI DE ASAMBLARE......................................................................................41

OPERAREA CALCULATORULUI........................................................................................44

ÎNTREȚINEREA.....................................................................................................................45

SOLUŢIONAREA PROBLEMELOR.....................................................................................46

RUTINA DE ÎNCĂLZIRE ŞI DE RELAXARE.....................................................................47

SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following safety

instructions when using this equipment: Read all instructions before using this

equipment.

1. Read all the instructions in this manual and do warm up exercises before using

this equipment.

2. Before exercise, in order to avoid injuring the muscle, warm-up exercise of every

position of the body is necessary. Refer to Warm Up and Cool Down Routine

pages. After exercise, relaxation of the body is suggested for cool-down.

3. Please make sure all parts are not damaged and fixed well before use. This

equipment should be placed on a flat surface when using. Using a mat or other

covering material on the ground is recommended.

4. Please wear proper clothes and shoes when using this equipment; do not wear

clothes that might catch any part of the equipment; remember to tighten the

pedaling straps.

5. Do not attempt any maintenance or adjustments other than those described in

this manual. Should any problems arise, discontinue use and consult an

Authorized Service Representative.

6. Do not use the equipment outdoors.

7. This equipment is for household use only.

8. Only one person should be on the equipment while in use.

9. Keep children and pets away from the equipment while in use. This machine is

designed for adults only. The minimum free space required for safe operation is

not less than two meters.

10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop

exercising immediately and consult your physician before continuing.

WARNING: Before beginning any exercise program consult your

physician. This is especially important for the persons who are over 35 years

old or who have pre-existing health problems. Read all instructions before

using any fitness equipment.

CAUTION: Read all instructions carefully before operating this

product. Retain this Owner’s Manual for future reference.

11. The maximum weight capacity for this product is 120 kgs.

PARTS LIST

No.

Description

Qty

No.

Description

Qty

001

Main Frame

030

Cap Nut M8

002

Front Stabilizer

031

Flywheel Ø230x40xØ32

003

Rear Stabilizer

032

Bearing Cup

004

Idle Wheel Bracket

033

Bearing 6000ZZ

005

Seat Post

034

Bearing Nut I 15/16"

006

Seat Sliding Tube

035

Bearing Nut II 7/8"

007

Handlebar Post

036

Washer Ø24xØ40x3.0

008

Handlebar

037

Washer Ø23xØ34.5x2.5

009

U Bracket

038

Hexagon Nut 7/8"

010

Washer Ø16xØ8x1.5

039

Belt Pulley with Crank Ø240J6

011

Eyebolt M8x85

040

Bolt M5X45

012

End Cap For Front Stabilizer

041

Big Curve Washer Ø5

013

End Cap For Rear Stabilizer

042

Bolt M5X10

014

Big Curve Washer Ø8

043

Handlebar Foam Grip

Ø24xØ30x550

015

Adjustable Leveler M8

044

Left Pedal YH-30X

016

Spring Ø6

045

Right Pedal YH-30X

017

Bolt M8x70

046

End Cap for Handlebar

018

Seat Sliding Tube End Cap (□

38)

047

Cover Cap

019

Bolt M8x15

048

Round Knob M16

020

Bolt M8x20

049

Hand Pulse Sensor with Wire

L=750mm

021

Eyebolt M6x36

050

Sensor with Wire L=750mm

022

Idle Wheel Ø10xØ35

051

Left Chain Cover

023

Screw ST2.9×12

052

Right Chain Cover

024

Screw ST4.2×20

053

Seat Post Bushing

025

Screw ST4.2×25

054

Tension Control Knob

026

Pan Head Phillips Self Drilling

Screw ST4.2x25

055

Tension Cable L=1150mm

027

Nylon Nut M8

056

Clamp Cover

028

Nut M6

057

Spacer (Ø12x20x1.5)

029

Hexagon Nut M10

058

Handlebar Post Cover

059

Seat Post Cover

064

Handlebar T-Knob (M8x55)

060

Belt PJ360 J6

065

Washer Ø12x Ø6x1.0

061

Seat Cushion DD-982AT

066

Bolt M6X10

062

Computer

067

Plug

063

Extension Sensor Wire

(L=1000mm)

HARDWARE PACKING LIST

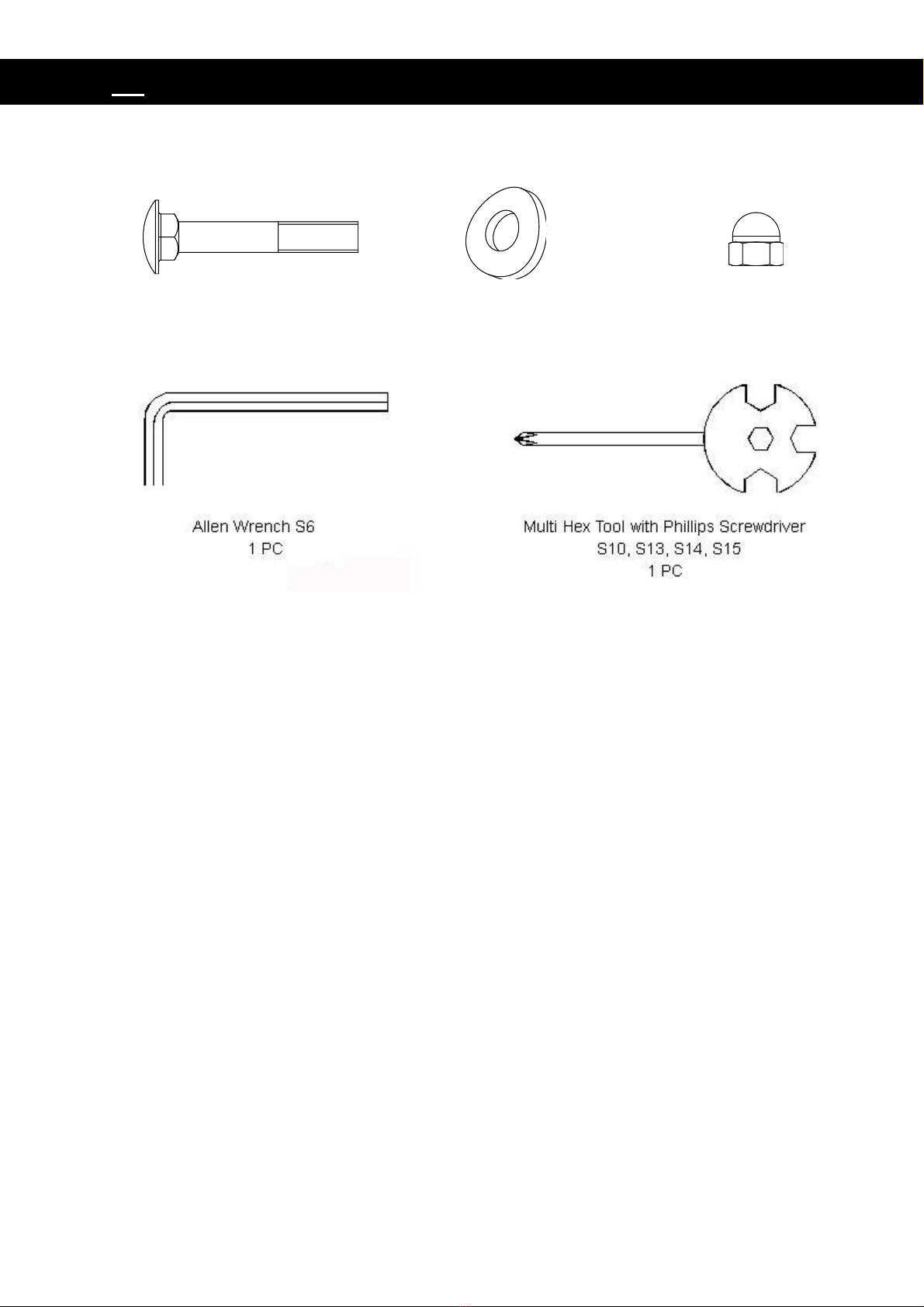

TOOLS

(17) Bolt M8x70

4 PCS

(14) Big Curve Washer Ø8

4 PCS

(30) Cap Nut M8

4 PCS

OVERVIEW DRAWING

ASSEMBLY INSTRUCTIONS

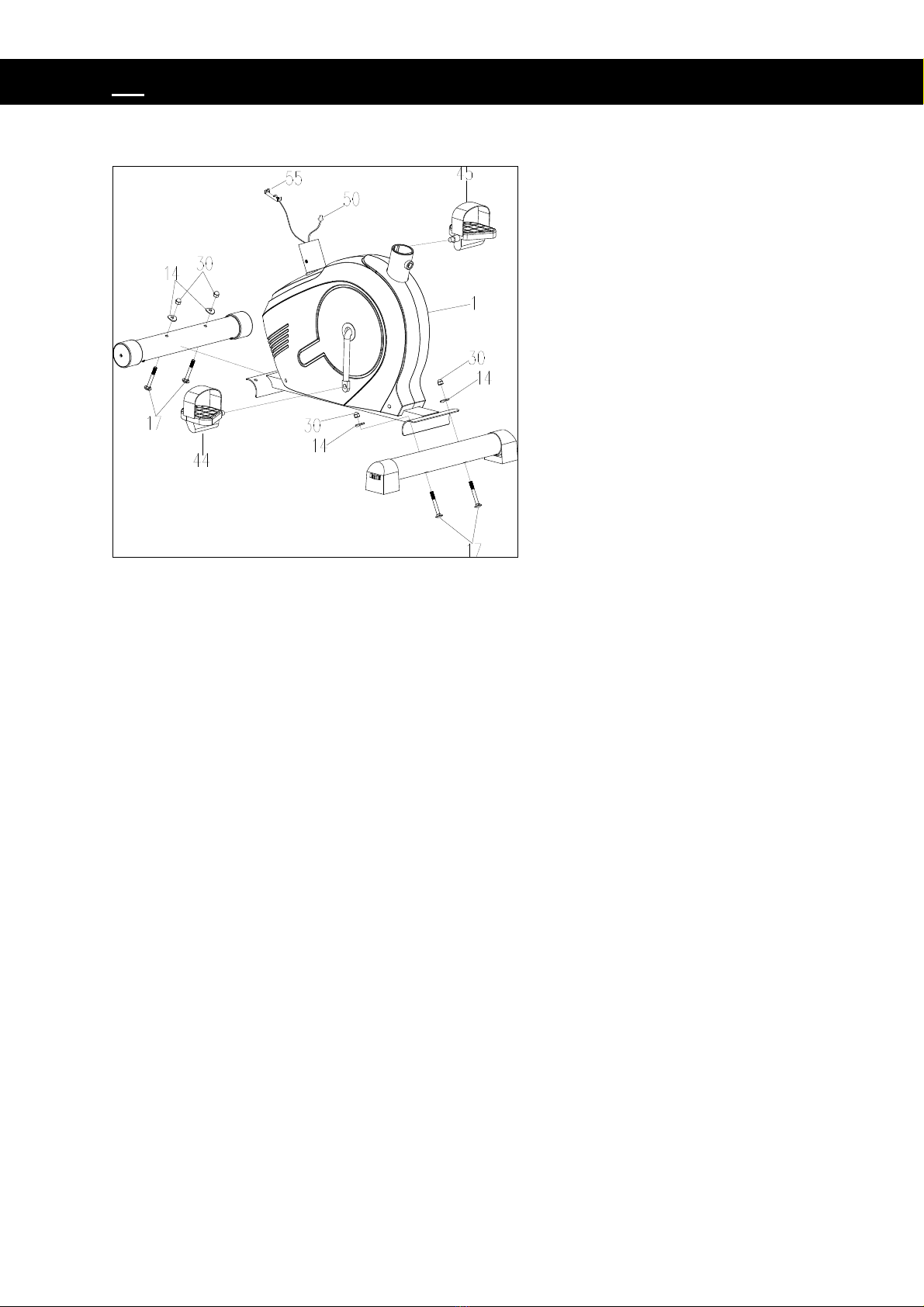

1. Front and Rear Stabilizers Installation

Position the Front Stabilizer (2) in front of the Main Frame (1) and align bolt holes.

Attach the Front Stabilizer (2) onto the front curve of the Main Frame (1) with two M8x70

Bolts (17), two Ø8 Big Curve Washers (14), and two M8 Cap Nuts (30).

Position the Rear Stabilizer (3) behind the Main Frame (1) and align bolt holes.

Attach the Rear Stabilizer (3) onto the rear curve of the Main Frame (1) with two M8x70

Bolts (17), two Ø8 Big Curve Washers (14), and two M8 Cap Nuts (30).

2. Foot Pedals Installation

The Cranks, Foot Pedals, Pedal Shafts and Pedal Straps are marked “R” for

Right and “L” for Left.

Insert the pedal shaft of Left Foot Pedal (44) into threaded hole in the left Crank (39).

Turn the pedal shaft by hand in the counter-clockwise direction until snug.

Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip

the threads.

Screwdriver provided Insert pedal shaft of Right Foot Pedal (45) into threaded hole in

right Crank (39). Turn the pedal shaft by hand in the clockwise direction until snug.

3. Seat Post, Seat Post Cover, Seat Cushion, and Seat Sliding Tube

Installation

Slide the Seat Post Cover (59) onto the tube of the Main Frame (1). Insert the Seat

Post (5) into the Seat Post Bushing (53) on the tube of the Main Frame (1) and then

attach the Seat Post Knob (48) onto the tube of the Main Frame (1) by turning it in a

clockwise direction with Multi Hex Tool provided to lock the Seat Post (5) in the

suitable position.

Remove three M8 Nylon Nuts (27) and three Ø16xØ8x1.5 Washers (10) from

underside of the Seat Cushion (61). Remove nylon nuts and washers with the Multi

Hex Tool with Phillips Screwdriver provided. Guide bolts on underside of the Seat

Cushion (61) through holes on top of the Seat Sliding Tube (6), attach with three

removed M8 Nylon Nuts (27) and Ø16xØ8x1.5 Washers (10). Tighten nylon nuts and

washers with the Multi Hex Tool with Phillips Screwdriver provided.

Guide the Seat Sliding Tube Bolt on underside of the Seat Sliding Tube (6) through

hole on top of the Seat Post (5), attach with one Ø10xØ20x2 Washer (10) and Seat

Adjustment Knob (15).

4. Handlebar Post, Handlebar Post Cover, and Tension Control Knob

Installation

Remove four M8x15 Bolts (19), four Ø20xØ8x2.0 Washers (14) from the Main Frame

(1). Remove bolts with the S6 Allen Wrench provided.

Slide the Handlebar Post Cover (58) up to the Handlebar Post (7).

Insert the Tension Cable (55) through into the bottom hole of Handlebar Post (7) and

pull it out from the square hole of Handlebar Post (7).

Connect the Sensor Wire (50) from the Main Frame (1) to the Extension Sensor Wire

(63) from the Handlebar Post (7).

Insert the Handlebar Post (7) onto the tube of the Main Frame (1) and secure with

four M8x15 Bolts (19), four Ø20xØ8x2.0 Washers (14) that were removed. Tighten

bolts with the S6 Allen Wrench provided.

Slide the Handlebar Post Cover (58) down to the Handlebar Post (7).

Remove the M5x45 Bolt (40) and Ø5 Big Washer (41) from the Tension Control Knob

(54). Remove bolt with the Multi Hex Tool with Phillips Screwdriver provided.

Put the cable end of resistance cable of Tension Control Knob (54) into the spring

hook of Tension Cable (55) as shown in drawing A of figure 3. Pull the resistance

cable of Tension Control Knob (54) up and force it into the gap of metal bracket of

Tension Cable (55) as shown in drawing B of figure 3. Attach the Tension Control

Knob (54) onto the Handlebar Post (7) with the M5x45 Bolt (40) and Ø5 Big Washer

(41) that were removed. Tighten bolt with the Multi Hex Tool with Phillips Screwdriver

provided.

5. Handlebar Installation, Computer

Insert the Hand Pulse Sensor Wires (49)

into the hole on the Handlebar Post (7) and

then pull them out from the top end of the

Handlebar Post (7). Place the Handlebar (8)

through clamp on the Handlebar Post (7)

with hand pulse sensors facing the seat.

Hold the Handlebar (8) in desired position

and fasten Clamp Cover (56), Ø12x20x1.5

Spacer (57), and Handlebar T-Knob (62)

onto clamp. Tighten the Handlebar T-Knob

(62) after adjustment.

NOTE: Handlebar T-Knob should be

tightly secured before using.

6. Computer Installation

Remove four M5x10 Bolts (42) from the

Computer (62). Remove bolts with the Multi

Hex Tool with Phillips Screwdriver provided.

Connect the Hand Pulse Sensor Wires (49)

and Extension Sensor Wire (63) to the wires

that come from the Computer (62). Tuck

wires into the Handlebar Post (7). Attach the

Computer (62) onto the top end of the

Handlebar Post (7) with four M5x10 Bolts

(42) that were removed. Tighten bolts with

the Multi Hex Tool with Phillips Screwdriver

provided.

Table des matières

Langues :

Autres manuels TECHFIT vélo d'appartement

TECHFIT

TECHFIT B250N Manuel utilisateur

TECHFIT

TECHFIT E250N Manuel utilisateur

Manuels vélo d'appartement populaires d'autres marques

Weslo

Weslo Vector 302 Guide de démarrage rapide

TOORX

TOORX BRX85 Manuel utilisateur

Matrix

Matrix KranKcycle Manuel utilisateur

Matrix

Matrix IC3 Manuel utilisateur

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manuel utilisateur

Monark

Monark 827E Manuel utilisateur

Stamina

Stamina 1310 Manuel utilisateur

American Fitness

American Fitness SPR-BK1072A Manuel utilisateur

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manuel utilisateur

BH FITNESS

BH FITNESS H9158H Manuel de l'opérateur

Body Sculpture

Body Sculpture BC-7220G Manuel utilisateur

Cateye

Cateye EC-2300 Manuel utilisateur

FYTTER

FYTTER RACER RC MSR Manuel utilisateur

Kikos

Kikos HM-9090M Manuel utilisateur

Pro-Form

Pro-Form 345 Zlx Bike Guide de l'utilisateur

Fuel Fitness

Fuel Fitness SU135-40 Manuel utilisateur

NordicTrack

NordicTrack Gxr 4.2 Bike Manuel utilisateur

Vision Fitness

Vision Fitness U70 Manuel utilisateur
