Security Expert for Your Home and Business
Smart WiFi Battery Camera
User Manual
Contents
1. Packing List
2. Product Appearance
3. Quick Start
4. Set Up the Camera
5. Install the Camera
6. Share the Camera
7. Charge the Camera
8. Indicator Light Status
9. Camera's Specification
10. Solar Panel's Specification
11. Firmware Upgrade
12. FCC Warning
13. FAQ
01
01
04
06
11
13
16
16
16
17
17
17
19
White Light
Lens
Indicator Light
Human Body
Infrared Sensor
Microphone
WiFi Antenna
Product Appearance
Camera
Packing List
Camera
Bracket for Camera
Screws Bag
User Manual
Solar Panel
Bracket for Solar Panel
USB Charging Cable
1
X
1
X
1
X
1
X
1
X
1
X
1
X
01
Micro-SD Card Slot
Power Button
Micro-USB
Port
Bracket
Reset Button
Speaker
02
Bracket
Power Cable
(Micro-USB Port)
Solar Panel ( 3W )
How to install the bracket?
Solar Panel
03
Quick Start
1. Download and install the App
Android
Download
Download
App Store
The wireless smart battery camera supports Android and iOS
devices using the mobile App. For your best experience, please
scan the QR code below with your mobile phone, install the App,
and follow the instruction to complete the user registration.
Scan QR code or go to the link to download and install the App:
https://www.vicohome.io/download/
The wireless smart battery camera operates on the built-in
internal batteries and can also be powered using the included
AC-Power supply or solar panel.
04
Sign in to the App, tap on the Green "+" symbol on the upper right
hand corner then tap on "Add a New Camera" and follow the
prompts displayed on screen (please bring the camera and device
close to the router when initially configuring).
2. Add camera
05
Set Up the Camera
Step 1) After pressing the camera switch for 3 seconds, the camera
will turn on. The camera will emit the scanning sound "Ding Dong
Ding Dong" after it is turned on ( if you do not hear it, please
quickly press the power button twice).
Step 2) Tap on the "Add Camera Now" button on the App and
follow the on screen instructions for the Battery Camera by long
pressing the power button on the bottom of the camera. Once you
hear the camera chime please tap on the circle next to "I heard
the sound or saw the light on", then tap on "Next Step".
Step 3) On the following page please confirm that you hear the
camera emitting a beeping sound and tap on the circle next to
"I heard a beeping sound" then tap on "Next Step".
Power Button
06
Step 4) On the next page select your desired 2.4GHz WiFi network
from the drop down menu under "WiFi Name (SSID)" then enter
the password. To ensure a longer connection range, the camera
only supports 2.4GHz WiFi with stronger wall penetration capability
and does not currently support enterprise level authentication.
Once complete please tap on "Next Step".
Step 2 Step 3 Step 4
07

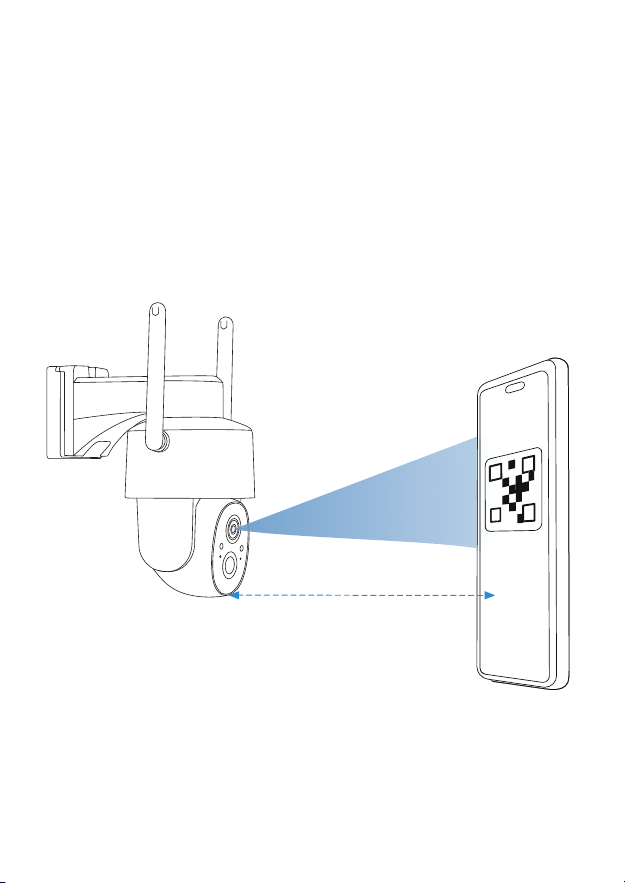

Step 5) Point the lens of the camera at the QR code generated by
the App about 7inches away until you hear a "Ding" sound.
About 7 inches (20cm)
08
