MREM 81 MTM(VR)

RFID module 125 kHz

Introduction

RFID reader module MREM 81 MTM (125 kHz) with integrated controller for one door

control is designed either for connection to the RS 485 bus of the APS mini Plus access

system or for autonomous operation. The module is also equipped with a Wiegand

interface for connecting an input RFID reader with a Wiegand output for possible both-

sided controlled door. Up to 32 MREM 81 reader modules can be connected to one RS

485 communication line of the APS mini Plus system. The module is dedicated either

as a standalone or as a part of modular entry panel MTM from CAME.

a. Application

▪Access control system, booking system

▪Door access control, both-sided access control

▪Lift access control

b. Parameters

▪Input voltage 8 ÷ 28 Vdc

▪Typical current consumption 60 mA @ 12 V

▪Maximum input power 1,5 W

▪Reading id media EM Marin, Jablotron

▪1x RS 485 (system bus APS mini Plus)

▪1x Wiegand (external RFID reader, GSM module, license plate camera)

▪1x Open drain transistor output 30 V / 1 A

▪2x INPUT (door contact, exit button, tamper)

▪Integrated in module MTMRFID

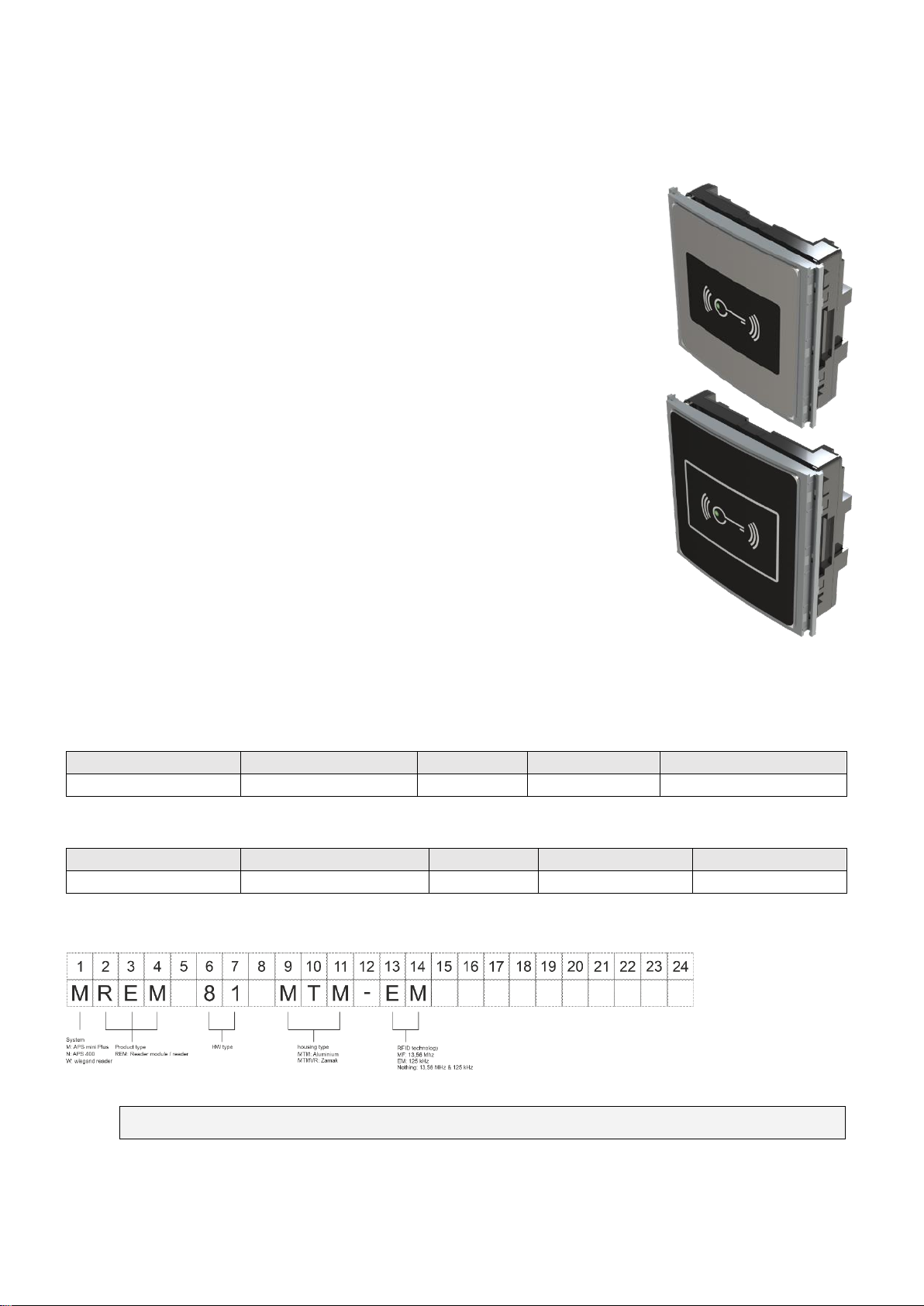

c. Variants

Product variants in aluminium, silver color

CATALOG NUMBER

PART NUMBER

SYSTEM

VARIANT

RFID frequency

53481001

MREM 81 MTM - EM

APS mini Plus

Modul MTMRFID

125 kHz

* For 13,56 MHz (MIFARE®, NFC) please check MREM 82 MTM product raw.

Product variants in zamak, black color

CATALOG NUMBER

PART NUMBER

SYSTEM

VARIANT

RFID frequency

53481011

MREM 81 MTMVR - EM

APS mini Plus

Modul MTMRFID

125 kHz

* For 13,56 MHz (MIFARE®, NFC) please check MREM 82 MTMVR product raw.

d. Marking

MIFARE®a MIFARE Classic®are registered trademarks owned by NXP B.V.

Android®is registered trademark owned by Google LLC.

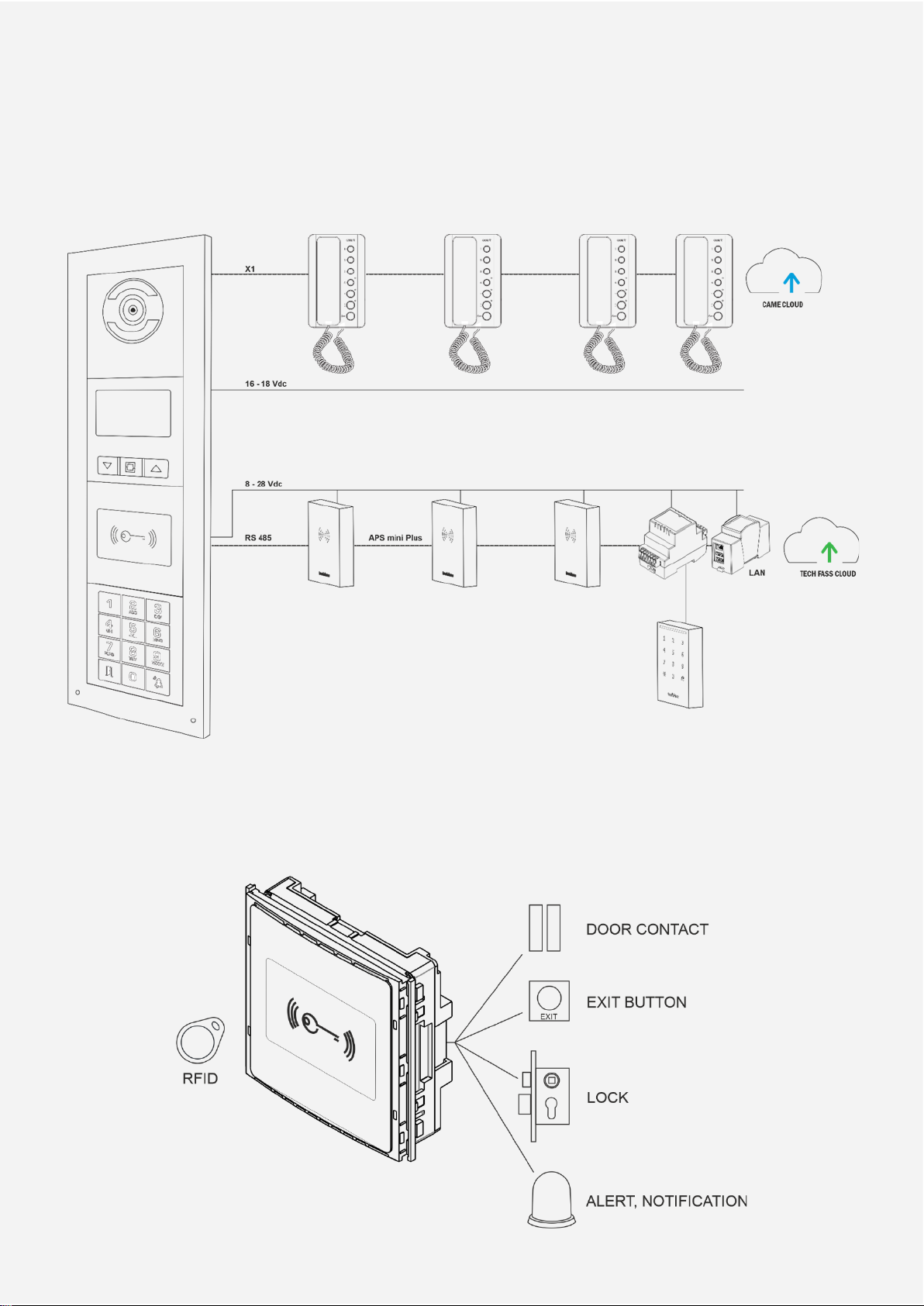

e. Block diagram

The MREM 81 MTM(VR) reader module is a module for the MTM modular entry panel. MTM entry panel itself is part of

the home phone system, it has its own power supply and bus for phones. MREM 81 MTM has its own cabling, data bus

of the APS mini Plus access system and the power supply can either be used from the MTM panel or have a 12V / 24V

power bus for the APS mini Plus access system.

▪Complete door control; lock control (open drain), door contact input, exit button, alert notification to PC or Cloud,

wiegand input, system bus, power supply. The reader module can operate autonomously or as a part of the

system.

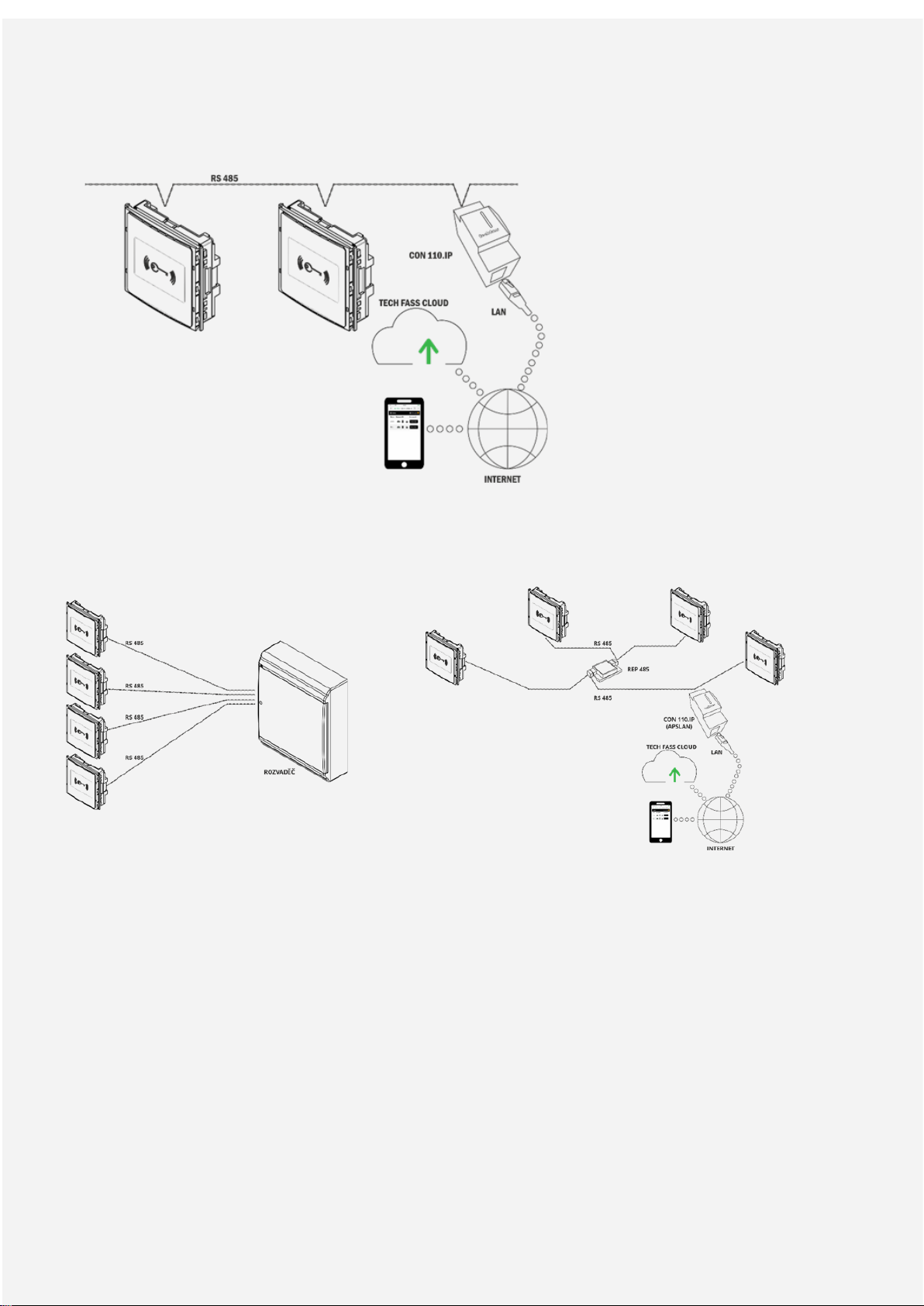

▪Connection on the RS 485 bus with control from a mobile phone from the WebHit cloud application. Up to 32

reader modules can be connected to one APS mini Plus line.

•How to connect in ‘‘star‘‘? Using the REP 485 line repeater.


Content


1Technical parameters...............................................................................................6
1 Electrical parameters..................................................................................................6
2 Communication interface............................................................................................6
3 Mechanical parameters ..............................................................................................6
2Assembly...................................................................................................................7
1 Cable connection of MREM 81 MTM(VR) ..................................................................7
2 System bus.................................................................................................................8
3 Assembly....................................................................................................................8
3RFID reading .............................................................................................................9
1 Reading at 125 kHz....................................................................................................9
4Wiring diagram ......................................................................................................10
1 Connection possibilities MREM 81 MTM(VR) ..........................................................10
5Settings ...................................................................................................................13
1 Setup procedure.......................................................................................................13
2 HW address setting ..................................................................................................13
3 Meaning of LED indicators .......................................................................................14
4 Configurable parameters..........................................................................................15
6Operating modes....................................................................................................16
1 Standard operating mode.........................................................................................16
2 External reader with Wiegand output .......................................................................17
7Function ..................................................................................................................18
1 Functions of the reader module................................................................................18
2 Function ‘‘Door open‘‘...............................................................................................18
3 Permanent lock release based on valid time schedule ............................................18
4 Function of ID with flag.............................................................................................18
5 ID expiration .............................................................................................................19
6 Antipassback function (APB)....................................................................................19
7 Disabling the reader module.....................................................................................19
8 Alerts and their signaling..........................................................................................19
9 Simplified access rights model .................................................................................21
10 Offline setting (programming) mode.........................................................................21
8Other........................................................................................................................25
1 Legislation ................................................................................................................25
2 Declaration of conformity..........................................................................................25
3 Electrical waste.........................................................................................................25



www.techfass.com RFID reader module MREM 81 MTM(VR)

1Technical parameters

1.1 Electrical parameters

PARAMETER

CONDITION

MIN

MAX

UNIT

Input voltage Vin

Typical current

consumption Iin

Vin = 8 V

Vin = 12 V

Vin = 24 V

Peak current

consumption Iin

Vin = 8 V

Vin = 12 V

Vin = 24 V

106

Typical input power

0,7

Maximum input power

1,1

Typical reading

distance (ISO card)

125 kHz (EM Marin)

RTC

Backup

Memory

ID media

Events

Time plans

2000

3400

Signalization

RGB led

Piezo

1.2 Communication interface

INTERFACE DESCRIPTION

TECHNOLOGY

PROPERTIES

System data bus

RS 485

19 200 bit / s, 8 data bits, even parity, 1 stop bit

Wiegand

Wiegand / RS 485

Formats 26, 32, 34, 37, 44, 46, 56 bits, custom

1.3 Mechanical parameters

PARAMETER

MREM 81 MTM

MREM 81 MTMVR

JEDNOTKA

Weight

122

Dimensions l x w x h

137,5 x 136 x 64 (34)

Mounting

Wall-mounted or recessed

Color & design

Silver, aluminium

Black, zamak

Environment class

IV –outdoor general device,

-25 ÷ +70

IP code

IP 54

IK code

IK 07

IK 09

cable

10 wires, 3 x 0,4

www.techfass.com RFID reader module MREM 81 MTM(VR)

2Assembly

2.1 Cable connection of MREM 81 MTM(VR)

Cable of MREM 81 MTM(VR) contents 10 wires with following functions:

MREM 81 MTM(VR)

NUMBER

COLOR

WIRE DESCRIPTION

WHERE IT LEADS (EXAMPLE)

Purple

OUT 1; 30 V, 1 A, open drain

Lock (connecting to GND)

Blue

GND

Power supply GND

Red

Power supply Vin 8 ÷ 28 Vdc

Power supply

Pink

Wiegand data 1

Wiegand reader (both sided control)

Green

Wiegand data 0

Wiegand reader (both sided control)

Gray

IN 2 (input 2), configurable funciton

Exit button

Yellow

IN 1 (input 1), configurable function

Door contact

Brown

Signal ground 0 V

Ground for input signals (door contact,..)

White

Signal B system data bus

APS mini Plus system bus

Black

Signal A system data bus

APS mini Plus system bus

2.1.1 Inputs and Outputs

INPUT / OUTPUT

DESCRIPTION

Input 1 (IN 1)

Door contact, active when door closed; REX button

Input 2 (IN 2)

Request to exit button or handle contact, active when button or handle pressed; Tamper; Disabling

function

Output 1 (OUT 1)

Door lock control (open drain)

Output 2 (OUT 2)

Alert output (open drain)

www.techfass.com RFID reader module MREM 81 MTM(VR)

2.2 System bus

2.2.1 RS 485 bus termination

If the reader module is the last one on the bus, it is advisable to terminate the RS 485 system bus so that there is no

reflection on the line. Use the termination resistor 150Ω which is a part of the packaging.

2.2.2 RS 485 idle states

This reader module does not allow to set the idle states of the system bus. Set the idle states on converters APSLAN,

CON 110.IP or REP 485 if needed.

2.3 Assembly

2.3.1 Radio signal interferences

If a 125 kHz reader is used, it is necessary to take into account another 125 kHz reader in direct range - for example when

checking the door on both sides. In this case, the readers may interfere with each other. In the techfass system, it is

possible to use the so-called synchronization of reading between the reader and the reading module, which then do not

interfere with each other.

In general, if possible, we avoid mounting on metal substrates, it is recommended to perform a practical reading test or

contact support@techfass.cz.

Interference along the line, e.g. from an interfering power supply, can affect the reading distance or the reader's own

communication.

www.techfass.com RFID reader module MREM 81 MTM(VR)

3RFID reading

3.1 Reading at 125 kHz

The device can read media on a frequency of 125 kHz like EM Marin (e.g. EM4200, EM4305). Next example of

supported media technology is Jablotron ID.

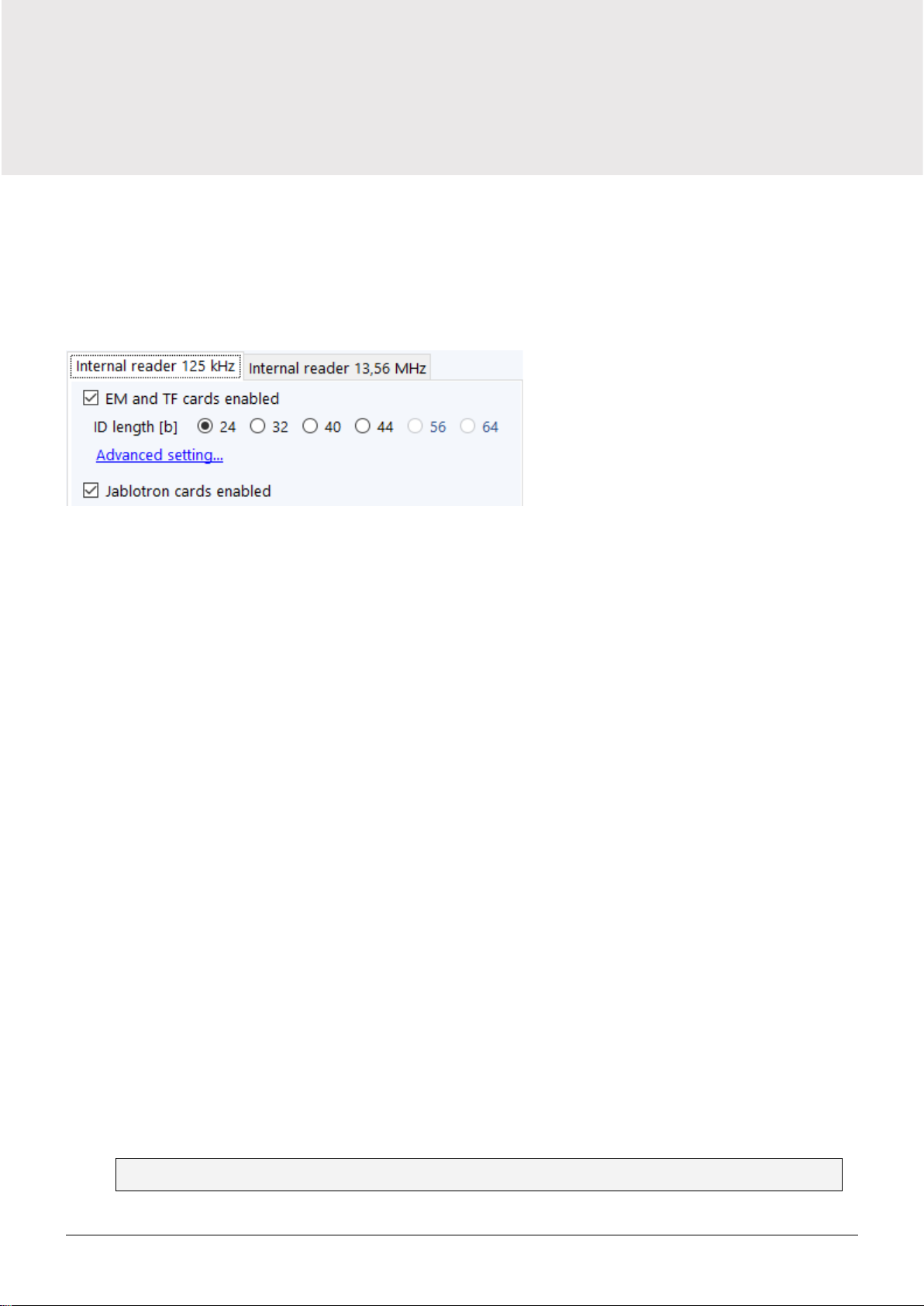

125 kHz settings possibilities:

Default settings for 125 kHz.

MIFARE®a MIFARE Classic®are registered trademarks owned by NXP B.V.

Android®is registered trademark owned by Google LLC.

www.techfass.com RFID reader module MREM 81 MTM(VR)

4 Wiring diagram

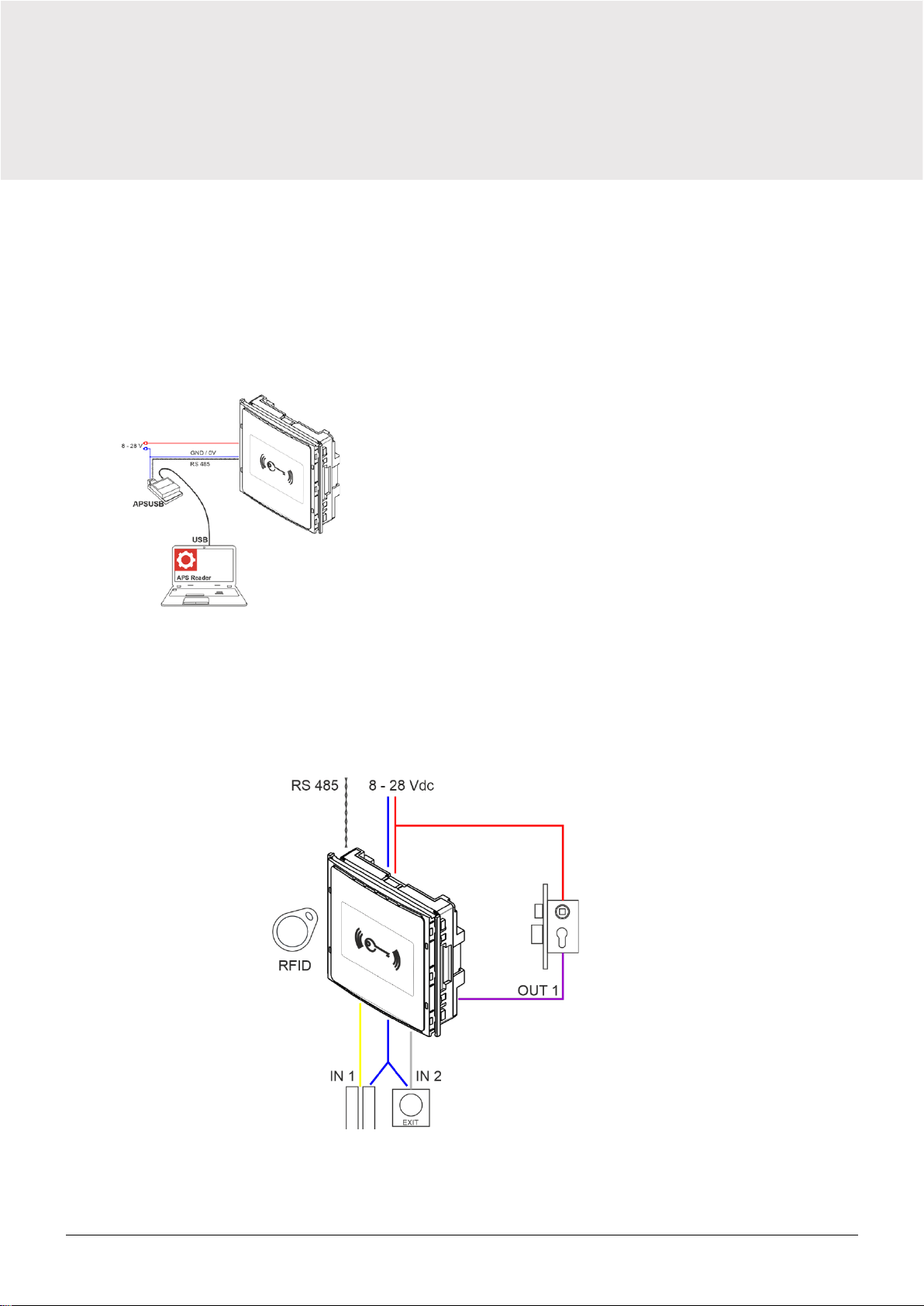

4.1 Connection possibilities MREM 81 MTM(VR)

Reader module can be connected as follows:

▪USECASE A: Reader module configuration and settings.

If we want to set the reader module and its parameter values, eg what frequency it should read, what HW

address it should have, whether the lock is reverse or standard, etc., it must be connected to the converter, eg

APSUSB or APSLAN and use the desktop application APS Reader, or to CON 110.IP and use the WebHit

application website.

▪USECASE B: System-wise, where the individual reader modules are connected to the RS485 bus, where up to

In this case, the reader module is independent on the entry panel, it can operate autonomously or as part of the

APS mini Plus system. The actual configuration of the module and its settings can be performed using the

APSUSB converter and the APS Reader program.
