Team C TC10 Manuel utilisateur

尺寸：

TC10

Length …………………………………………………………………………420mm

Width …………………………………………………………………………200mm

Height …………………………………………………………………………105mm

長度

寬度

高度

Dimensions

Instruction manual

www.teamcracing.net

1/10 SCALE RADIO CONTROL TOURING CAR

All manuals and user guides at all-guides.com

all-guides.com

610

電池蓋

調整遙控器

在遙控器的底部打開電池蓋子,安裝電池。

跟隨電池的指示在電池盒裡面指定。

AA 堿性電池

遙控器電池安裝

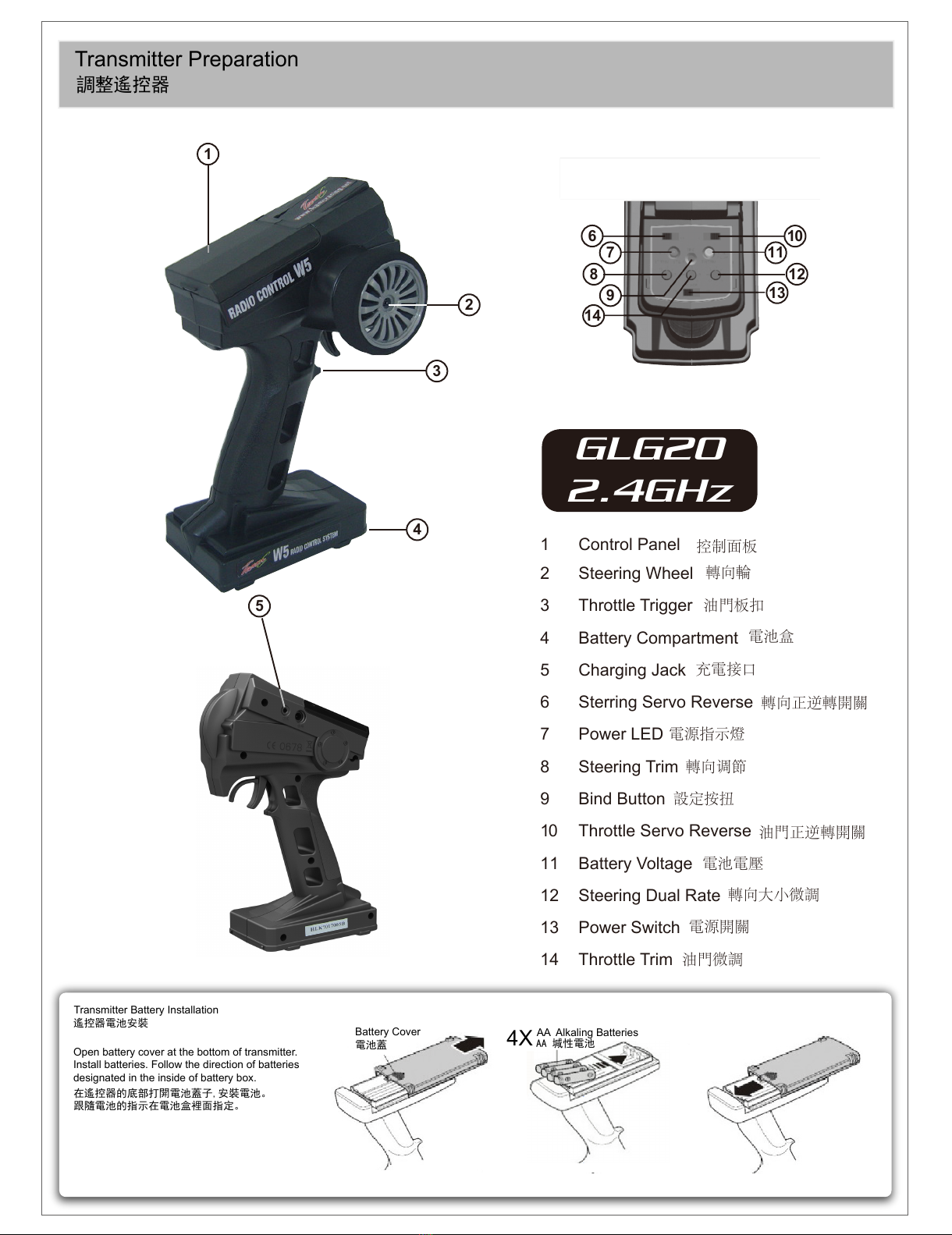

Transmitter Preparation

Alkaling Batteries

Open battery cover at the bottom of transmitter.

Install batteries. Follow the direction of batteries

designated in the inside of battery box.

Transmitter Battery Installation

Battery Cover

1 Control Panel

Steering Wheel

Throttle Trigger

Battery Compartment

Charging Jack

Sterring Servo Reverse

Power LED

Steering Trim

9 Bind Button

Throttle Servo Reverse

Battery Voltage

Steering Dual Rate

Power Switch

Throttle Trim

GLG20

2.4GHz

控制面板

轉向輪

油門板扣

電池盒

充電接口

轉向正逆轉開關

電源指示燈

轉向调節

設定按扭

油門正逆轉開關

電池電壓

轉向大小微調

電源開關

油門微調

All manuals and user guides at all-guides.com

調整遙控器

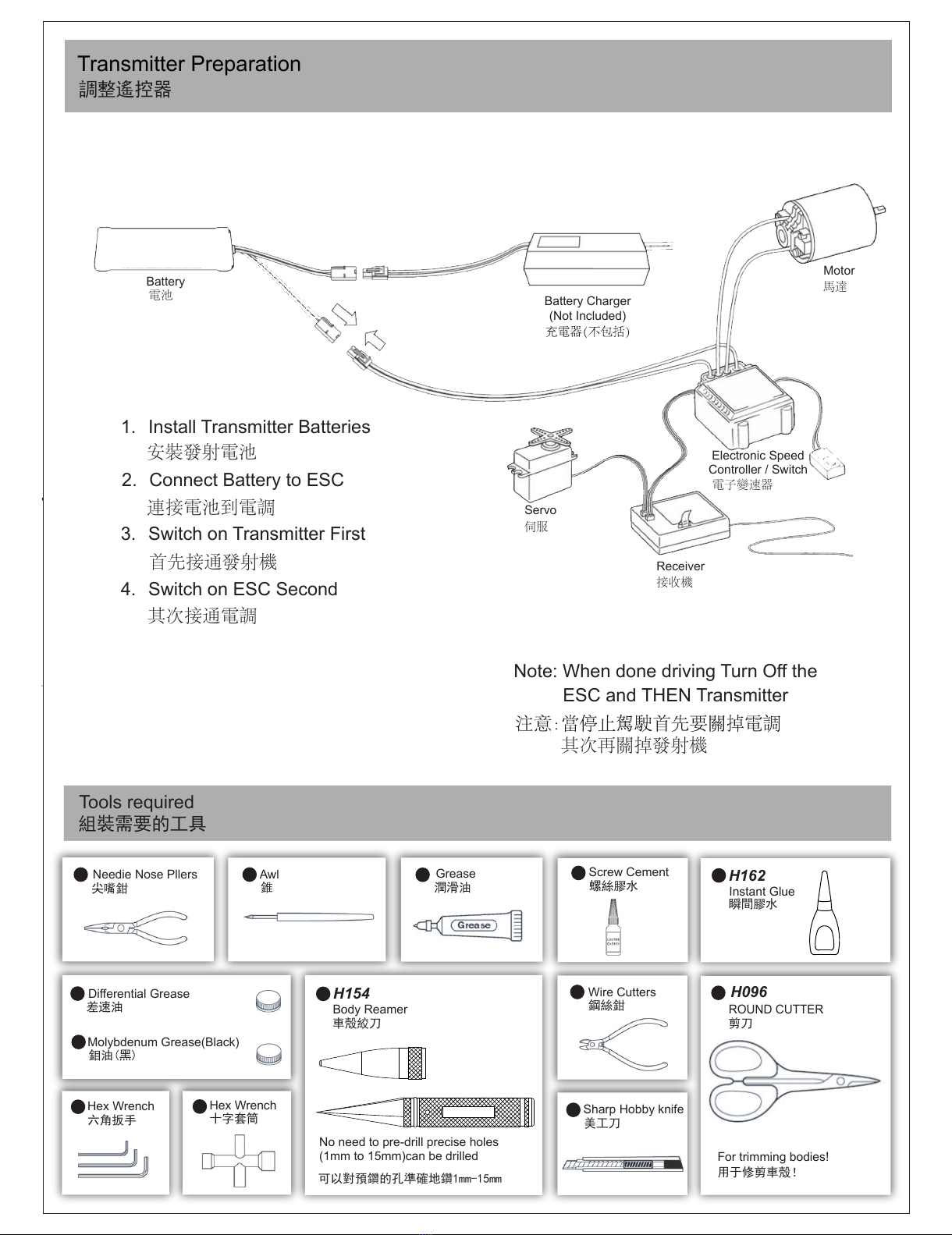

Transmitter Preparation

組裝需要的工具

Tools required

Needie Nose Pllers Awl Grease

潤滑油

Screw Cement

螺絲膠水

瞬間膠水

Instant Glue

Hex Wrench

六角扳手

Differential Grease

差速油

Molybdenum Grease(Black)

鉬油(黑)

錐

尖嘴鉗

Hex Wrench

十字套筒

Body Reamer

車殼絞刀

No need to pre-drill precise holes

(1mm to 15mm)can be drilled

可以對預鑽的孔準確地鑽1mm-15mm

Wire Cutters

鋼絲鉗

Sharp Hobby knife

美工刀

ROUND CUTTER

剪刀

For trimming bodies!

用于修剪車殼！

H154

H162

H096

Battery Charger

(Not Included)

Battery

Servo

Motor

Electronic Speed

Controller / Switch

Receiver

Note: When done driving Turn Off the

ESC and THEN Transmitter

Install Transmitter Batteries1.

Connect Battery to ESC2.

Switch on Transmitter First3.

Switch on ESC Second4.

安裝發射電池

連接電池到電調

首先接通發射機

其次接通電調

其次再關掉發射機

電池馬達

伺服

接收機

電子變速器

All manuals and user guides at all-guides.com

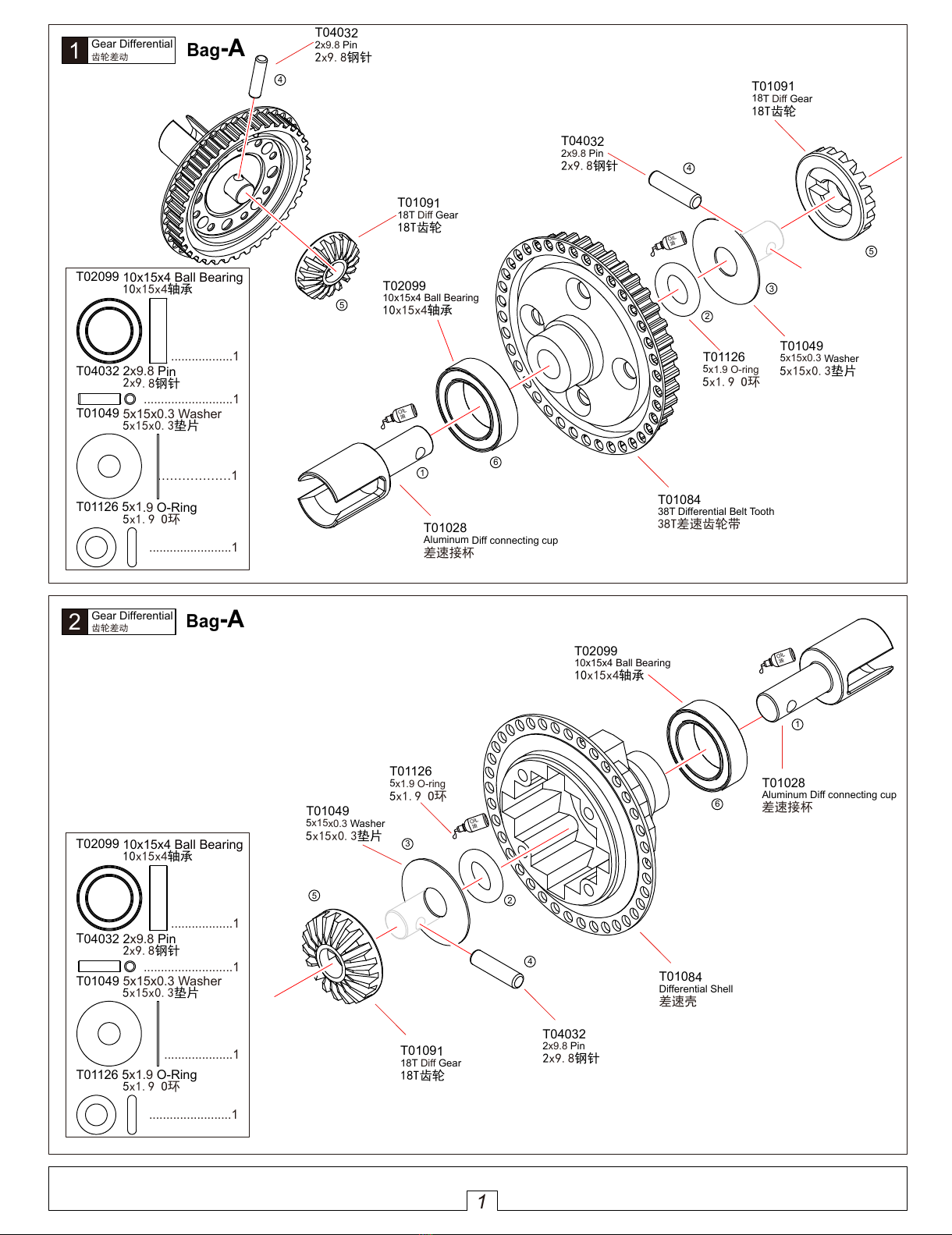

Gear Differential

齿轮差动

Bag-A

........................1

………………1

..........................1

5x15x0.3垫片

5x15x0.3 Washer

T01049

2x9.8钢针

2x9.8 Pin

T04032

18T齿轮

18T Diff Gear

T01091

差速接杯

Aluminum Diff connecting cup

T01028

5x1.9 O环

5x1.9 O-ring

T01126

18T齿轮

18T Diff Gear

T01091

18T齿轮

18T Diff Gear

T01091

差速接杯

Aluminum Diff connecting cup

T01028

2x9.8钢针

2x9.8 Pin

T04032

38T差速齿轮带

38T Differential Belt Tooth

T01084

差速壳

Differential Shell

T01084

2x9.8钢针

T04032 2x9.8 Pin

5x1.9 O环

T01126 5x1.9 O-Ring

5x15x0.3垫片

T01049 5x15x0.3 Washer

........................1

....................1

..........................1

2x9.8钢针

T04032 2x9.8 Pin

5x1.9 O环

T01126 5x1.9 O-Ring

5x15x0.3垫片

T01049 5x15x0.3 Washer

Gear Differential

齿轮差动

10x15x4轴承

10x15x4 Ball Bearing

T02099

10x15x4轴承

10x15x4 Ball Bearing

T02099

5x15x0.3垫片

5x15x0.3 Washer

T01049

5x1.9 O环

5x1.9 O-ring

T01126

10x15x4轴承

T02099 10x15x4 Ball Bearing

..................1

10x15x4轴承

T02099 10x15x4 Ball Bearing

..................1

2x9.8钢针

2x9.8 Pin

T04032

OIL

油

OIL

油

OIL

油

OIL

油

All manuals and user guides at all-guides.com

Bag-A

..........................4

..........................1

3.5x10x0.3垫片

3.5x10x0.3 Washer

T01049

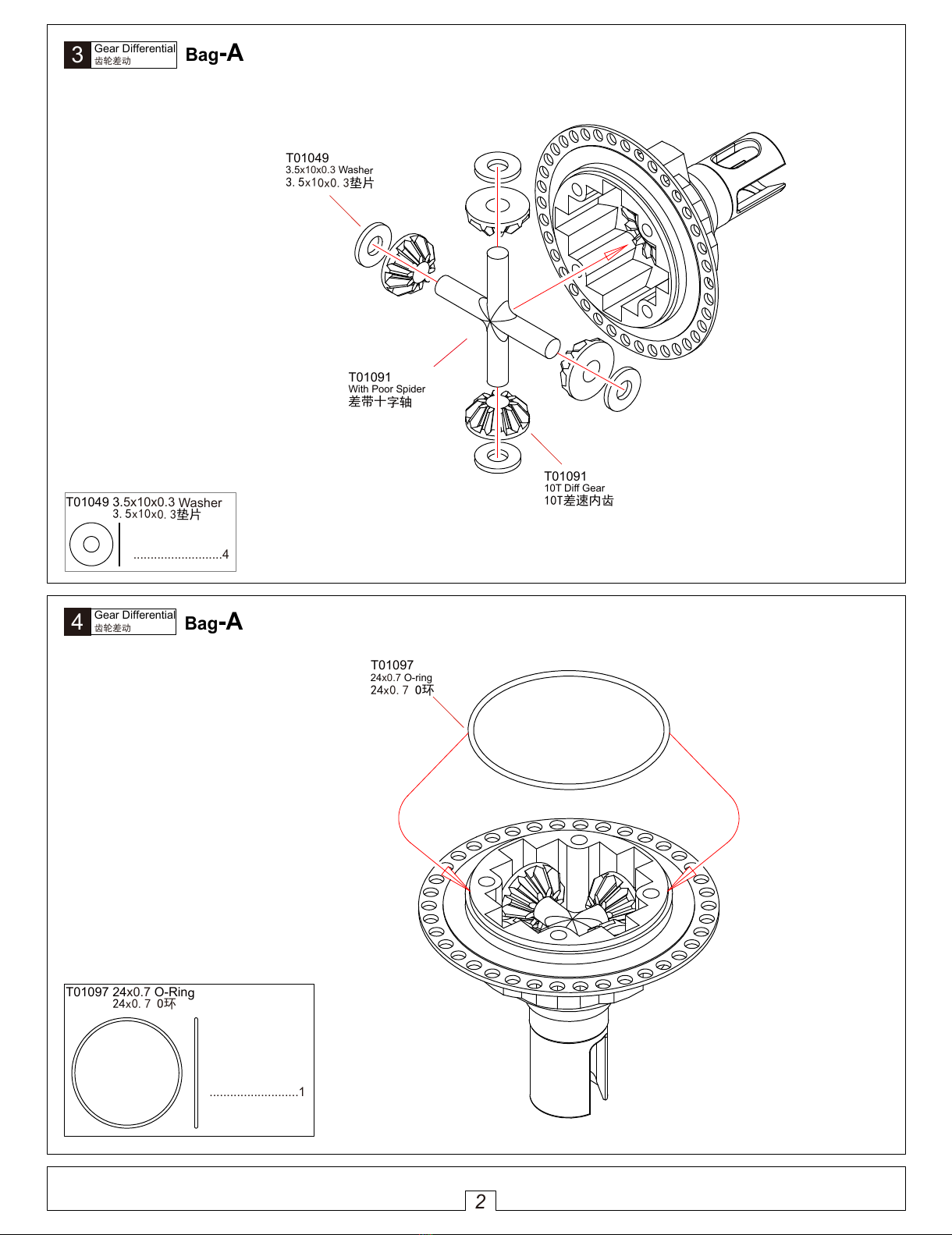

Gear Differential

齿轮差动

Gear Differential

齿轮差动

差带十字轴

With Poor Spider

T01091

10T差速内齿

10T Diff Gear

T01091

3.5x10x0.3垫片

T01049 3.5x10x0.3 Washer

24x0.7 O环

T01097 24x0.7 O-Ring

24x0.7 O环

24x0.7 O-ring

T01097

All manuals and user guides at all-guides.com

Bag-A

……………4

Bag-A

Gear Differential

齿轮差动

Gear Differential

齿轮差动

M2.5x8螺丝

M2.5x8 Screw

T01117

5000#

M2.5x8螺丝

T01117 M2.5x8 Screw

差速防漏垫片

Diff Leakproof Spacer

T01097

All manuals and user guides at all-guides.com

all-guides.com

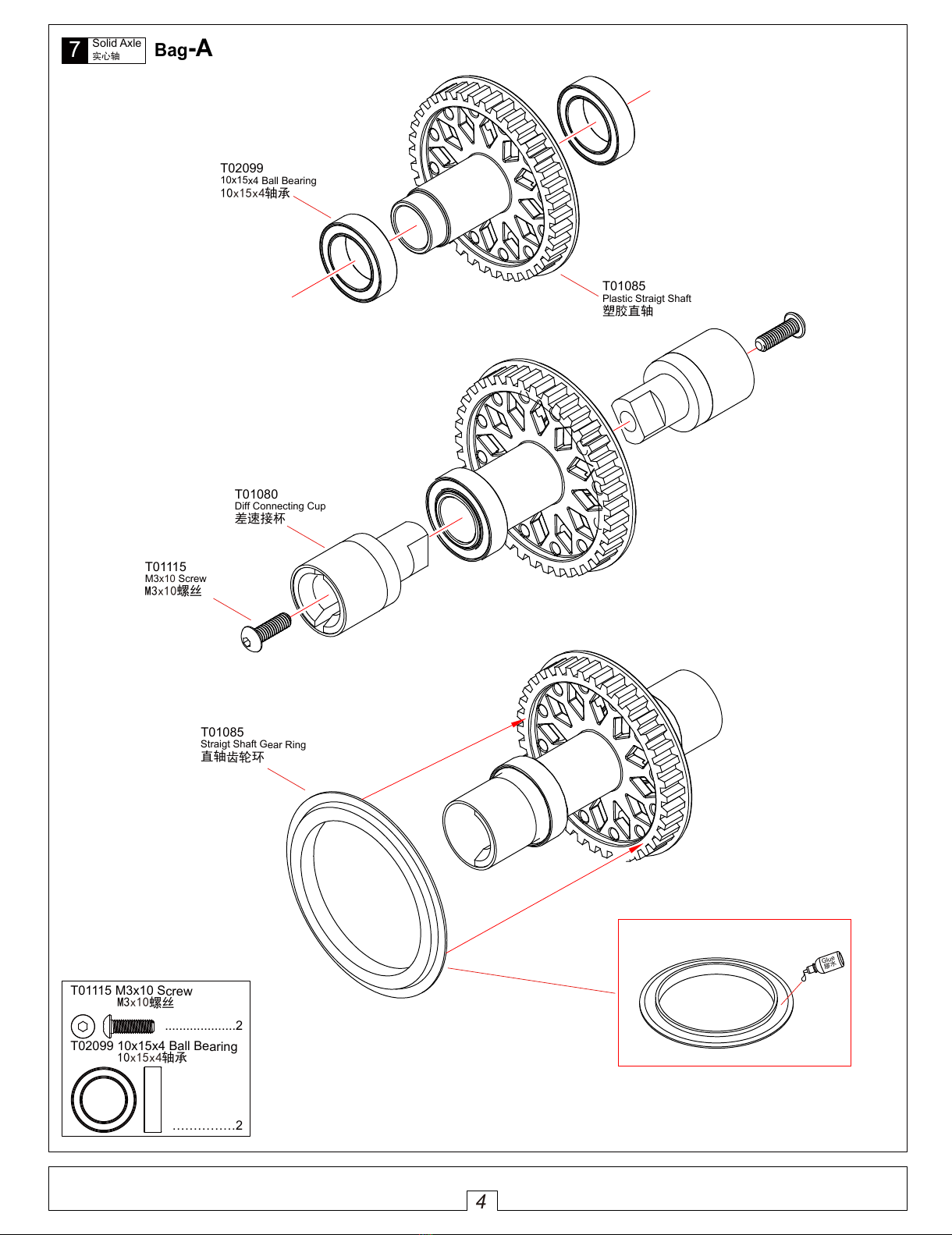

Solid Axle

实心轴

Bag-A

10x15x4轴承

10x15x4 Ball Bearing

T02099

……………2

10x15x4轴承

T02099 10x15x4 Ball Bearing

M3x10螺丝

M3x10 Screw

T01115

差速接杯

Diff Connecting Cup

T01080

塑胶直轴

Plastic Straigt Shaft

T01085

直轴齿轮环

Straigt Shaft Gear Ring

T01085

....................2

M3x10螺丝

T01115 M3x10 Screw

Glue

膠水

All manuals and user guides at all-guides.com

........................13

T01118 M3x6 Screw

M3x6螺絲

Motor Mount/Side Panel

马达座/侧板

Center Gear Adaptor

中心齿轮适配器

Bag-B

侧板

Side Panel

T01007

马达座-A

Motor Mount-A

T01021

马达座-B

Motor Mount-B

T01022

M3x6螺丝

M3x6 Screw

T01118

主底盘

Main Chassis

T01000

M3x4螺丝

M3x4 Screw

T01112

中齿轮-118T

Mid Gear-118T

T01092

20T皮带轮轴

20T Belt Wheel

T01027

20T皮带轮

20T Pulley

T01026

3.5mm套管

3.5mm Casing

T01073

4x8x3轴承

4x8x3 Ball Bearing

T01074

..........................4

T01112 M3x4 Screw

M3x4螺絲

..........................3

4x8x3轴承

T01074 4x8x3 Ball Bearing

..........................1

3.5mm套管

T01073 3.5mm Casing

中差座

Center Diff Mount

T01023

M3x10螺丝

M3x10 Screw

T01120

.................1

M3x10螺丝

T01120 M3x10 Screw

All manuals and user guides at all-guides.com

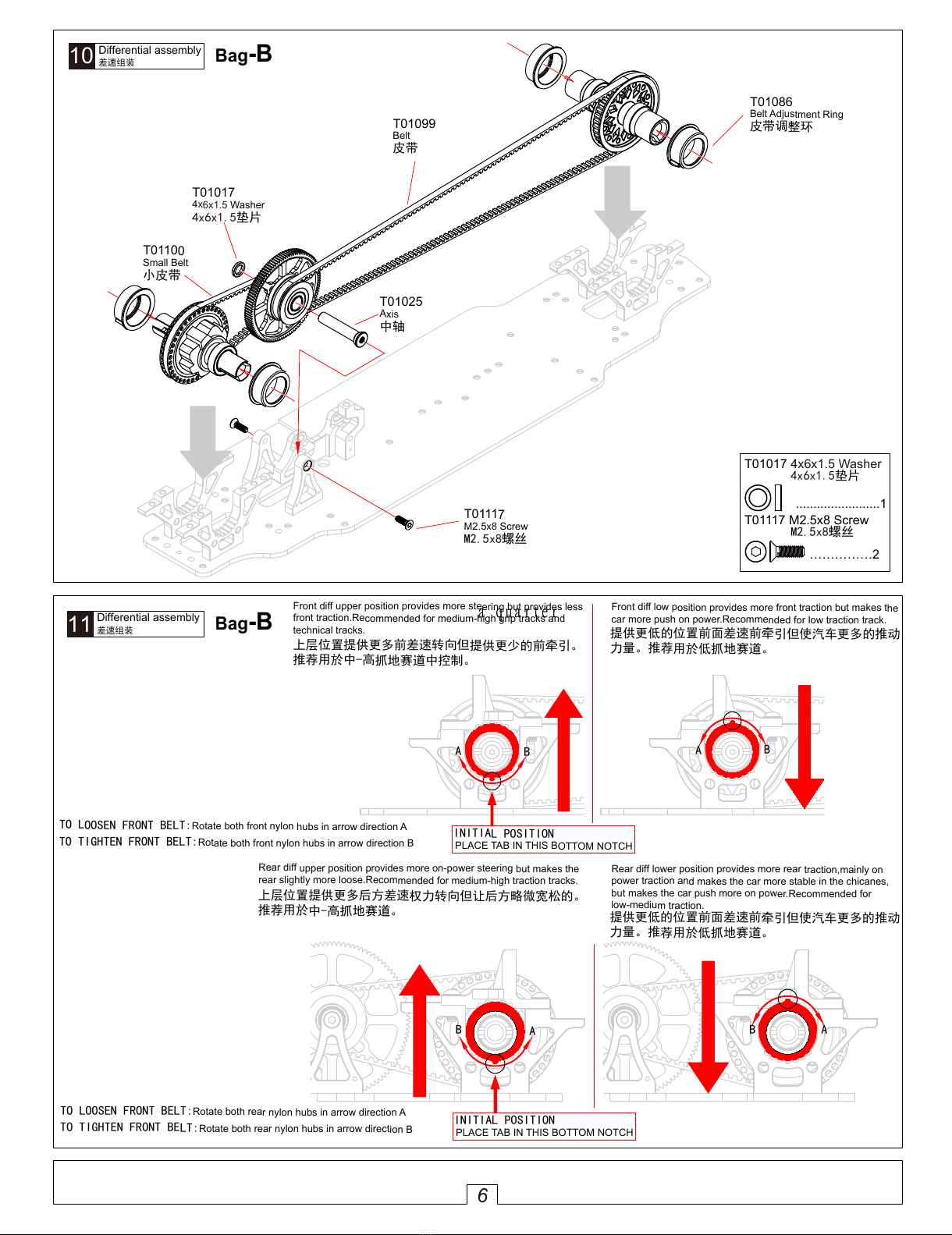

11 Differential assembly

10 Differential assembly

差速组装

Bag-B

ａ　ｑｕａｒｔｅｒａ　ｑｕａｒｔｅｒ

皮带调整环

Belt Adjustment Ring

T01086

小皮带

Small Belt

T01100

皮带

Belt

T01099

M2.5x8螺丝

M2.5x8 Screw

T01117

……………2

M2.5x8螺丝

T01117 M2.5x8 Screw

上层位置提供更多前差速转向但提供更少的前牵引。

推荐用於中-高抓地赛道中控制。

Front diff upper position provides more steering but provides less

front traction.Recommended for medium-high grip tracks and

technical tracks. 提供更低的位置前面差速前牵引但使汽车更多的推动

力量。推荐用於低抓地赛道。

Front diff low position provides more front traction but makes the

car more push on power.Recommended for low traction track.

INITIAL POSITION

PLACE TAB IN THIS BOTTOM NOTCH

TO LOOSEN FRONT BELT:Rotate both front nylon hubs in arrow direction A

TO TIGHTEN FRONT BELT:Rotate both front nylon hubs in arrow direction B

上层位置提供更多后方差速权力转向但让后方略微宽松的。

推荐用於中-高抓地赛道。

Rear diff upper position provides more on-power steering but makes the

rear slightly more loose.Recommended for medium-high traction tracks.

提供更低的位置前面差速前牵引但使汽车更多的推动

力量。推荐用於低抓地赛道。

Rear diff lower position provides more rear traction,mainly on

power traction and makes the car more stable in the chicanes,

but makes the car push more on power.Recommended for

low-medium traction.

TO LOOSEN FRONT BELT:Rotate both rear nylon hubs in arrow direction A

TO TIGHTEN FRONT BELT:Rotate both rear nylon hubs in arrow direction B INITIAL POSITION

PLACE TAB IN THIS BOTTOM NOTCH

ABAB

中轴

Axis

T01025

4x6x1.5垫片

4x6x1.5 Washer

T01017

........................1

4x6x1.5垫片

T01017 4x6x1.5 Washer

All manuals and user guides at all-guides.com

Apply threadlocker(screw cement)

打螺絲膠水

Screw

Cement 7

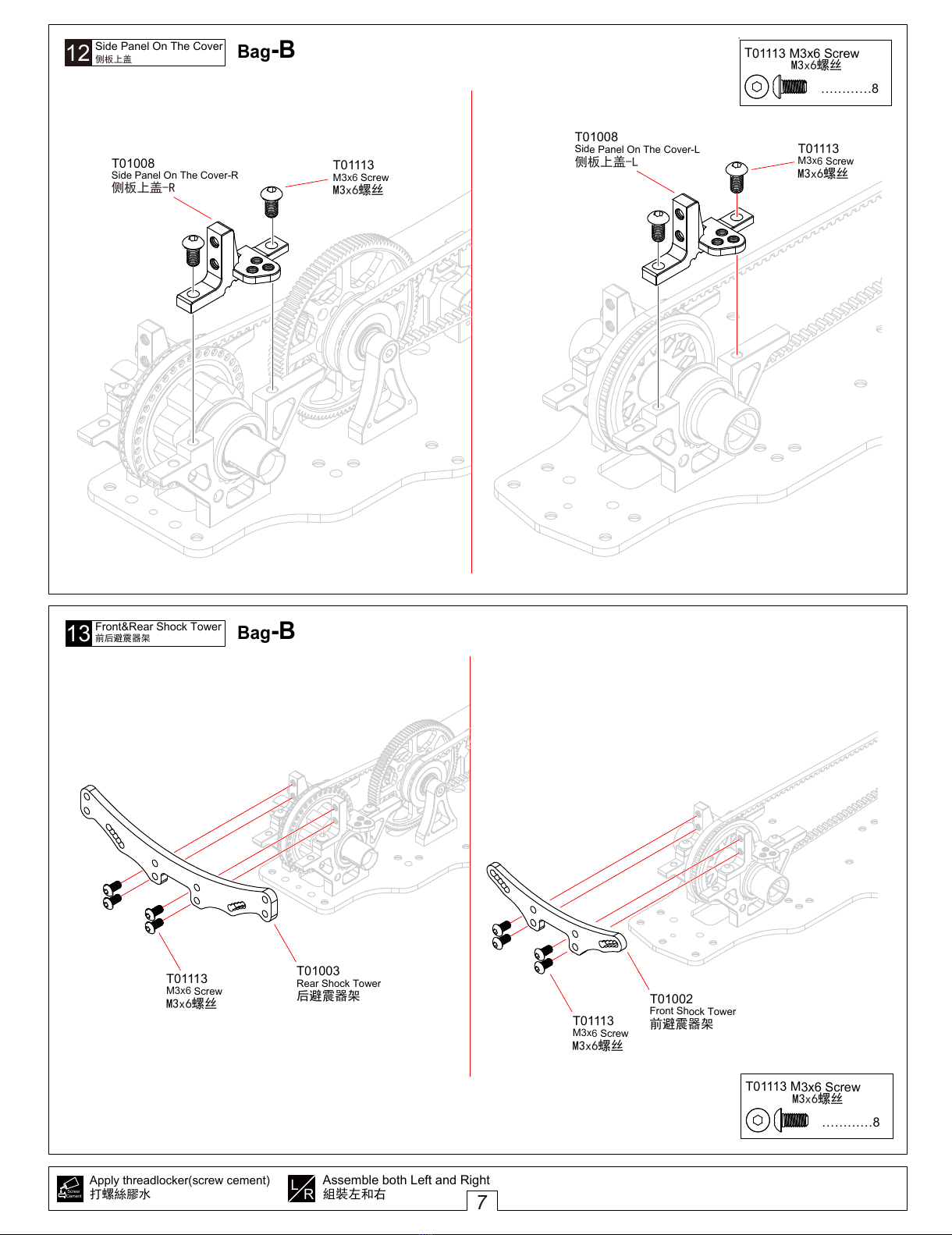

13 Front&Rear Shock Tower

前后避震器架

Bag-B

M3x6螺丝

M3x6 Screw

T01113

后避震器架

Rear Shock Tower

T01003

前避震器架

Front Shock Tower

T01002

…………8

M3x6螺丝

T01113 M3x6 Screw

Assemble both Left and Right

組裝左和右

12 Side Panel On The Cover

侧板上盖

Bag-B

侧板上盖-R

Side Panel On The Cover-R

T01008 侧板上盖-L

Side Panel On The Cover-L

T01008

…………8

M3x6螺丝

T01113 M3x6 Screw

M3x6螺丝

M3x6 Screw

T01113

M3x6螺丝

M3x6 Screw

T01113

M3x6螺丝

M3x6 Screw

T01113

All manuals and user guides at all-guides.com
