TDK-Lambda G1.7kW Manuel utilisateur

Series



ProgrammableDCPowerSupplies

G1.7÷5kWin1U0‐600V/0‐500A

GSP10kWin2U0‐600V/0‐1000A

GSP15kWin3U0‐600V/0‐1500A

StandardandBlankPanelOptions



AIRFILTERKITMANUAL







IA857-04-01B





2

1.1

General

The Air Filter Kit is supplied separately from the power supply packing according to order.

The usage of the air filter is according to customers’ needs.

1.2

Specifications{

XE "

Specifications

:Air Filter" \i

}

When using the air filter kit, all the specifications of the power supply remain the same as for

standard power supply, with the exceptions specified in the table below:



ENVIRONMENTAL CONDITIONS

Operating temperature For all models except 10V 3.4kW~15kW: 0~40°C, 100% load.

For 10V 3.4kW~15kW models:

0~30°C, 100% load, For 30°C≤Ta≤40°C, derate 5A/1°C.

Altitude Operating: Maximum 10000ft (3000m).

For all models except 10V 3.4kW~15kW:

Derate 1°C/100m, or 2% Load/100m above 2000m.

For 10V 3.4kW~15kW models:

Derate 2°C/100m, or 2% Load/100m above 2000m.



NOTE

For power supplies with Air filter option and optional interface installed, please contact TDK-

Lambda customer support department or your local sales office.

1.3

Maintenance{

XE "

Maintenance

" \i

}

Cleaning of the air filter – according to customer considerations and needs.

1.3.1 Cleaning Instructions{

XE "

Cleaning Instructions

:Air Filter" \i

}

1. Disconnect the AC power cord from the power supply.

2. Remove the air filter according to the instructions below.

3. Clean the air filter by removing dust and dirt, which were accumulated in the filter. Low air

pressure can be used gently.

4. After finishing cleaning, assemble the air filter according to the instructions below.

5. Ensure to lock the air filter assembly properly, by moving the buttons as explained below.

6. After finishing the air filter assembly, apply AC power to the power supply and ensure proper

operation. 0.



3

1.3.2 Assembly Instructions{

XE "

Assembly Instructions

:Standard Power Supply"

} for Standard Panel

Standard Panel Air Filter Kit consists of two main panel parts (Dust Filter Panel Part 1 and Dust

Filter Panel Part 2), three Buttons (two types – Button 1 and Button 2) and an Air Filter. Refer to

Figure 1.



Figure1‐StandardPanelAirFilterKit

Step1:

Cut the Air Filter Foam as shown in Figure 2.



Figure2‐AirFilterFoam

Step2:

Assemble the Air Filter Foam into the two main panel parts as shown in Figure 3.



4



Figure3‐AirFilterFoamAssembly

Step3:

Assemble the buttons into the two main parts as shown in Figure 4.



Figure4‐ButtonsAssembly

Step4:

Fix the air filter main parts to the front panel of the power supply. Refer to Figure 5.



5



Figure5‐MainPartsAssembly





6

1.3.3 Assembly Instructions{

XE "

Assembly Instructions

:Standard Power Supply"

} for Blank Panel

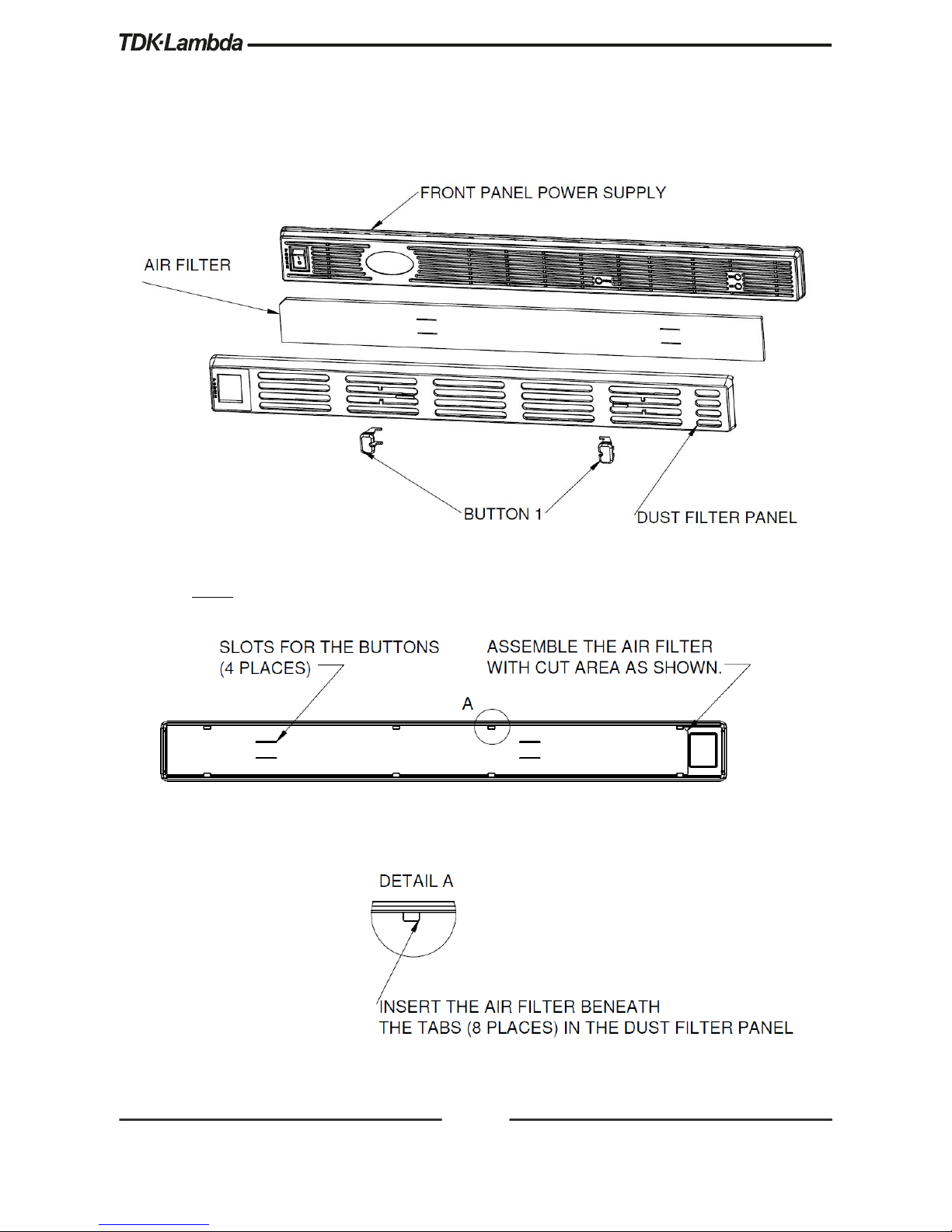

Blank Panel Air Filter Kit consists of one main panel part (Dust Filter Panel), two Buttons (of the

same type – Button 1) and an Air Filter. Refer to Figure 6.



Figure6‐BlankPanelAirFilterKit

Step1:

Assemble the Air Filter Foam into the main panel part as shown in Figure 7.



Figure7‐AirFilterFoamAssembly



7





8

Step2:

Assemble the buttons into the main part as shown in Figure 8.



Figure8‐ButtonsAssembly

Step3:

Fix the air filter main panel part to the front panel of the power supply. Refer to Figure 9.



Figure9‐MainPartAssembly





9

1.3.4 Assembly Instructions{

XE "

Assembly Instructions

:Standard Power Supply"

} for 10kW/15kW Booster Panel

Booster Panel Air Filter Kit consists of one main panel part (Dust Filter Panel), two Buttons (of the

same type – Button 1) and an Air Filter. Refer to Figure 10.



Figure10‐BlankPanelAirFilterKit

Step1:

Assemble the Air Filter Foam into the main panel part as shown in Figure 11.



Figure11‐AirFilterFoamAssembly





  10

Step2:

Assemble the buttons into the main part as shown in Figure 12.



Figure12‐ButtonsAssembly

Step3:

Fix the air filter main panel part to the front panel of the power supply. Refer to Figure 13.



Figure13‐MainPartAssembly


