TCL L49E7800UDS Manuel utilisateur

Product Type LCD Smart TV Music Support MP3, AC3, HE-AAC, LPCM

Chassis MS1369K-LA Picture Support JPEG, BMP, PNG;

CPU ARM A9 1.2G Dual Core Support H.264, MPEG2, MPEG4, VC1, FLV

GPU Mail400*4

OS Android TV V4

Memory 1.25GByte DDR3 / 8GByte Flash File ---

UI Style MoVo TV style

OSD Language English/Portuguese/Spanish

PAL-N/M; NTSC-M Component Video Format ---

ISDB-T DVI Video Format Up to XGA for HDMI-PC

AV System PAL, NTSC HDMI Video Format Up to 4K×2K

TV Channels (Analog) Cable (1～125), Antenna (2～69) PC Compatibility ---

TV Channels (Digital) Antenna (7～69)

Power Supply AC 100V-240V 50/60Hz

Power Consumption（TV On）200W(max),180W(typ)

Power Consumption（Standby）≤0.5WBacklight Unit LED

Certification CB Panel supplier CSOT

Energy Efficiency Level --- Aspect Ratio 16:9

Wired Network Panel Size (inch) 54.6"

Wireless (Built-in Adapter) Display Resolution 3840*2160

Brightness (min.) (cd/m2) 310(min), 320(typ)

Contrast Ratio (Typ.) 3500:1(min), 4000:1(typ)

Response Time (Typ.) (G to G) (ms) 6.5(typ)

Auto Source --- Viewing Angle (Typ.) (H/V) 178°/178°

EPG Yes Life Time (Typ.) (hrs) 30,000

Subtitle/Closed Caption Yes Color 1.07 billion(10bit)

Parental Control Yes Refresh Rate

60Hz

Sleep Timer Yes

System Update Yes

Hotel Mode ---

Bottom Side

Input Method Smart IME

MHL ---

Teletext ---

Nicam ---

Lightsensor ---

3DTV Type ---

3D Format ---

Natural Light Technology ---

DCC（Dynamic Contrast Control）Yes

Backlight Adjustable Yes (0~100)

Color Temperature Normal, Cold, Warm

Picture Mode Standard, Dynamic, Studio, Movie, Personal

Picture Size Norma, Full, Zoom, Expand

Gamma Adjustable -3 to 3

Comb Filter 3D

Dynamic Noise Reduction 3D

Adaptive Deinterlacing 3D

Motion Compensation Yes

Speakers Integrated speakers (Bottom side)

Audio Power Output（THD=7%）2×8W

Smart Volume Yes

Smart Audio Standard, Music, Movie, News, User

Sound Control Balance, Bass, Treble

Sound Scene ---

SRS ---

Basic Function


Sound

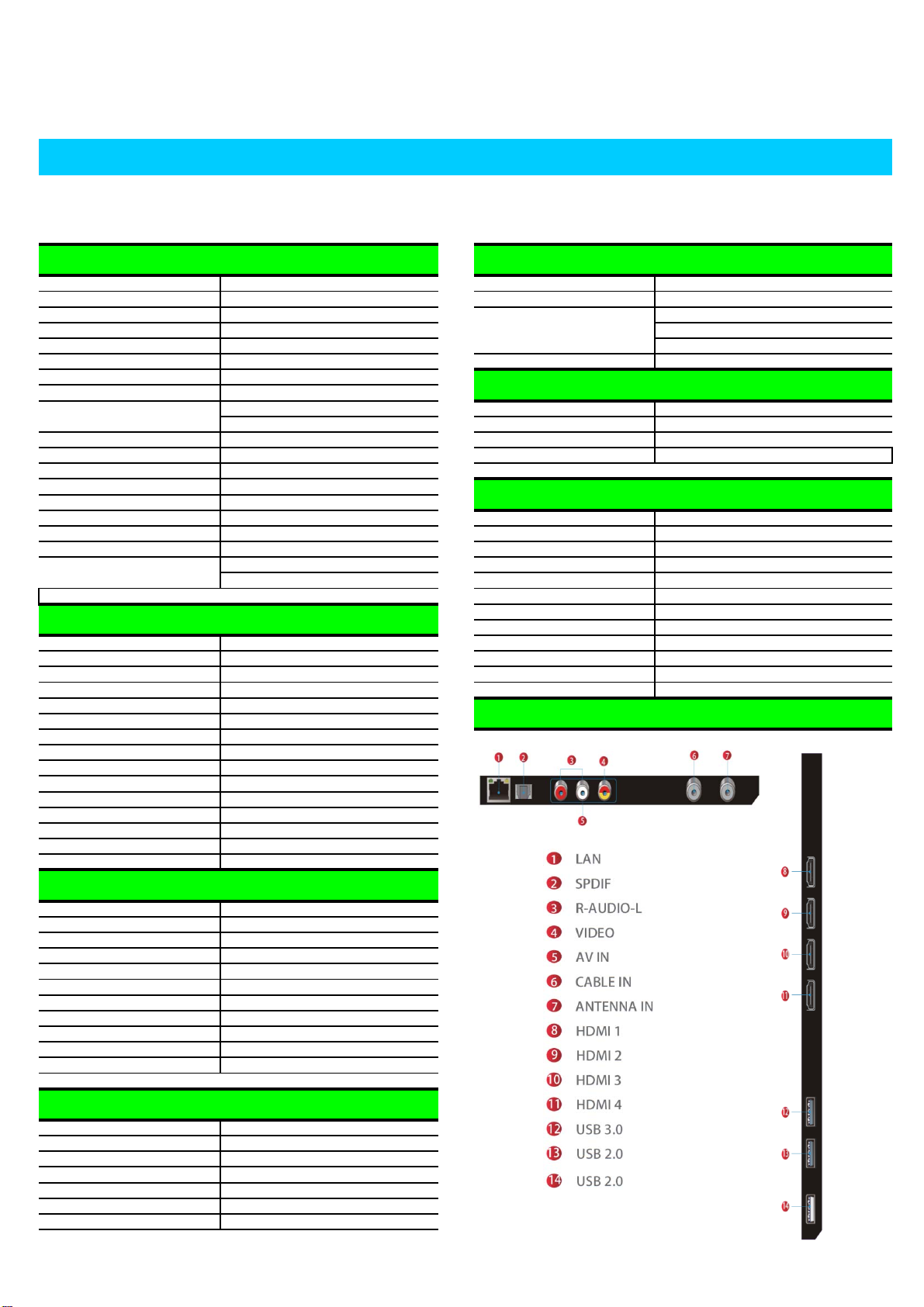

Terminals

PRODUCT SPECIFICATION RELEASE

Model: L49E7800UDS/MS1369K-LA/CS4STA

Version：1.0 Issued On: 2014-12-29

Design and specifications are subject to change without notice!

TV System

Internet Link

Video

USB Device Media Format

Signal Format Capability

Basic Information

Panel Specification

GoLive TV --- I Camera ---

Zing TV --- Home Cloud ---

Zing MP3 --- Gesture Control ---

YouTube Yes GINGA Yes

Vimeo ---

TCL Appstore 3.0 (optional according to OEM brand)

Facebook ---

Twitter ---

Riptide GP (optional according to OEM brand)

Entermity Worrior 2 (optional according to OEM brand)

WebBrowser Chrome

Message Box Yes

Weather forecast ---

nSCreen ---

E-Sticker (optional according to OEM brand) Operation Manual English (Default)

Help (optional according to OEM brand) Remote Control and batteries RC651

TV Guard ---

Base Stand Integrated Packaging

Frequency (optional according to OEM brand) AC power cord 1 pcs

Face Rrecognize ---

Google Play Store Yes

Wireless Display Yes Wall Mount 1 pcs(WMB333)

Wireless Keyboard ---

Wireless Mouse ---

Game Controller 1 pcs(PC-8612RF gamestick)

Batteries 3 pcs

L1（mm）1092 Diagonal size（cm）123

W1（mm）51 Slim Edge Design---Up（mm）6.6

H1（mm）636 Slim Edge Design---Bottom（mm）8

L2（mm）603 Slim Edge Design---L&R（mm）6.6

W2（mm）222 Carton Dimensions LxWxH（mm）1265X145X806

H2（mm）673 Container Loading---20 feet（pcs）193

Net Weight With Stand（Kg）16.5 Container Loading---40 feet（pcs）411

Net Weight Without Stand（Kg）15.9 Container Loading--40 feet High（pcs）467

Gross Weight With Packaging（Kg）20 VESA Mounting Dimensions LxH（mm）400X200

Drafted by: Approved by:

Mechanical Key Specification

Special FunctionPre-Installed Application List

Essential Accessories（Default）

Optional Accessories

Mechanical ID Picture

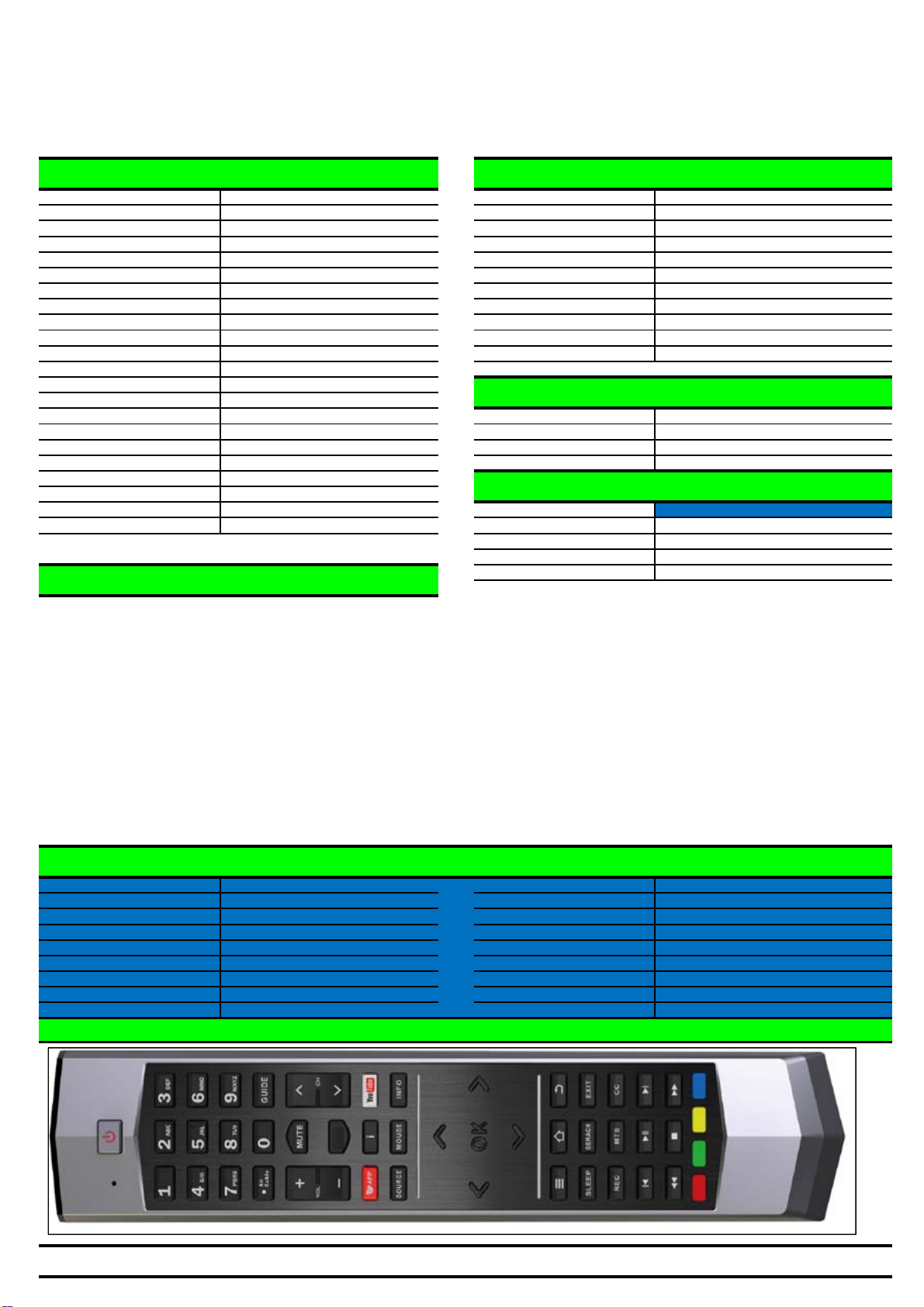

Remote ID Picture

ALIGNMENT & ELECTRICAL TEST

PROCEDURE

MS1369K-LA

L55E6700UDS

L55E5700UDS

V1.0

CONTENTS

1POWER SUPPLY ........................................................................................................................................ 1

2ELECTRICAL TEST................................................................................................................................... 1

2.1 ABBREVIATIONS......................................................................................................................................1

2.2 PREPARATION..........................................................................................................................................2

2.3 KEY BOARD,IR RECEIVER AND RC.........................................................................................................2

2.3.1 To navigate the MENU using KEYBOARD ....................................................................................2

2.3.2 To navigate the MENU using REMOTE CONTROL......................................................................3

2.4 VIDEO FUNCTIONAL CHECK.....................................................................................................................3

2.4.1 HDMI..............................................................................................................................................3

2.4.2 RF ...................................................................................................................................................4

2.4.3 CVBS...............................................................................................................................................5

3VIDEO ALIGNMENT ................................................................................................................................. 5

3.1 ALIGNMENT CONDITIONS........................................................................................................................5

3.2 ADC CALIBRATION.................................................................................................................................5

3.3 WHITE BALANCE .....................................................................................................................................5

3.3.1 CUT-OFF ALIGNMENT ................................................................................................................6

3.3.2 White balance .................................................................................................................................6

4AUDIO ALIGNMENT ................................................................................................................................. 7

5SHOP INITIAL ............................................................................................................................................ 7

SHOP INITIAL SHOULD BE DONE AT THE LAST ALIGNMENT. .......................................................... 7

6FACTORY MENU ....................................................................................................................................... 7

6.1 HOW TO ENTER FACTORY MENU BY REMOTE CONTROL ...........................................................................7

6.2 TO GO BACK OR EXIT FACTORY MENU:....................................................................................................7

7SERVICE MENU ......................................................................................................................................... 7

7.1 HOW TO ENTER SERVICE MENU BY REMOTE CONTROL.............................................................................7

7.2 TO GO BACK OR EXIT SERVICE MENU:......................................................................................................7

8ALL THE P-MODE MENU AND SETTINGS: ........................................................................................ 8

8.1 MAIN\FACTORY ......................................................................................................................................8

8.1.1 White Balance…. ............................................................................................................................8

8.2 MAIN\SERVICE MEN ................................................................................................................................9

8.3 THE FOLLOWING IC SHOULD BE PRE-COPIED BEFORE SMT PROCESS: .....................................................9

8.3.1 How to use USB to update MS59KL.............................................................................................10

Date

2013/12/2

Page 12

- 1 -

Index

Draft

of 12 Pages

Name

MS1369K-LA is designed for LA Google TV, Dual core CPU and Four core GPU, using Android 4.0 OS and

UI 5.0 interface, ore based on intelligent digital cloud TV before increasing the MHL, WIDI and

USB3.0. Support mouse RCU, built-in WIFI and 3D function.

1Power supply

The Standard Power supply related to All the Models is +24V and +3.3V for the Main BD.

The signal of POWER_ON enables the +24V and the other Voltages as well.

If POWER_ON signal = 0V, +24V and the others are not available.

If POWER_ON signal = 3.3V, +24V and the other are available.

2 ELECTRICAL TEST

2.1 Abbreviations

High Definition

Standard Definition

VGA

Video Graphic Array

VESA

Video Electronics Standards Association

Remote Control

TBD

To be determined

POWER BD.

1.1.1.1.1.1.1 M

P001

+3.3V_STB

GND for +3V_STB

+12V Or +24V

GND for +12V

POWER_ON

Main BD(MS1369)

BLON/OFF;PW_DIM

AC IN

Mains

120VAC

Date

2013/12/2

Page 12

- 2 -

Index

Draft

of 12 Pages

Name

2.2 Preparations

Connect FFC cable from LCD panel to P1403

Some models need to connect +24V supply cable to the Inverter unit of panel.

Connect DC/DC&CONTROL cable from Power Board to P001(Main board.).

Connect IR cable from P003 to IR Board.

Connect KEY cable from P002 to KEY Board

Connect SPEAKER cables to P701 & P702.

Connect WIFI dongle cable to P1003.

Connect 3D Bluetooth dongle cable to P905(Some module).

2.3 Key Board, IR receiver and RC

Apply 110V~240V AC to the mains input when power on.LED should be off during the

period of power on, whereas the LED shall be white if the TV enters into standby mode.

2.3.1 To navigate the MENU using KEY Board

A﹥To switch on/off the TV set:

Action: Press the Power key on the Key board

Observe: Power key is equal to the function of ON-OFF button on remote control.

B﹥To enter MENU Screen:

Action: Press the MENU key on keyboard.

Observe: Menu screen will be shown on the LCD screen.

C﹥During Menu Screen:

Action: Press Menu key

Observe: Menu key is equal to OK key on remote control.

Action: Press Vol- key

Observe: Vol- key is equal to LEFT key on remote control.

Action: Press Vol+ key

Observe: Vol+ key is equal to RIGHT key on remote control.

Action: Press PR- key

Observe: PR- key is equal to DOWN key on remote control.

Action: Press PR+ key

Observe: PR+ key is equal to UP key on remote control.

Date

2013/12/2

Page 12

- 3 -

Index

Draft

of 12 Pages

Name

2.3.2 To navigate the MENU using Remote Controller

A﹥To enter MENU Screen.

Action: Press MENU key on Remote Controller

Observe: Menu screen should be shown at the LCD screen.

B﹥During Menu Screen:

Action: Press UP key or DOWN key

Observe: Highlight will go up and down

Action: Press RIGHT or OK key

Observe: User will enter into the highlighted item.

Action: Press GO BACK key(shortcut key)

Observe: User will exit from the selection.

2.4 Video functional check

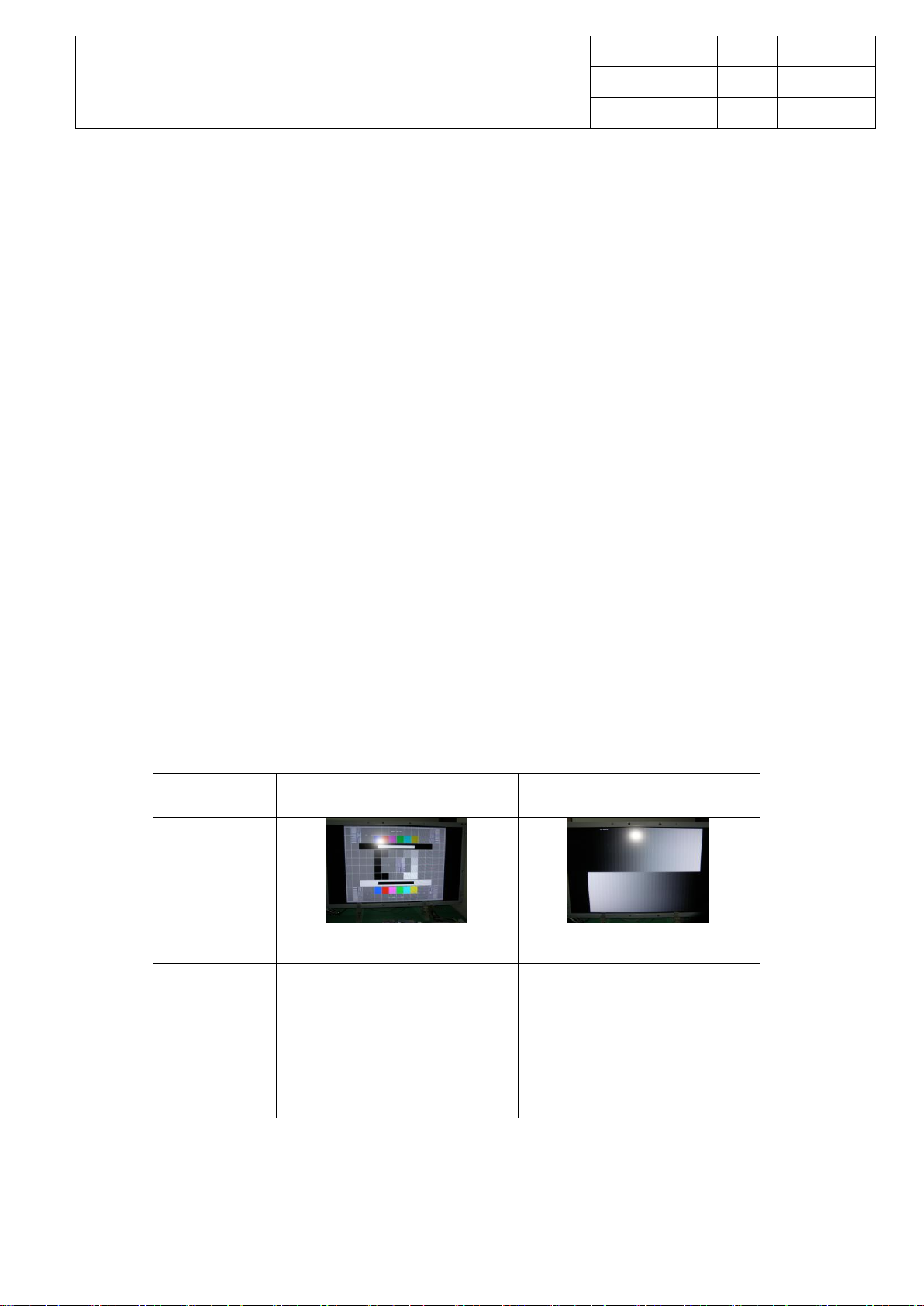

2.4.1 HDMI

2.4.1.1 DVI mode

Standard Monitor Format (VESA)

Connect HDMI cable with TMDS signal in VESA format to P304

Change the display source to HDMI1.

2.4.1.2 HDMI mode

Test Pattern

SMPTE

64-step greyscale

(Generated by Quantun881)

Format

640x480@60Hz

800x600@60Hz

1024x768@60Hz

1360x768@60Hz

1280x1024@60Hz

640x480@60Hz

800x600@60Hz

1024x768@60Hz

1360x768@60Hz

1280x1024@60Hz

Date

2013/12/2

Page 12

- 4 -

Index

Draft

of 12 Pages

Name

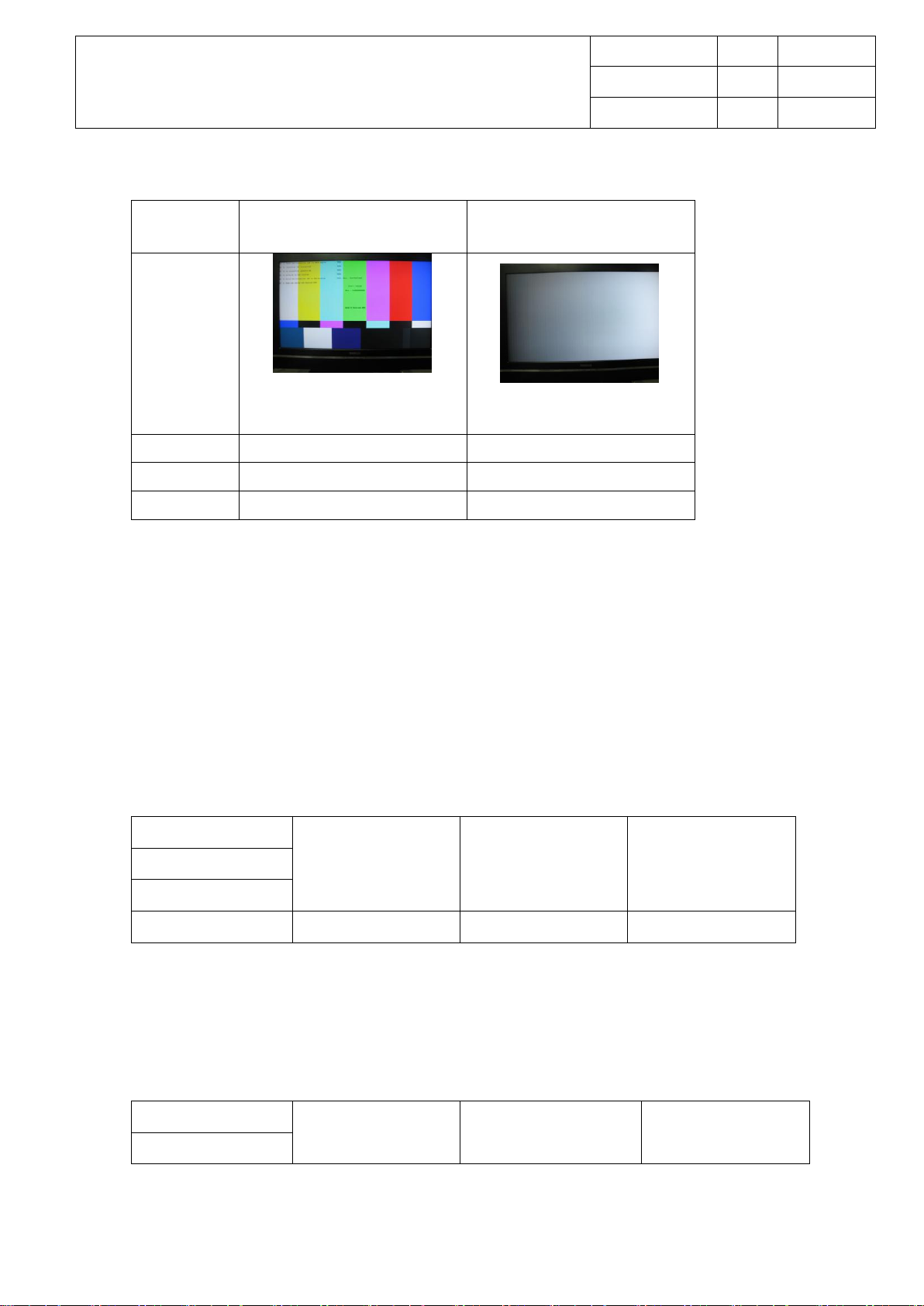

Connect HDMI cable with TMDS signal in VESA format to P304/ P302/ P301/P302.

Change the display source to HDMI 1/ HDMI 2/ HDMI 3// HDMI 4

Test

Pattern

SMPTE

64-step greyscale

(Generated by

Quantun881)

(Generated by Quantun881)

Format

4:3

16:9

480i@60HZ

1080i@60Hz

480p@60Hz

720p@60Hz/1080p@60HZ

2.4.1.3 MHL mode

Connect MHL cable to P302

Change the display source to HDMI 2

2.4.2 RF

2.4.2.1 Analog RF signal input

Connect Antenna cable to tuner port. And the TV standard is NTSC-M

Change the display source to TV Channels. The Tuner has two inputs, they are: Antenna

and Cable.

2.4.2.2 Digital RF signal input

Connect Antenna cable to tuner. The digital standard is ATSC.

Change the display source to TV Channels. And Tuner mode must is Antenna.

Test Pattern

Depended on

factory

Depended on

factory

Depended on

factory

Channel

Test Pattern

Depended on

factory

Depended on

factory

Depended on

factory

Channel

Picture Frequency

Channel band

VHF-L

VHF-H

UHF

Date

2013/12/2

Page 12

- 5 -

Index

Draft

of 12 Pages

Name

Picture Frequency

Channel band

VHF-L

VHF-H

UHF

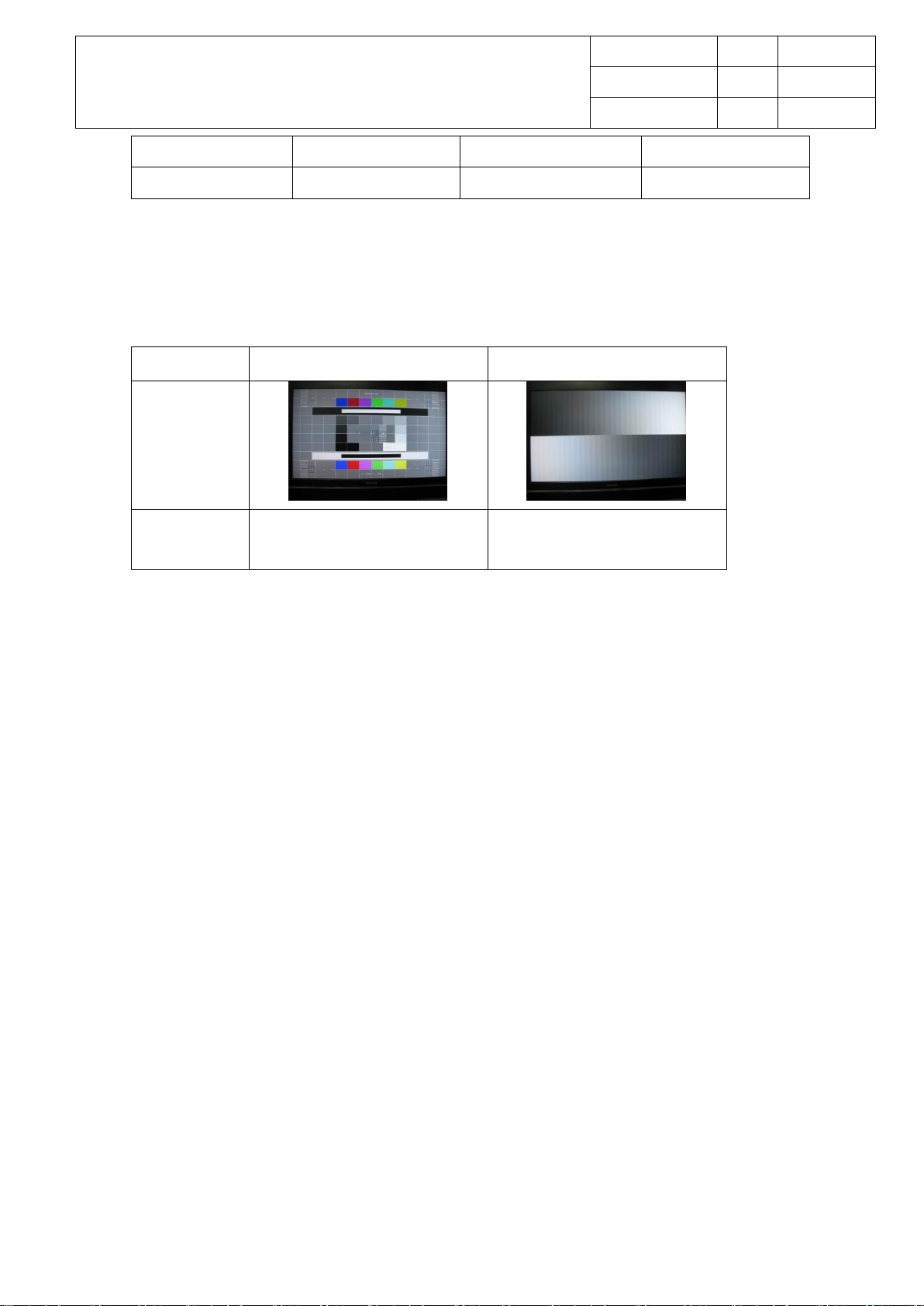

2.4.3 CVBS

2.5.5.1 CVBS input

Connect AV cable with CVBS and audio L, R signal to P901 .

Change the display source to CVBS

Test Pattern

SMPTE RP-133

32-step greyscale

Format

NTSC M

(Generated by Chroma2327)

NTSC M

(Generated by Chroma2327)

3Video Alignment

On MS1368K-LA platform, Alignment items could be achieved by using serial port with

UART protocol, P1002 USB port could be used for UART purpose, pin definition is as

follows:

Pin 9----RXD;

Pin 8---TXD;

Before carry out the alignment, it is very important to make sure the Project ID is correct.

Alignment Conditions

In order to have defined conditions for the alignment procedure, the TV set should be

warmed up for 10 minutes.

3.1 ADC Calibration

MS1368K-LA is no need to do the ADC calibration..

3.2 White balance

Only the Normal Color Temperature must to be adjusted, the Warm & Cool data will be

changed according to the default offset, but these offset also should been changed according

to the manufacture condition. For more information about Color Temperature, please refer to

the Appendix 2,

The standard data will be confirmed by our PQ engineers, Now these data only is reference.

Date

2013/12/2

Page 12

- 6 -

Index

Draft

of 12 Pages

Name

3.2.1 CUT-OFF ALIGNMENT

Cut-off alignment is used to define the color co-ordinates for low luminance level. This

alignment has to be done for the following standards:

1. Insert a grey test pattern with 25IRE signal amplitude

2. Measure the color co-ordinates near the center of the screen

3. Adjust with “R_ Offset”, “G_ Offset” and “B_ Offset” to above color co-ordinates values.

3.2.2 White balance

This alignment has to be done for the following standards:

1. Insert a grey test pattern with 80IRE signal amplitude

2. Measure the color co-ordinates near the center of the screen.

3. Adjust with “R_ Gain”, “G_ Gain” and “B_ Gain” to the following color co-ordinates

values:

Source

HDMI

CMPT/AV/TV/PC

REMARK

Color Temp

Normal

R- gain

0~255

-127~+127

Need to adjust

G-gain

128

Not need to adjust

B-gain

0~255

-127~+127

Need to adjust

R-offset

0~255

-127~+127

Need to adjust

G-offset

128

Not need to adjust

B-offset

0~255

-127~+127

Need to adjust

The default values have a close relation with panel brightness. After white balance

alignment, a picture performance check should be done: the brightest scales of 16-

scale grey pattern should be distinguishable in vibrant mode (max contrast), and the

light output at OOB( out of box ) use whole white signal (white 100 IRE ),it should

be more than 350nits.

Before white balance alignment, we must make sure White Balance Init had been

done.

The white balance values in normal of HDMI are the base of other value, the other

sources are the offset on Norma of HDMI, so we must adjust normal of HDMI first,

then other source should be adjusted in the end.

Since the White Point and Offset alignments are influencing each other, an

interactive process maybe needed to get both alignments to the required values.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TCL TV

TCL

TCL L39D3320 Manuel utilisateur

TCL

TCL 55C743 Manuel utilisateur

TCL

TCL L32D2930 Manuel utilisateur

TCL

TCL 32T3510 Manuel utilisateur

TCL

TCL LE32HDF3010 Manuel utilisateur

TCL

TCL C735 Series Manuel utilisateur

TCL

TCL 48FS4690 Manuel utilisateur

TCL

TCL LE50FHDE3000 Manuel utilisateur

TCL

TCL RT2841 Series Manuel utilisateur

TCL

TCL androidtv C725 Series Manuel utilisateur

TCL

TCL LCD20V6AT Manuel utilisateur

TCL

TCL PDP42U3H Manuel utilisateur

TCL

TCL LE32HDE3000 Manuel utilisateur

TCL

TCL 28S3750 Manuel utilisateur

TCL

TCL 6-Series Manuel utilisateur

TCL

TCL 43P717 Manuel utilisateur

TCL

TCL L32M61A3 Manuel utilisateur

TCL

TCL 14F7-NX56CLA Manuel utilisateur

TCL

TCL L32M9HD Manuel utilisateur

TCL

TCL 5-Series Fiche technique

TCL

TCL LED28T3520-MS306D-LA Manuel utilisateur

TCL

TCL 50FS4690 Manuel utilisateur

TCL

TCL 65C825 Manuel utilisateur

TCL

TCL L40E5800US Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
