Refrigerator Service Manual

TRF-315W

TCL Home Appliances (HeFei) Co., Ltd.

Contents

1.Product introduction, Technical Parameters

2.Exploded View of Product Structure

3.Product operation rules

4.Refrigeration system and electrical control

5.Maintenance guide

Taking TRF-315WEA + (internal display) prototype as an example, it is an air-cooled double door refrigerator,

the upper part of which is the refrigerating chamber, and the lower part is the freezer chamber.

TRF-315WEXA + (external display) and TRF-315WEA+ distinction

Model

Orifice plate

assembly

Top light

assembly

Refrigerating foam door body

Foamed cabinet

TRF-315WEXA+

3B104-000038

3B104-000088

4B191-000668

4B190-000233

TRF-315WEA+

None

3B104-000089

4B191-000285

4B190-000192

Refrigerating top light

Refrigerating shelf

Fruit and vegetable box cover

Fruit and vegetable box

Freezer drawer

Refrigerating door bottle holder

Door of refrigerating chamber

Door of freezer chamber

Product introduction

The schematic diagram showing the structure of TRF-315WEA + refrigerator is as follows:

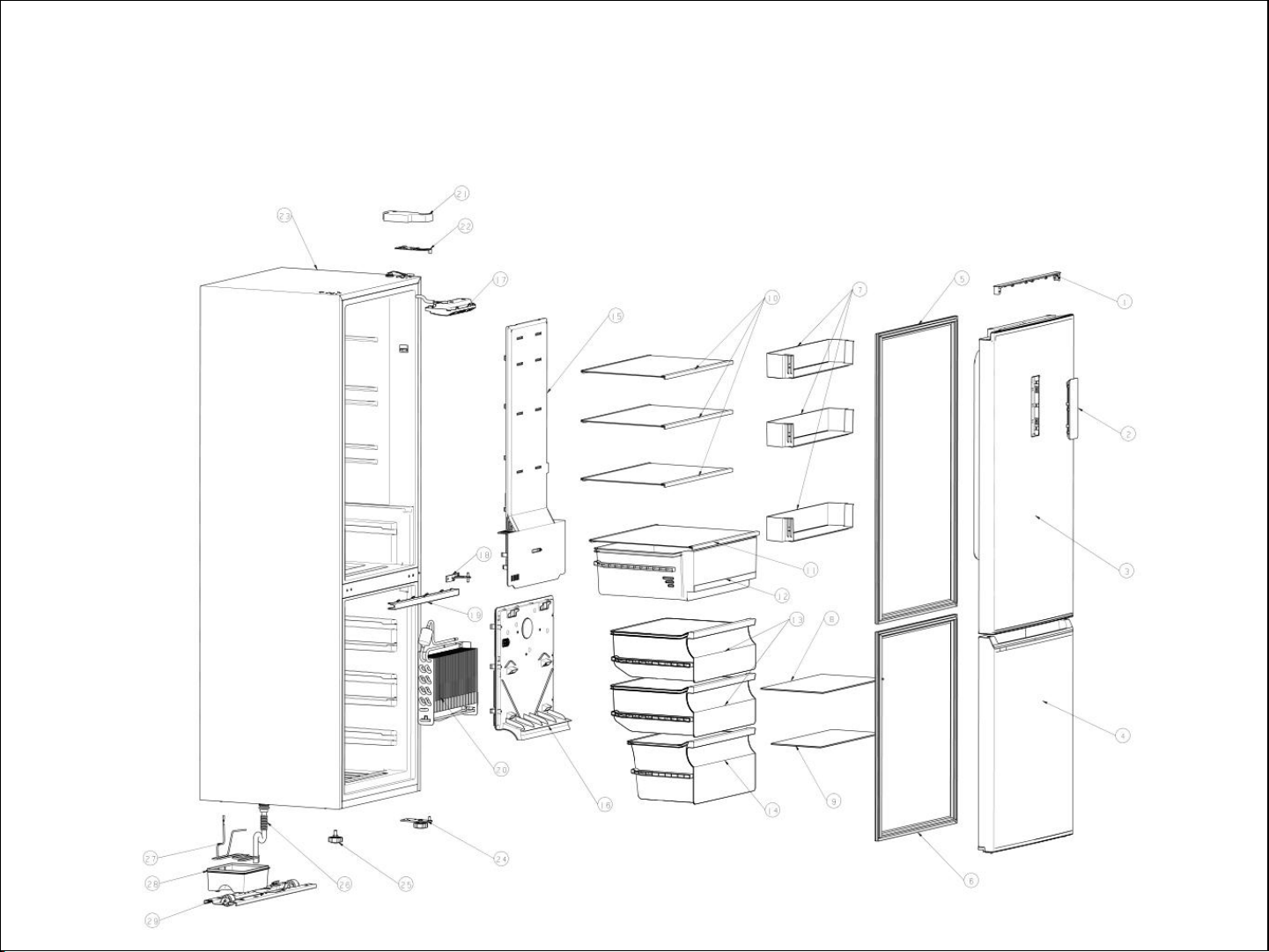

Exploded View of Product Structure

Detail list of parts

Serial number

Description of the material

Quantity

Refrigerating chamber upper end cover and through-holes decorative cover

Display control board assembly

Refrigerating foam door body

Freezing foam door body

Refrigerating door gasket assembly

Freezing door gasket assembly

Refrigerating bottle holder

Freezing glass shelf

Refrigerating glass shelf assembly

Fruit and vegetable box

Freezing upper drawer

Freezing lower drawer

Refrigerating air duct assembly

Freezing air duct assembly

Top light assembly

Mid hinge

Windbreak strip

Finned-type evaporator assembly

Upper hinge cover

Upper hinge

Foamed cabinet

Lower hinge assembly

Adjustable feet

Drain pipe in compressor compartment

Evaporation coil

Water tray

Compressor base plate assembly

Operating instructions (TRF-315WEA + internal display)

Powered on for the first time

The refrigerator will run in Gear 5 when it is powered on for the first time.

Gear adjustment

Press "+" key or "-" repeatedly. The refrigerator gear will cycle between "02" → "04" → "05" → "06" → "08" →

"02". After selecting the appropriate temperature, stop the key operation and wait for 5 seconds, then this gear

will be confirmed.

Power off memory

When power goes off, the instantaneous working state at the time of power off will be locked. After power on, it

will still work according to the setting before power off.

Product operation rules

Operating instruction (TRF-315WEXA+)

Powered on for the first time

The refrigerator will run in Gear 5 when it is powered on for the first time.

Child lock function

When there is no key operation on the display screen within 30 seconds, the child lock function will

automatically start and the screen saver mode of the display screen will be activated. In this mode, the display

screen will go out. The first keystroke can wake up the display screen.

In the child lock state, keep pressing the "Temperature control switch" key for 3 seconds to unlock the

keyboard and make the keys effective.

Gear adjustment

When the child lock function is not activated, press the "Temperature control switch" key repeatedly. The

temperature inside the refrigerating chamber will cycle between "02" → "04" → "05" → "06" → "08" → "Power

cool" → "Smart" → "Energy saving" → "02". After selecting the appropriate temperature, stop the key

operation and wait for 5 seconds, then this gear will be confirmed.

Power cool mode

Refer to "Gear adjustment" to set the "Power cool" mode. In this mode, the refrigerator will run in Gear 2.

Smart mode

Refer to "Gear adjustment" to set the "Smart" mode. In this mode, the refrigerator will run in Gear 4.

Energy saving mode

Refer to "Gear adjustment" to set the "Energy saving" mode. In this mode, the refrigerator will run in Gear 6.

Power off memory

When power goes off, the instantaneous working state at the time of power off will be locked. After power

on, it will still work according to the setting before power off.

Door alarm

If the refrigerating chamber is not closed tightly or it keeps open for more than 1 minute, it will beep. Any

key can be pressed to temporarily stop the alarm, but it will alarm again 1 minute later. Close the

refrigerating door tightly to stop the alarm.

The refrigeration schematic diagram is as follows:

Dry filter Dew-proof

tube

Condenser

Capillary tube

Finned-type

evaporator

Compressor Evaporation coil

Refrigeration system

Schematic diagram for welding of pipelines in compressor compartment

Welding position

of process tube

Solder joints for compressor

and evaporation coil

Solder joints for

evaporation coil and dew-

proof tube

Solder joints for

dew-proof tube

and condenser

Solder joints for

condenser and dry

filter

Solder joints for

dry filter and

capillary tube

Solder joints for return-air

duct and return-air

transition duct

Solder joints for

return-air transition

duct and condenser
