TC VoiceStrip is a channel strip covering all you needs for voice sound processing:

Compression, De-essing, a dedicated Voice EQ, Low Cut Filter and Gate - all in one Plug-

In, with total recall of your vocal processing sound!

Enjoy TC VoiceStrip and TC PowerCore!

TC Electronic

WELCOME TO TC VOICESTRIP

GENERAL INFORMATION

GGEETTTTIINNGGSSTTAARRTTEEDD

SSccrroollllWWhheeeellSSuuppppoorrtt

If you are using a host application that supports this feature, all parameters support

scrolling on both Windows XP and Mac OS X. Simply place the mouse over a parameter

value field and use the Scroll Wheel to increment/decrement the associated parameter-

value.

KKeeyyCCoommmmaannddss

In most host applications, Plug-Ins support keyboard commands for certain functions.

The following key commands are available for all Plug-In parameters.

KKeeyyCCoommmmaannddssiinnMMaaccOOSSKKeeyyCCoommmmaannddssIInnWWiinnddoowwss

Reset To Default = [Alt] Reset To Default = [Shift] & [Control]

@@4444..11kkHHzz::

mono 33%

stereo 41%

@@4

488kkHHzz::

mono 36%

stereo 45%

@@8888..22kkHHzz::

mono 69%

stereo 85%

@@9966kkHHzz::

mono 76%

stereo 93%

DDSSPPUUSSAAGGEE

For each open instance of the VoiceStrip on PowerCore devices (X8, Express, PCI mkII,

Unplugged, Compact & FireWire), the following DSP usage applies:

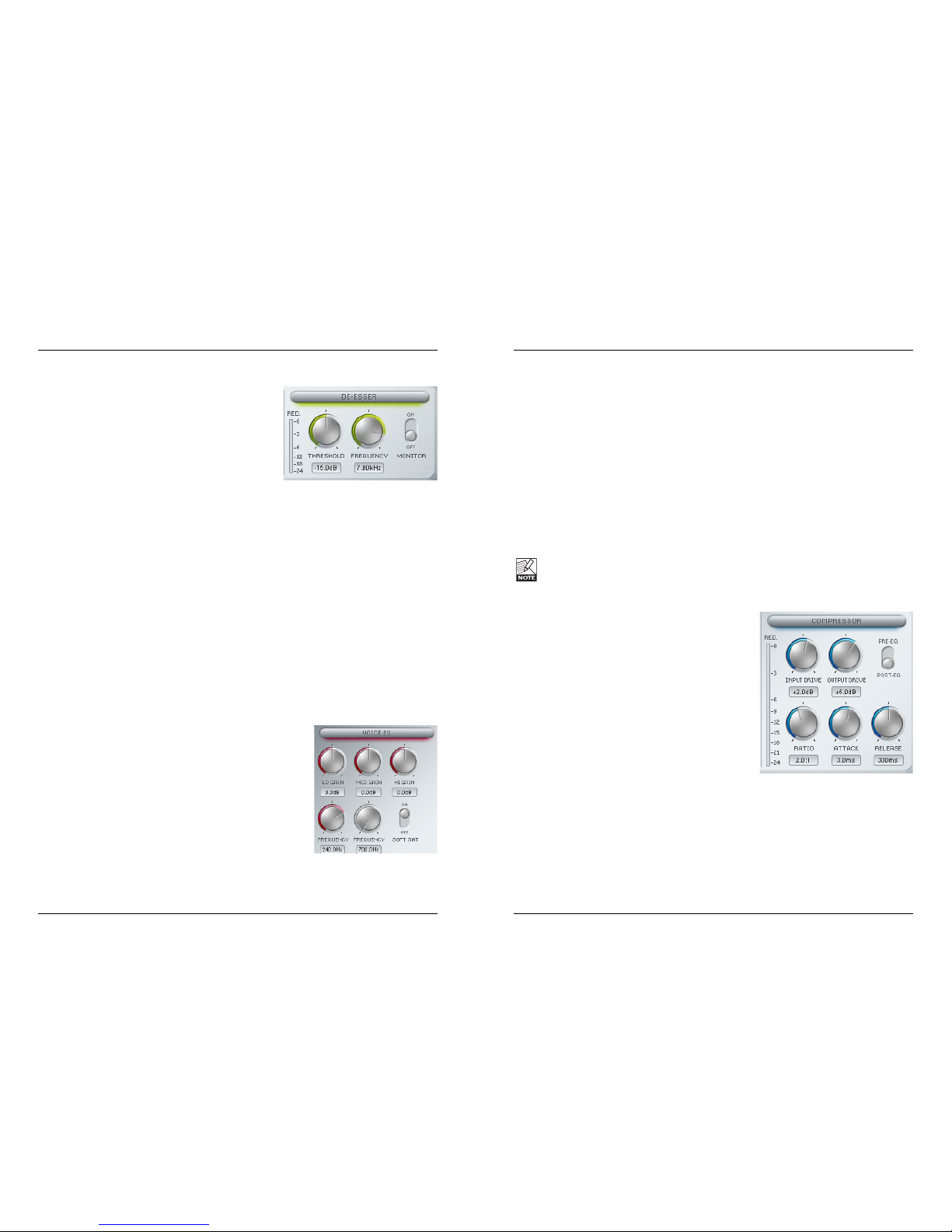

OVERVIEW OVERVIEW

CClliippIInnddiiccaattoorr::This indicator will

light red when the input signal is

clipping.

LLOOCCUUTT

LLooCCuuttFFrreeqquueennccyy::Adjusts the cut off

frequency of the LoCut filter.

GGAATTEE

TThhrreesshhoolldd: The gate’s threshold.

IInntteennssiittyy: The higher the Intensity, the

more of the signal is removed.

RReedduuccttiioonnMMeetteerr: Indicates, how much

the signal level is reduced by the gate

(Indication range: -3 to -24 dB)

VVOOIICCEEEEQQ

GaaiinnCCoonnttrroollss: Adjust the levels of the

three filter bands.

FFrreeqquueennccyyCCoonnttrroollss: Adjust the

frequencies of the Lo and

Mid bands.

SSooffttSSaatt::Activates the SoftSat algorithm.

MMeetteerrss: Input/Output meters for L/R channels.

OOuuttppuuttLLeevveell: Adjusts the output level of the

TC VoiceStrip.

CCOOMMPPRREESSSSOORR

CCoommpprreessssoorrRReedduuccttiio

onnMMeetteerr: Indicates, how

much the signal level is reduced by the

Compressor. (Indication range: -1 to -24 dB)

IInnppuuttDDrriivvee: The more you drive the input up,

the more compression you will get.

OOuuttppuuttDDrriivvee: Adjusts the output level of the

compressor block.

PPrree--EEQQ//PPoosstt--EEQQsswwiittcchh: If set to Pre-EQ, the

compressor block will be processed before the

EQ.

RRaattiioo::Defines the compression Ratio.

AAttttaacckk: Response time of the compressor, to

reach the gain reduction specified by the Ratio

parameter.

RReelleeaassee: Fall back time of the compressor,

after the signal drops below the Threshold.

DDEE--EESSSSE

ERR

DDee--EEsssseerrRReedduuccttiioonnMMeetteerr: Indicates, how much the level is reduced by the De-

Esser. (Indication range: -2 to -18 dB)

TThhrreesshhoolldd: When the input level exceeds the Threshold, the De- Esser will be

activated.

FFrreeqquueennccyy: Sets the cut off frequency of the De-Esser.

MMoonniittoorr: Monitors the sidechain signal, to adjust the cut-off frequency.

IInnppuuttLLeevveell: Adjusts the input level of the TC

VoiceStrip.

AAccttiivvaattee::Press to activate

deactivate sections

IINNPPUUTT//OOUUTTPPUUTTGGAAIINN

These faders set the Input/Output gain of the

TC VoiceStrip. To ungroup the Input or Output knobs

in stereo mode, keep the [SHIFT] key pressed while

changing the gain value of the left or right channel.

LLOOCCUUTT

With the LoCut Filter you can easily remove unwanted rumble and other low

frequency noise from your material. Simply adjust the cut-off frequency in the

range between 60 and 120 Hz. The filter has a slope of 12 dB/Oct.

GGAATTEE

The Gate process is a downward expansion of the signal: Low

signal levels will be further decreased. This allows to lower

unwanted background noise during signal pauses (e. g. to reduce

the noise of the playback while the vocalist isn’t singing).

TThhrreesshhoolldd

When the input signal falls below this Threshold, the Gate starts working. This means

that the higher the Threshold, the more gating you will get.

IInntteennssiittyy

This parameter is a complex setting of different gate parameters. It will set the maximum

damping as well as Ratio, attack and release times of the gate. The higher you set the

Intensity, the more signal will be removed.

RReedduuccttiioonnMMeetteerr

The Reduction Meter will give you a visual feedback of the gate processing: If the gate is

“open”, none of the Meter LEDs will light up. If all LEDs light up, the gate is completely

closed.

THE VOICESTRIP - PARAMETERS THE VOICESTRIP - PARAMETERS

INPUT METER(S)/

CLIP INDICATION

LO-CUT FILTER/

DC REMOVAL

INPUT LEVEL GATE

EQ-COMPRESSOR

PRE-EQ SWITCH

(DEFAULT; EQ-COMP)

COMPRESSOR-EQ

DE-ESSOR OUTPUT LEVEL

OUTPUT METER(S)/

CLIP INDICATION

INPUT OUTPUT

SSIIGGNNAALLFFLLOOWW

MMEETTEERRIINNGG

CClliippIInnddiiccaattoorr

With more than three consecutive clips the number above the meter will turn RED

indicating that clipping has occurred. To release this condition; click on the number.

MMeetteerrss

The LED meters indicate PPM values. With its fast rise time and relatively slow fallback

time, PPM metering is excellent for reading fast, transient sounds and will allow much

better detection of clips compared to RMS metering."

MMiiddBBaanndd

The Mid Band filter is a bell shaped filter with 18 dB gain. The frequency range reaches

from 700 Hz to 7 kHz. The bandwidth of this bell filter will be adjusted together with the

gain setting.

HHiiBBaanndd

The High Band filter is a shelving filter with a fixed 2.5 kHz frequency. The gain can be

adjusted in a 18 dB range.

SSooffttSSaatt

SoftSat generates that lovely warm sound often associated with analog tube equipment.

SoftSat prevents the EQ from being excessively driven to the point of hard clipping (and

thereby creating digital distortion). Instead, SoftSat generates a soft “harmonic

distortion”.

Do not confuse this distortion with the type of overdrive distortion produced by

distortion pedals and guitar tube amplifiers. The processing is very subtle and is restricted to

only those portions of the signal that are subject to clipping.

TC VOICESTRIP

TThhrreesshhoolldd

When the input level exceeds the Threshold, the De-Esser will be activated. The Threshold

is relative to the average signal level, so the De-Esser will also work for soft material.

FFrreeqquueennccyy

Sets the cut off frequency of the De-Esser.

MMoonniittoorr

Monitors the sidechain signal of the De-Esser. This will help to set the cut off frequency.

The sidechain is the reference signal that the De-Esser is listening to internally for

processing.

RReedduuccttiioonnMMeetteerr

The reduction meter gives the feedback of how much the signal is de-essed. The more

LEDs light up, the more the De-Esser is removing.

TC VOICESTRIP

DDEE--EESSSSEERR

De-Essers are often required for processing vocal

and speech recordings, to fix and adjust the amount

of sibilant frequencies (like “s” sounds).

This De-Esser takes advantage of a technique where

the Threshold is always relative to the average level

of the material. This means that if the average level

of the audio material increases, the Threshold will

also move up, and the De-Esser will remove

relatively the same. This gives you a more musical

and useful De-Esser.

VVOOIICCEEEEQQ

Equalizers are some of the most common signal

processing devices, and are made in many different

variations. The EQ in the TC VoiceStrip is tuned to

sound as musical and “analog” as possible in a digital

domain. This EQ is based on an old style EQ and

incorporates just a few parameters, making it fast and easy

to work with. Built-in soft limiters on each band give you a

warm and analog sound when you tweak the filters.

LLooBBaanndd

The Low Band filter is a shelving filter with 18 dB gain. The frequency range reaches

from 100Hz to 350Hz. The slope of this filter will be adjusted together with the gain

setting.

CCOOMMPPRREESSSSOORR

As all the other parts of the TC VoiceStrip, this

Compressor algorithm is tuned especially for voice

processing. It’s a bit more specialized and

“vintage”– like Compressor. It sounds very musical,

especially on vocals. It is a feedback type

compressor, which means that it gets its sidechain

input from the output.

TC’s SoftSat (see EQ section for more details)

algorithm is always active in this processing block,

to produce a warm, analog compression sound.

IInnppuuttDDrriivvee

This compressor has a fixed Threshold setting of -24 dB. By changing the Input Drive,

you will change how much the dynamic content of the input signal will be compressed:

The more you drive the Input, the more compression you will get.

OOuuttppuuttGGaaiinn

Set the output gain to adjust the level after compressing the signal.

PPrree--EEQQ//PPoosstt--EEQQSSwwiittcchh

With the Pre-EQ/Post-EQ Switch, you can change the order of EQ and Compressor block.

By default, the Compressor block is placed after the EQ, but if you want EQing after you

have compressed the signal, just switch to Post-EQ.

RRaattiioo

The Ratio defines how much the signal is compressed. A Ratio of 1:1 won’t compress the

signal, a Ratio of 64:1 will act more like a limiter than a compressor. For voice

processing, typical compression ratios will be between 2:1 and 5:1.

AAttttaacckk

The Attack time is the response time that the Compressor uses to reach the gain

reduction specified by the Ratio parameter.

RReelleeaassee

The Release parameter sets the fall back time of the Compressor, after the signal drops

below the Threshold.

RReedduuccttiioonnMMeetteerr

This LED Meter gives feedback of the applied compression. The more LEDs that light up,

the more compression is applied to the signal.

TC VOICESTRIP

IInnttrroodduuccttiioonn

We recommend using the dedicated PowerCore file handling system that, apart from

recall; store and compare facilities, allows for easy exchange of entire preset folders with

other users, between Windows/Mac platforms and also between different host

applications.

FFiillee

Click “File” to open the File menu.

Load Preset: Select to load presets from the default preset location.

Save Preset: Select to save the preset in My Presets folder.

My Presets: Via “My Presets” you are able to load you own presets.

If you chose to store presets in other locations than the “My Preset” folder, these

presets will not appear in the “My Preset” drop down menu. However, you can still

navigate to, and load these presets via the Load Preset function.

PPrreesseettnnaammee

This is the name of the preset.

UUpp//ddoowwnn

The [Up]/[Down] arrows can be used to browse through all presets.

AA//BB

With the A/B compare function you can easily compare different parameter settings when

working with the plug-in.

When you start working with your preset, the A/B button is grayed out. This state

indicates that the settings in both memory locations A and B are identical - so there is

actually nothing to compare.

PRESET HANDLING

As soon as you touch one of the parameters, the memory location "A" will be active. All

parameter changes will be applied to memory location "A". If you switch to memory

location "B", you go back to the starting point, and all further changes will now be

applied to memory location "B".

Every time you press the A/B button, you will toggle between these two memory

locations.

The A/B memory locations are temporary settings only! Saving a preset, will save the currently

selected memory location only. The setting of the other (hidden) memory location will not be

saved!

RReesseett

Click “Reset” to clear memories A/B and return to the originally recalled preset.

DDEEFFAAUULLTTPPRREESSEETTLLOOCCAATTIIOONNSS

The following locations will describe where you can find the presets, which are stored in

a folder unique to each plug-in:

MMaaccOOSSXXpprreesseettppaatthhss::

Factory presets:

<Macintosh HD>/Library/Application Support/TC Electronic/<plug-in name>/Presets/

User presets:

/Users/<user name>/Library/Application Support/TC Electronic/<plug-in name>/Presets/

WWiinnddoowwsspprreesseettppaatthhss::

Factory presets:

C:\Program Files\TC Electronic\<plug-in name>\Presets

User presets:

C:\Documents and Settings\<your user name>\My Documents\TC Electronic\<plug-in

name>\Presets

• To delete a preset file, simply move it to the “Trash” or “Recycle bin”.

• To create a new sub-folder that appears in the plug-in menu, simply create a new

folder in the plug-in folder that resides in the PRESETS folder of the plug-ins default

preset location.

A folder will not appear in the Preset File menu unless it has at least one preset inside!

PRESET HANDLING

Table des matières

Autres manuels TC Electronic Logiciel

TC Electronic

TC Electronic MegaReverb Manuel utilisateur

TC Electronic

TC Electronic V-STATION Manuel utilisateur

TC Electronic

TC Electronic PowerCore 01 Manuel utilisateur

TC Electronic

TC Electronic Master X5 Manuel utilisateur

TC Electronic

TC Electronic 24/7-C Manuel utilisateur

TC Electronic

TC Electronic PowerCore CL Manuel utilisateur

TC Electronic

TC Electronic VSS3 Manuel utilisateur

TC Electronic

TC Electronic Loudness Radar Meter LM5 Manuel utilisateur

TC Electronic

TC Electronic Tube-Tech CL 1B Manuel utilisateur

TC Electronic

TC Electronic NonLin2 Manuel utilisateur

TC Electronic

TC Electronic TC Chorus-Delay Manuel utilisateur

TC Electronic

TC Electronic Intelligent Vocal Harmony Harmony4 Manuel utilisateur

TC Electronic

TC Electronic Tap Factory Multi-Tap Delay Manuel utilisateur

TC Electronic

TC Electronic Dynamic EQ Manuel utilisateur

TC Electronic

TC Electronic RESTORATION SUITE Manuel utilisateur

TC Electronic

TC Electronic Filtroid Manuel utilisateur

TC Electronic

TC Electronic NonLin2 Manuel utilisateur

TC Electronic

TC Electronic UnWrap Home Stereo System Manuel utilisateur

TC Electronic

TC Electronic PowerCore Master X3 Manuel utilisateur

TC Electronic

TC Electronic ASSIMILATOR KONNEKT Manuel utilisateur

TC Electronic

TC Electronic Digital Vintage Reverb DVR2 Manuel utilisateur

TC Electronic

TC Electronic TonePrint Editor Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Canon

Canon Vixia HF21 Manuel utilisateur

Canon

Canon ZR950 Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur
