Introduction

Congratulations on your purchase of the Targus Ergo D-Pro

Desktop Stand for Notebooks. The D-Pro is a unique,

ergonomically correct desktop notebook stand that allows a

notebook computer to be comfortably used as a desktop

replacement. The D-Pro provides a compartment for

storage of a Targus Mobile Docking Station or hub and

cable management for a tidy workspace.

The D-Pro incorporates a patent pending document holder.

This document holder is designed to create a functional

workspace with an optimal viewing distance between

documents, screen and keyboard.

Targus Ergo D-Pro™ Desktop Stand for Notebooks

Setting Up The D-Pro

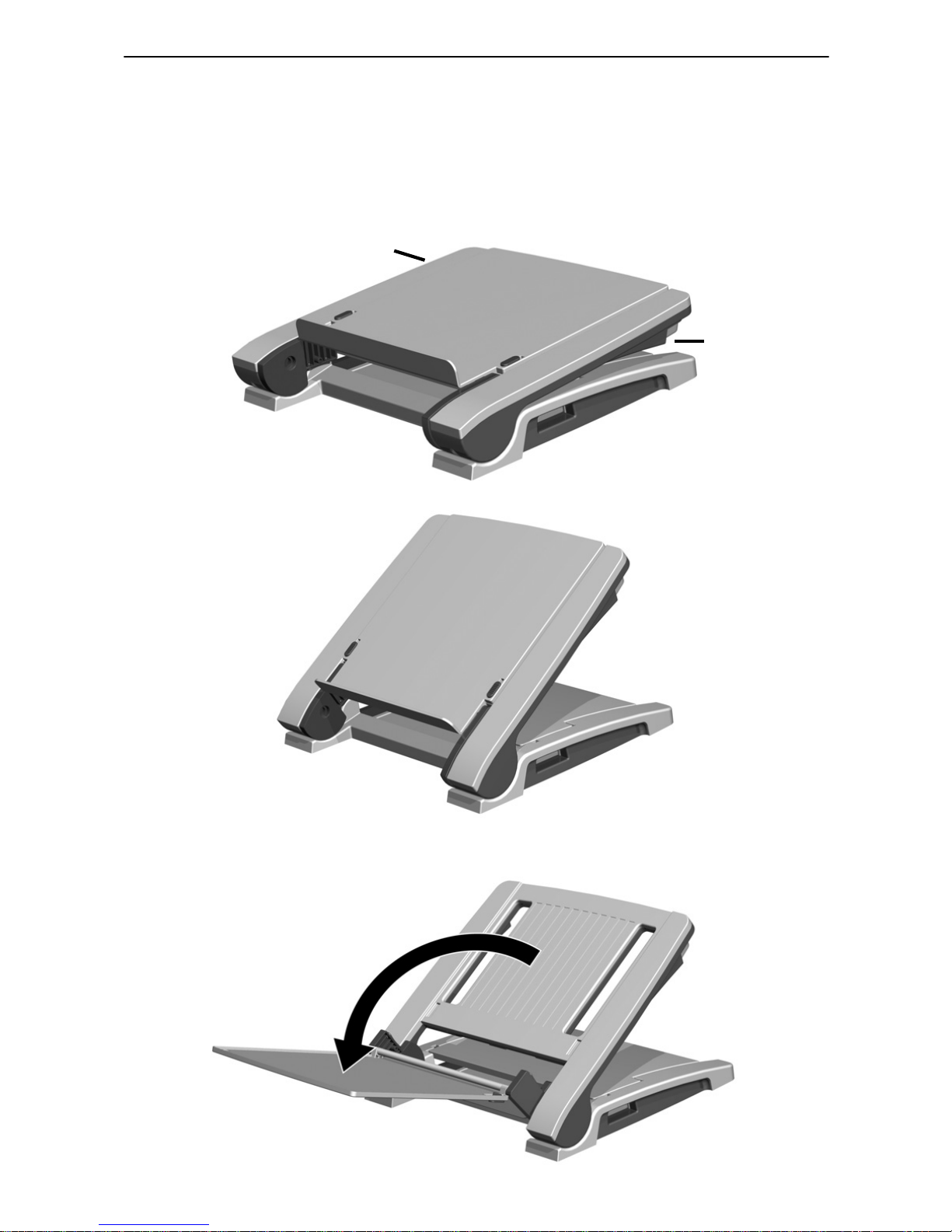

1 Press buttons (A) on both sides to raise the D-Pro to

desired angle.

2 Open the document holder and flip it towards you.

Targus Ergo D-Pro™ Desktop Stand for Notebooks

3 Check that the D-Pro is assembled correctly and

carefully place your notebook on the stand as shown.

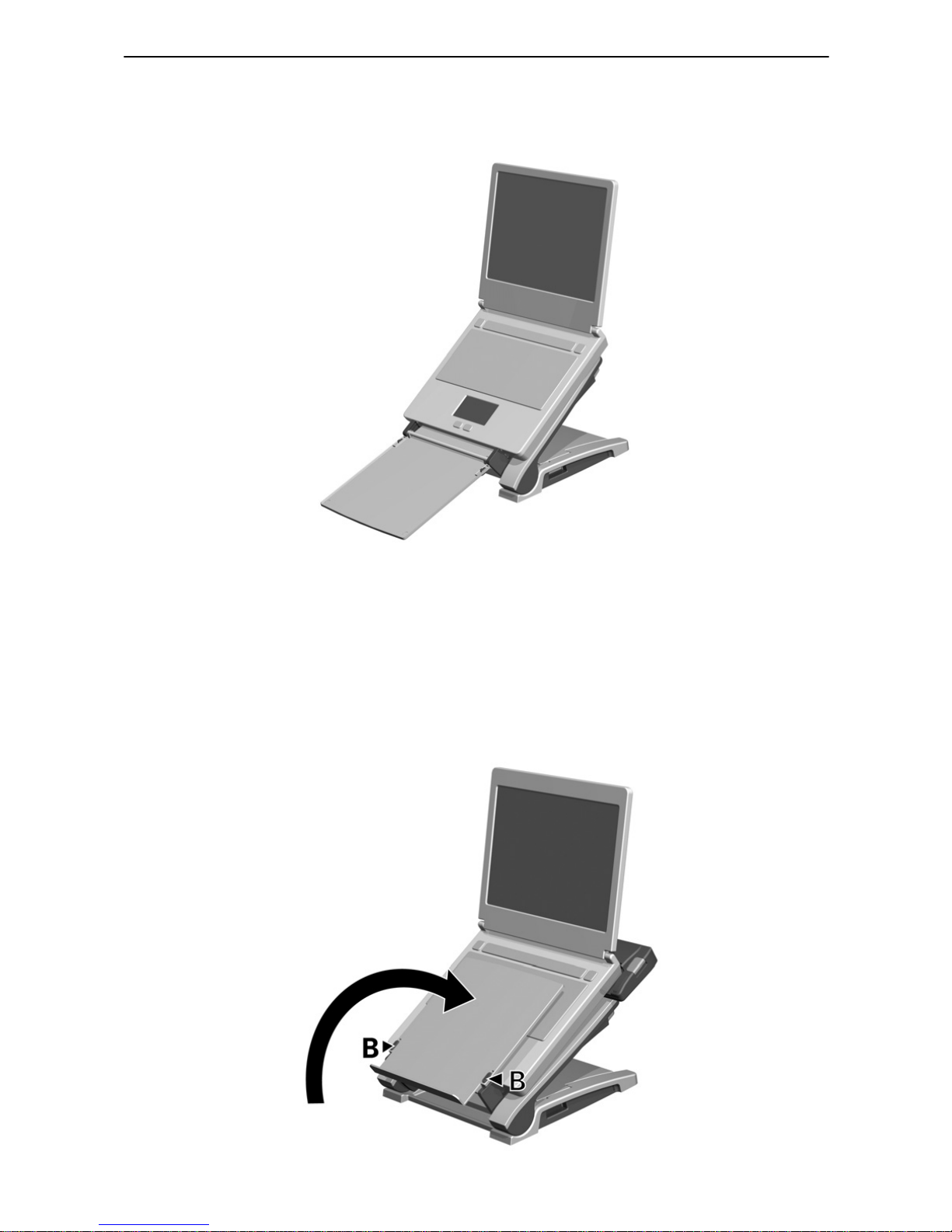

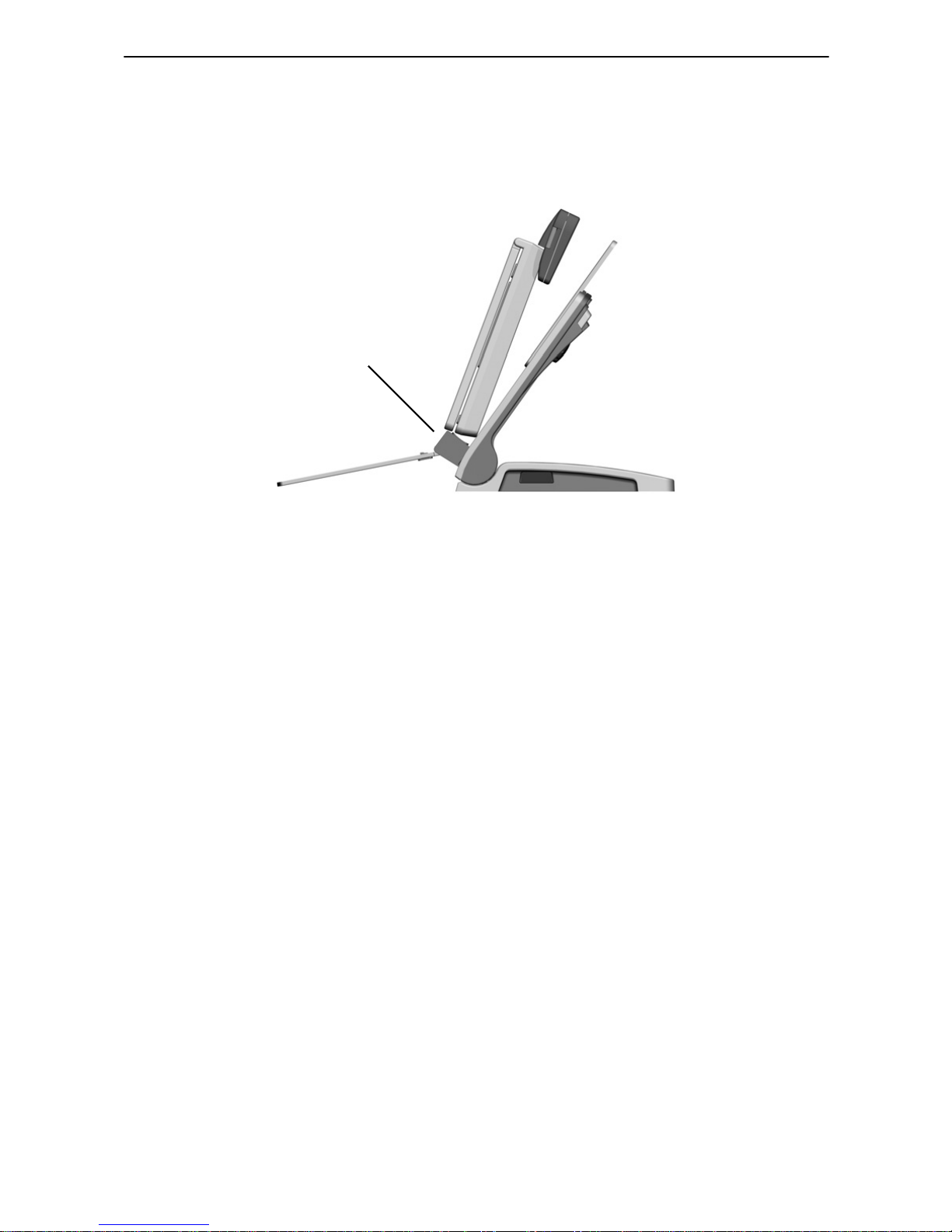

4 Fold the document holder up into place. Adjust the

inclination of the document holder by using the shift

buttons (B). Attach your external mouse and keyboard

and you’re ready to work efficiently and ergonomically.

Targus Ergo D-Pro™ Desktop Stand for Notebooks

Cable Management

Without Targus Mobile Docking

Station

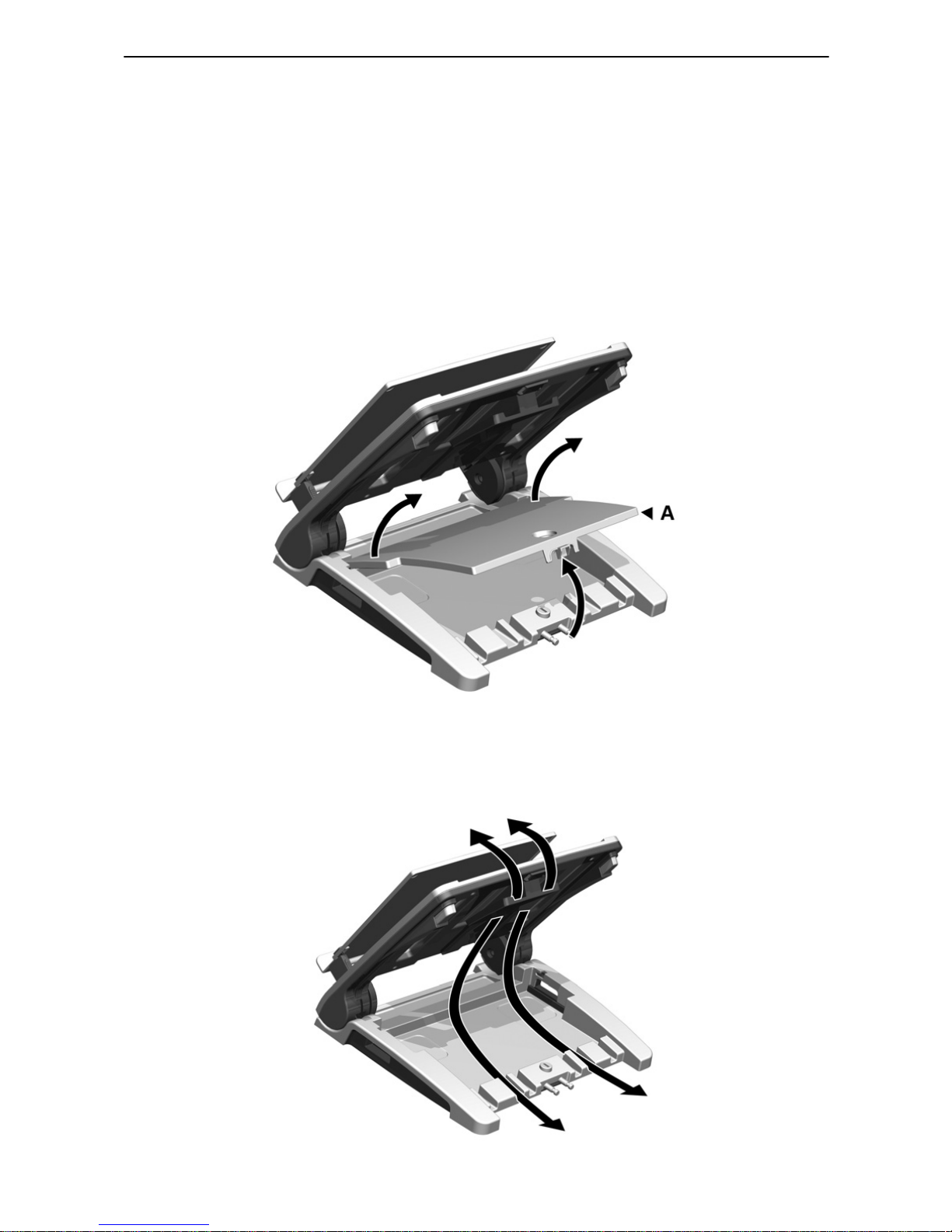

1 Remove compartment cover (A).

2 Guide cables through as indicated and reinstall

compartment cover.

Targus Ergo D-Pro™ Desktop Stand for Notebooks

With Targus Mobile Docking

Station

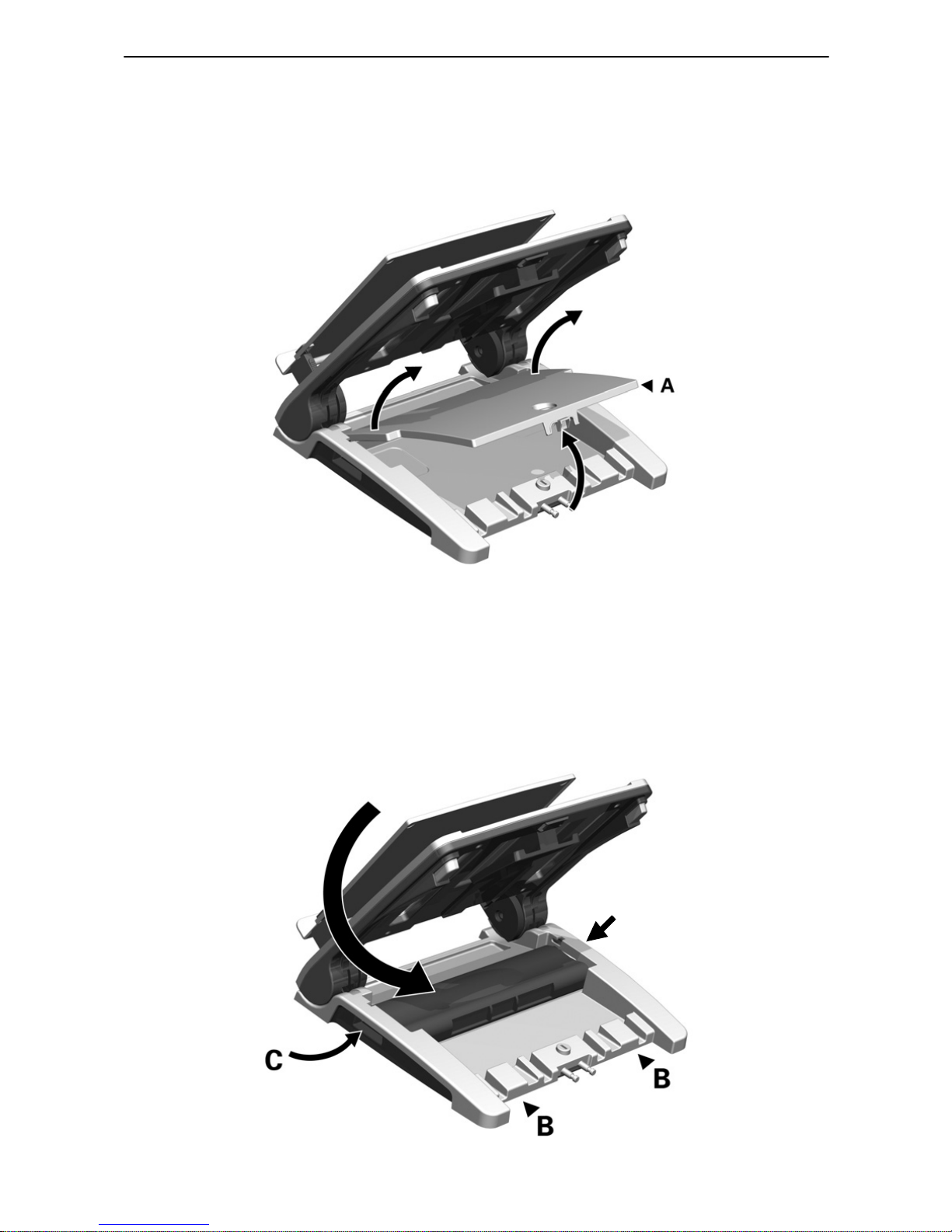

1 Remove compartment cover (A).

2 Place the Mobile Docking Station in the cavity.

3 Guide cables through (B) and connect them to the

docking station.

Targus Ergo D-Pro™ Desktop Stand for Notebooks

4 Connect your notebook and power supply at (C).

5 Replace compartment cover.

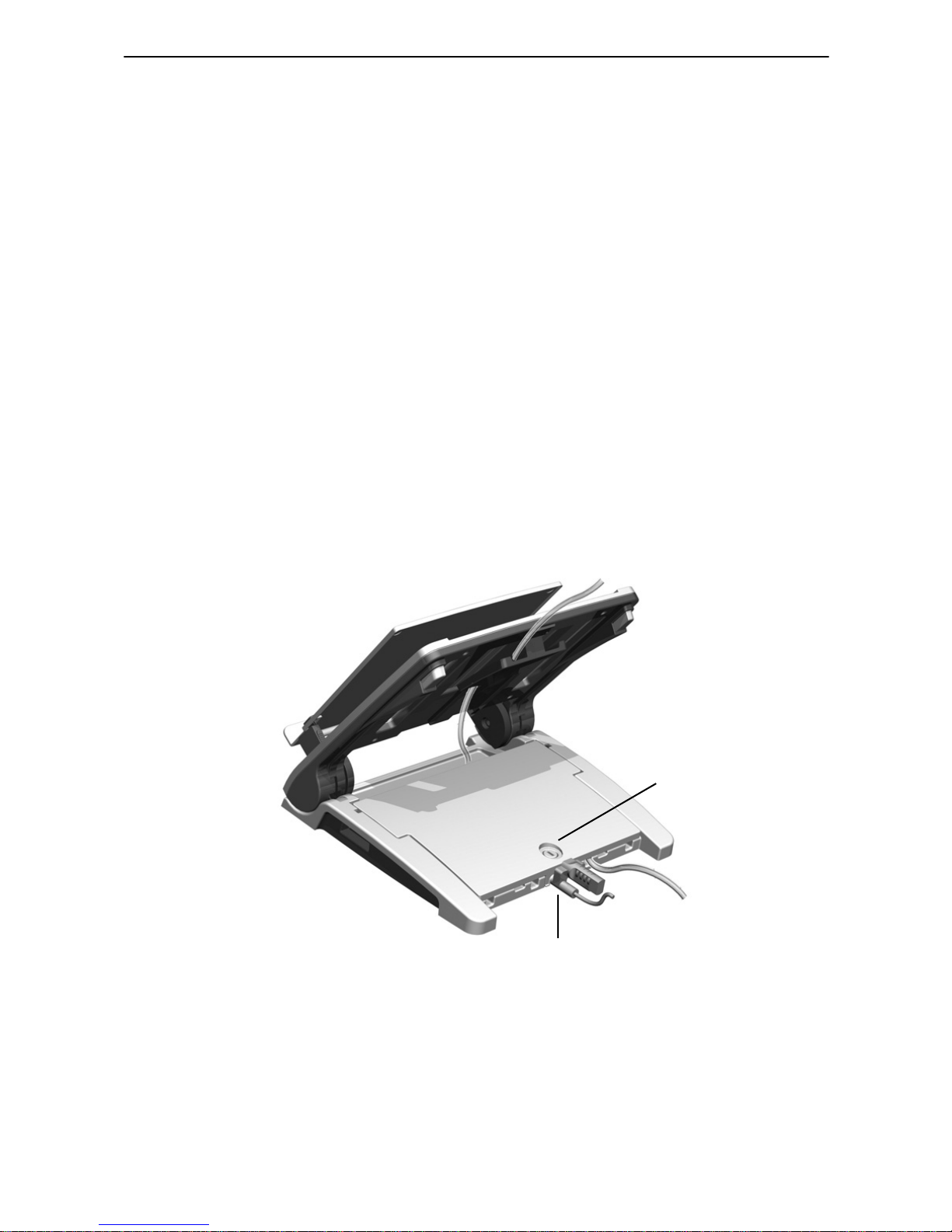

Connecting a Security Cable

The D-Pro offers two options for securing your notebook

and peripherials; a slot lock or video port lock.

Follow the usage instructions included with your security

cable.

Slot lock

Video port lock

Targus Ergo D-Pro™ Desktop Stand for Notebooks

Port Replicator Module

The Port Replicator Module (PRM) allows you to mount

your OEM docking station to the D-Pro.

Attention IBM & Toshiba Users

Your docking station may be positioned and attached to the

PRM with the screw rivets that are provided. Attach your

docking station to the PRM by screwing the two rivets into

the PRM plate and docking station before securing to the

D-Pro with the knobs.

Alternatively you may use the hook and loop fasteners

provided. For instructions, please go to “Outlining the

Height” on page 10.

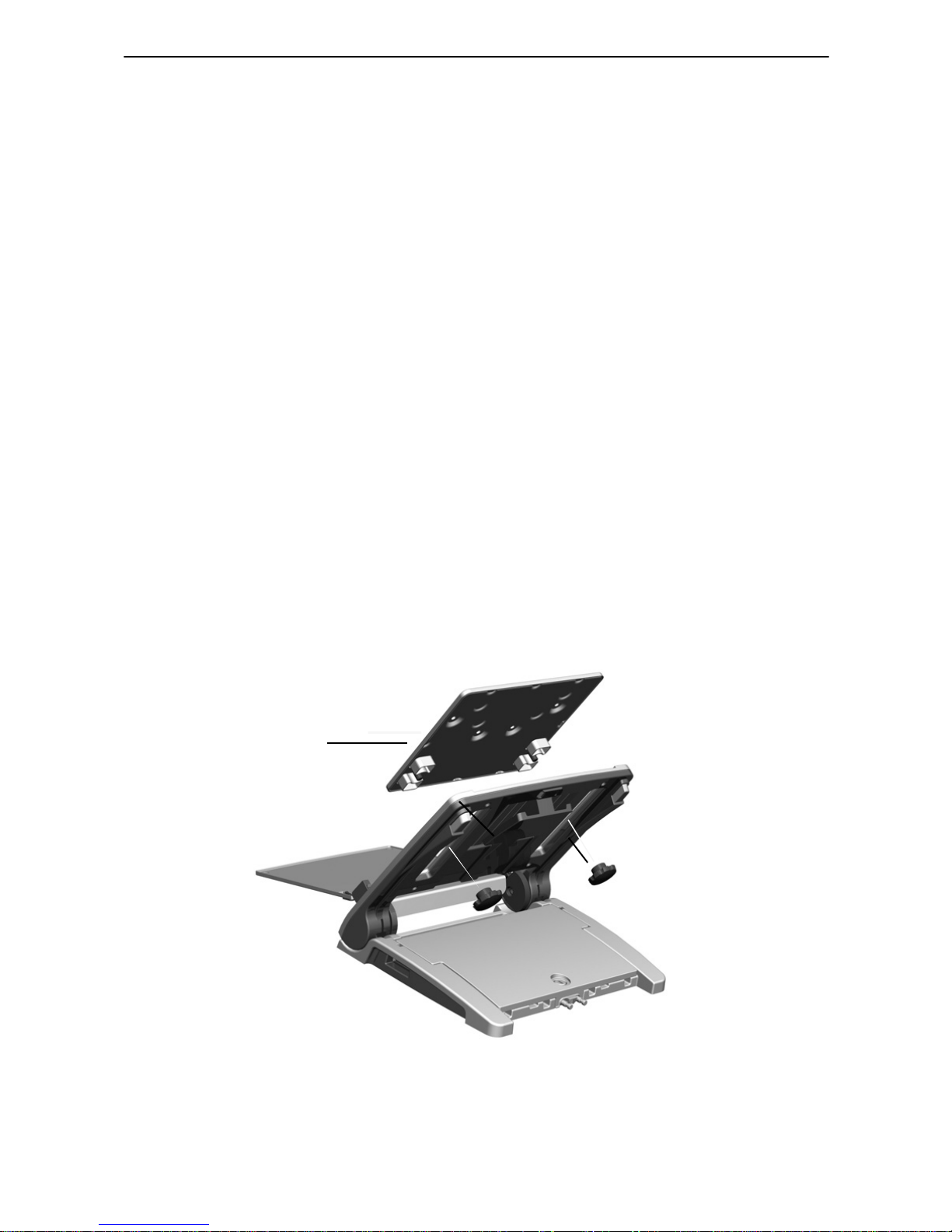

1 Place the PRM onto the D-Pro and screw the knobs

onto the plate.

Knobs

PRM

Targus Ergo D-Pro™ Desktop Stand for Notebooks

2 Connect your notebook first to your docking station and

place them together onto the D-Pro, making sure your

notebook is supported at (B) and centred.

3 Use the knobs to position the PRM after determining the

proper position to attach the docking station according

to the outlining instructions below.

Outlining the Height

Refer to the instructions for your model of docking station:

IBM Thinkpad Dock ll: Line up the holes on the back of

your docking station with the holes on the back of the

PRM at (D).

HP DC 367B port replicator: Line up the top of your port

replicator with the indication lines on the PRM at (E).
