TaoTronics TT-BA09 Manuel utilisateur

Rev_1.4

www.taotronics.com

MADE IN CHINA User Guide

Model:TT-BA09 Pro

WIRELESS ADAPTER

Manufacturer: Shenzhen NearbyExpress Technology

Development Co.,Ltd.

Address: Floor 7, Building E, Galaxy World Phase II,

Shenzhen, China

E-mail: [email protected]

SBC

APTX

1 2 3

45 6

①1 x TaoTronics Wireless Adapter (TT-BA09 Pro)

②1 x 3.5mm Audio Cable

③1 x 3.5mm Female to RCA Male Cable

④1 x Optical Cable

⑤1 x USB-C Charging Cable

⑥1 x User Guide

①1 x TaoTronics kabelloser Adapter (TT-BA09 Pro)

②1 x 3,5 mm Audiokabel

③1 x 3,5mm weiblich-zu-Cinch-männlich-Kabel

④1 x Optisches Kabel

⑤1 x USB-C-Ladekabel

⑥1 x Bedienungsanleitung

①1 x Adaptateur Sans Fil TaoTronics (TT-BA09 Pro)

②1 x Câble Audio 3.5mm

③1 x Câble 3.5mm Femelle vers RCA Mâle

④1 x Câble Optique

⑤1 x Câble de Charge USB-C

⑥1 x Guide d’Utilisation

PACKAGE CONTENTS

Lieferumfang

Contenu du Package

EN Package Contents

SBC

APTX

1 2 3

45 6

①1 x TaoTronics Wireless Adapter (TT-BA09 Pro)

②1 x 3.5mm Audio Cable

③1 x 3.5mm Female to RCA Male Cable

④1 x Optical Cable

⑤1 x USB-C Charging Cable

⑥1 x User Guide

①1 x TaoTronics kabelloser Adapter (TT-BA09 Pro)

②1 x 3,5 mm Audiokabel

③1 x 3,5mm weiblich-zu-Cinch-männlich-Kabel

④1 x Optisches Kabel

⑤1 x USB-C-Ladekabel

⑥1 x Bedienungsanleitung

①1 x Adaptateur Sans Fil TaoTronics (TT-BA09 Pro)

②1 x Câble Audio 3.5mm

③1 x Câble 3.5mm Femelle vers RCA Mâle

④1 x Câble Optique

⑤1 x Câble de Charge USB-C

⑥1 x Guide d’Utilisation

PACKAGE CONTENTS

Lieferumfang

Contenu du Package

EN Package Contents

①1 x Adaptador inalámbrico TaoTronics (TT-BA09 Pro)

②1 x Cable de audio de 3,5 mm

③1 x Cable macho de 3.5mm hembra a RCA

④1 x Cable óptico

⑤1 x Cable de carga USB-C

⑥1 x Guía del usuario

①1 x Adattatore Wireless di TaoTronics (TT-BA09 Pro)

②1 x Cavo Audio da 3.5mm

③1 x Cavo Maschio da 3.5mm - connettore femmina a RCA

④1 x Cavo Ottico

⑤1 x Cavo di Ricarica USB-C

⑥1 x Guida Utente

①1xTaoTronicsワイヤレスアダプター(TT-BA09Pro)

②1x3.5mmオーディオケーブル

③1x3.5mmメスからRCAオス変換ケーブル

④1x光ケーブル

⑤1xUSB-C充電ケーブル

⑥1x取扱説明書

AUX

SPDIF IN

SPDIF OUT

DC5V

SBC APTX

JP AUX DC5V

SPDIF IN SPDIF OUT

AUX OPT USB-C

Contenido del paquete

Contenuto della Confezione

パッケージ内容

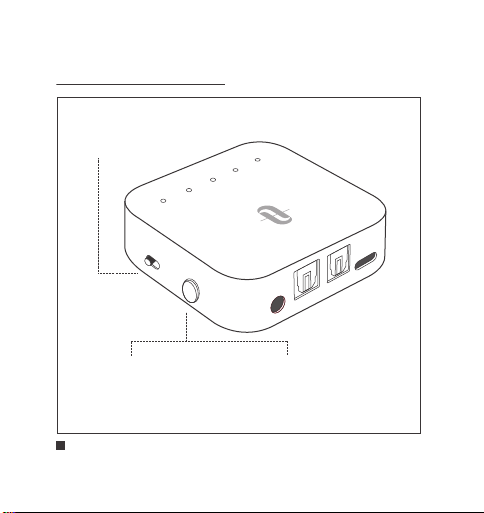

PRODUCT DIAGRAM

①A for 1st Device

②B for 2nd Device

③Codec Indicators

④Transmitter (TX) / Receiver (RX) Mode Switch

⑤Power ON/OFF/Pairing

⑥Power Indicator

①A für 1. Gerät

②B für 2. Gerät

③Codec-Anzeigen

④Transmitter (TX) / Empfänger (RX) Modusschalter

⑤Power AN/AUS/Koppeln

⑥Stromanzeige

①A pour 1er appareil

②B pour 2eme appareil

③Indicateurs codec

④Interrupteur mode Transmetteur (TX) / Récepteur (RX)

⑤Alimentation ON/OFF / Appairage

⑥Indicateur d'allumage

①A para el primer dispositivo

②B para el segundo dispositivo

③Indicadores del Códec

④Transmisor (TX) / Receptor (RX) Cambio de Modo

⑤ON/OFF/Emparejando

⑥Indicador de Encendido

①A per il 1° Dispositivo

②B per il 2° Dispositivo

③Indicatori Codec

④Pulsante Modalità Trasmittente (TX) / Ricevitore (RX)

⑤Accensione/Spegnimento/Accoppiamento

⑥Indicatore di Alimentazione

①Aは１台目の機器

②Bは２台目の機器

③コーデックインジケーター

④トランスミッター(TX)/レシーバー(RX)モードスイッチ

⑤電源オン/オフ/ペアリング

⑥電源インジケータ

Product Diagram

Produktdiagramm

Description du Produit

Diagrama del producto

Schema del Prodotto

製品図

BUTTON CONTROL LED INDICATOR STATUS

Function

Power ON

Power OFF

Standby Mode

Battery Low

Charging

Fully Charged

Pairing

Connected

Re-connect

Pairing

Connected

Connected using

the SBC codec

Connected using

the Apt-X® codec

Connected using the

Apt-X Low Latency® codec

Status

Flashing twice

Flashing every 5 seconds

Solid on

Off

Flashing quickly

Solid on

Flashing slowly

Flashing quickly

Solid on

Indicators

Power

Indicator

SBC

APTX

AUX

SPDIF IN

SPDIF OUT

DC5V

SBC APTX

Power ON/OFF:

Press and hold for 3 seconds

Mode Switch:

Slide to select TX/RX mode

Pairing:

When powered on,

press twice to enter

pairing mode

ENGLISH / 01 ENGLISH / 02

BUTTON CONTROL LED INDICATOR STATUS

Function

Power ON

Power OFF

Standby Mode

Battery Low

Charging

Fully Charged

Pairing

Connected

Re-connect

Pairing

Connected

Connected using

the SBC codec

Connected using

the Apt-X® codec

Connected using the

Apt-X Low Latency® codec

Status

Flashing twice

Flashing every 5 seconds

Solid on

Off

Flashing quickly

Solid on

Flashing slowly

Flashing quickly

Solid on

Indicators

Power

Indicator

SBC

APTX

AUX

SPDIF IN

SPDIF OUT

DC5V

SBC APTX

Power ON/OFF:

Press and hold for 3 seconds

Mode Switch:

Slide to select TX/RX mode

Pairing:

When powered on,

press twice to enter

pairing mode

ENGLISH / 01 ENGLISH / 02

· SBC: SBC codec, supported by most Bluetooth® devices

· APTX: Apt-X® codec, the Bluetooth® device shall support Apt-X®

codec. Prior than SBC.

· LL: Apt-X Low Latency® codec, the Bluetooth® device shall

support Apt-X low latency®. Prior than SBC and Apt-X®.

HOW TO USE

Charging

1. Connect the charging port with any USB charging adapter or

active computer USB port.

2. The Power indicator will stay solid on during charging. Once

fully charged, it will turn off.

Note:

· You can use the adapter during charging, however,

there might be background buzz noise.

· We recommend charging the unit for at least 2 hours

before using it for the ﬁrst time.

AUX

SPDIF IN

SPDIF OUT

DC5V

SBC APTX

AUX

SPDIF IN

SPDIF OUT

DC5V

SBC APTX

Use in TX Mode | Initial Pairing

TX RX

Turn on: Press and hold the

Power button for 3 seconds

1 2

SBC

APTX

Pairing: “A” ﬂashes quickly

Pair with the 1st Bluetooth® Device

ENGLISH / 03 ENGLISH / 04

· SBC: SBC codec, supported by most Bluetooth® devices

· APTX: Apt-X® codec, the Bluetooth® device shall support Apt-X®

codec. Prior than SBC.

· LL: Apt-X Low Latency® codec, the Bluetooth® device shall

support Apt-X low latency®. Prior than SBC and Apt-X®.

HOW TO USE

Charging

1. Connect the charging port with any USB charging adapter or

active computer USB port.

2. The Power indicator will stay solid on during charging. Once

fully charged, it will turn off.

Note:

· You can use the adapter during charging, however,

there might be background buzz noise.

· We recommend charging the unit for at least 2 hours

before using it for the ﬁrst time.

AUX

SPDIF IN

SPDIF OUT

DC5V

SBC APTX

AUX

SPDIF IN

SPDIF OUT

DC5V

SBC APTX

Use in TX Mode | Initial Pairing

TX RX

Turn on: Press and hold the

Power button for 3 seconds

1 2

SBC

APTX

Pairing: “A” ﬂashes quickly

Pair with the 1st Bluetooth® Device

ENGLISH / 03 ENGLISH / 04

SBC APTX LL

Successfully paired:

“A” solid on, the Codec

indicator for the current

streaming codec will

light up

A B SBC APTX LL

Note:

· If you want to experience LIP SYNC, make sure your

Bluetooth® device supports apt-X Low Latency®

codec. After connected, the Codec indicator “LL” will

light up to indicate the low latency streaming codec.

· The default input mode is SPDIF. When the AUX cable

is plugged in, it will switch to AUX mode automatically.

· Please do not connect TT-BA09 Pro to an ampliﬁer

output in TX mode, which may cause over-voltage and

damage the adapter.

Pair with the 2nd Bluetooth® Device

AUX

SPDIF IN

SPDIF OUT

DC5V

SBC APTX

Press the Power button twice,

“B” ﬂashes quickly

SBC APTX LL

A B SBC APTX LL

Successfully paired:

“B” solid on, the Codec

indicator for the current

streaming codec will light up

ENGLISH / 05 ENGLISH / 06

SBC APTX LL

Successfully paired:

“A” solid on, the Codec

indicator for the current

streaming codec will

light up

A B SBC APTX LL

Note:

· If you want to experience LIP SYNC, make sure your

Bluetooth® device supports apt-X Low Latency®

codec. After connected, the Codec indicator “LL” will

light up to indicate the low latency streaming codec.

· The default input mode is SPDIF. When the AUX cable

is plugged in, it will switch to AUX mode automatically.

· Please do not connect TT-BA09 Pro to an ampliﬁer

output in TX mode, which may cause over-voltage and

damage the adapter.

Pair with the 2nd Bluetooth® Device

AUX

SPDIF IN

SPDIF OUT

DC5V

SBC APTX

Press the Power button twice,

“B” ﬂashes quickly

SBC APTX LL

A B SBC APTX LL

Successfully paired:

“B” solid on, the Codec

indicator for the current

streaming codec will light up

ENGLISH / 05 ENGLISH / 06
