INSTALLATION MANUAL

CVS 4 TEMPLATE CUTOUT SIZE: 180mm

CVS 6 TEMPLATE CUTOUT SIZE: 250mm

CVS 8 TEMPLATE CUTOUT SIZE: 320mm

REVISION DATE: 03 March 2011

;HUUV`°+PYLJ[°<2

;*.0°96>°ZHSLZ

° ;!°° °°° ,!°LUX\PYPLZ'[HUUV`JVT

;!°° ° ,!°PUMV'[JNYV\WPU[LYUH[PVUHSJVT

;*.((TLYPJHZZHSLZ ;!°°° °° ,!°PUMV'[JNYV\WHTLYPJHZJVT

;HUUV`°4PKKSL°,HZ[ ;!° ° ,!°LUX\PYPLZ'[HUUV`JVT

;HUUV`°HKVW[Z°H°WVSPJ`°VM°JVU[PU\V\ZPTWYV]LTLU[HUK° WYVK\J[°ZWLJPMPJH[PVU° PZ°Z\IQLJ[°[VJOHUNL°

Downloaded from www.Manualslib.com manuals search engine

TSNETNOC

INTRODUCTION

UNPACKING

SAFETY NOTICES

ACCESSORIES

INSTALLATION GUIDE

MECHANICAL INSTALLATION GUIDE FOR SUSPENDED CEILINGS

MECHANICAL INSTALLATION GUIDE FOR SHEET-ROCK CEILINGS

MECHANICAL INSTALLATION INSTRUCTIONS FOR OPTIONAL PLASTER RING

WIRING AND SETTING UP

DIMENSIONS

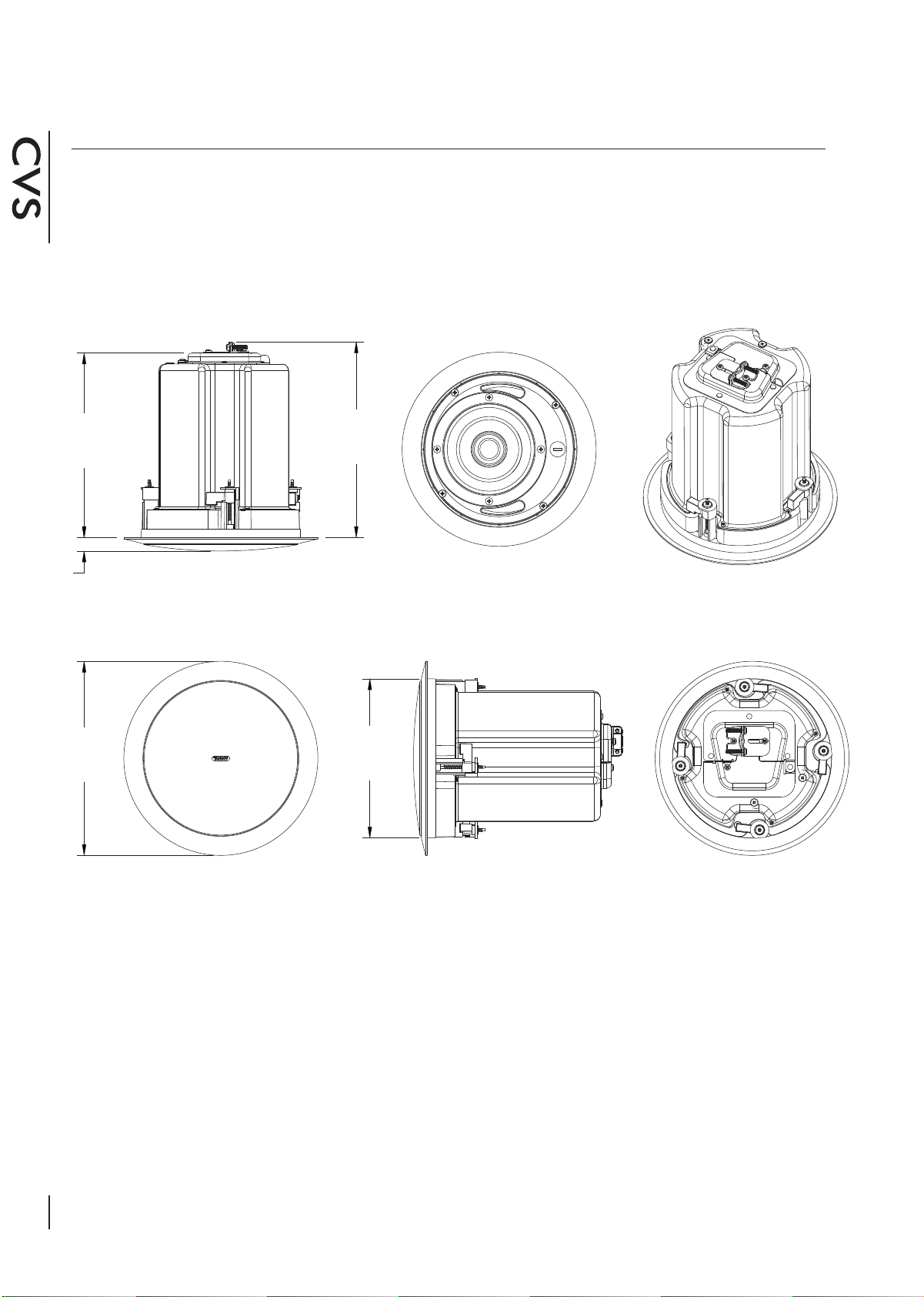

CVS 4 DIMENSIONS

CVS 6 DIMENSIONS

TECHNICAL SPECIFICATIONS

WARRANTY

DECLARATION OF CONFORMITY

6.1

6.2

6.3

8.1

8.2

CVS 8 DIMENSIONS8.3

SAFETY NOTE:

In order to comply with the relevant fire safety regulations (ie. BS 5839:1998), it is required that in the event of fire,

that failure of the circuit to which the loudspeaker is connected does not occur before evacuation of the building is

complete. Suitable measures include: -

a) use of terminal blocks (for connection to primary) with a melting point of not less than 650°C, for example

constructed from ceramic materials;

b) use of terminal blocks of a lower melting point but protected with thermal insulation;

c) use of terminal blocks such that, on melting, an open-circuit or a short-circuit does not occur.

1. INTRODUCTION

Thank you for purchasing this Tannoy Ceiling loudspeaker.This product range is suited for high-

level music and speech reinforcement applications requiring exceptional sonic quality with

uncompromised reliability.

2. UNPACKING

Every Tannoy product and accessory is carefully inspected before packing. After unpacking, please

inspect your product to make sure no damage has occurred in transit. In the unlikely event of any

damage, would you please notify your dealer immediately and retain your shipping carton, as your

dealer may ask you to return the faulty unit to them for inspection.

Each CVS loudspeaker is packed in pairs and provided with the following accessories as standard;

C Ring, tile-bridge kit, grille, cut-out template, and paint mask. A plaster (mud) ring is also available

as an optional extra.

PAINTING10

3. SAFETY NOTICES

Some regional construction codes require the use of a secondary method of securing loudspeakers

in ceiling to provide security of a backup support. A secondary support line should be attached from

the safety loop on the rear of the product to a source point on the ceiling. Please consult the relevant

construction codes in your region.

When using a power driver to install the product it is essential to use the correct torque level settings

to avoid over tightening and damage to the ceiling material or clamps

Recommended torque setting: 1.5Nm

Tannoy will not be held responsible for any damages caused by the improper installation of

these loudspeakers.

Electrical Safety Notice: to comply with the standard UL1480 , metal-clad flexible conduit (BX) is

required for connection to the terminal block for proper earth grounding.

PRODUCT FEATURE IDENTIFICATION

Downloaded from www.Manualslib.com manuals search engine

TSNETNOC

INTRODUCTION

UNPACKING

SAFETY NOTICES

ACCESSORIES

INSTALLATION GUIDE

MECHANICAL INSTALLATION GUIDE FOR SUSPENDED CEILINGS

MECHANICAL INSTALLATION GUIDE FOR SHEET-ROCK CEILINGS

MECHANICAL INSTALLATION INSTRUCTIONS FOR OPTIONAL PLASTER RING

WIRING AND SETTING UP

DIMENSIONS

CVS 4 DIMENSIONS

CVS 6 DIMENSIONS

TECHNICAL SPECIFICATIONS

WARRANTY

DECLARATION OF CONFORMITY

6.1

6.2

6.3

8.1

8.2

CVS 8 DIMENSIONS8.3

SAFETY NOTE:

In order to comply with the relevant fire safety regulations (ie. BS 5839:1998), it is required that in the event of fire,

that failure of the circuit to which the loudspeaker is connected does not occur before evacuation of the building is

complete. Suitable measures include: -

a) use of terminal blocks (for connection to primary) with a melting point of not less than 650°C, for example

constructed from ceramic materials;

b) use of terminal blocks of a lower melting point but protected with thermal insulation;

c) use of terminal blocks such that, on melting, an open-circuit or a short-circuit does not occur.

1. INTRODUCTION

Thank you for purchasing this Tannoy Ceiling loudspeaker.This product range is suited for high-

level music and speech reinforcement applications requiring exceptional sonic quality with

uncompromised reliability.

2. UNPACKING

Every Tannoy product and accessory is carefully inspected before packing. After unpacking, please

inspect your product to make sure no damage has occurred in transit. In the unlikely event of any

damage, would you please notify your dealer immediately and retain your shipping carton, as your

dealer may ask you to return the faulty unit to them for inspection.

Each CVS loudspeaker is packed in pairs and provided with the following accessories as standard;

C Ring, tile-bridge kit, grille, cut-out template, and paint mask. A plaster (mud) ring is also available

as an optional extra.

PAINTING10

3. SAFETY NOTICES

Some regional construction codes require the use of a secondary method of securing loudspeakers

in ceiling to provide security of a backup support. A secondary support line should be attached from

the safety loop on the rear of the product to a source point on the ceiling. Please consult the relevant

construction codes in your region.

When using a power driver to install the product it is essential to use the correct torque level settings

to avoid over tightening and damage to the ceiling material or clamps

Recommended torque setting: 1.5Nm

Tannoy will not be held responsible for any damages caused by the improper installation of

these loudspeakers.

Electrical Safety Notice: to comply with the standard UL1480 , metal-clad flexible conduit (BX) is

required for connection to the terminal block for proper earth grounding.

PRODUCT FEATURE IDENTIFICATION

Downloaded from www.Manualslib.com manuals search engine

Conduit/Cable Clamp

Safety Tab

Mounting Wings

4. PRODUCT FEATURE IDENTIFICATION: 5. ACCESSORIES:

Standard Accessories

C-Ring Tile bridge kit

Note: A tile bridge kit

must always be used

when installing into

suspended ceiling tiles

Grille Cut-out template

Paint Mask

Optional Accessories

Plaster (Mud) Ring

CVS 4

CVS 6

CVS 8

Conduit/Cable Clamp

Mounting Wings

Safety Tab

Tuning Ports

Rotary Switch

Screws for

mounting wings

Tuning Ports

Rotary Switch

Screws for

mounting wings

Tuning Ports

Rotary Switch

Screws for

mounting wings

Conduit/Cable Clamp

Mounting Wings

Safety Tab

Downloaded from www.Manualslib.com manuals search engine

Conduit/Cable Clamp

Safety Tab

Mounting Wings

4. PRODUCT FEATURE IDENTIFICATION: 5. ACCESSORIES:

Standard Accessories

C-Ring Tile bridge kit

Note: A tile bridge kit

must always be used

when installing into

suspended ceiling tiles

Grille Cut-out template

Paint Mask

Optional Accessories

Plaster (Mud) Ring

CVS 4

CVS 6

CVS 8

Conduit/Cable Clamp

Mounting Wings

Safety Tab

Tuning Ports

Rotary Switch

Screws for

mounting wings

Tuning Ports

Rotary Switch

Screws for

mounting wings

Tuning Ports

Rotary Switch

Screws for

mounting wings

Conduit/Cable Clamp

Mounting Wings

Safety Tab

Downloaded from www.Manualslib.com manuals search engine

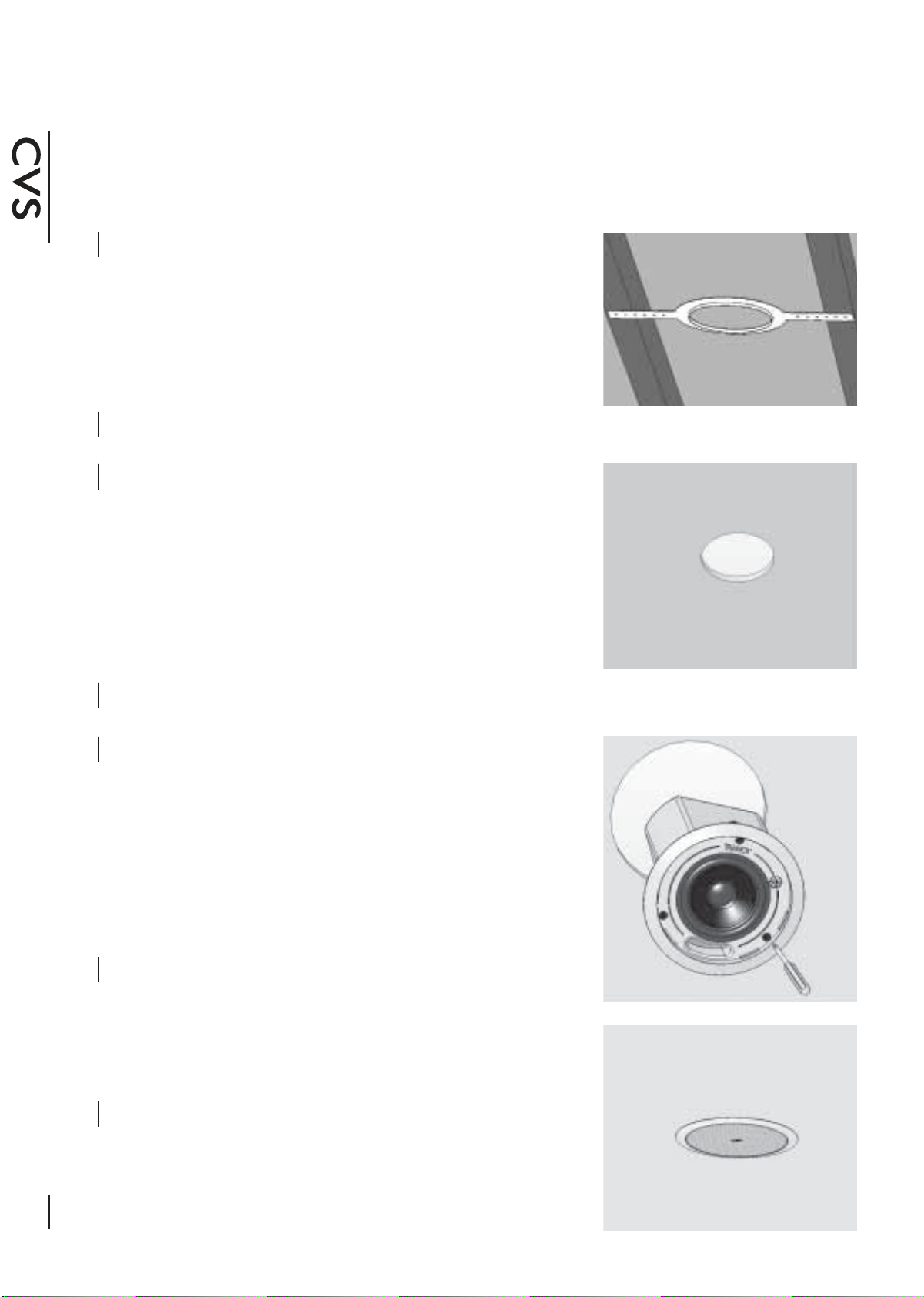

6.1 MECHANICAL INSTALLATION GUIDE FOR SUSPENDED CEILINGS
