This scale is a precision instrument and must be used under certain

conditions to ensure accurate measurement. Please observe the following

when using this scale.

1.Never disassemble the unit.

Use in a vibration-free location that is not exposed to direct sunlight.

3.The scale will not measure accurately in an environment subject to

large temperature and humidity changes. The unit takes approximately

two hours to adjust to such changes.

4.Keep water and chemicals off the scale. Wipe with a damp cloth from

time to time.

Do not use or store near heat sources(ovens, heaters, etc.).

6.When not used for a long time, remove the batteries and store the unit

in a dry, dust-free location.

7.Check and replace batteries before sending the unit for repair. If repair

is necessary, remove the batteries, repack the unit in the original

carton and protect with packing materials before shipment.

8.Do not leave objects on the weighing tray when the scale is not in use.

9.To avoid measurement error, do not measure while using equipment

that generates radio waves, such as mobile phones.

1.To avoid electric shock, do not insert or remove the plug with wet

hands.

2.To avoid electric shock, do not use the equipment near water.

CAUTIONS

WARNING

This device features radio interference supression in compliance with valid EC Regulation

2004/108/EC.

Dieses Gerät ist funkentstört entsprechend der geltenden EG-Richtlinie 2004/108/EG.

Cet appareil est conforme à la directive 2004/108/CE (compatibilité électromagnétique) en

vigueur.

Questo apparecchio è conforme alla normativa 2004/108/CE vigente in materia di radiodisturbi.

Este aparato tiene supresión antiparasitaria según la directiva CEE vigente 2004/108/CE.

Dit apparaat is storingvrij volgens de geldende EGG richtlijn 2004/108/EG.

Este aparelho caracteriza-se pela supressão de interferência a rádio, em cumprimento ao

Regulamento 2004/108/CE da CE.

Данное устройство соответствует требованиям подавления радиопомех согласно действующей

ЕС-директиве 2004/108/EC.

EC REGULATION 2004/108/EC

IMPORTANT

1. Use on a hard at surface conrming that it is level using the bubble level.

2. To prevent wind from affecting measurement, close cover.

3. Clean using mild detergent. Chemical should not be used.

4. Always use the provided Gem cup.

NAMES OF PART

1 Wind sheild (cover)

2 Hinge

3 Gem cup

4 LCD display (front)

5 LCD display (back, option)

6 Test weight

7 Open button

8 Lo battery mark

9 Stable mark

0 Minus sign

q Calibration mark

w Weighing modes

e ON/OFF button

r TARE button

t CALIBRATION button

y MODE button

u AC adaptor inlet

i Adjustable feet

o Battery compartment

p USB port (option)

a Level

s AC adapter (option)

d USB cable (option)















R FS

X 

BEFORE USE

When using with batteries

1. Open the battery cover.

2. Remove the battery cover and insert 4 size AA (LR6) batteries.

3. Replace the battery cover.

When using with AC adaptor

1. Do not use any AC adaptor except those with the following specication.

* Only use an AC adaptor with a CE marking

2. To use AC adaptor, put the DC jack into the inlet.

◆

Check the level to make sure that the scale is horizontal.◆

Adjust with the

adjustable feet.

Adjust so that the

bubble is the center

circle.

How to remove and attach the cover◆

[How to remove]

Push the hinge to

one side.

Twist and pull it up.

[How to attach]

Insert one side of

hinge.

Twist and pull it

down.

Note: Make sure all 4 feet make contact with surface.

1 2 3 4

1 2 1 2

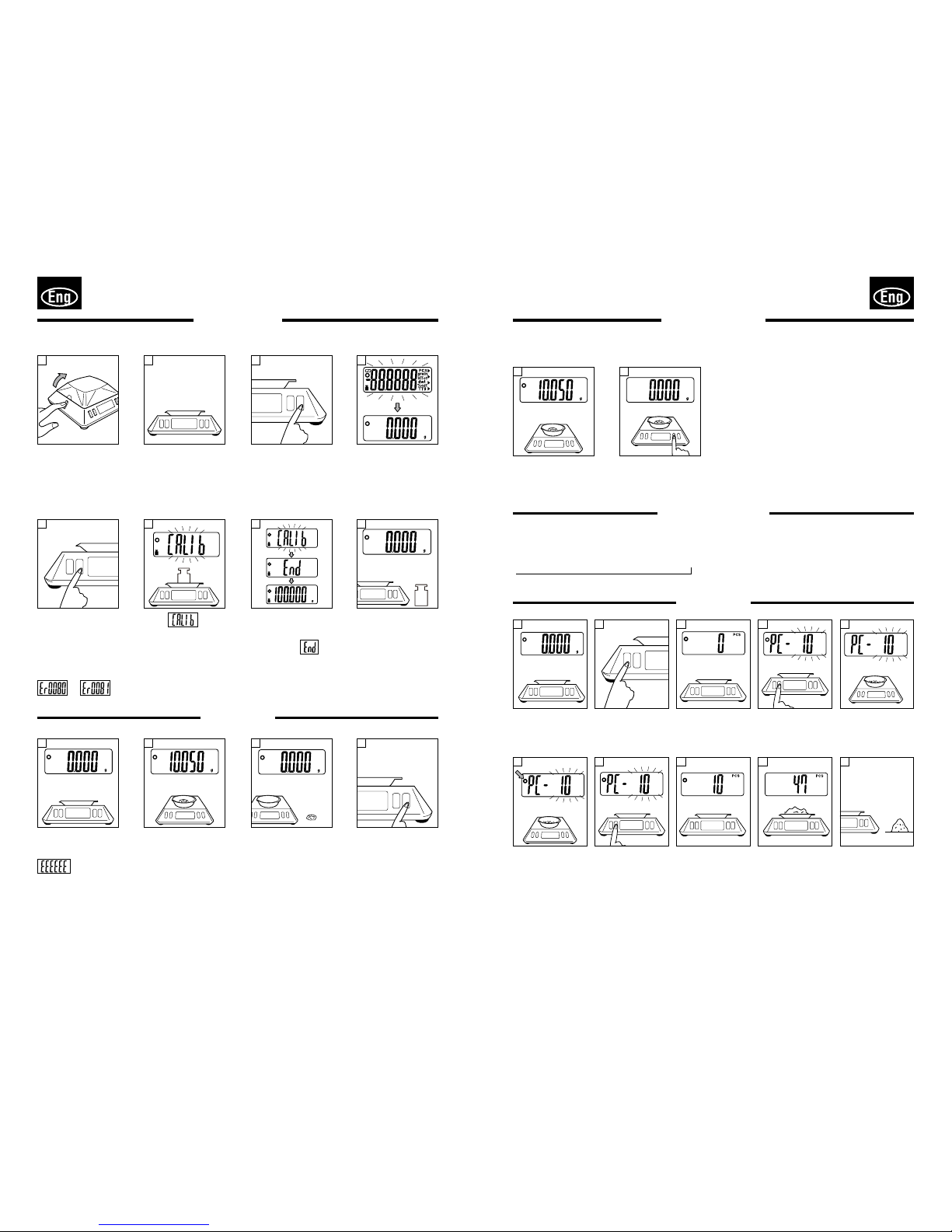

CALIBRATING

Use the provided 100 g test weight.

Turn the power on.Press the open

button to open the

cover.

The weighting unit

that was used when

the power was

turned off last time

will be displayed.

Default is g.

Set the Gem cup.

Calibration is

complete. Calibration

is not complete when

not showing .

Make sure the stable

mark is displayed.

Press CAL. Remove the test

weight.

When blinks,

place the test weight

gently onto the gem

cup.

WEIGHING

Press OFF.Place the object. Remove it.

1 2 3 4

567 8

2 3 4

: Overload. The object being weighed exceeds the maximum capacity.

TARE FUNCTION

If TARE is pressed in the middle of weighing, zero (0) appears in the display enabling additional

weighing.

Place the object to

be measured on the

scale.

When the stable

mark is on, press

TARE.

SWITCHING UNIT

When the weighing function is available, press the MODE button and the display switches in the

order below.

g → ct → oz → ozt → dwt → grain →HT →TT

1 2

→

COUNTING

When the scale

is on

Press and hold

MODE.

Press CAL. Place 10

specimens to be

weighed.

When stabilized,

a stable mark is

displayed.

Press CAL. The number of

specimens are

displayed.

Place the number

of objects that you

wish to count.

Remove the

objects after

measurement is

nished.

12345

678910

When the scale is on

or : See TROUBLE SHOOTING

Press ON/OFF to

turn off.

* When the registered weight is insufcient, “PC-25” is displayed. In that case, increase the

number of specimens to 25 pieces. When the stable mark is displayed, press CAL. If the register

is still insufcient, the display changes to show the number of specimens to be increased.

Therefore, increase the number of specimens, and press CAL again. This operation is repeated

until the registered weight becomes 1 g or more. will be displayed when you press CAL if

the registered weight is too low to measure. Numeric numbers change as follows. (Press TARE

to increase the number of specimens)

10 →25 → 50 → 100 → 150 → 200 → 250 → 500

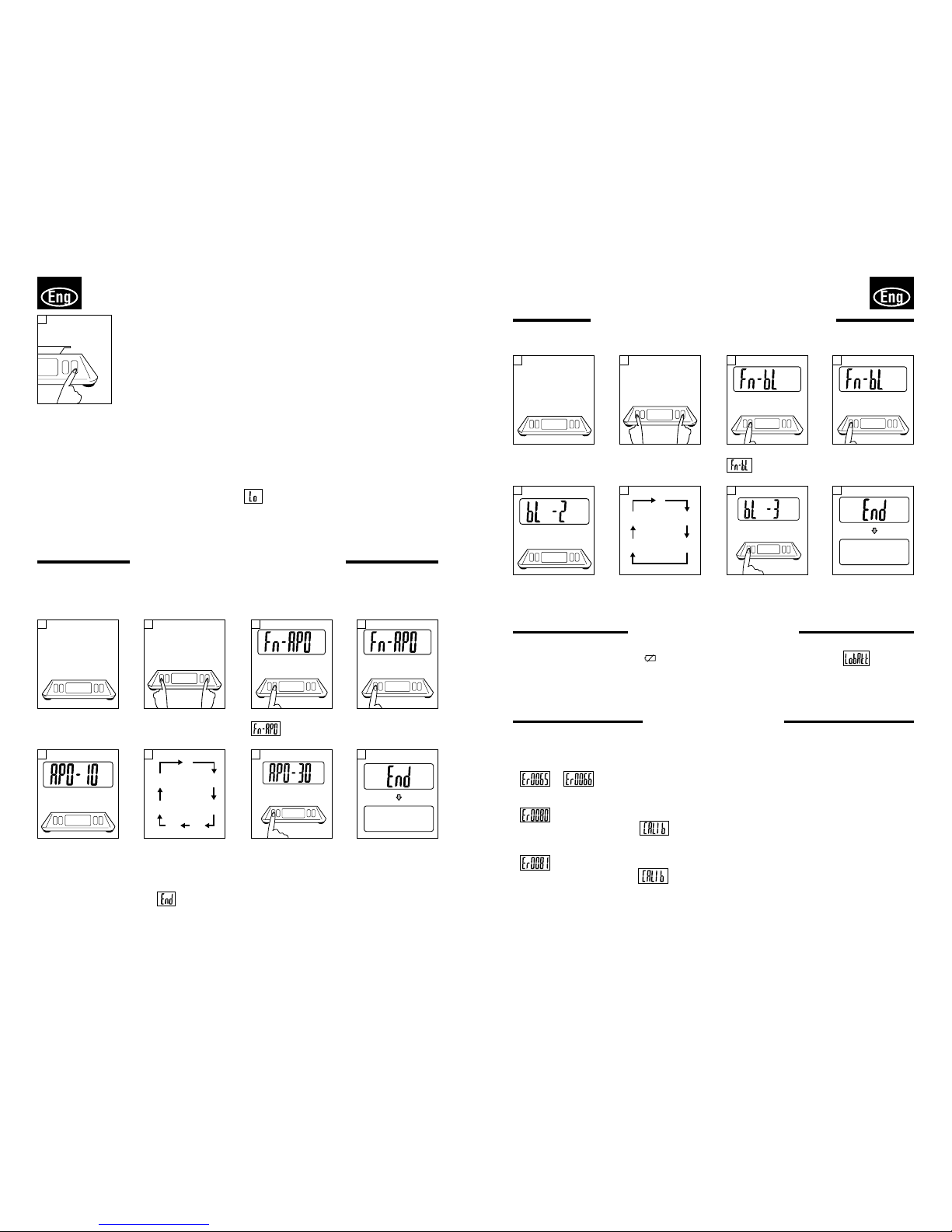

PROGRAMMING AUTO POWER OFF

Default setting is 10 minutes

The auto power off time can be programmed between 0 (= no auto power off) to 60 minutes by

10 minutes increments according to preference.

◆

Press CAL to display

When the power

is off

Press MODE to

conrm

While pressing

MODE press

ON/OFF.

40 30

Wen you have made

your selection, press

MODE to conrm.

The numeric values

are displayed.

Setting is nished.Press TARE to cycle

through the time

options.

* If the power turns off before appears, the setting is not saved.

1 2 3 4

567 8

PROGRAMMING BACKLIT BRIGHTNESS

Press CAL to display

When the power

is off

Press MODE to

conrm.

While pressing

MODE press

ON/OFF.

Wen you have made

your selection, press

MODE to conrm.

The numeric values

are displayed.

Setting is nished.Press the TARE to

cycle through the

backlit options.

BATTERIES REPLACEMENT

When batteries are running low, is displayed. When batteries are running out, is

displayed and the power is automatically turned off.

Immediately replace with new batteries (all 4 batteries). Do not apply excessive force to the

measuring section when replacing batteries.

Default setting is “2”.◆

1 2 3 4

567 8

TROUBLE SHOOTING

• The power doesn’t turn on.

Insert new 4 size AA (LR6) batteries. Be sure that the polarity of the batteries is set properly.

• or appears on the display.

The scale needs to be repaired. Please contact your retailer.

• appears on the display.

Place the test weight AFTER blinks.

If it doesn't work, the scale needs to be repaired. Please contact your retailer.

• appears on the display.

Place the gem cup BEFORE blinks and do not remove it until calibration is complete.

If it doesn't work, the scale needs to be repaired. Please contact your retailer.

TECHNICAL SPECIFICATIONS

Test weight 100 g (included)

Capacity 100.000 g / 500.00 ct / 3.5273 oz /3.2150 ozt / 64.300 dwt /

1543.25 grain / 2.6717 HT / 2.6666 TT

Graduation 0.002 g / 0.01 ct / 0.0001 oz / 0.0001 ozt / 0.002 dwt / 0.05 grain /

0.0001 HT / 0.0001 TT

Power DC 6V AA (LR06) x 4 (included)

AC adaptor (DC 6V 200 mA) (included)

Power Consumption

(MAX)

Dual LCD: 45 mA, single LCD: 40 mA

*Not legal for trade

OUTPUT DATA FORMAT (USB verison only)

This section covers the exporting of data from the scale to an external device (e.g. PC) using a

USB compliant signal.

• USB interface is for data OUTPUT ONLY!

• This scale is not capable of receiving instructions from an external device.

Speciﬁcations

Communications standard USB

Communications method Asynchronous transaction

Signal speed 9600 baud

Data bit length 8 bits

Parity None

Stop bit 1 bit

Terminator CR+LF

Note:

• USB connecter (mini-B-type 4-pin female) is located on the side of the scale.

Caution

If you want to use the USB output, you must install the necessary driver onto your

PC, available to download from http://www.tanita.com

USB Port

Output data

Name of item Header Output data (ASCII code) Pattern

Counting mode Weight mode

Control data {0 Fix to 16 2 Bytes xed ✓ ✓

Control data ˜0 Fix to 1 1 Bytes xed ✓ ✓

Model MO “KP-601” 8 Bytes xed ✓ ✓

Displayed weight Wg

x.xxx ~ xxx.xxx

5–7 bytes ✓ ✓

Tare weight Pt

x.xxx ~ xxx.xxx

5–7 bytes ✓ ✓

Pieces Pi xxxx 1–5 bytes ✓—

Note:

• The data are divided with commas (,) for each data.

• The terminator (end of the data) is CR (ASCII code 0DH), LF (ASCII code 0AH).

• The control data for the items 1–2 are for expansion. They are not used presently so the

receiving side can ignore them.

• Because of its specications, the scale will output an irrelevant signal when it’s turned off. Make

sure you ignore this signal and do not import it.

• The weight data are shown only in grams.

[Output data]

Displayed Weight Tare Weight Pieces

g P t P i

P 6 0 1

10 11

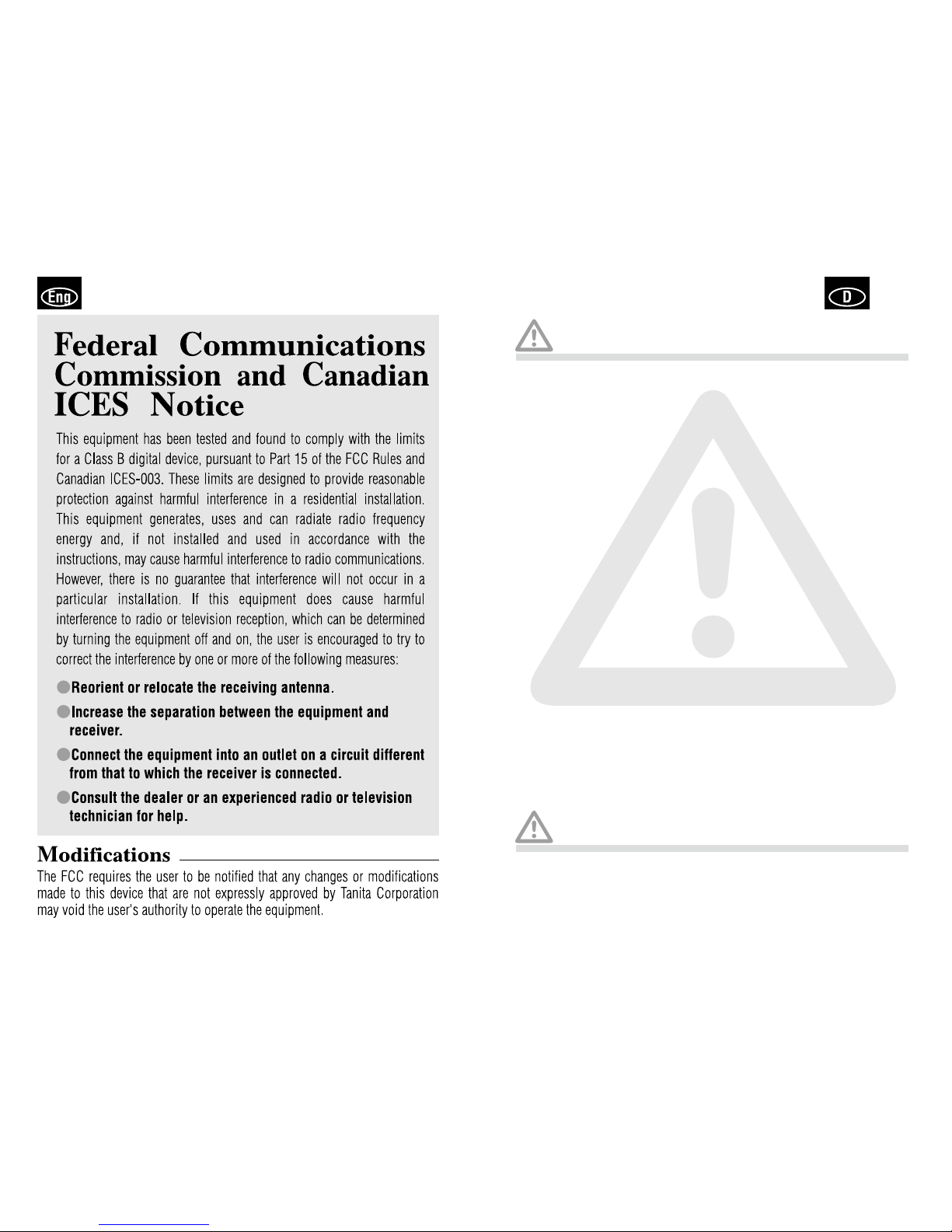

Diese Waage ist ein Präzisionsinstrument. Genaue Messungen setzen die Einhaltung

bestimmter Gebrauchsbedingungen voraus. Beachten Sie bitte folgende Vorschriften:

1. Bauen Sie das Gerät niemals auseinander.

2. Verwenden Sie das Gerät an einem vibrationsfreien Ort, an dem das Gerät keiner

direkten Sonneneinstrahlung ausgesetzt ist.

3.Diese Waage misst in Umgebungen mit starken Temperatur- und

Luftfeuchtigkeitsschwankungen nicht genau. Das Gerät benötigt etwa zwei

Stunden, um sich an solche Veränderungen anzupassen.

4. Vermeiden Sie Kontakt mit Wasser oder Chemikalien. Wischen Sie das Gerät hin

und wieder mit einem feuchten Tuch ab.

5. Vermeiden Sie Gebrauch oder Lagerung in der Nähe von Wärmequellen (Öfen,

Heizung, etc.).

6. Wenn Sie das Gerät längere Zeit nicht verwenden, entfernen Sie die Batterien

und lagern Sie das Gerät in trockener, staubfreier Umgebung.

7. Bevor Sie das Gerät zur Reparatur einsenden, überprüfen und ersetzen Sie bitte

die Batterien. Wenn eine Reparatur notwendig ist, verpacken Sie vor dem

Versand das Gerät im Originalkarton und schützen Sie es mit geeigneten

Packmaterialien.

8. Lassen Sie keine Gegenstände auf der Wiegefläche liegen, wenn Sie die Waage

nicht verwenden.

9. Um Messfehler zu vermeiden, keine Messung vornehmen, während Radiowellen

erzeugende Geräte wie Mobiltelefone verwendet werden.

1. Zur Vermeidung elektrischer Schläge nicht den Stecker mit nassen Händen

einstecken oder abziehen.

2. Zur Vermeidung elektrischer Schläge das Gerät nicht in der Nähe von Wasser

verwenden.

ACHTUNG

WARNUNG

Tanita Corporation of America Inc.

2625 South Clearbrook Drive

Arlington Heights, IL 60005 USA.

Tel : +1-847-640-9241

Fax : +1-847-640-9261

www.tanita.com

Representative

Tanita Europe B.V.

Holland Office Centre. Kruisweg 813-A

2132NG Hoofddorp, the Netherlands

Tel : +31(0)23-5540188

Fax : +31(0)23-5579065

www.tanita.eu

Business Location in UK

The Barn, Philpots Close, Yiewsley,

Middlesex, UB7 7RY,

United Kingdom

Tel : +44(0)1895-438577

Fax : +44(0)1895-438511

Tanita Health Equipment H.K. Ltd.

Unit 301-303 3/F Wing On Plaza,

62 Mody Road, Tsimshatsui East,

Kowloon, Hong Kong

Tel : +852-2838-7111

Fax : +852-2838-8667

TANITA India Private Limited

Level 9, Platina, C-59, G Block,

Bandra Kurla Complex, Bandra East,

Mumbai 400051, INDIA

Tel : +91-22-3953-0507

Fax : +91-22-3953-0604

Manufacturer

Tanita Corporation

1-14-2, Maeno-Cho, Itabashi-ku,

Tokyo, Japan 174-8630

Tel : +81(0)-3-3968-2123

Fax : +81(0)-3-3967-3766

www.tanita.co.jp

ISO 9001 Certified

Autres manuels pour KP-601

Table des matières

Autres manuels Tanita Échelle

Tanita

Tanita 3500 Manuel utilisateur

Tanita

Tanita BC-730 Manuel utilisateur

Tanita

Tanita HD-351 Manuel utilisateur

Tanita

Tanita InnerScan BC-550T Manuel utilisateur

Tanita

Tanita BC-1000 Manuel utilisateur

Tanita

Tanita TBF-604 Manuel utilisateur

Tanita

Tanita MC-780A Manuel utilisateur

Tanita

Tanita HA 502 Manuel utilisateur

Tanita

Tanita Body Composition Analyzer BC-418MA Manuel utilisateur

Tanita

Tanita Body Composition Monitor BC-570 Mode d’emploi

Tanita

Tanita innerScan Dual RD-545 Manuel utilisateur

Tanita

Tanita InnerScan BC-568 Manuel utilisateur

Tanita

Tanita BF-522 Manuel utilisateur

Tanita

Tanita BWB-800A Mode d’emploi

Tanita

Tanita Body Composition Monitor BC-570 Manuel utilisateur

Tanita

Tanita InnerScan BC-534 Manuel utilisateur

Tanita

Tanita BC-718 Manuel utilisateur

Tanita

Tanita BF-579 Manuel utilisateur

Tanita

Tanita InnerScan BC-587 Manuel utilisateur

Tanita

Tanita KD-403 Manuel utilisateur

Tanita

Tanita BF-679 Manuel utilisateur

Tanita

Tanita Body Composition Analyzer 410 Manuel utilisateur

Tanita

Tanita BC 541 INNERSCAN Manuel utilisateur

Tanita

Tanita BC-1000 Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur

Fidelity Electronics

Fidelity Electronics G2e Manuel utilisateur
