TANDBERG DIRECTOR
Installation Guide
Codec Software Version B5
Control Software Version V1
D501xx-01
- ii -
Trademarks and copyright
COPYRIGHT © 2002,
TANDBERG
1860 Michael Faraday Drive
Reston, Virginia, USA 20190
Tel: 703-709-4281, Fax: 703-709-4231
All rights reserved. This document contains information that is proprietary to TANDBERG. No part of this
publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means,
electronic, mechanical, photocopying, or otherwise, without the prior written permission of TANDBERG.
Nationally and internationally recognized trademarks and tradenames are property of their respective holders
and are hereby acknowledged.
Disclaimer
The information in this document is furnished for informational purposes only, is subject to change without
prior notice, and should not be construed as a commitment by TANDBERG.
The information in this document is believed to be accurate and reliable, however TANDBERG assumes no
responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any
infringements of patents or other rights of third parties resulting from its use. No license is granted under any
patents or patent rights of TANDBERG.
Technical Support, call one of the following service centers:
USA
Canada Europe & Asia Pacific
TANDBERG Inc
1860 Michael Faraday Drive
Reston, Virginia 20190
Tel: 703 709 4281
Toll free: 800 889 7440
Fax: 703 709 4231
Video: 703 437 6991
Email: helpdesk @ tandbergusa.com
TANDBERG Canada Inc.
6505 Trans-Canada Hwy.
Montreal, Quebec
H4T 1S3
Tel: 514 748 5224
Toll free: 800 729 6990
Fax: 514 748 5760
Video: 514 744 5514
TANDBERG ASA
Philip Pedersens vei 22
1366 Lysaker, Norway
Tel: +47 67 125 125
Fax: +47 67 125 234
Video: +47 67 177 777
Mailing Address:
TANDBERG ASA
P.O. Box 92
1325 Lysaker, Norway
- iii -
Table of Contents
TRADEMARKS AND COPYRIGHT................................................................II
INTRODUCTION.................................................................................................5
PRECAUTIONS....................................................................................................6
UNPACKING........................................................................................................6
Smartboard Specific......................................................................................................6
ROOM CONFIGURATION AND SETUP ........................................................8
DIRECTOR MODULE INSTALLATION.........................................................9
COMPONENT IDENTIFICATION...................................................................9
BASIC SYSTEM CONNECTIONS ..................................................................11
CABLING............................................................................................................12
ISDN BRI.....................................................................................................................12
ISDN PRI/T1 ...............................................................................................................12
LAN .............................................................................................................................12
DEVICE CONNECTIONS ................................................................................12
Microphone .................................................................................................................12
Touchpanel..................................................................................................................12
Main Camera...............................................................................................................13
Aux Camera.................................................................................................................13
Document Camera.......................................................................................................13
VCR/DVD Player ........................................................................................................13
PC Sources..................................................................................................................14
POWERING ON THE SYSTEM......................................................................14
TOUCHSCREEN CALIBRATION..............................................................................15
TOUCHPANEL TOOLS (SYSTEM SETUP)..................................................17
SYSTEM INFORMATION........................................................................................17
- 4 -
IR FUNCTIONS.....................................................................................................18
AUDIO .................................................................................................................18
SYSTEM OPTIONS ................................................................................................19
EDIT DIRECTORY.................................................................................................19
UPDATING THE DIRECTORY.................................................................................19
CODEC CONFIGURATION ............................................................................19
ESTABLISHING COMMUNICATIONS ......................................................................20
APPENDIX 1: AUDIOSCIENCE MICROPHONE ........................................22
AUDIOSCIENCE MICROPHONE PARTS LISTING ....................................................22
TOOLS REQUIRED FOR ASSEMBLY AND INSTALLATION .......................................22
INSTALLATION CONSIDERATIONS ........................................................................23
SELECTING A MOUNTING LOCATION ...................................................................24
ASSEMBLY AND INSTALLATION INSTRUCTIONS...................................................25
5
5
5
5
Introduction
Welcome to the TANDBERG Director
An Integrated Multi-Media and Videoconferencing System that can be integrated into a
Smartboard touch-sensitive rear projection system. The core component of the Director, the
Director Module (Director Applications Module) is a 19” rack mountable unit that provides all the
necessary audio, video, and network and control connections for videoconferencing. The Intuitive
On-Screen Controls provide configuration of multiple simultaneous displays from a variety of
sources. Annotation over the PC Image is possible in variety of colors and can be viewed by both
the local and remote participants.
The Videoconferencing Functions include; speed dials, Multi-site operation, Duo Video and
Native Resolution support.
An Optional Color Touchpanel provides desktop control of the system.
Touchpanel Director Module Smartboard 3000i
6
6
6
6
Precautions
Never install telephone wiring during a lightning storm
Never install telephone jacks in wet locations unless the jack is specifically designed for wet
conditions.
Use caution when installing or modifying telephone lines
Never do any installation of cables without first unplugging the power cords of the applicable
equipment.
Unpacking
To unpack and install the Director System, it is recommended (at the very least) that you have the
following tools:
#2 Phillips
#2 Flathead
5/32 hex key
diagonal wire cutters
flathead “tweaker”
razor or knife
Robertson square head screwdriver
PC (with installed Crestron software, com port) for setup and diagnostics
Smartboard Software
The “entire system” consists of the following components:
TANDBERG Director Module (1box)
• External cable pack (1box)
Codec Accessories (WAVE Camera, additional mics, network cables)
AudioScience Mic (1box)
Touchpanel (optional, 1 box)
Smart 3000i (optional, 1 big box)
• Smart 3000i Camera Shelf
• Smart Room Control Module (RCM)
• Smart software
Customer supplied PC (optional)
Smartboard Specific
(please skip over this section if you did not purchase the 3000i Smartboard option)
7
77
7
To unpack the 3000i , cut the straps, remove the outer cardboard packaging, and lower the
plywood Director Modulep.
Remove the bolts securing the bottom of the 3000i to the pallet, and make sure the locking casters
are in the off position. You will need to rotate the orange braces a ¼ turn to remove them from
underneath the 3000i cabinet. Carefully roll the unit down the ramp provided, and remove the
shrink-wrap with a razor blade or sharp knife.
Inside the 3000i cabinet, you will find the projector, keyboard, and accessory packaging. The
projector will be installed, but will need to be adjusted to fit the image correctly on the screen.
Refer to the Smart 3000i User’s Manual for adjusting the projected image.
Cabling for the projector should be present and labeled. The wireless IR receiver for the keyboard
should be in place and ready to plug into the customer PC. The wireless keyboard must be
hooked up to the PC and mouse ports, and the batteries (included) must be installed in the
keyboard. In the accessory box you will find the Smartboard markers and eraser.
8
88
8
To install the Videoconferencing Camera Bracket, it is important to know the location of the
presenter in relation to the camera. Place the camera bracket on the opposite side of the display
from the presenter. There is one existing hex screw on the top, and two screws on the bottom of
the cabinet to be used for mounting the bracket. The shelf fits into the slots provided and secures
using the thumbscrew provided.
For additional information, diagrams, and instructions, refer to the following reference guides
provided by Smart:
Reference: 3000i Installation Guide
Reference: 3000i Videoconference Shelf Installation Guide
Reference: 3000i Room Control Module Installation Guide
Room Configuration and Setup
The Director Module has been designed to provide versatility for installation at any site. The
following sections describe the Director installation in a typical room setup. The two most

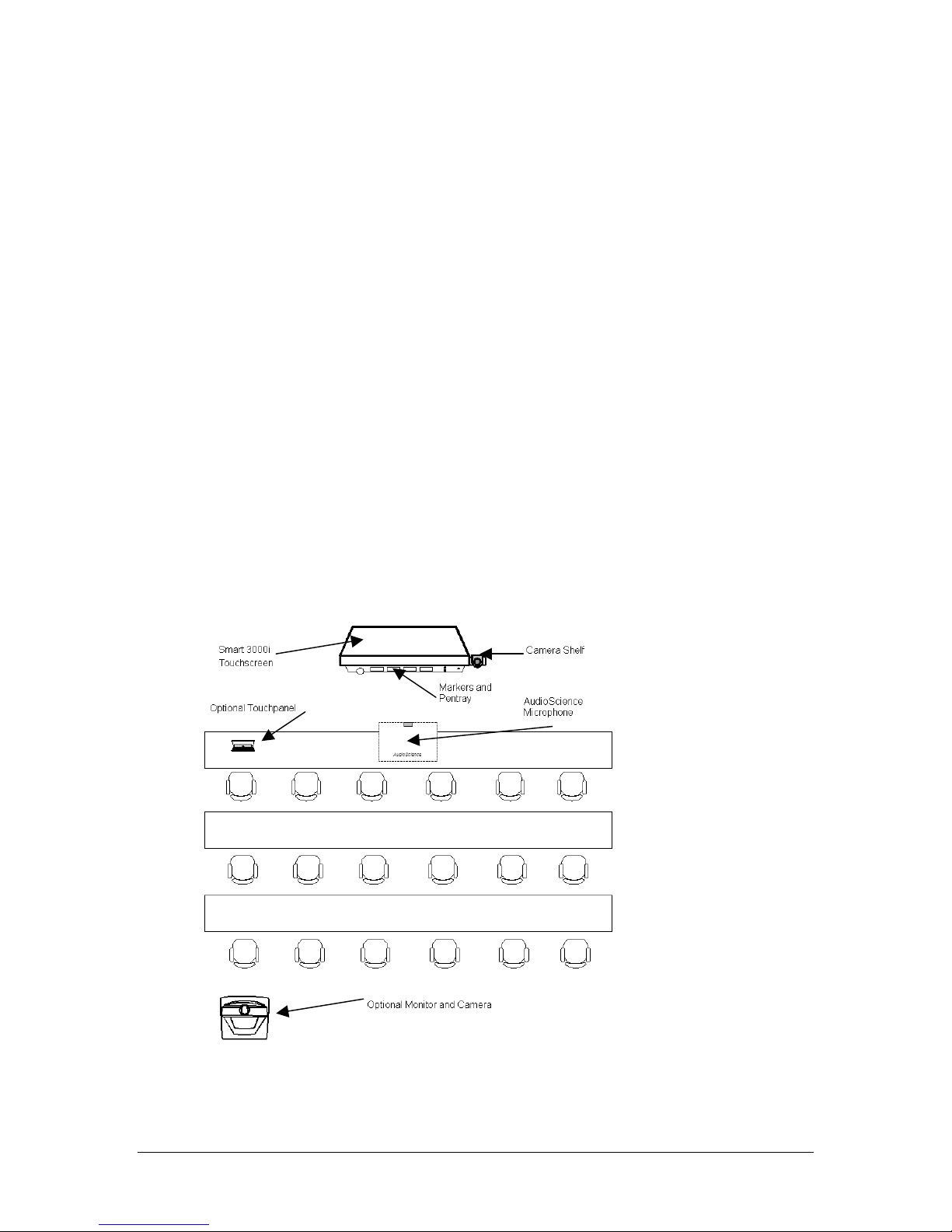

common configurations are described below. The first shows the Director Module installed in a
Smart 3000i cabinet and the second shows a typical setup with a Director Module and touchpanel.
9
99
9
Director Module Installation
The 5RU Director Module comes ready for installation into a standard 19” rack unit. Place the
Director Module in the rack and secure using the 4 screw holes provided. If installing the Director
Module into the 3000i cabinet, place into the rack with the plexiglass front of the Director Module
behind the magnetic latches . If there the Director Module does not settle behind those latches, it
may be necessary to loosen the latches with a Robertson head screwdriver.
Remove adhesive protection

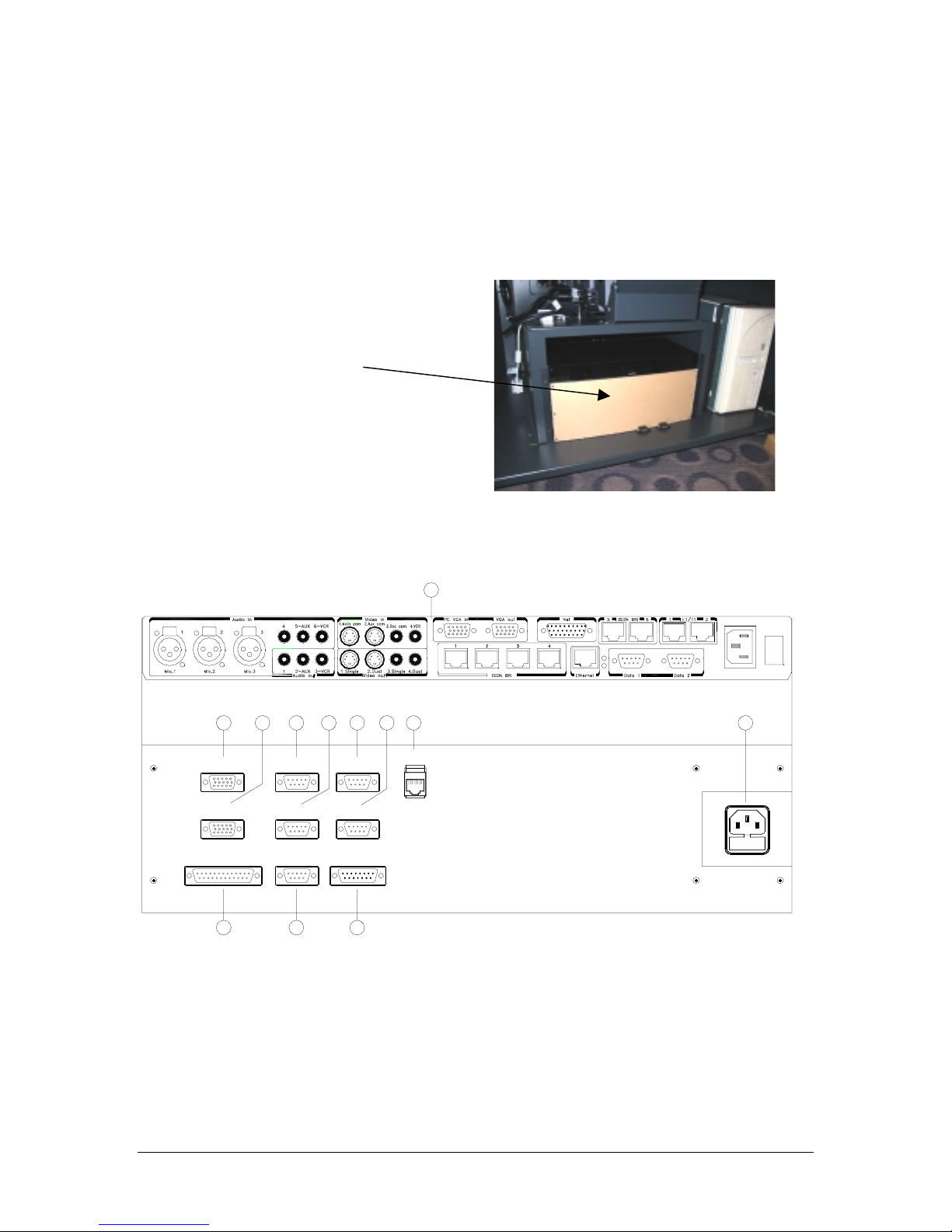

Component Identification
TOUCHSCREEN
TOUCHPANEL CRESNET
MOUSE
PC VGA IN
DISPLAY VGA OUT
AUX CTRL 3
PROGRAMAUX CTRL 2
AUX CTRL 1 LAN
DIAGNOSTICS
1
2468357
10 11 12
9
1. TANDBERG 6000 Codec.
2. PC VGA IN - Personal Computer Video Input, supports VGA, SVGA, and XGA
resolution (15 pin female HD D-sub connector). See TANDBERG 6000 User’s Manual
for more information regarding codec I/O.
3. DISPLAY VGA OUT - System Display VGA out, XGA resolution (15 pin female HD
D-sub connector).
10
1010
10
4. AUX CTRL 1 - Bi-directional RS232 (9600,N, 8,1) supports Visca Camera Control (9 pin
female D-sub connector).
5. AUX CTRL 2 - Bi-directional RS232 (9600,N, 8,1) supports Smart 3000i Room Control
Module (9 pin female D-sub connector).
6. AUX CTRL 3 - Bi-directional RS232 (9600,N, 8,1) used for PC com port with Smart
Software Package (9 pin female D-sub connector).
7. PROGRAM - Bi-directional RS232 (115200,N, 8,1) used for diagnostics and loading
software to Director Module. (Note: due to time/speed considerations, it is recommended
that touchscreen software be loaded through the LAN connection. Control software may
be loaded without considerable delay) (9 pin female D-sub connector).
8. LAN DIAGNOSTICS - Ethernet port used for upgrading and troubleshooting the
control system (RJ45 connector).
9. Fused 120VAC Input.
10. TOUCHPANEL – Supports Optional Touch sensitive panel (25pin female D-sub
connector).
11. TOUCHSCREEN/MOUSE – Supports Smart 3000i touch overlay or Microsoft
compatible mouse (9 pin female D-sub connector).
12. CRESNET – Port reserved for future expansion of Cresnet devices (15 pin male D-sub
connector).
Table des matières
Autres manuels TANDBERG Système de conférence
TANDBERG
TANDBERG 550 MXP Manuel utilisateur
TANDBERG
TANDBERG 1000 Manuel utilisateur
TANDBERG
TANDBERG MPS Manuel utilisateur
TANDBERG
TANDBERG 8000 MXP Manuel utilisateur
TANDBERG
TANDBERG 2000 MXP Manuel utilisateur
TANDBERG
TANDBERG 3000 MXP Profile Guide de démarrage rapide
TANDBERG
TANDBERG 2000 MXP Manuel utilisateur
TANDBERG
TANDBERG 1000 Manuel utilisateur
TANDBERG
TANDBERG 1500 MXP Manuel utilisateur
TANDBERG
TANDBERG 3000 MXP Profile Manuel utilisateur
TANDBERG
TANDBERG Codec C90, Codec C60, Codec C40 Mode d’emploi
TANDBERG
TANDBERG 3000 MXP Profile Manuel utilisateur
TANDBERG
TANDBERG 1000 MXP Manuel utilisateur
TANDBERG
TANDBERG Codec C Series Manuel utilisateur
TANDBERG
TANDBERG 880 MXP Manuel utilisateur
TANDBERG
TANDBERG Telepresence T3 119076.02 Instructions de montage
TANDBERG
TANDBERG 150 MXP Manuel utilisateur
TANDBERG
TANDBERG D12155-10 Manuel utilisateur
TANDBERG
TANDBERG 3000 MXP Profile Manuel utilisateur
TANDBERG
TANDBERG 150 MXP Manuel utilisateur
Manuels Système de conférence populaires d'autres marques
Kramer
Kramer VIA GO Manuel utilisateur
AVT
AVT MAGIC AC1 Go Manuel utilisateur
ProSoft Technology
ProSoft Technology AN-X4-AB-DHRIO Manuel utilisateur
Sony
Sony PCS-I150 Manuel utilisateur
Middle Atlantic Products
Middle Atlantic Products VTC Series Manuel utilisateur
Prentke Romich Company
Prentke Romich Company Vanguard Plus Mode d’emploi
