Tanaka TPH-200 Manuel utilisateur

Owner’Owner’

Owner’s Mans Man

s Mans Man

s Manualual

ualual

ual

Model Numbers:

TPH-200TPH-200

TPH-200

POLE HEDGETRIMMER APOLE HEDGETRIMMER A

POLE HEDGETRIMMER ATTTT

TTTT

TTAA

ACHMENTCHMENT

CHMENTCHMENT

CHMENT

P/N 30350

Date 05-21-01

Supplier To The Outdoor Power Equipment Industry

ISM, Inc. • 1028 4th Street SW • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212

www.tanakapowerequipment.com [email protected]

TPH-200

www.tanakapowerequipment.com 1 [email protected]

Owner’s Manual

TPH-200

Before using this unit:

• Read the operator’s manual carefully.

• Check that the cutting equipment is correctly assembled

and adjusted.

• Start the unit and check the carburetor adjustment.

See “Maintenance”.

WARNING

Read, understand and follow all

warnings and instructions in this

manual and on the unit.

Always wear eye, head and ear

protectors when using this unit.

It is important that you read, fully understand

and observe the following safety precautions

and warnings. Careless or improper use of the

unit may cause serious or fatal injury.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects and other reproductive harm.

Do not touch the blade when

running the engine.

www.tanakapowerequipment.com 2 [email protected]

Owner’s Manual

TPH-200

1. Introduction

It is important that you read and understand your TANAKA brush cutter owner's manual as well as

this manual. Please carefully review and observe all safety precautions and warnings. Careless or

improper use of the unit may cause serious or fatal injuries.

This pole trimmer attachment has been designed for certain TANAKA brush cutters.

NOTE!

Do not use this attachment on the brush cutters with over 26 ml (cc) engines.

SAFE OPERATION

CAUTION!

• Always wear gloves during operation or maintenance.

• Review the area to be trimmed. Look for hazards that

could contribute to unsafe conditions. DO NOT operate

unit if any wires(power, telephone, cable, etc.) are

closer than 15M (50ft.) to any part of the operator or

unit. (Fig. 1 -1 )

• Spectator and fellow workers must be warned, and

children and animals prevented

• from coming nearer than 15M (50ft.) while the pole

trimmer is in use. (Fig. 1 -2)

• Avoid all power lines. This unit is not insulated against

electrical current.

• Always wear head protection with full face shield to help

protect against falling branches and debris. (Fig. 1 -2)

WARNING DANGER

All overhead electrical conductors and

communications wires can have electricity

flow with high voltages. Never touch wires

directly or indirectly when pruning,

otherwise serious injury or death may result.

www.tanakapowerequipment.com 3 [email protected]

Owner’s Manual

TPH-200

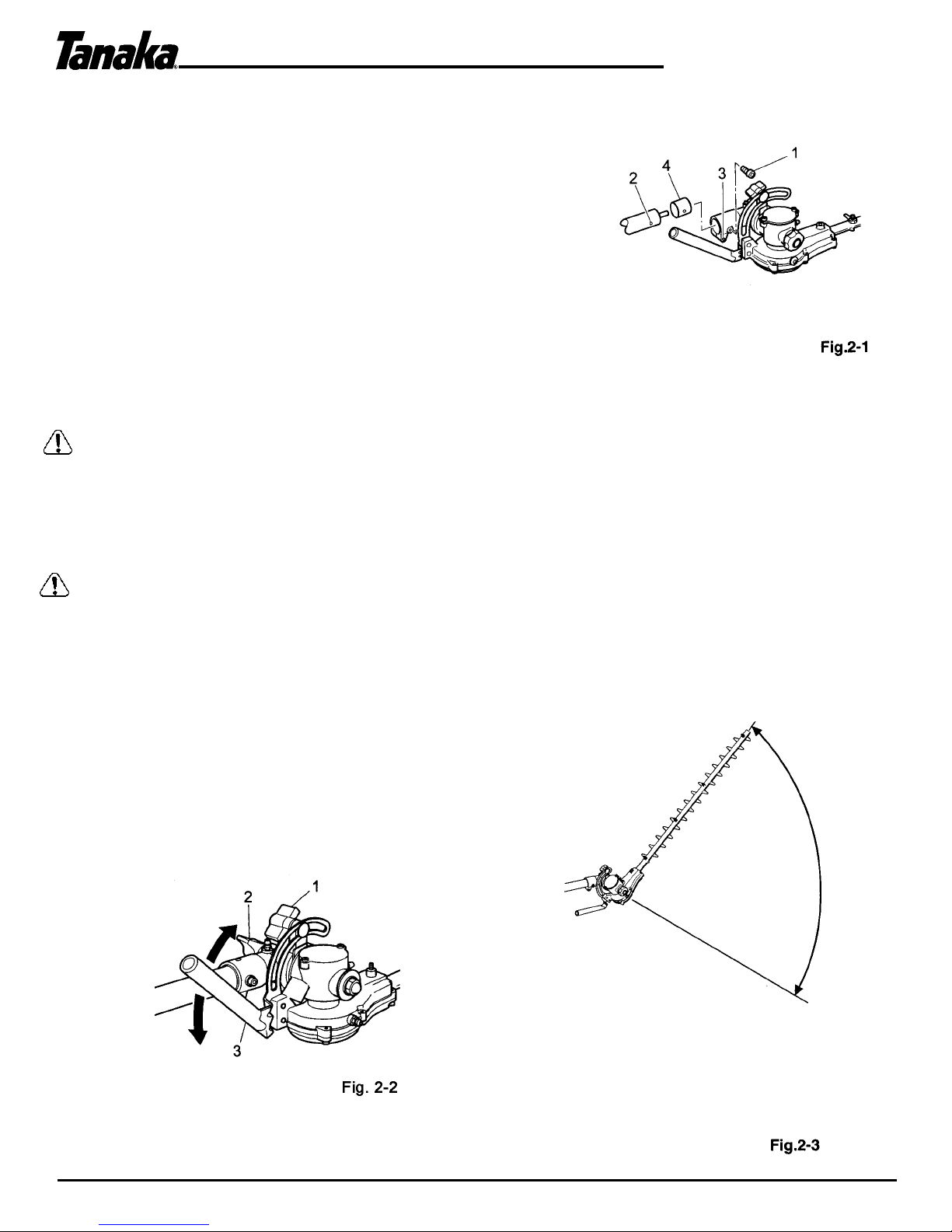

2. Assembly procedures

Installation of cutting attachment (Fig. 2-1)

1. Remove gear case from your brush cutter.

2. Join the attachment in place of it.

NOTE!

If your brush cutter tube is 26mm diameter, remove bracket

collar B (4) from the attachment.

3. Make sure the locking bolt (1) fits in the location hole (2)

of tube and that the tube will not come off.

4. Tighten the clamp bolt (3) securely.

WARNING!

During operation, hold the unit firmly with both hands. A single hand operation may

cause serious injury.

Adjustment of blade angle (Fig. 2-2, 3)

WARNING!

Always stop engine before making adjustments.

Never touch the blade when adjusting blade angle. Hold the support handle (3) instead.

1. Stop the engine.

2. Loosen wing nut (1) and knob nut (2) slightly so that the support handle (3) slides.

3. Adjust the blade angle to desired position by holding

the support handle (3).

4. Then, finger-tighten the knob nut (2) securely and

also the wing nut (1).

www.tanakapowerequipment.com 4 [email protected]

Owner’s Manual

TPH-200

3. Trimming techniques

• This attachment is designed for trimming hedges and small branches. Follow these tips

for successful operation.

• Plan cut carefully. Check direction branch will fall.

• Long branches should be trimmed in several pieces.

• Do not stand directly beneath branch being cut.

• Apply a light cutting pressure.

• Ease cutting pressure when nearing end of cut to maintain control.

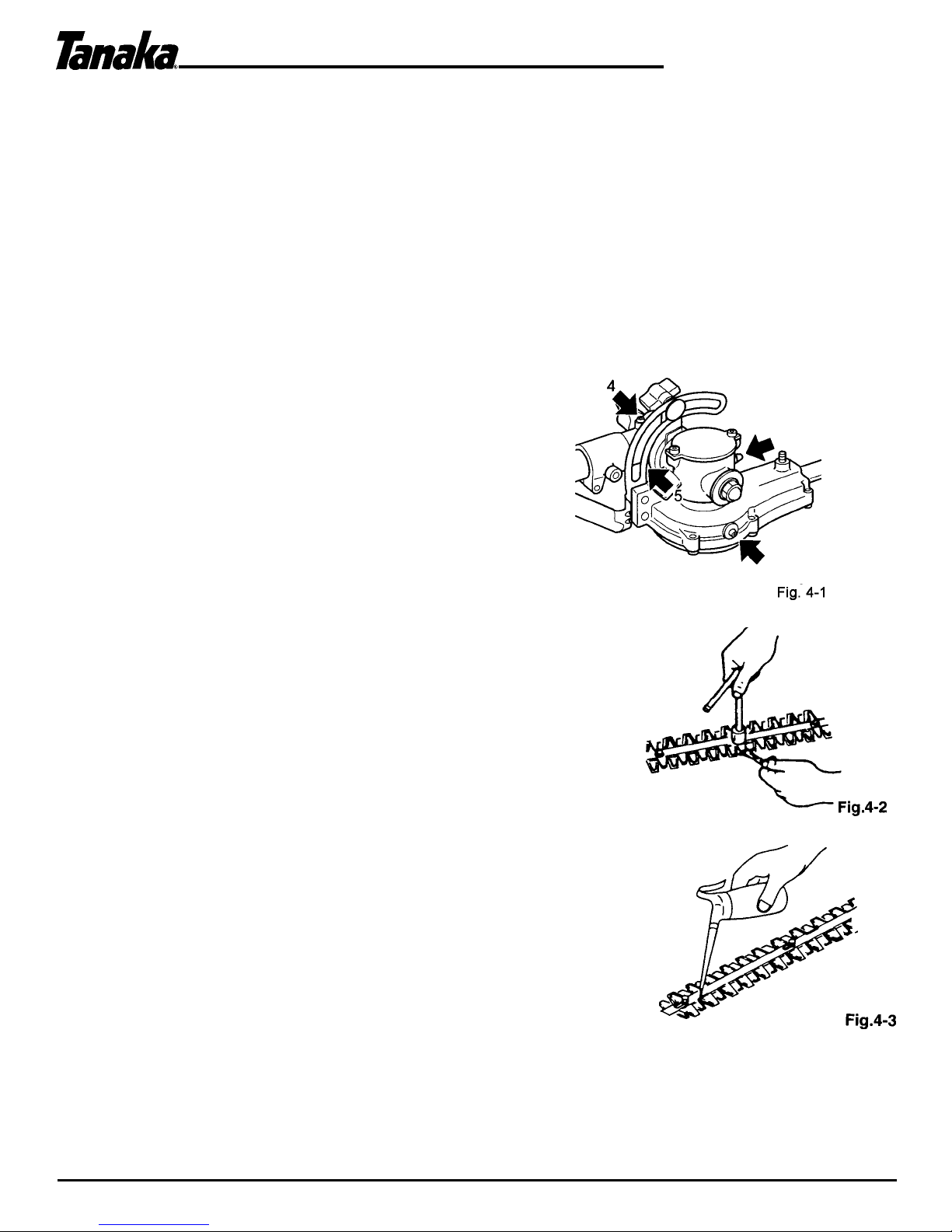

4. Maintenance

Gear case (Fig. 4-1)

Apply a good quality lithium based grease through the

grease fittings.

NOTE!

Lubrication should be applied at 50 hour intervals and more

frequent at heavy use.

Cutter blade (Fig. 4-2, 3)

The blades are installed to the cutter guide with three to five bolts

depending on cutter length. Those bolts are tightened with a

clearance so that the cutters can move smoothly.

When clearance is too small:

The cutters do not move properly and the sliding surfaces may

seize.

When clearance is too large:

The cutters are poor in sharpness.

To adjust the cutter clearance:

1. Loosen the cutter fixing nuts.

2. Fully tighten the cutter fixing bolts and then loosen them

approx. 1/2 turn.

3. With the bolts set at that position, tighten the cutter fixing

nuts.

Be sure to replace cutter guide fixing bolts when they are loosened, worn or damaged. Also be sure

to replace damaged cutter blade.

NOTE!

Properly lubricate the cutter sliding surfaces with machine oil.

www.tanakapowerequipment.com 5 [email protected]

Owner’s Manual

TPH-200
