Tanaka TBC-280PF Guide de configuration

IllustrIllustr

Illustraa

ated Pted P

ted Pted P

ted Parar

arar

arts Mants Man

ts Mants Man

ts Manualual

ualual

ual

Model Number:

TBC-280PF

GRASS TRIMMER

P/N 41067

Rev 000

Date 5-30-08

Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212

www.tanakapowerequipment.com [email protected]

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 1

TBC-280PF

CYLINDER, PISTON, CRANKSHAFT, IGNITION • FIGURE 1

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

1-1 1570168090 CAP,SPARK PLUG ASS'Y 1

1-2 01801805200 PLUG,SPARK 1

1-6 0010740A90 CYLINDER SET 1 Includes gasket

1-7 99461050184 BOLT,HEX,5X18,S 4

1-9 0170735020 GASKET,CYLINDER 1

1-11 0410170020 RING,PISTON 2

1-12 0300735090 PISTON SET 1 Includes rings and circlips

1-13 03901620200 CIRCLIP,PISTON PIN 2

1-14 0370704520 PIN,PISTON 1

1-16 0460735082 CRANKSHAFT 1

1-40 1780168080 CORD,STOP 1

1-41 2740168080 CORD,EARTH 1

1-46 99464040184 BOLT,HEX 4x18WS 2

1-50 1672101490 COIL,IGNITION 1

1-60 1820186A201 WASHER,SPECIAL 2

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 2

TBC-280PF

CRANKCASE & FLYWHEEL • FIGURE 2

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

2-19 33000200230 SHIM,12.2X19X.20 1

2-19 33000200240 SHIM,12.2X19X.30 1

2-24 1552101480 FLYWHEEL 1

2-25 99101080011 NUT,8 1

2-27 99201080011 WASHER,8 1

2-31 0720304593 CRANKCASE ASSY 1 Includes bearings, seals and gasket

2-32 99966122206 SEAL,OIL,#TC12227 2

2-33 99961600115 BEARING,BALL,#6001 C3 2

2-34 0900735022 GASKET,CRANKCASE 1

2-36 99461050164 BOLT,HEX,5X16,S 4

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 3

TBC-280PF

FUEL SYSTEM • FIGURE 3

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 4

TBC-280PF

FUEL SYSTEM • FIGURE 3

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

3-80 4030702021 GASKET,INLET MANIFOLD 1

3-81 4040702091 INSULATOR SET 1 Includes gasket

3-82 99464050255 BOLT,HEX,5x25WS 2

3-83 61425137200 ADJUSTER,CABLE 1

3-85 4020656A200 GASKET 2

3-86 5280652N22 PLATE,CHOKE,2.0 1

3-87 99101060013 NUT,6 1

3-88 4230652N80 BODY,AIR CLEANER 1

3-89 4460652N20 CLEANER,ELEMENT 1

3-90 4520304690 COVER,BLACK 1

3-91 4500702480 BOLT,CLEANER COVER 1

3-94 99011050552 SCREW,5X55 2

3-95 99210050012 WASHER,S,5 2

3-96 99200050011 WASHER,SMALL,5 2

3-98 4550740A90 CARBURETOR SET 1 Includes gasket

3-99 5230652N20 LEVER,CHOKE 1

3-100 5910735F20 TANK,FUEL,EVAPO 1

3-109 6590430020 COLLAR,C 3

3-110 53432710200 GROMMET,FUEL PIPE 1

3-111 70003005350 PIPE,FUEL,3X5X350 1

3-112 6750404280 FILTER,FUEL 1

3-113 68000731201 CLIP 6.3 1

3-114 2230162V900 PIPE,FUEL,3x5x160 1

3-115 99464050255 BOLT,HEX,5x25WS 1

3-116 99463050204 BOLT,HEX 5X20 2

3-117 5950300290 CAP,TANK (BLACK/RED) 1

3-118 99349040142 SCREW,TAPPING,4x14P 1

3-119 99201040011 WASHER,4 1

3-120 9400735020 STAND 1

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 5

TBC-280PF

MUFFLER, CLUTCH & COVER • FIGURE 4

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 6

TBC-280PF

MUFFLER, CLUTCH & COVER • FIGURE 4

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

4-1 0160750020 COVER,CYLINDER 1

4-4 99463050164 BOLT,HEX,5X16,PS 2

4-5 99051060653 BOLT,HEX,6x65 2

4-6 99201060011 WASHER,6 2

4-7 7060750080 MUFFLER 1

4-8 7510725020 GASKET,MUFFLER 1

4-10 7340725590 TAIL PIPE SET 1

4-11 99436040081 SCREW,4X18WS 2

4-13 7320725020 ARRESTER,SPARK 1

4-21 7380750020 COVER,MUFFLER 1

4-24 99464040185 BOLT,HEX,4x18WS 2

4-30 2570304520 PROTECTOR,SPARK PLUG 1

4-31 35902103200 WASHER,CLUTCH,B 2

4-32 29001620800 SHOE,CLUTCH 2

4-33 3420630B200 SPRING,CLUTCH 1

4-34 3480630A20 PLATE,CLUTCH 2

4-35 3570075T200 BOLT,STEP 2

4-36 99463050204 BOLT,HEX 5X20 3

4-38 99205080030 WASHER,8 2

4-45 99072045164 SCREW,TAPPING,4.5X16 1

4-73 1330750020 SHIELD,HEAT 1

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 7

TBC-280PF

STARTER • FIGURE 5

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

5-0 7620304590 STARTER ASS'Y 1

5-1 7720304580 BODY,STARTER 1

5-2 7740304520 PULLEY,STARTER 1

5-3 7790304520 SPRING,RECOIL 1

5-4 7770304520 ARM,SWING 1

5-5 8390304520 SCREW,SET 1

5-6 7710304520 STAY,PULLEY 1

5-7 7830304520 ROPE,STARTER 1

5-8 7850304520 HANDLE,STARTER 1

5-9 3153334020 NUT,SPECIAL 5MM 1

5-22 7980304520 PULLEY,STARTER 1

5-24 99464040185 BOLT,HEX,4x18WS 2

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 8

TBC-280PF

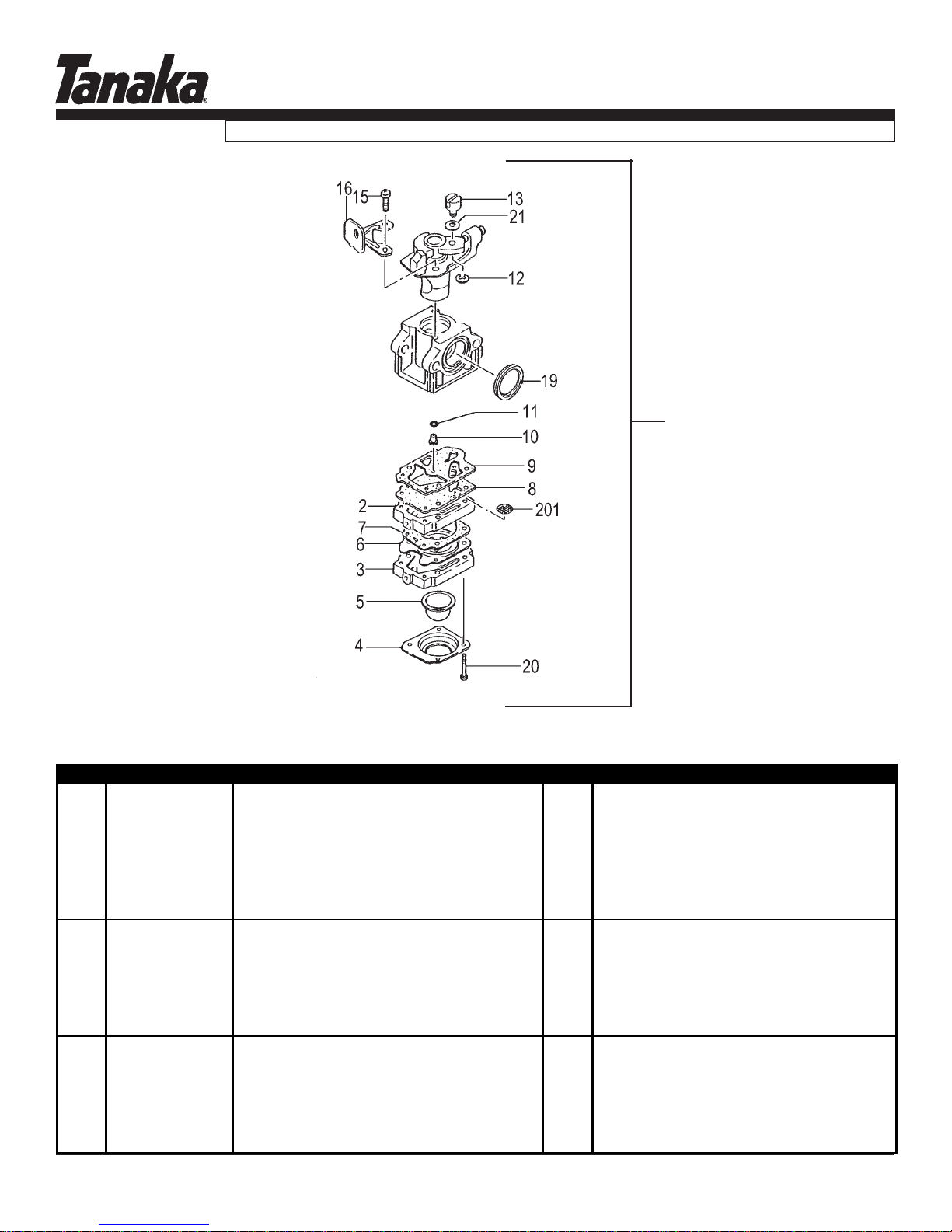

CARBURETOR • FIGURE 6

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

6-0 4550740A90 CARBURETOR SET 1 Includes gasket

6-2 5752515380 BODY,PUMP 1

6-3 4422515180 PUMP,PRIMING 1

6-4 4762515120 COVER,DIAPHRAGM 1

6-5 44725108200 BULB,PRIMING 1

6-6 ~~~ METERING DIAPHRAGM 1 Included in Carb Kit #650-25124-900

6-7 ~~~ GASKET,DIAPHRAGM 1 ~ Items not available individually

6-8 ~~~ DIAPHRAGM,PUMP 1

6-9 ~~~ GASKET,PUMP 1

6-10 5992001W38 JET,MAIN,LONG #38 1

6-11 55025100200 O-RING 1

6-12 48925100200 RING,STOP 1

6-13 53925120200 SWIVEL 1

6-15 51425100200 SCREW,THROTTLE SET 2

6-16 54425164200 STAY,ADJUST,CABLE 1

6-19 4310634C200 GASKET,CLEANER 1

6-20 5482515120 SCREW,SET 4

6-21 5492516520 WASHER,THRUST 1

6-201 57825007200 SCREEN,INLET 1

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 9

TBC-280PF

FAN CASE & CLUTCH DRUM • FIGURE 7

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

7-1 2890307080 DRUM,CLUTCH 1

7-3 99350012002 RING,STOP,C-12 EX 1

7-5 5990098021 CUSHION,RUBBER 1

7-6 99051050163 BOLT,HEX,5X16 1

7-8 99461050254 BOLT,HEX HOLE,5X25S 1

7-11 1120304580 CASE,FAN 1 Includes bearing

7-15 3600099620 PIPE HOLDER 1

7-26 99201050061 WASHER,5 1

7-27 3243735020 WASHER,GEAR CASE 1

7-28 3610099020 FITTING,METAL 1
