Model Number:

TBC-340PF,PFD

GRASS TRIMMER / BRUSHCUTTER

P/N 32348

Rev 000

Date 7-15-08

Supplier To The Outdoor Power Equipment Industry

Tanaka America • 1028 4th Street SW Ste “B” • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212

custsvc@tanaka-usa.comwww.tanaka-usa.com

www.tanaka-usa.com

PARTS INFORMATION

[email protected]

Page 1

TBC-340PF,PFD

CYLINDER, PISTON, CRANKSHAFT, IGNITION • FIGURE 1

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

1-1 15701570900 CAP,SPARK PLUG,ASSEMBLY 1

1-2 0181161021 PLUG,SPARK 1

1-6 0010725090 CYLINDER SET 1 Includes gasket

1-7 99461050164 BOLT,HEX,5X16,S 4

1-9 0170725020 GASKET,CYLINDER 1

1-11 04101730200 RING,PISTON 2

1-12 0300703091 PISTON SET 1 Includes rings and circlips

1-13 03900000201 CIRCLIP,PISTON PIN 2

1-14 03701400200 PIN,PISTON 1

1-16 0460703A81 CRANKSHAFT 1

1-17 99962091325 BEARING,NEEDLE,F-910 1

1-18 06810100200 KEY,WOODRUFF,3X13X4.5 1

1-44 1780703B80 CORD,STOP B 2

1-46 99464040184 BOLT,HEXT 4X18WS 1

1-47 1820186A201 WASHER,SPECIAL 2

1-50 1672054691 COIL,IGNITION 1

1-55 1782055320 WIRE,HIGH TENSION,180L 1

1-56 56020517200 CAP,RUBBER 1

1-57 1910702590 WIRE,LEAD ASS'Y 1

www.tanaka-usa.com

PARTS INFORMATION

[email protected]

Page 2

TBC-340PF,PFD

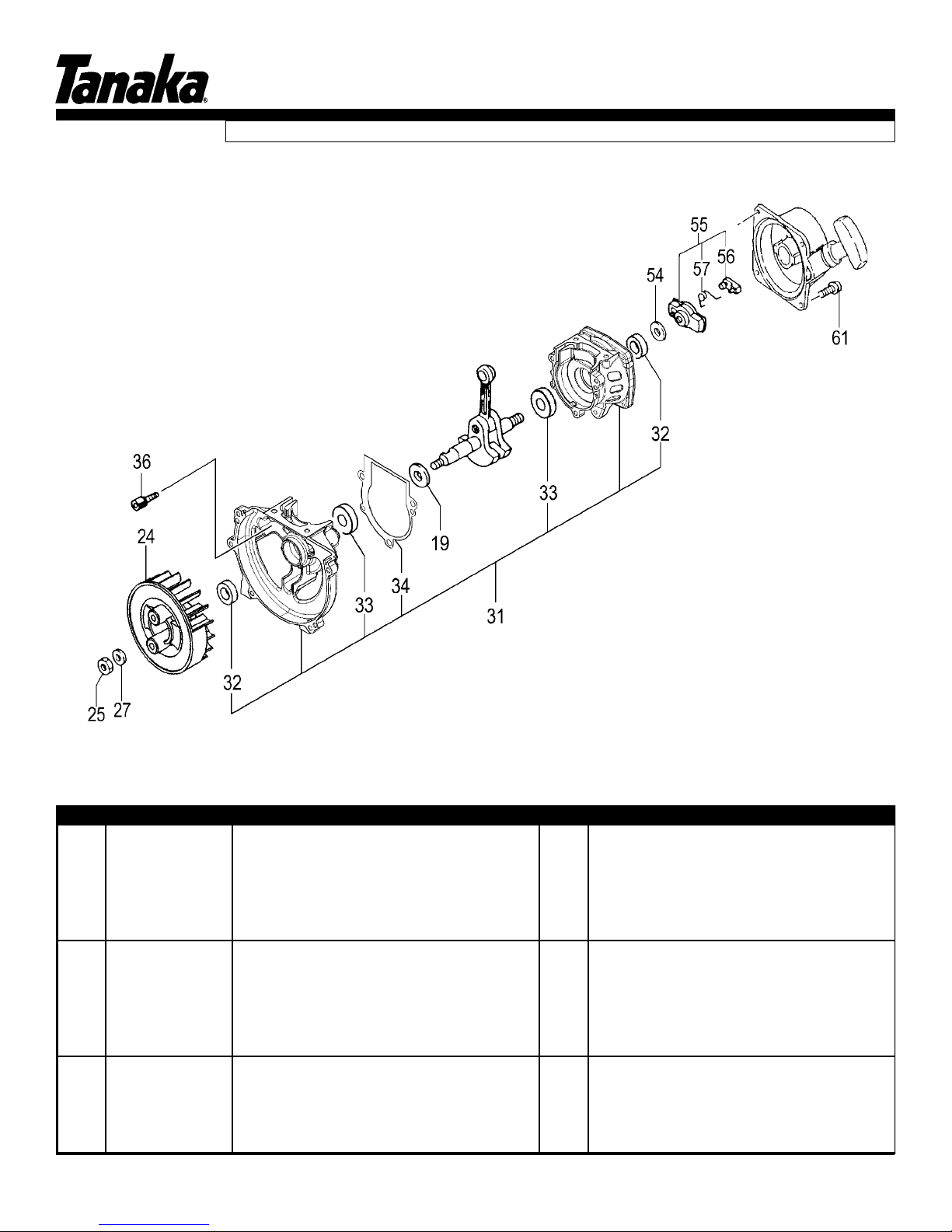

STARTER PAWL, FLYWHEEL, CRANKCASE • FIGURE 2

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

2-19 33000200210 SHIM,12.2X19X.10 1

2-19 33000200220 SHIM,12.2X19X.15 1

2-19 33000200230 SHIM,12.2X19X.20 1

2-19 33000200240 SHIM,12.2X19X.30 1

2-24 1552054980 ROTOR,MAGNETO 1

2-25 99101080011 NUT,8 1

2-27 99200080011 WASHER,8 1

2-31 0720725090 CRANKCASE ASSY 1 Includes bearings, seals and gasket

2-32 99966122240 SEAL,OIL,#12227 2

2-33 99961600115 BEARING,BALL,6001 C3 2

2-34 0900725020 GASKET,CRANKCASE 1

2-36 99461050164 BOLT,HEX,5X16,S 3

2-54 99201080011 WASHER,8 1

2-55 7980166R90 PULLEY,STARTER,ASS'Y 1

2-56 7880138A20 PAWL,STARTER 1

2-57 7900162V200 SPRING,PAWL,STARTER 1

2-61 99464040185 BOLT,HEX,4x18WS 2

www.tanaka-usa.com

PARTSINFORMATION

[email protected]m

Page 3

TBC-340PF,PFD

FUEL SYSTEM •FIGURE 3

126

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]m

Page 4

TBC-340PF,PFD

FUEL SYSTEM •FIGURE 3

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

3-80 4030702021 GASKET,INLET MANIFOLD 1

3-81 4040702091 INSULATOR SET 1

3-82 99464050254 BOLT,HEX HOLE,5X25WS 2

3-85 4020656A200 GASKET 1

3-86 5280652N22 PLATE,CHOKE,2.0 1

3-88 4230652N80 BODY,AIR CLEANER 1

3-89 4460652N20 CLEANER,ELEMENT 1

3-90 4520304690 COVER,BLACK 1

3-91 4500702480 BOLT,CLEANER COVER 1

3-94 99051050553 BOLT,HEX,5X55 2

3-95 99210050012 WASHER,S,5 2

3-96 99200050011 WASHER,SMALL,5 2

3-98 4550304590 CARBURETOR SET 1

3-99 5230652N20 LEVER,CHOKE 1

3-1005910725520 TANK,FUEL,ORANGE Before S/N ~D000000

3-1005910725F20 TANK,FUEL,EVAPO 1 After S/N D000001~

3-1096590430020 COLLAR,C 3

3-11053432710200 GROMMET,FUEL PIPE 1

3-1117000300508 PIPE,FUEL,3X5X85 1

3-1126750404280 FILTER,FUEL 1

3-11368000731201CLIP 6.3 1

3-1142230162V900 PIPE,FUEL,ASS'Y 1

3-11599461050304 BOLT,HEX,5X30S 1

3-11699463050204 BOLT, HEX 5X20 2

3-1175950300290 CAP,TANK (BLACK/RED) 1

3-11899075040154 SCREW,TAPPING,4X15 1

3-11999201040011 WASHER,4 1

3-12099201050061 WASHER,5 1

3-1216490725020 COLLAR,TANK 1

3-1259400725020 BED,ENGINE 1

www.tanaka-usa.com

PARTS INFORMATION

[email protected]

Page 5

TBC-340PF,PFD

CLUTCH, MUFFLER, ANTI-VIBE, FAN CASE • FIGURE 4

www.tanaka-usa.com

PARTS INFORMATION

[email protected]

Page 6

TBC-340PF,PFD

CLUTCH, MUFFLER, ANTI-VIBE, FAN CASE • FIGURE 4

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

4-1 0160725020 COVER,CYLINDER 1

4-4 99463050164 BOLT,HEX,5X16,PS 2

4-5 99053060653 SCREW,HEX,6X65 2

4-6 99201060011 WASHER,6 2

4-7 7060725080 MUFFLER 1

4-10 7340725590 TAIL PIPE SET 1

4-11 99436040081 SCREW,4X18WS 2

4-13 7320725020 ARRESTER,SPARK 1

4-14 7510725020 GASKET,MUFFLER 1

4-21 7380725020 PROTECTOR,MUFFLER 1

4-24 99464040185 BOLT,HEX,4x18WS 2

4-30 2570725020 COVER,PLUG 1

4-35 2900138A80 SHOE,CLUTCH 2

4-36 3420138A20 SPRING,CLUTCH 1

4-37 35910112203 WASHER,CLUTCH B 2

4-39 99204100030 WASHER,WAVE,10 4

4-40 3570136U200 BOLT,STEP,CLUTCH 2

4-42 99350012002 RING,STOP,C-12 EX 1

4-43 1120702181 CASE,FAN 1

4-45 99073045144 SCREW,TAPPING 4.5x14 1

4-46 99464050184 BOLT,HEX,5X18,WS 4

4-47 5990702020 CUSHION 2

4-48 99072050144 SCREW,TAPPING,5X14 4

4-52 3600703020 HOLDER,PIPE 1

4-53 99461050254 BOLT,HEX HOLE,5X25S 1

4-54 99414040121 SCREW,4X12/S 1

4-58 2890703180 SHAFT,CLUTCH 1

4-62 99353032002 RING,STOP,R-32 INNER 1

4-63 0880702020 CASE,BEARING 1

4-64 99961620101 BEARING,BALL #6201ZZ 1

4-71 20311660200 GROMMET,PRIMARY CORD 1

4-73 1330725020 SHIELD,HEAT 1

www.tanaka-usa.com

PARTSINFORMATION

[email protected]

Page 7

TBC-340PF,PFD

RECOIL STARTER • FIGURE 5

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

5-0 7620162V900 STARTER,RECOIL ASS'Y 1

5-2 78501620200 HANDLE,STARTER 1

5-3 78006150200 GUIDE,ROPE 1

5-4 77206150200 BODY,RECOIL STARTER 1

5-5 7790136U200 SPRING,RECOIL 1

5-6 7830162V200 ROPE,STARTER,3.5X890 1

5-7 7740162V200 REEL,STARTER ROPE 1

5-8 8010162V200 WASHER,ROPE REEL 1

5-9 83900025200 SCREW,SET 1

Consider ordering the 748732, S-Start Kit if you are

replacingthestarterassy. It decreasesthepull-effort

by60%.They are dependableandeasy to install.

748732

www.tanaka-usa.com

PARTS INFORMATION

[email protected]

Page 8

TBC-340PF,PFD

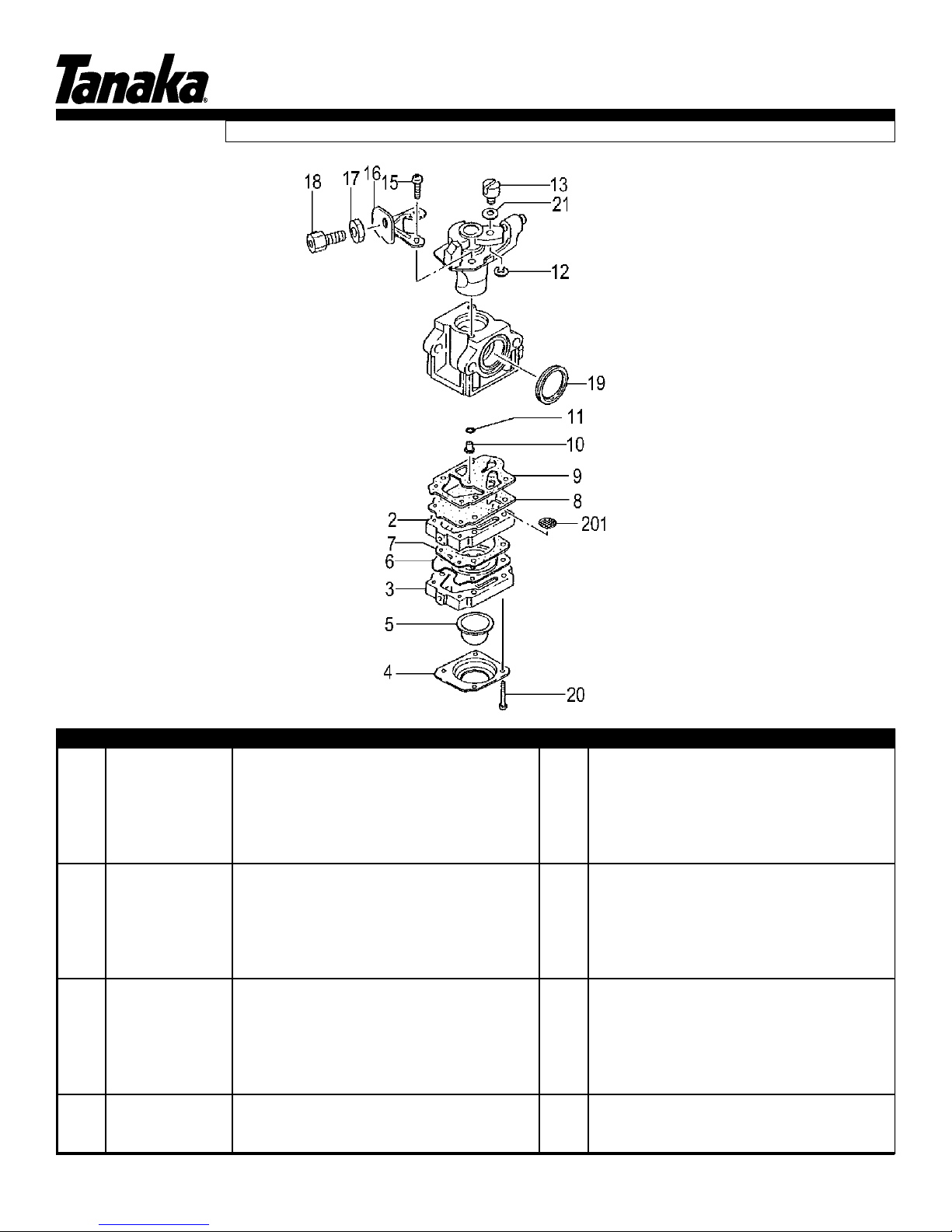

CARBURETOR • FIGURE 6

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

6-0 4550304590 CARBURETOR SET 1 Includes gasket

6-2 5752515380 BODY,PUMP 1

6-3 4422515180 PUMP,PRIMING 1

6-4 4762515120 COVER,DIAPHRAGM 1

6-5 44725108200 BULB,PRIMING 1

6-6 ~ ~ ~ METERING DIAPHRAGM 1 ~ Included in 650.25124.900 Carb Kit

6-7 ~ ~ ~ DIAPHRAGM GASKET 1 (individual parts not sold seperately)

6-8 ~ ~ ~ PUMP DIAPHRAGM 1

6-9 ~ ~ ~ PUMP GASKET 1

6-10 5992001W38 JET,MAIN LONG #38 1

6-11 55025100200 O-RING 1

6-12 48925100200 RING,STOP 1

6-13 53925120200 SWIVEL 1

6-15 51425100200 SCREW,THROTTLE SET 2

6-16 54425164200 STAY,ADJUST,CABLE 1

6-17 99101060003 NUT,6 1

6-18 61425137200 ADJUSTER,CABLE 1

6-19 4310634C200 GASKET,CLEANER 1

6-20 5482515120 SCREW,SET 4

6-21 5492516520 WASHER,THRUST 1

6-201 57825007200 SCREEN,INLET 1

www.tanaka-usa.com

PARTS INFORMATION

[email protected]

Page 9

TBC-340PF,PFD

HANDLE, THROTTLE LEVER, SHAFT (TBC-340PF) • FIGURE 7
