1INTRODUCTION

1.1 PURPOSE OF THE MANUAL

This guide contains information on precautions to be used during the handling and installation of Talesun Solar Co., Ltd

photovoltaic modules along with technical instructions to be followed during installation, mounting, wiring and main-

tenance thereof. Talesun Solar Co., Ltd hereafter is referred to as “Talesun”. Any divergence from the contents of this

manual during the handling, installation, or maintenance of Talesun’s products will render the warranty and any guarantees

there under null and void.

Information for installers

Installers must read and understand this manual before installation.

Please ensure that installation, operation and maintenance of your photovoltaic system is only carried out by qualified

persons able to carry out the technical procedures described in this manual, i.e. system planers, installers and

maintenance personnel, and is carried out in accordance with all safety precautions in this manual and any and all

applicable local codes. If you do not possess these qualifications, you may not carry out the work described herein

except for cleaning.

This manual and the instructions set forth herein are part of the product and should therefore be kept for the entire

useful life of the solar installation.

Information for operators

Keep these instructions safe for the entire useful life of the solar installation.

Please contact your plant supplier for information concerning the formal requirements for solar systems. Please be

sure to learn about directives and permit requirements from the responsible local authorities and energy providers

prior to installation of the solar plant.

We recommend that you insure your solar system against natural hazards (e.g. against lightning strikes).

1.2 DISCLAIMER OF LIABILITY

These instructions are only valid for products of Talesun.

The information in this manual is based on Talesun’s knowledge and experience and is believed to be reliable; but

such information including product specification (without limitations) and suggestions do not constitute a warranty,

expressed or implied. Talesun reserves the right to change the manual, the PV products, the specifications, or product

information sheets without prior notice.

Because of the use of this manual and the conditions or methods of installation, operation, use and maintenance of

photovoltaic products are beyond Talesun’s control, Talesun assumes no liability for damage, loss, or expense arising

out of or in any way connected with such installation, operation, use or maintenance. Talesun assumes no

responsibility extending beyond the functional capability and safety of the modules. This manual is only for reference.

No license is granted by implication or otherwise under any patent or patent rights.

If your questions are not adequately addressed in this manual, please first contact your system supplier. You can find

more information on our website www.talesun.com.

1.3 PRODUCTION IDENTIFICATION

Each module has three labels that provide the following information:

INSTALLATION MANUAL FOR CRYSTALLINE SOLAR PHOTOVOLTAIC MODULES

Version: A2 Effective Date: May 13, 2015

ZHONGLI TALESUN SOLAR COMPANY LIMITED

Address: No. 1 Talesun Road, Changkun Industrial Park, Shajiabang Town, Changshu, Suzhou, Jiangsu Province, 215542, P.R.China

Website: www.talesun.com Email: sales@talesun.com Tel: +86 400 885 1098

3 / 19

Nameplate: describes the product type; rated power, rated current, rated voltage, open circuit voltage, short circuit

current, all as measured under standard test conditions; weight, dimension etc.; the maximum system voltage is 1000

volts DC is shown on the nameplate. Maximum fuse rating is also shown.

“QA Pass” stamp: module will be strictly inspected according to standard and get a QA Pass stamp on the backsheet.

2-dimensional Bar code: The serial number has 16 digits. There are two bar codes on each module. One is permanently

attached to the interior of the module and is visible when viewing the front of the module, and another is stuck to the

rear side of the module.

Removing a label will make the Talesun warranty void.

2SAFETY GUIDELINES

2.1 GENERAL SAFETY GUIDELINES

DANGER! Danger due to electric shock!

All installations must be performed in compliance with all applicable regional and local codes, or

other national or international electrical standards as applicable.

A solar module generates electricity and voltage even at low intensity of illumination.

Physically disconnecting contacts in a live electrical circuit can cause arching, resulting in

grave or mortal injury. The severity increases when several modules are connected in series.

Cover the solar modules with opaque material for the entire duration of assembly. Only then is the module reliably de-

energized.

Never disconnect plugs when under load. Be aware that even without the presence of daylight, residual charge may still

be present in the plant. Ensure that the modules are first disconnected from the inverter prior to opening any contacts

in the solar installation.

Artificially concentrated sunlight shall not be directed on the module. Solar modules produce electrical energy when

light shines on their front surface. The DC voltage may exceed 30V. Contact with a DC voltage of 30V or more is

potentially hazardous.

In the case of module or phase voltages of more than 120 V, the extra-low voltage range is left. Undertake the

necessary protective and precautionary measures.

Do not insert electrically conductive parts into the plugs and junction box. Do not touch the contacts or exposed

terminals.

Keep children and unauthorized persons away from the modules.

In case of damaged modules or operational errors of the solar array, always contact your installer or Talesun Technical

Customer Service.

Do not wear metallic ornaments or metallic devices while installing or troubleshooting photovoltaic systems.

WARNING! Danger of injury due to broken glass! Risk of injury due to falling modules!

The modules are primarily made of glass and must therefore be handled with appropriate caution.

In order to ensure safe mounting, familiarize yourself with all applicable national regulations for

work safety and accident prevention.

Wear suitable protective clothing (e.g. safety shoes, protective gloves) in order to prevent injuries.

If the front glass is broken, or the back sheet is torn, contact with any module surface or the frame can cause electric

INSTALLATION MANUAL FOR CRYSTALLINE SOLAR PHOTOVOLTAIC MODULES

Version: A2 Effective Date: May 13, 2015

ZHONGLI TALESUN SOLAR COMPANY LIMITED

Address: No. 1 Talesun Road, Changkun Industrial Park, Shajiabang Town, Changshu, Suzhou, Jiangsu Province, 215542, P.R.China

Website: www.talesun.com Email: sales@talesun.com Tel: +86 400 885 1098

4 / 19

shock.

2.2 PRODUCT PRECAUTION

Do not attempt to disassemble the modules.

Do not remove any attached nameplates or components from the modules.

Do not open the junction box under any circumstances.

Only carry out modifications to the modules that have been confirmed by Talesun in

writing in advance.

Do not carry out any extra drilling (e.g. for fasteners) on the modules.

Use only insulated tools that are approved for work on electrical installations.

Do not use light concentrators (e.g. mirrors or lenses) to attempt to increase the capacity of the module. The module

may be damaged. This also voids the warranty.

2.3 TRANSPORT AND STORAGE SAFETY GUIDELINES

Inappropriate transport and installation may break the module. To prevent damage of the modules:

Transport the modules in their original packaging until installation.

Store the modules securely in cool and dry rooms. The packaging is not weather-resistant!

Protect the modules against scratches and other damage, especially from impact at the edges or improper storage.

Ensure modules do not bow under their own weight.

Do not rest a module unprotected on its edges. This can damage the module and the frame.

Do not lift or move the modules using the cables or at the junction box under any circumstances!

Do not set the modules down hard on any surface.

Do not subject the module surfaces to mechanical stress.

Do not stand on the modules.

Do not drop or place objects on the modules.

3MECHANICAL INSTALLATION

3.1 SELECTING THE LOCATION

The modules are certified according to the norm IEC 61215 and others for safe operation in moderate climates. The

operator needs to consider the effect of the high altitude on the operation of the module, when the modules are

installed at high altitude.

Do not expose the modules to chemicals.

Do not place the modules in standing water. The junction box is splash-proof only.

Do not install the modules near flammable gases and vapors (e.g. gas containers) or near open flames and flammable

materials. Solar modules are not explosion-proof operating equipment.

If there is exposure to salt (i.e., marine environments) and sulfur (i.e., sulfur sources, volcanoes), there is a risk of

corrosion.

A module is considered shade-free when it is entirely unshaded throughout the year (e.g. by buildings, chimneys,

trees). Even partial shading of the modules (e.g. by overhead lines, dirt, snow) should be avoided.

3.2 SELECTING THE PROPER SUPPORTING FRAME

Always observe the instructions and safety precautions included with the support frames to be used with the modules.

INSTALLATION MANUAL FOR CRYSTALLINE SOLAR PHOTOVOLTAIC MODULES

Version: A2 Effective Date: May 13, 2015

ZHONGLI TALESUN SOLAR COMPANY LIMITED

Address: No. 1 Talesun Road, Changkun Industrial Park, Shajiabang Town, Changshu, Suzhou, Jiangsu Province, 215542, P.R.China

Website: www.talesun.com Email: sales@talesun.com Tel: +86 400 885 1098

5 / 19

Install each module to a mounting structure:

That is made of durable, corrosion-resistant and UV-resistant material.

That can transfer forces on the module to the assembly substructure.

That ensures that no mechanical stress (e.g. caused by vibrations, twisting or expansion) is generated on the module.

That ensures sufficient back ventilation of the module.

That ensures long term stability.

That will not give rise to galvanic corrosion in case of direct metal contact (i.e. grounding lead, screws, washers, etc.)

That allows for strain-free expansion and contraction due to natural ambient temperature variations.

3.3 GENERAL INSTALLATION

Modules connected in series should be installed at the same orientation and angle. Different orientations or angles may

cause a loss of power output due to the change in sunlight exposure.

When developing the final layout of photovoltaic system, consider keeping suitable access to allow the maintenance

and inspection works. To minimize risk in the event of an indirect lightning strike, avoid forming loops when designing

the system.

The modules may be installed in landscape or portrait format.

Install the module in such a way that the junction box is positioned in

the upper area of the module and the wires hang downwards.

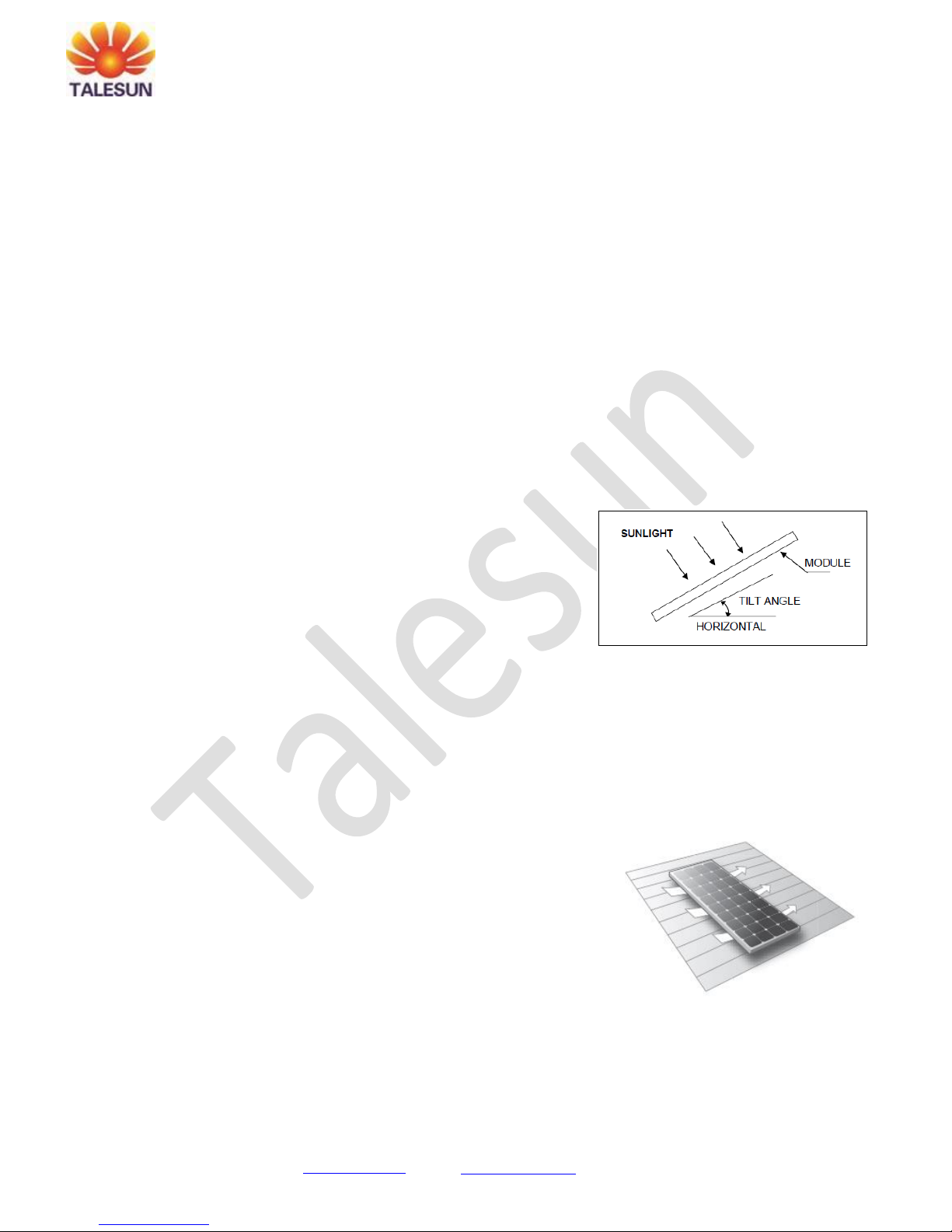

The optimal tilt angle of the module depends on the respective latitude.

We recommend a photovoltaic simulation tool to ensure the optimal

orientation.

Ground mount

Select the height of the mounting system to prevent the lowest edge of the module from being covered by snow for a

long time in winter in areas that experience heavy snowfalls.

In addition, assure the lowest portion of the module is placed high enough so that it is not shaded by plants or trees or

damaged by sand and stones driven by wind.

Roof mount

When installing a module on a roof or building, ensure that it is securely

fastened and cannot fall as a result of wind or snow loads.

Provide adequate ventilation under a module for cooling; the

recommended standoff height is 10cm. Clearance of 1/4 of an inch (6.35

mm) or more between modules is required to allow for thermal expansion

of the frames.

For roof mounting applications the assembly is to be mounted over a fire

resistant roof covering rated for the application. Talesun modules have

been listed as Class C according to UL790 standard.

Any roof penetration required to mount the module must be properly sealed to prevent leaks.

In some cases, a special support frame may be necessary.

The roof installation of solar modules may affect the fireproofing of the building construction.

Do not install modules on a roof or building during strong winds to prevent accidents.

INSTALLATION MANUAL FOR CRYSTALLINE SOLAR PHOTOVOLTAIC MODULES

Version: A2 Effective Date: May 13, 2015

ZHONGLI TALESUN SOLAR COMPANY LIMITED

Address: No. 1 Talesun Road, Changkun Industrial Park, Shajiabang Town, Changshu, Suzhou, Jiangsu Province, 215542, P.R.China

Website: www.talesun.com Email: sales@talesun.com Tel: +86 400 885 1098

6 / 19

All module support structures used to support PV modules at correct tilt angles should be wind and snow load rated

by appropriate local and civil codes prior to installation.

Pole mount

When installing a module on a pole, choose a pole and module mounting structure that will withstand anticipated

winds for the area.

3.4 INSTALLATION METHOD

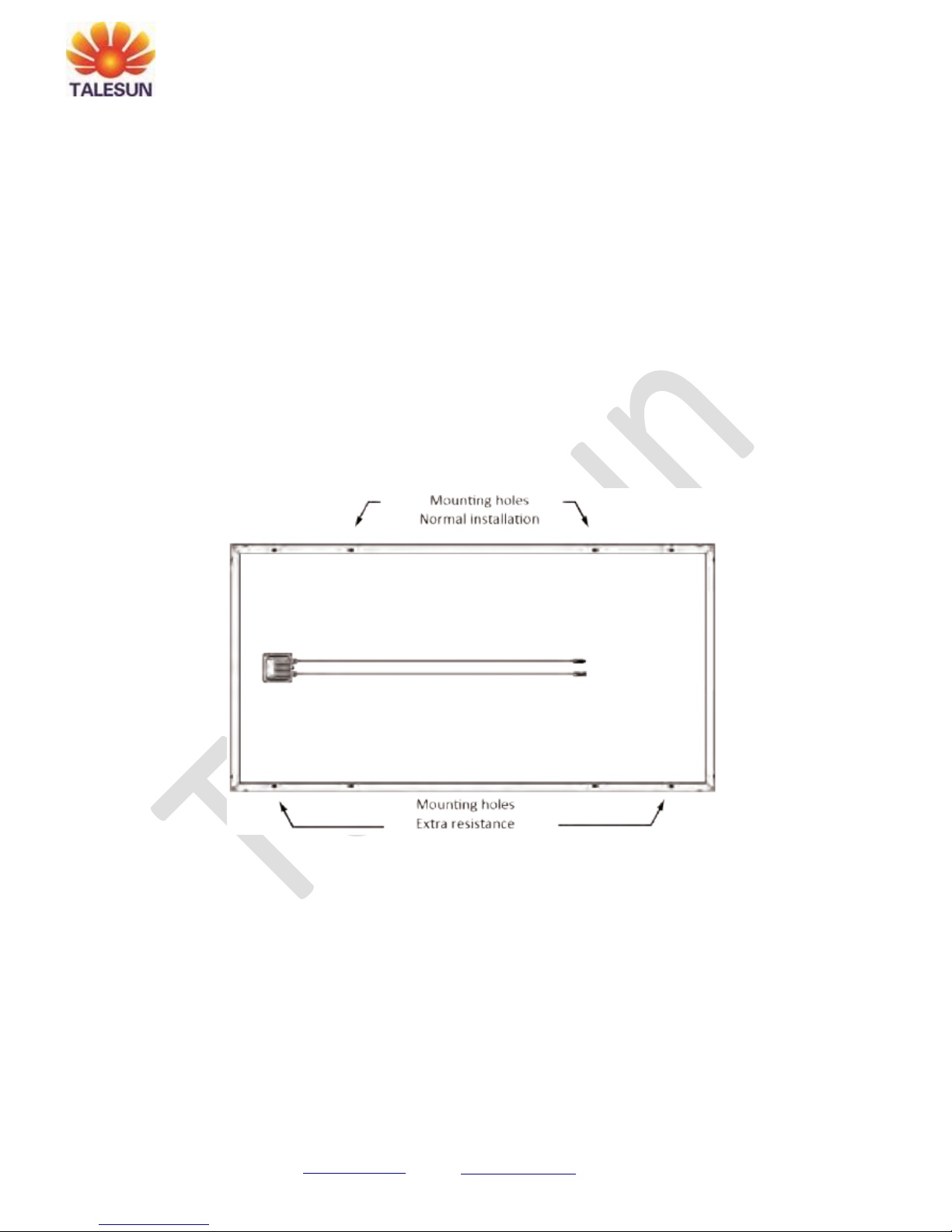

(a) Frame Holes Mounting

Modules must be securely attached to the mounting structure using four pre-drilled mounting holes in the frame.

Modules should be bolted to support structures through mounting holes located in the frame's back flanges only. Do

not drill additional holes. Doing so will void the warranty.

Each module must be securely fastened at a minimum of 4 points. If additional wind or snow loads are anticipated for

this installation, additional mounting points should be used. System designer and installer are responsible for load

calculations and for proper design of support structure.

Use appropriate corrosion-proof fastening materials. All mounting hardware (bolt/split washer/flat washer/nut)

should be stainless steel M8 size.

Follow mounting guidelines recommended by the PV mounting supplier. The mounting design must be certified by a

registered professional engineer.

The mounting design and procedures shall comply with local codes and all authorities having jurisdiction.

Use a torque wrench for installation. Tightening torques should be within 10~17 Nm for M8 coarse thread bolts,

depending on bolt quality class.

INSTALLATION MANUAL FOR CRYSTALLINE SOLAR PHOTOVOLTAIC MODULES

Version: A2 Effective Date: May 13, 2015

ZHONGLI TALESUN SOLAR COMPANY LIMITED

Address: No. 1 Talesun Road, Changkun Industrial Park, Shajiabang Town, Changshu, Suzhou, Jiangsu Province, 215542, P.R.China

Website: www.talesun.com Email: sales@talesun.com Tel: +86 400 885 1098

7 / 19

Ensure that the drainage openings of the frame are left open following installation to allow water runoff. This prevents

frost damage.

Install the module in such a way that rainwater and snowmelt can run off freely to avoid standing water or pudding.

The modules have been designed to resist a static load of 5400Pa (positive load), and this resistance value can

decrease if modules are not mounted following the instructions above.

(b) Clamping installation

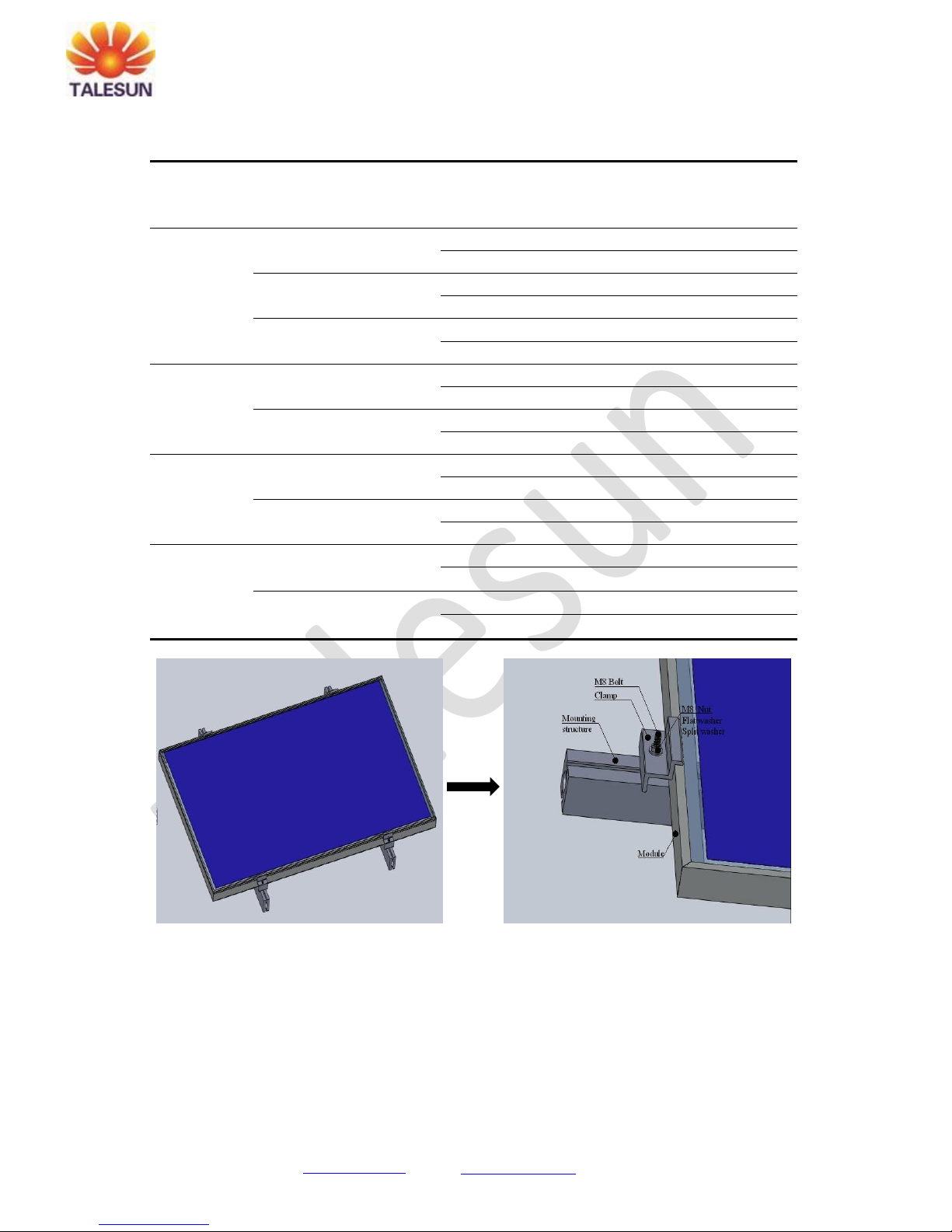

Modules can be installed with clamps. Modules must be securely attached to the mounting structure with four clamps on

the long frame.

The modules must be properly secured to their support so that they can withstand live load condition, including wind

uplift, to the pressure they have been certified for. It’s the installer’s responsibility to ensure the clamps used to

secure the modules are strong enough.

The modules are not subject to wind or snow loads exceeding the maximum permissible loads.

The module clamps which are used must not come into contact with the front glass and must not deform the frame.

Avoid shadowing effects from the module clamps. Drain holes in the module frame must not be closed or obscured by

the clamps.

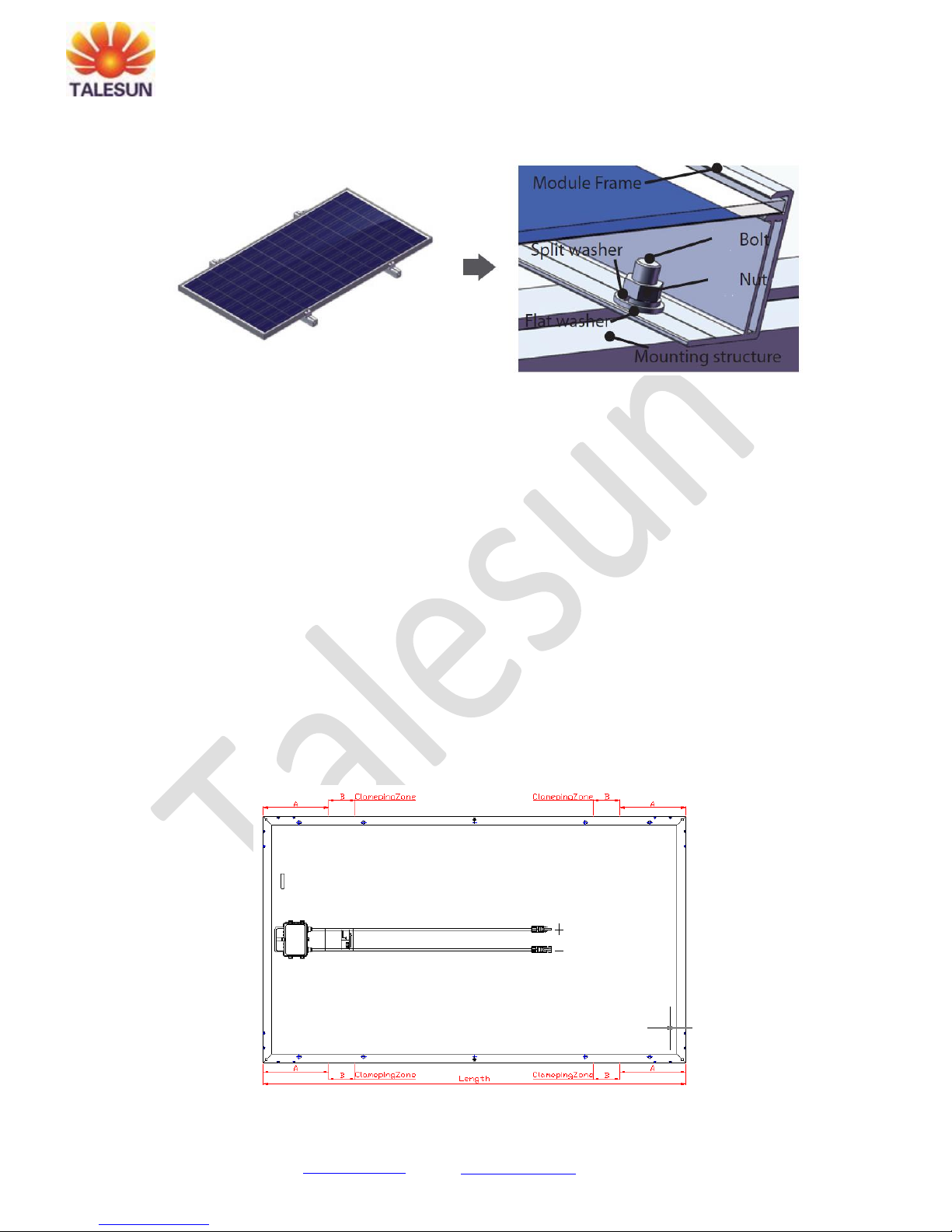

The module installed with clamps on the front frame for 2400Pa load and 5400Pa load (see the following picture), and

refer to the following table for different value of “A”and “B”.

INSTALLATION MANUAL FOR CRYSTALLINE SOLAR PHOTOVOLTAIC MODULES

Version: A2 Effective Date: May 13, 2015

ZHONGLI TALESUN SOLAR COMPANY LIMITED

Address: No. 1 Talesun Road, Changkun Industrial Park, Shajiabang Town, Changshu, Suzhou, Jiangsu Province, 215542, P.R.China

Website: www.talesun.com Email: sales@talesun.com Tel: +86 400 885 1098

8 / 19

Module Type

Module Dimension

Length*Width*Thickness

Load

Distance from module

edge to clamping zone

Clamping zone

TP672 series

1960mm*990mm*40mm

2400Pa

400mm

100mm

5400Pa

400mm

100mm

1960mm*990mm*45mm

2400Pa

400mm

100mm

5400Pa

400mm

100mm

1960mm*990mm*50mm

2400Pa

400mm

100mm

5400Pa

400mm

100mm

TP660 series

1640mm*990mm*35mm

2400Pa

250mm

100mm

5400Pa

250mm

100mm

1640mm*990mm*40mm

2400Pa

250mm

100mm

5400Pa

250mm

100mm

TP648 series

1324mm*990mm*35mm

2400Pa

200mm

100mm

5400Pa

200mm

100mm

1324mm*990mm*40mm

2400Pa

200mm

100mm

5400Pa

200mm

100mm

TP572 series

1580mm*808mm*35mm

2400Pa

200mm

150mm

5400Pa

200mm

150mm

1580mm*808mm*40mm

2400Pa

200mm

150mm

5400Pa

200mm

150mm

Use a torque wrench for installation, and the compression for each clamps is not strong to avoid potential damages to

module frames. The recommended maximum compression for each clamp is 20MPa (2900PSI).

The module mounting structure must be made of durable, corrosion-resistant and UV-resistant material. All mounting

hardware (bolt/flat washer/split washer/nut) should be stainless steel M8 size.

The minimum recommended length for each clamp is 50mm.

The modules have been designed to resist a static load of 2400Pa , and the resistance value can decrease if modules

are not mounted following the instruction above.

INSTALLATION MANUAL FOR CRYSTALLINE SOLAR PHOTOVOLTAIC MODULES

Version: A2 Effective Date: May 13, 2015

ZHONGLI TALESUN SOLAR COMPANY LIMITED

Address: No. 1 Talesun Road, Changkun Industrial Park, Shajiabang Town, Changshu, Suzhou, Jiangsu Province, 215542, P.R.China

Website: www.talesun.com Email: sales@talesun.com Tel: +86 400 885 1098

9 / 19

This manual is just for reference. Customer can select the corresponding installation manual based on the purchased

module.

4ELECTRICAL INSTALLATION

4.1 MODULE SELECTION

Only connect modules of the same type, same configurations and same power class in the same system. This is the only way

to achieve optimal yields.

4.2 SAFTY FACTOR

Under normal conditions, a photovoltaic module may experience conditions that produce more current and/or voltage than

reported at Standard Test Conditions. Accordingly, the values of ISC and VOC marked on modules should be multiplied by a

factor of 1.25 when determining component voltage ratings, conductor capacities, fuse sizes and size of controls connected

to the module output.

Alternatively, all valid national regulations for the installation of electrical systems are to be applied.

Installer need to pay more attention to avoid the PID phenomenon, when installing the electrical system.

4.3 GENERAL INSTALLATION

Before installing modules, contact the appropriate authorities to determine permissions, installation and inspection

requirements to follow that apply to your site and installation.

Check applicable building codes to ensure that the construction or structure (roof, facade, support, etc.) where the

modules are being installed is strong enough to support the weight of the modules and all other system components.

If modules are connected in series, the total voltage is equal to the sum of individual voltages. The recommended max.

number of module (N) = Vmax system / [Voc(at STC)/(1.25×1.25) ].

If the modules are allowed to be installed in parallel electrically, each module (or series string of modules so

connected) shall be provided with the maximum series fuse as specified. For applications requiring high currents,

several photovoltaic modules can be connected in parallel; the total current is equal to the sum of individual currents,

each module (or series string of modules so connected) shall be provided with the maximum series fuse as specified.

The recommended number of module in parallel is only one.

Use special solar cable and suitable plugs only (wiring should be placed in conduit that is sunlight-resistant or, if

exposed, should be sunlight-resistant) in accordance with local fire, building and electrical codes. Ensure that they are

in perfect electrical and mechanical condition.

Only use solar cables as connection cables. Use connectors of the same type and manufacturer within a solar system,

and compatible connectors to connect the inverter.

Ensure that all electrical components are in a proper, dry and safe condition. In this way you avoid electrical short-

circuits or dangerous contact voltages due to defective or damaged cables.

Always avoid mechanical stressing of the connection cables.

Ensure a tight connection between the individual connectors (especially to the inverter). Make sure they click together

properly.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TALESUN Panneau solaire

TALESUN

TALESUN TP672M-315 Manuel utilisateur

Manuels Panneau solaire populaires d'autres marques

Navitron

Navitron HFC-2 Manuel utilisateur

AXITEC

AXITEC 60-CELL Manuel utilisateur

thermital

thermital TSOL 20 N BLU Manuel utilisateur

AZO Digital

AZO Digital MPPT-3000 Manuel utilisateur

Clenergy

Clenergy PV-ezRack SolarTripod Manuel utilisateur

Beretta

Beretta SCF-20N Manuel utilisateur

moovo

moovo KSM001 Manuel du produit

solarwatt

solarwatt EasyIn 60M Series Manuel utilisateur

Solarland

Solarland Portable Series Manuel

Ubiquiti

Ubiquiti sunMAX Manuel utilisateur

Lippert

Lippert Furrion FSFP37MW-BL Manuel utilisateur

Sonnenkraft

Sonnenkraft GK5-HP Manuel utilisateur

REC

REC TwinPeak 2S Mono 72 Series Manuel utilisateur

Sunforce

Sunforce 50039 Manuel utilisateur

Flexsolar

Flexsolar C100 Mode d’emploi

Süd Solar

Süd Solar 03005 Manuel utilisateur

Kodak

Kodak SP21 Manuel utilisateur

Carmanah

Carmanah Go Power! Solar Flex GP-FLEX-30 Manuel utilisateur
