Talboys Professional 1000RS Manuel utilisateur

INSTRUCTION MANUAL

Professional 1000RS Incubating

Rocking Shaker

Professional 1000WS Incubating

Waving Shaker

Warranty

Manufacturer warrants this product to be free from defects in material and workmanship

when used under normal conditions for five (5) years. Please complete and return the

enclosed warranty card. For your reference, make a note of the serial number, date

of purchase and supplier here.

Serial Number: _______________________________________________________

Date of Purchase: ____________________________________________________

Supplier: ____________________________________________________________

table of Contents

Package Contents . . . . . . . . . . . . 1

Warranty . . . . . . . . . . . . 1

Installation . . . . . . . . . . . . 2

Maintenance & Servicing . . . . . . . . . . . . 2

Environmental Conditions . . . . . . . . . . . . 2

Safety Instructions . . . . . . . . . . . . 3

Standards & Regulations . . . . . . . . . . . . 3

Control Panel . . . . . . . . . . . . 4

Specifications . . . . . . . . . . . . 5

Operating Instructions . . . . . . . . . . . . 6-8

Troubleshooting . . . . . . . . . . . . 8

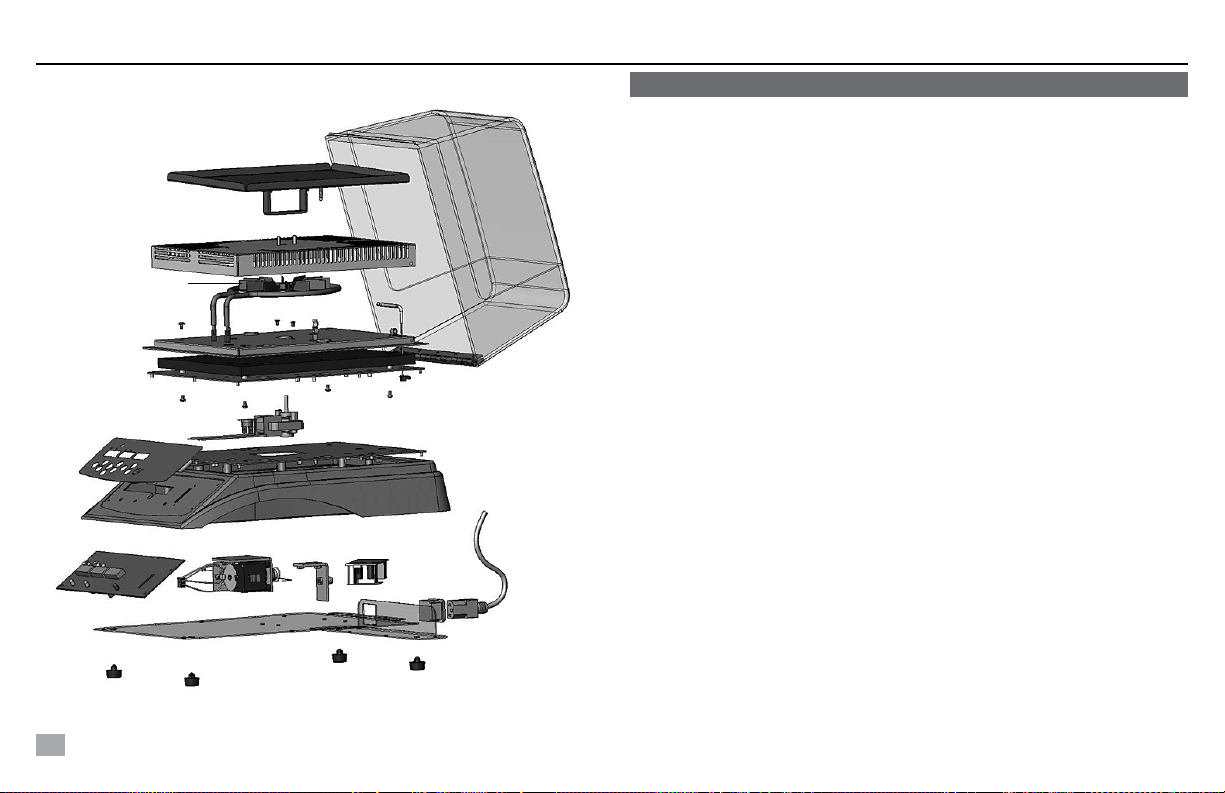

Replacement Parts . . . . . . . . . . . . 9-10

Accessories . . . . . . . . . . . . 11

PaCkage Contents

Professional 1000RS Incubating Rocking Shaker

Professional 1000WS Incubating Waving Shaker

92” (234cm) detachable power cord

Instruction manual

Warranty card

Upon receiving the Talboys Incubating Rocking/Waving Shaker, check to ensure that no

damage has occurred during shipment. It is important that any damage that occurred

in transport is detected at the time of unpacking. If you do find such damage the carrier

must be notified immediately.

After unpacking, place the Incubating Rocking/Waving Shaker on a level bench or

table, away from explosive vapors. Ensure that the surface on which the unit is placed

will withstand typical heat produced by the unit. Always place the unit on a sturdy

work surface.

The Incubating Rocking/Waving Shaker is supplied with a power cord that is inserted

into the IEC connector on the back of the unit first, then it can be plugged into a properly

grounded outlet. The 120V unit plugs into a 120 volt, 50/60 Hz source. The 230V unit

plugs into a 230 volt, 50/60 Hz source.

MaintenanCe & serviCing

The Incubating Rocking/Waving Shaker is built for long, trouble-free, dependable

service. No lubrication or other technical user maintenance is required. However at

least every three (3) months you should:

 • Unplugtheunit.

 • Removeanyaccumulateddirtfromthebaseandtray.

 • Checkallaccessibleitemstomakesuretheyareproperlytightened.

The unit should be given the care normally required for any electrical appliance. Avoid

wetting or unnecessary exposure to fumes. Spills should be removed promptly. DO NOT

use a cleaning agent or solvent on the front panel or lid which is abrasive or harmful to

plastics, nor one which is flammable. Always ensure the power is disconnected from

the unit prior to any cleaning. If the unit ever requires service, contact your Talboys

representative.

Operating Conditions: Indoor use only.

Temperature: 5 to 40°C (41 to 104°F)

Humidity: maximum 80% relative humidity, non-condensing

Altitude: 0 to 6,562 ft (2000 M) above sea level

Mains supply voltage: Fluctuations are not to exceed 10 percent of the nominal supply

voltage.

Non-Operating Storage:

Temperature: -20 to 65°C (-4 to 149°F)

Humidity: maximum 80% relative humidity, non-condensing

Installation Category II and Pollution Degree 2 in accordance with IEC 664.

equiPMent DisPosal

This equipment must not be disposed of with unsorted waste. It is your

responsibility to correctly dispose of the equipment at life-cycle-end by

handing it over to an authorized facility for separate collection and recycling.

It is also your responsibility to decontaminate the equipment in case of

biological, chemical and/or radiological contamination, so as to protect the

persons involved in the disposal and recycling of the equipment from health

hazards.

For more information about where you can drop off your waste of equipment, please

contact your local dealer from whom you originally purchased this equipment. By doing

so, you will help to conserve natural and environmental resources and you will ensure that

your equipment is recycled in a manner that protects human health.

installation environMental ConDitions

Please read the entire instruction manual before operating the Incubating Rocking/

Waving Shaker.

WARNING! DO NOT use the Incubating Rocking/Waving Shaker in a

hazardous atmosphere or with hazardous materials for which the unit was

not designed. Also, the user should be aware that the protection provided

by the equipment may be impaired if used with accessories not provided or

recommended by the manufacturer, or used in a manner not specified by the

manufacturer.

Always operate unit on a level surface for best performance and maximum

safety.

DO NOT lift unit by the tray or lid.

CAUTION! To avoid electrical shock, completely cut off power to the unit by

disconnecting the power cord from the unit or unplug from the wall outlet.

Disconnect unit from the power supply prior to maintenance and servicing.

Spills should be removed promptly. Biohazard spills should be cleaned up

using approved laboratory procedures. Solvent spills are a fire hazard. Stop

the unit immediately, and DO NOT operate until clean up is complete and

vapors have

dissipated (motor brushes arc and may ignite flammable vapors). DO NOT

immerse the unit for cleaning.

DO NOT operate the unit if it shows signs of electrical or mechanical damage.

Earth Ground - Protective Conductor Terminal

Alternating Current

Henry Troemner LLC hereby declares under it’s sole responsibility that the

construction of this product conforms in accordance with the following standards:

Safety standards:

IEC 61010-1 Safety requirements for electrical equipment for measurement,

control and laboratory use. Part I: General Requirements.

IEC 61010-2-010 Part II: Particular requirements for laboratory equipment for the

heating of materials.

IEC 61010-2-051 Part II: Particular requirements for laboratory equipment for mixing

and stirring.

UL Std. No. 61010-1

EMC standards:

EN55022-B EN6100-4-5

EN61000-3-3/3-2 EN61000-4-3

EN61000-4-4 EN61000-4-6

EN61000-4-11 EN61326-1 Class A

Associated EU guidelines:

EMC directive 2004/108/EC

LVD directive 2006/95/EC

RoHS directive 2011/65/EU

safety instruCtions stanDarDs & regulations

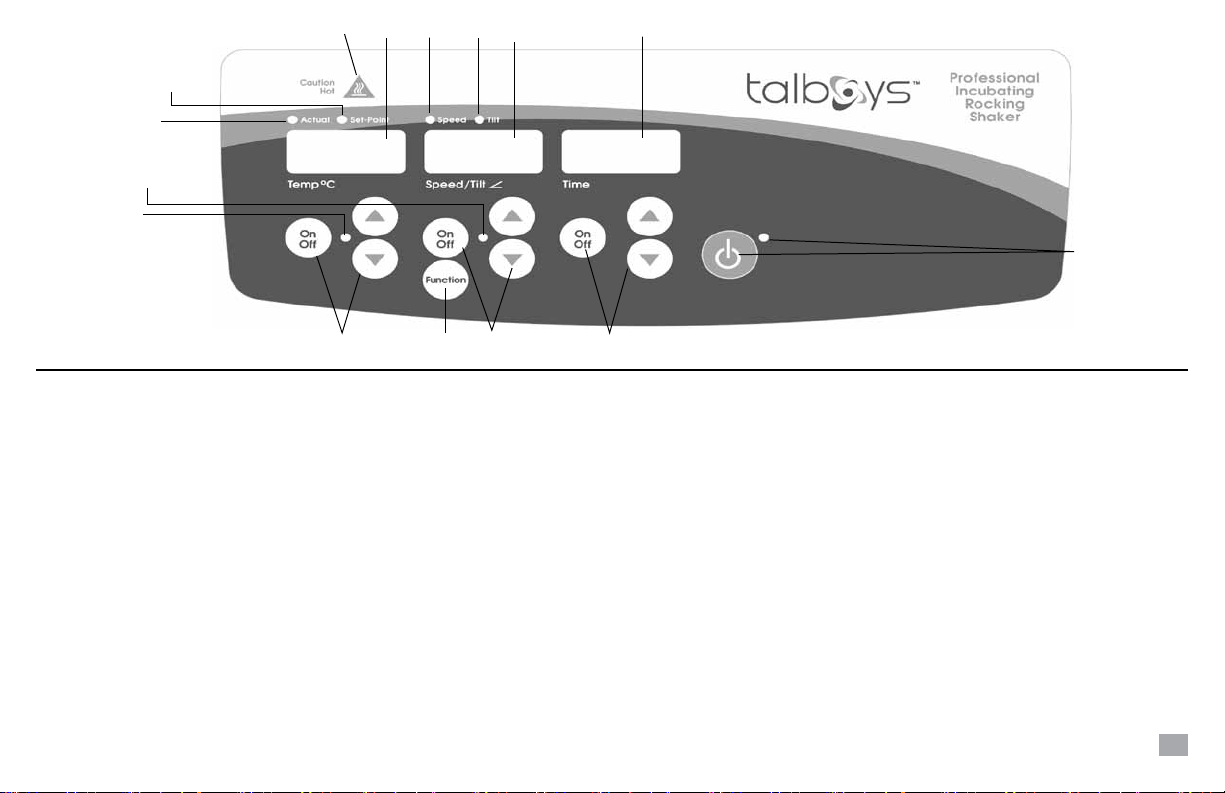

Control Panel

The front panel of the Incubating Rocking/Waving Shaker contains all the controls and

displays needed to operate the unit.

A. Standby button/standby indicator light: The standby indicator light will illuminate

when the unit is plugged in. The unit will be in standby mode. Press the standby

button to activate the temperature, speed/tilt angle and time functions. The standby

indicator light will shut off and the temperature, speed/tilt angle and time displays

will illuminate. Press the standby button again and the unit will once again be in

standby mode.

B. Temperature display: Displays the actual/set-point temperatures in conjunction

with the actual/set-point indicator lights. C. Up/down arrows for set-point control.

On/off button starts/stops the heating function. D. The heat indicator light will be

illuminated when the unit is heating.

E. Actual indicator light: Illuminates when the temperature displayed is the actual

temperature of the air in the chamber.

F. Set-point indicator light: Illuminates when the set-point temperature is displayed.

G. Caution hot indicator light: Illuminates when the air temperature of the chamber

is above 40°C (104°F).

H. Speed/tilt angle display: Displays the speed and tilt angle of the unit. I. Up/down

arrows for set-point control. On/off button starts/stops the rocking/waving function.

J. The speed/tilt angle indicator light will be illuminated when the unit is rocking/

waving.

K. Function button: Press to choose the function you are setting: speed or tilt.

L. Speed indicator light: Illuminates when the speed is displayed.

M. Tilt indicator light: Illuminates when the tilt angel is displayed.

N. Time display: Displays accumulated time (continuous mode) or how much time is

remaining (timed mode). The display range is from 0 to 9,999 minutes in one (1)

second increments. The display will indicate minutes and seconds until the timer

reaches 99 minutes and 59 seconds (99:59), then the display will automatically

display minutes up to 9,999.

O. Up/down arrows for set-point control. On/off button starts/stops the time function.

B. M.

H. N.

Overall dimensions (L x W x H): 17 x 11 x 10.5” (43.2 x 27.9 x 26.7cm)

Interior dimensions (L x W x H): 10.75 x 7.75 x 3.8” (27.3 x 19.7 x 9.7cm)

Tray dimensions (L x W): 10 x 7.5” (25.4 x 19.1cm)

Electrical (50/60 Hz): 120 volts AC, 5 amps, 450 watts

230 volts AC, 5 amps, 450 watts

Fuses: 5mm x 20mm, 5 amp quick acting

Temperature range: ambient +5° to 65°C

Temperature uniformity: ±0.5°C at 37°C

Speed range: 1 to 50rpm *

Speed accuracy: ±1rpm

Tilt angle: 0 to 15° *

Timer: 1 second to 9999 minutes

(increased in 1 second increments)

Maximum weight capacity: 10lbs (4.5kg) **

Controls: see page 4

Tray material: aluminum

Ship weight: 22lbs (10kg)

* Maximum speed/tilt angle may vary with heavy or unbalanced loads.

** Centered on tray.

Overall dimensions (L x W x H): 17 x 11 x 10.5” (43.2 x 27.9 x 26.7cm)

Interior dimensions (L x W x H): 10.75 x 7.75 x 3.4” (27.3 x 19.7 x 8.6cm)

Tray dimensions (L x W): 9.25 x 7.25” (23.5 x 18.4cm)

Electrical (50/60 Hz): 120 volts AC, 5 amps, 450 watts

230 volts AC, 5 amps, 450 watts

Fuses: 5mm x 20mm, 5 amp quick acting

Temperature range: ambient +5° to 65°C

Temperature uniformity: ±0.5°C at 37°C

Speed range: 1 to 30rpm *

Speed accuracy: ±1rpm

Tilt angle: 0 to 20° *

Timer: 1 second to 9999 minutes

(increased in 1 second increments)

Maximum weight capacity: 5lbs (2.3kg) **

Controls: see page 4

Tray material: aluminum

Ship weight: 22lbs (10kg)

* Maximum speed/tilt angle may vary with heavy or unbalanced loads.

** Centered on tray.

Professional 1000rs inCubating roCking shaker sPeCifiCations Professional 1000Ws inCubating Waving shaker sPeCifiCations

The Incubating Rocking/Waving Shakers have been designed for the temperature,

speed/tilt angle and time functions to work independently of one another. The

temperature and speed/tilt angle can be reset without resetting the timer and the

timer can be stopped and started without interrupting the heating or rocking/waving

functions.

1. Getting ready:

a. Plug the power cord into a properly grounded outlet. The standby indicator

light will illuminate, verifying power to the unit. Manually move the tray to a near

horizontal “home” position before powering unit.

b. Press the standby button to move the unit from standby mode. The standby

indicator light will shut off and the temperature, speed/tilt angle and time displays

will illuminate, displaying the previously used settings.

2. Setting temperature:

a. Press the up/down arrows below the temperature display until you reach the

desired temperature. When you release the arrow button, the display will blink

off and then on indicating the new set temperature has been accepted.

b. Press the on/off button to start the heating function. The indicator light below the

temperature display will illuminate to indicate the heating function is in use. You

will hear five (5) audible beeps that indicate set temperature has been reached.

c. Temperature adjustments can be made without interrupting heating by using

the up/down arrows below the temperature display. After the change has been

made and you release the button, the display will blink off and then on indicating

the new set temperature has been accepted.

d. To stop the heating function, press the on/off button below the temperature

display. The heat indicator light will turn off.

Professional inCubating roCking/Waving shaker oPerating instruCtions

CAUTION HOT Indicator:

The caution hot indicator light warns that the temperature of the

air in the chamber is above 40°C (104°F). The light will illuminate

and remain lit when the temperature of the air in the chamber

reaches approximately 40°C (104°F). When the heat is turned

off, the caution hot indicator light will stay lit until the temperature of the air in the

chamber is less than 40°C (104°F).

3. Setting tilt angle: Electronic tilt enables the user to adjust the angle of tray

movement while the unit is rocking/waving or while the unit is stopped.

a. Press the function button below the speed/tilt angle display until the tilt indicator

light illuminates. You are now ready to set the tilt angle.

b. Press the up/down arrows below the speed/tilt angle display until you reach

the desired angle. When you release the button, the display will blink off and

then on indicating the new set angle has been accepted. The unit will complete

one rotation at the previously set angle, then smoothly change to the newly

programmed angle. The tilt indicator light will flash until the transition to the new

tilt angle is complete.

4. Setting speed:

a. Press the function button below the speed/tilt angle display until the speed

indicator light illuminates. You are now ready to set the speed.

b. Press the up/down arrows below the speed/tilt angle display until you reach the

desired speed. When you release the button, the display will blink off and then

on indicating the new set speed has been accepted.

c. Press the on/off button to start the rocking/waving function. The indicator light

below the speed/tilt angle display will illuminate and blink until the set-point is

reached. Once the set-point is reached the light will stop blinking and remain lit

until rocking/waving has ceased.

d. To stop the rocking/waving function, press the on/off button below the speed/tilt

angle display. The unit will complete one full rotation then stop in the horizontal

“home” position. The speed indicator light will flash until the rotation is complete.

When the cycle is complete, the unit will automatically move to standby mode

and the standby indicator light will

illuminate.

OPERATING TIPS

When the unit is running at slow speeds or high angles, making large changes to

the tilt angle or speed may take several minutes to complete. The quickest way to

make large changes is to stop the unit, change the speed or tilt angle, then restart by

pressing the on/off button below the speed/tilt angle display.

5. Setting time to zero (0:00) and continuous mode: Accumulated time.

a. Press and hold the on/off button below the time display. After three (3) seconds

the display will indicate the previous set time.

b. Simultaneously press both the up and down arrows, the display will indicate

zero (0:00). The unit time is now set to zero (0:00) minutes. Alternately, you can

use the up/down arrows to get to zero (0:00).

c. Press the on/off button below the time display. The display will indicate the

accumulated time. The up/down arrows will become inactive. To stop timer,

press the on/off button again. IMPORTANT:This will NOT interrupt the rocking/

waving function. Press the on/off button below the speed/tilt angle display to

interrupt the rocking/waving function.

d. To reset, press and hold the on/off button below the time display. After three (3)

seconds the display will indicate the previous set time, which was zero (0:00).

6. Setting timed mode: Programmed time.

a. Press the up/down arrows below the time display until you reach the desired

time.

b. Start this function by pressing the on/off button below the time display. The unit

will run for the selected time, the up/down arrows will become inactive while the

timer is running. The unit will stop rocking/waving when time display reaches

zero (0:00). Four (4) audible beeps will indicate the count down function is

complete. The time display will default back to the set time. To repeat for the

same time, simply press the on/off button again.

c. To interrupt an automatic timing cycle before it is completed, press the on/off

button below the time display. The time display will flash off and on to indicate

the time function is on “hold”. IMPORTANT: This will NOT interrupt the rocking/

waving function. Press the on/off button below the speed/tilt angle display to

interrupt the rocking/waving function. Restart the timer by pressing the on/off

button below the time display. Unit will continue counting down to zero (0:00).

When the display reaches zero (0:00), you will hear the four (4) audible beeps

that indicate the count down function is complete and the rocking/

waving function will cease.

7. Turning unit off:

a. To turn unit off, press the standby button. The temperature, speed/tilt angle

and time displays will be blank, the standby indicator light will illuminate. The

Incubating Rocking/Waving Shaker should be kept in standby mode when not

in use. To completely cut off power to the unit, disconnect the power cord from

the unit or unplug from the wall outlet.

OPERATING TIPS

As a safety feature, a built-in program will shut power off to the motor if the tray is

prevented from rocking/waving, or the unit is overloaded beyond its recommended

weight capacity.

Built-in memory maintains the last used temperature, speed/tilt angle and time settings

during a power interruption.

Professional inCubating roCking/Waving shaker oPerating instruCtions Cont’D

During operation, any rattling or ticking sounds may indicate a loose screw on the

tray, a tray attachment or an accessory. All accessories should be sufficiently tightened

in place before starting the unit.

Error Code Software Test Cause

E04 unit overloaded maximum load exceeded

Press the standby button to clear this error. Be sure the load is within the maximum

load capacity before restarting the unit. If the E04 error persists, switch the unit off and

contact your Talboys representative for repairs.

Error Code Software Test Cause

E03 drive system failure ceased motor

drive belt broken

mechanical obstruction

In the event of someone/something inadvertently touching the tray while the unit

is running, the unit will display an E03 error message, and automatically go to the

horizontal “home” position and restart.

In the event of a mechanical obstruction, the unit will attempt to auto “home” and

restart four (4) times and then stop running, displaying an E03 error message. Press

the standby button to clear this error and remove the mechanical obstruction.

If the E03 error persists the reason may be a ceased motor or broken drive belt

and should NOT be addressed by the end user. Switch the unit off and contact your

Talboys representative for repairs.

Error Code Cause

E02 RTD shorted or temperature below 0°C (32°F)

E01 RTD open or temperature over 100°C (212°F)

The E02 and E01 errors should NOT be addressed by the end user. Switch the unit

off and contact your Talboys representative for repairs.

troubleshooting

Professional 1000rs inCubating roCking shaker rePlaCeMent Parts

13.

12.

11.

10.

9. 8. 7.

14.

15.

DesCriPtion Part nuMber

1. Tray assembly 880529-00

2. Spring 180062-00

3. Heater 120V: 380710-00

230V: 380711-00

4. Fan 280357-00

5. Temperature sensor 380721-00

6. Lid 280309-00

7. Motor fan, 120V: 380731-00

230V: 380732-00

8. Thermostat 380723-00

9. Front panel 385725-00

10. Circuit board 380736-00

11. Motor assembly 880535-00

12. Idler assembly 880531-00

13. Power supply 386453-00

Fuse 380238-00

14. Feet 149023-00

15. Power entry module, 120V: 380758-00

230V: 380237-00

Detachable 92” (234cm) power cord: 120V: 330100-00

Eurp Plug: 330101-00

UK: 330102-00

Swiss Plug: 330103-00

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Talboys Équipement de laboratoire

Talboys

Talboys Advanced Series Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur
