2.3 Connection and operation

1. Connection nameplates to main unit

There are two ways for electronic nameplates to

access main unit:

First, the electronic nameplates are directly connected

to the conference units (eg. HCS-8668) via USB cable,

and the electronic nameplates are automatically bound

to the conference units at this time. The HCS-8531

Electronic Nameplate Client is needed for nameplate

controlling.

Second, through the PoE switch, using RJ45 cable, the

electronic nameplates and the EXTEN SION port of the

conference main unit can be connected to the same

network, and under this connection mode, the

electronic nameplate can be used independently, or

can be manually bound to the conference unit. The

HCS-8531 Electronic Nameplate Client is needed for

nameplate controlling.

Figure 2.3.1 Nameplates connection via cat.5e cable

(with congress unit)

Number

First of all, make sure that the nameplates are

connected properly to the CMU. All nameplates must

be numbered when the system is used for the first time

or when adding or replacing nameplates. The

numbering function can be activated HCS-8531

Electronic Nameplate Client.

The number indicating light of all connected

nameplates will blink and screens display:

“Numbering…”. Press the key on the backside of all

nameplates one by one. Once all nameplates

numbered, restart the CMU to update the number

information.

2. Connection nameplates to network

The HCS-1082 series electronic nameplate can be

used independently without main unit, at this time, the

electronic nameplates and the control computer should

be connected to the same network (network switcher

needed). HCS-8532 Electronic Nameplate Server is

needed for nameplate controlling.

The default IP address of nameplate is 192.168.1.82,

so, please modify the IP address of the nameplate first.

Connect only one nameplate to the newwork, and then

enter the default IP address in browser to access the

nameplate webpage to modify IP address, and then

restart the nameplate.

Figure 2.3.2Nameplates connection via cat.5e cable

(without main unit)

3. Connection nameplates to computer

When connecting to computer via USB cable,

nameplate can be automatically recognized as a USB

flash drive so that pictures from PC can be copied to

the nameplate for display.

Note:

The nameplate number canno

t be duplicated

with the conference unit;



Nameplates which connected to the units

directly through a USB cable do not need

to be

numbered.

Picture format: *.bmp, monochrome bitmap;

Nameplate resolution: 1904*464;

Front screen file name: 1.BMP;

Back screen file name: 2.BMP;

Double screens file name: 3.BMP.

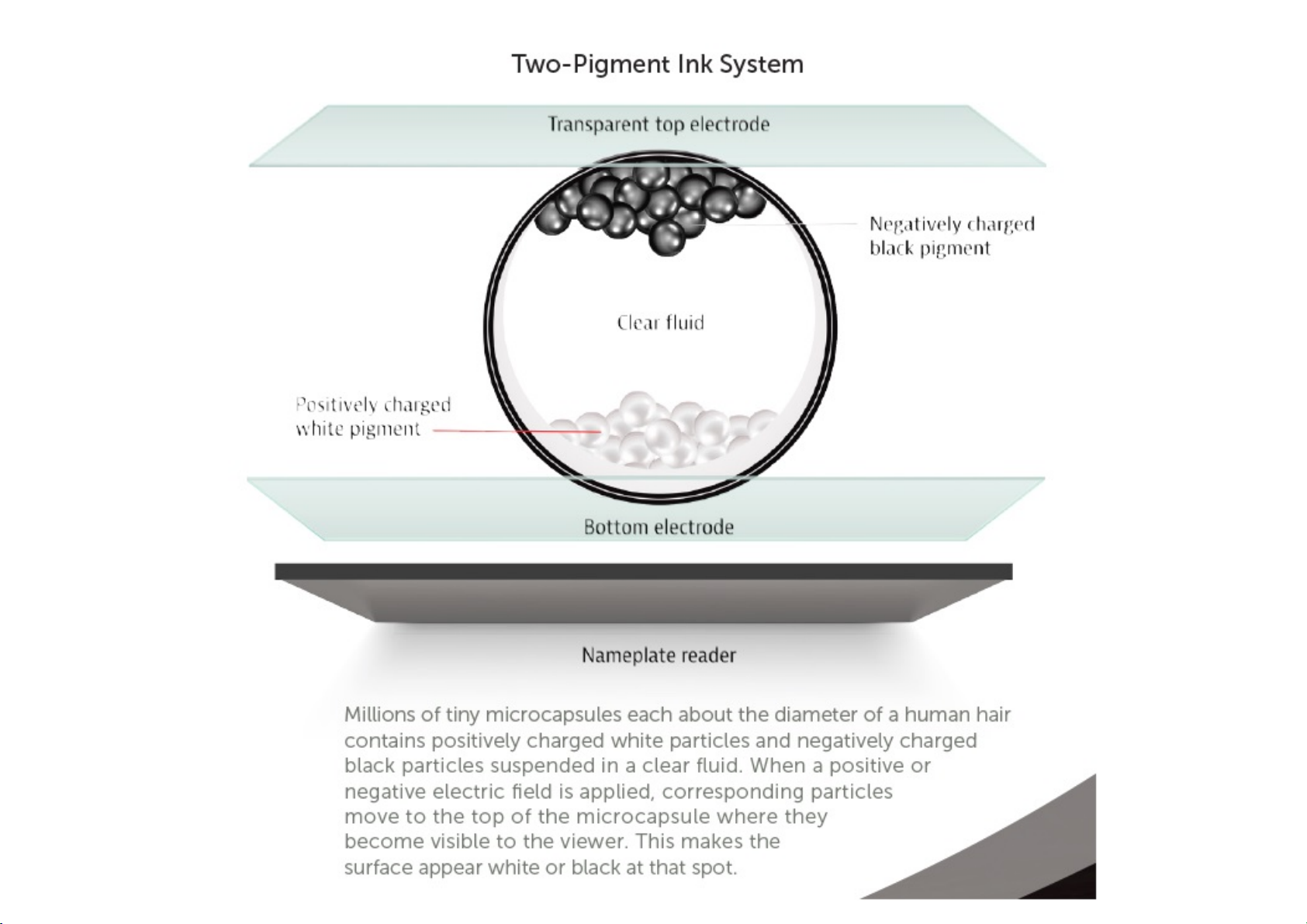

4. Display

Display content can be set through nameplate system

software, contents may be permanently displayed after

power down.

Press and hold the key on the back side for 3 seconds,

or click “Display Nameplate Version” through

nameplate system software, the screen of nameplates

display the device information. Include: Device ID,

Version and Build. Press the key again to exit version

display.
