Systeme Lauer EPC Manuel utilisateur

Reg 10494/0204

CiS No.: 360.610.0020

Version 1/02.04

EPCEmbedded PC

User Manual

0-2

Systeme Lauer GmbH & Co KG

Postfach 1465

D-72604 NürtingenGermany

User Manual: EPC Embedded PC

Issued: February, 2004

Author: Jung

Operating instructions, manuals and software are protected by copyright

these materials in whole or in part is prohibited. An exception is made in

the case of preparing a backup copy of the software for personal use.

• The manual is subject to change without prior notification.

• We cannot guarantee that the programs and data stored on the disk

are free of errors and absolutely correct.

• Since diskettes represent manipulatable data media, all we can

guarantee is that there is no physical damage to them. Liability is

limited to replacement.

• We welcome suggestions for improvements as well as pointing out

errors at any time.

• The agreements also apply to the special appendices to this manual.

Microsoft, Windows, Windows NT and the Windows Logo

are either registered trademarks or trademarks of Microsoft

Corporation in the USA and/or other countries.

Other names designated in this document may be brand

names, the use of which by third parties for their own

purposes may violate the rights of the proprietors.

Information for Users

Please read this manual before using the product for the first time, and be

sure to keep it where you can make use of it later.

Unless where explicitly referred to the versions Economy Unit or Busi-

ness Unit, the description applies for all units.

Intended audience The manual has been written for users who are familiar with PC systems

and automation technology.

Conventions used in this manual [KEY] Keys the user has to press on the keyboard are

represented in square brackets, e.g. [CTRL] or [DEL].

Courier Screen output is represented in the Courier type font,

e.g. C:\>

Courier Bold User inputs via keyboard are identified

by the Courier Bold type font, e.g. C:\>DIR

Italics

The names of buttons, menus or other screen

elements the user has to select and product names

are represented in

italics

Safety instructions Wherever there may be dangerous faults in the automation equipment,

i.e., where an error would cause significant property damage or injury to

persons if it occurred, additional external precautions must be taken or

equipment must be set up (for example by using independent limit

switches, mechanical disabling locks, etc.). In the event of an error, these

measures must ensure or force a safe operating status.

Testing and verification of suitability for the purpose intended by the user,

or for deployment under usage conditions, are the responsibility of the

user. Systeme Lauer accepts no liability for testid.

Pictograms The following pictograms have been used in the manual to identify special

text passages:

Danger!

Potentially hazardous situation.

May result in personal injury.

Caution!

Potentially hazardous situation.

May result in property damage.

Tips and supplementary information

0-4

Table of Contents

Information for Users 0-3

Table of Contents 0-4

Company 0-5

Contact 0-6

1 Product Description 1-1

1.1 Control side ..................................................................... 1-1

1.2 Slot side........................................................................... 1-1

1.3 Rear side .......................................................................... 1-1

2 Commissioning 2-1

2.1 Power supply ................................................................... 2-1

2.2 Grounding diagram ......................................................... 2-2

2.3 Installation ....................................................................... 2-2

2.4 Starting the device .......................................................... 2-2

3 EPC Manager (Windows CE 4.1) 3-1

Lauer EPC Manager modules ................................................... 3-8

The integrated servers ............................................................ 3-28

FTP server ........................................................................... 3-28

http server (WEB server) ...................................................... 3-31

Telnet server......................................................................... 3-31

RDP (Remote Desktop Protocol) .......................................... 3-33

T Technical data T-1

T1 Mechanical dimensions ................................................... T-1

T1.1 EPC 640 external / internal dimensions .................... T-1

T1.2 EPC 640 unit dimensions .........................................T-2

T1.3 EPC 1000 external / internal dimensions ..................T-3

T1.4 EPC 1000 unit dimensions ....................................... T-4

T1.5 EPC 1200 external / internal dimensions ..................T-5

T1.6 EPC 1200 unit dimensions ....................................... T-6

T1.7 EPC 1500 external / internal dimensions ..................T-7

T1.8 EPC 1500 unit dimensions ....................................... T-8

T2 Electrical data ................................................................... T-9

T4 Ambient conditions ........................................................ T-10

T5 Interfaces ........................................................................ T-11

T5.1 Compact FLASH slot ............................................. T-11

T5.2 VGA/COM1 interface ............................................. T-11

T5.3 Ethernet, mouse and keyboard .............................. T-12

T5.4 Cassette option and USB interfaces ...................... T-13

Company

Elektronik-Systeme LAUER GmbH & Co. KG

Kelterstraße 59

D-72669 UnterensingenGermany

Tel. +49 (7022) 9660-0

Fax. + 49 (7022) 9660-274

Our philosophy Systeme LAUER is a reliable partner who thinks and acts internationally.

From the LCA electronic text display and the high-tech PCS control panel

to the industrial computer we supply a complete program for

• operation

• monitoring and

• control

Within the AUGUSTA Technologie AG, a group of global companies, Sys-

teme LAUER stands for an almost unlimited product range right up to

competent service.

On account of an active cooperation with our customers, our qualified

team produces convincing concepts which bring man, machine and

interface into line in an efficient way.

Proximity to our customers – the direct dialog – is the foundation of our

success.

0-6

Contact

Support Telephone: +49 (7022) 9660–209

+49 (831) 5758 -354 or -358

E-mail: [email protected]

In case of support enquiries, please have the serial number of the

device ready !

Please access our Download Forum to find current drivers, software,

drivers, manuals, … and novelties at

http://forum.systeme-lauer.de/

Sales Telephone: +49 (7022) 9660-0

E-mail: [email protected]

In addition, we offer ... training and technical courses in our modern training center, or, if you

prefer, in your company.

Ask your sales partner for our current training catalog.

... not only demonstration units, but we also provide specialists who

assist you personally when starting your first application.

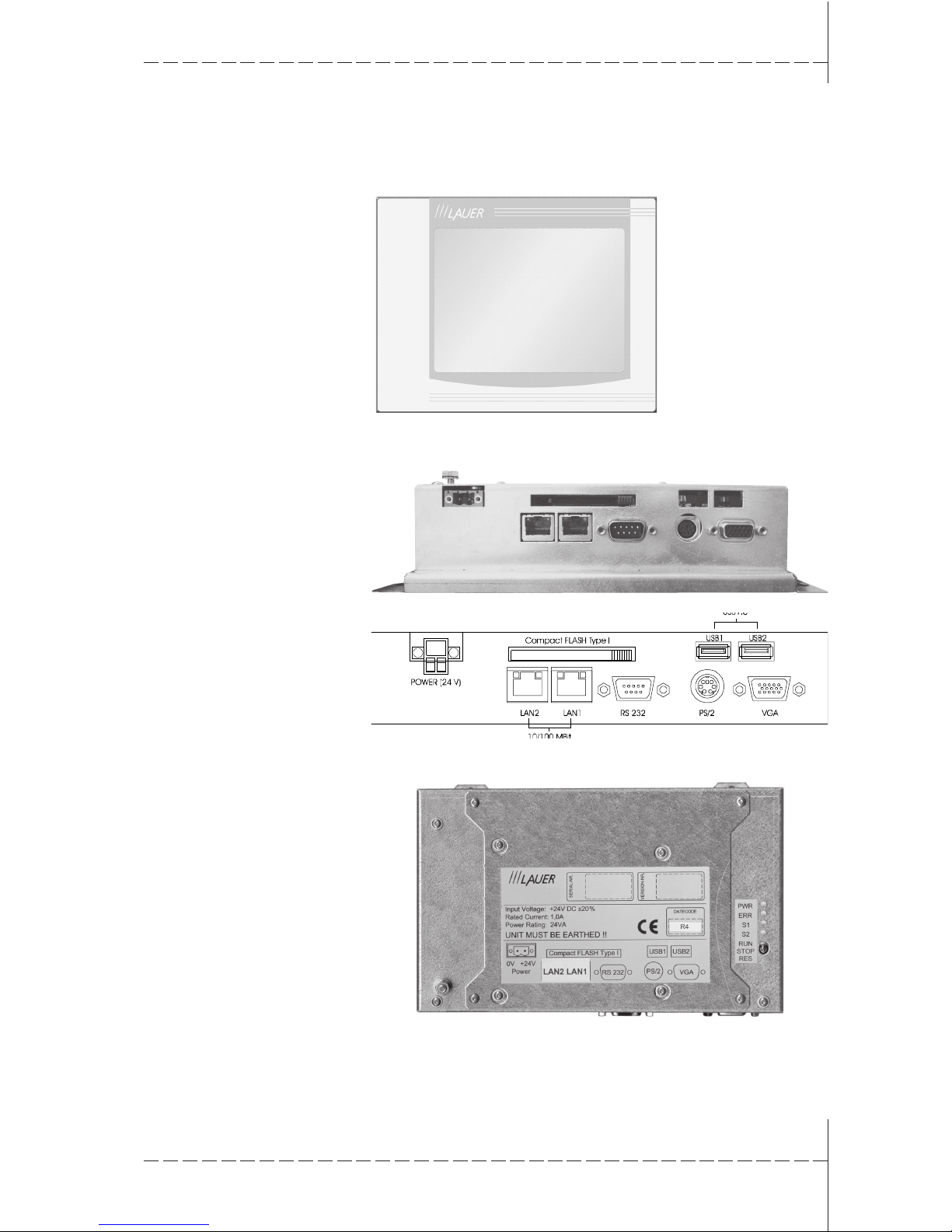

1 Product Description

1.1 Control side

1Color TFT resistive touch display

6.4“, 10.4“ or 12“

1.2 Slot side

1.3 Rear side

1 Product Description

1-2

2 Commissioning

2.1 Power supply

Caution!

The EPC must only be operated at protective extra-low-voltage as defined

by European standard EN60950!

The control transformer must comply with European standard EN60742!

Compare the power supply voltage with the voltage specified on the type

label.

All cable connections must be tested before commissioning the system.

You must ensure that all the voltages and signals correspond to the rele-

vant specifications.

The 0V supply voltage connection has a low-impedance connection to

the housing (ground) !

124 V power supply

2Grounding screw

The power supply is rendered by a two-pole connector (Phoenix MST BT

2.5/2).

Power supply diagram

230 V AC

+ 24 V

230 V AC

0 V

24 V DC

2 Commissioning

2-2

2.2 Grounding diagram

In order to ensure a safe diversion of electric interferences,

the following points have to be observed:

• Connect the device and the switch cabinet with a central grounding

point via the shortest route possible.

• Make sure the connection between the device and switch cabinet

has the lowest inductivity possible.

• All the data cables connected to the device must be shielded cables.

• The shields must be grounded on both the ends. Connections between

systems must be of low impedance. High transient currents over the

line shield resulting from differences in potential must be excluded.

• The design of the grounding connection with green/yellow cable must

have a cross section of at least 4 mm².

2.3 Installation

Installation The device should be installed in an HF-proof housing or switch cabinet

made of metal.

To ensure that heat generated in the device can dissipate into the

environment, a space of 100 mm must be maintained around the device!

Eight hexagon nuts are used for assembly.

Caution!

Potential hazard of damaging the device!

Front-side protection type IP65 is only guaranteed if the seal is correctly

seated in the front plate.

A space of 100 mm must be maintained around the installed device for air

circulation.

2.4 Starting the device

Start procedure The EPC boots and loads the Windows CE operating system.
