Syris SYRDT5-B Manuel utilisateur
Install and Operation
Instructions
SYRDT5 Serial Proximity Reader
SYRIS Technology Corp.
ADD : 21F-2, No. 12, Sec. 1, Taijunggang Rd.
Taichung, Taiwan (403)
TEL : +886-4-2207-8888
FAX : +886-4-2207-9999
Website : http://www.syris.com
May 3, 2004 Rev.A
WiegandTM & RS485 DUAL INTERFACE

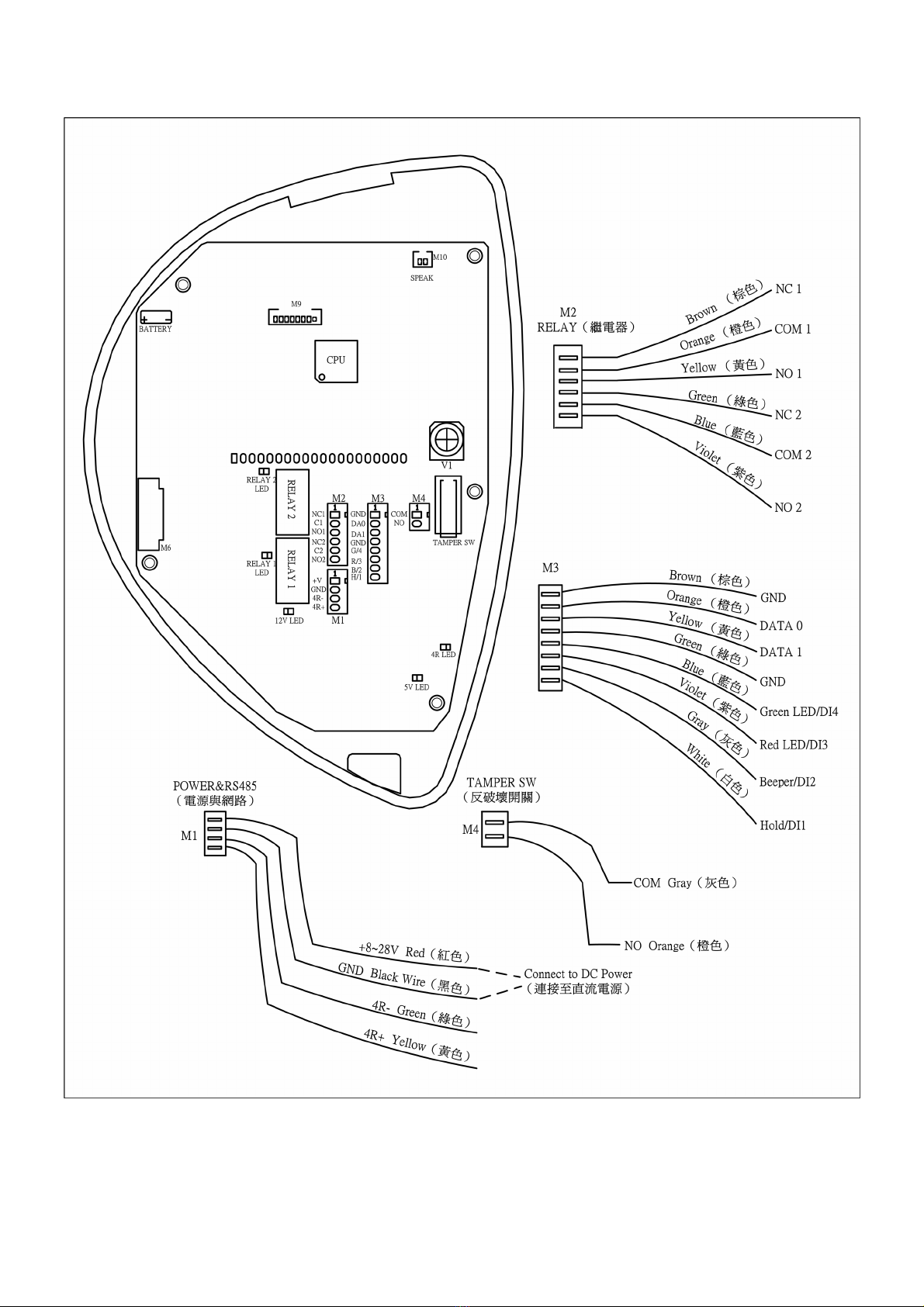

SYRDT5 WIRING DIAGRAM 接線圖
* Power supply should be regulated linear power supply.
* Your system must have a single earth ground point.
* The shield must run continuous throughout the installation.
SYRDT5 Serial Proximity Reader Specification
Items / Specs SYRDT5-B SYRDT5-M1
Frequency 125KHz 13.56MHz
Card (Transponder) SYRIS card (EM compatible) MIFARE 1
Read range* 3cm ~ 12cm 2cm~8cm
Card read time 0.1sec(typical)
Indicator 3 LED
LCD display 128 x 64 Dot（16 x 4 Char）LCD with EL backlight
Keypad input 4 key keypad with backlight
Input Points 4 N.V Input
Output interface RS485 formats and WiegandTM formats
WiegandTM formats WiegandTM 26 bits、34 bits、42 bits formats
Baud rate 19,200 bps (4,800、9,600、19,200、38,400、57,600、115,200、230,400)
Color Beige or Gray
Operating temperature -20 ℃to 55 ℃
Storage temperature -30 ℃to 70 ℃
Power supply input 8V to 28V DC
Dimensions (mm) 100.0 W x 148.5 H x 35.0 D
* This specification is preliminary and is subject to change without prior notice
* Reading range is subject to card type, site interference and antenna specs for more information
