Symmons Winslet SRT-5172 Guide de référence

Important: Flush supply

lines clean before connecting

to control valves.

Hot supply

Cold supply

(main supply lines not included)

3/32"

ﬁnished deck,

front view

Step 2

Attach faucet

handles Step 7

Connect handspray

Step 1

Attach supply

valves

Step 3

Attach diverter

and faucet spout

Step 5

Flush and connect

supply hoses

Step 8

Run faucet and

check for leaks

Step 4

Attach handspray holder

Step 6

Connect handspray hose

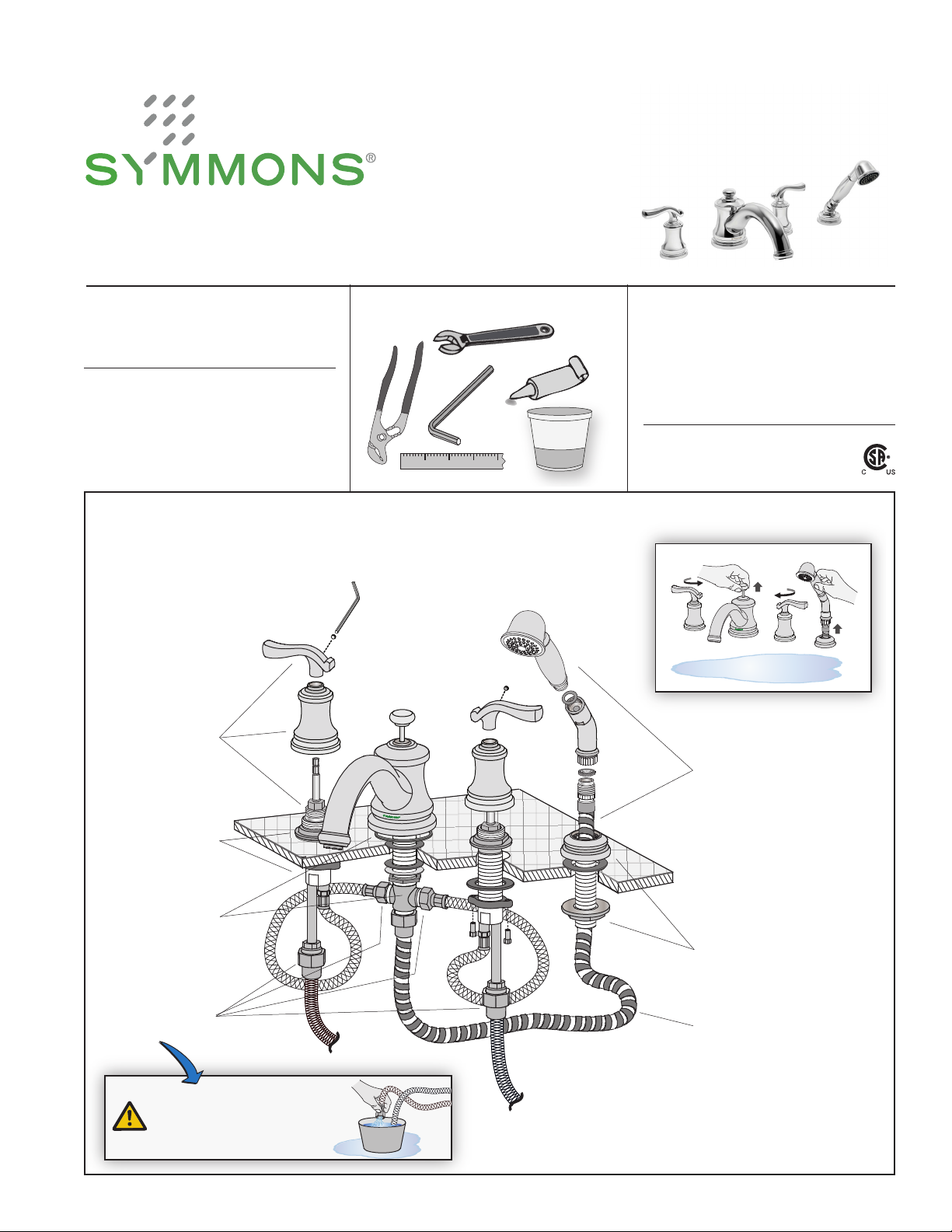

Quick Install Guide Winslet Roman Tub Faucet, SRT-5172

Plumbers

Putty

Pipe

Sealant

3/32"

1 2 3 4

Model Number

SRT-5172 Roman Tub Faucet with

handspray

Alternate Finish Options

-STN Satin Nickel

- Chrome (standard)

Roman Tub Faucet SRT-5172

Installation Brief

Winslet®

Tools & Materials Need Help?

Symmons customer service:

Phone: (800) 796-6667

Email: [email protected]

Monday - Friday 7:30 am - 6:00 pm EST

www.symmons.com/service



Compliance

ASME A112.18.1/CSA B125.1

Finished deck thickness

1-3/8" (35 mm) max

8" (203 mm) min

16" (406 mm) max

9-1/8" (232 mm)

2-1/4" (57 mm) dia

Hole size

1-1/8" (29 mm) min

1-1/4" (32 mm) max

Note: Dimensions subject to change without notice.

Hole size

1-1/8" (29 mm) min

1-3/8" (35 mm) max

4-1/8"

(105 mm) 2-1/8" (54 mm)

(127 mm) 3-1/4"

(83 mm)

(178 mm)

2-1/4" (57 mm) dia

2-5/8" (66 mm)

4" (102 mm) min

3-1/8" dia

(79 mm)

1" (25 mm) dia

1/2" - 14 NPT

exible hose

handspray hose

supply outlet

handspray hose

supply inlet

Hole size

1-1/16" (27 mm) min

1-7/16" (37 mm) max

Dimensions Winslet Roman Tub Faucet, SRT-5172

aerator

removal key

Replacement Parts

Part Number Item

HOT & COLD

handles & screws

escutcheons (2)

RT-512L-KIT

nut, 1"-20 (2)

gasket (2)

RT-308

handspray hose,

0.20mm x 5 feet

handspray

washer

elbow mount

washer

hose

connection

base

gasket

nut

Handspray

Assembly

512W-51*

3/32"

KN-113E

identiﬁed

by groove

KN-114E (hot)

OFF = CW

KN-113E (cold)

OFF = CCW valve cartridge

handle kit

assembly*

(ref. table)

cartridge

(ref. table)

gasket

ange nut

1/2" hose

with 1/2-14

NPSM female

connectors

ow

regulator

(Hot & Cold

Handle Kit)

gasket

metal washer

brass nut

aerator

removal tool

spout, centerbody

diverter assembly

nut

o-ring

Ordering replacement parts:

Call Symmons customer service at (800) 796-6667,

(781) 848-2250 M-F 7:30 am - 6:00 pm EST or

check our website at www.symmons.com for a

list of Symmons distributors.

*NOTE:

Faucets with an optional decorative nish,

append appropriate three letter sufx code to part

numbers marked with an asterisk (

Parts Assembly Winslet Roman Tub Faucet, SRT-5172

WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects,

or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Symmons Industries, Inc. ■31 Brooks Drive ■ Braintree, MA 02184

Phone: (800) 796-6667 ■Fax: (800) 961-9621

Website: symmons.com ■ Email: [email protected]
