Dual Outlet Diverter
Operation & Maintenance Manual
2DIVBODYSRT
Dual outlet diverter valve features shared functionality.
Inlet and outlet connections are both 1/2" male IPS & 1/2"
female sweat. Components made from lead free metal
construction.
Specification
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Compliance

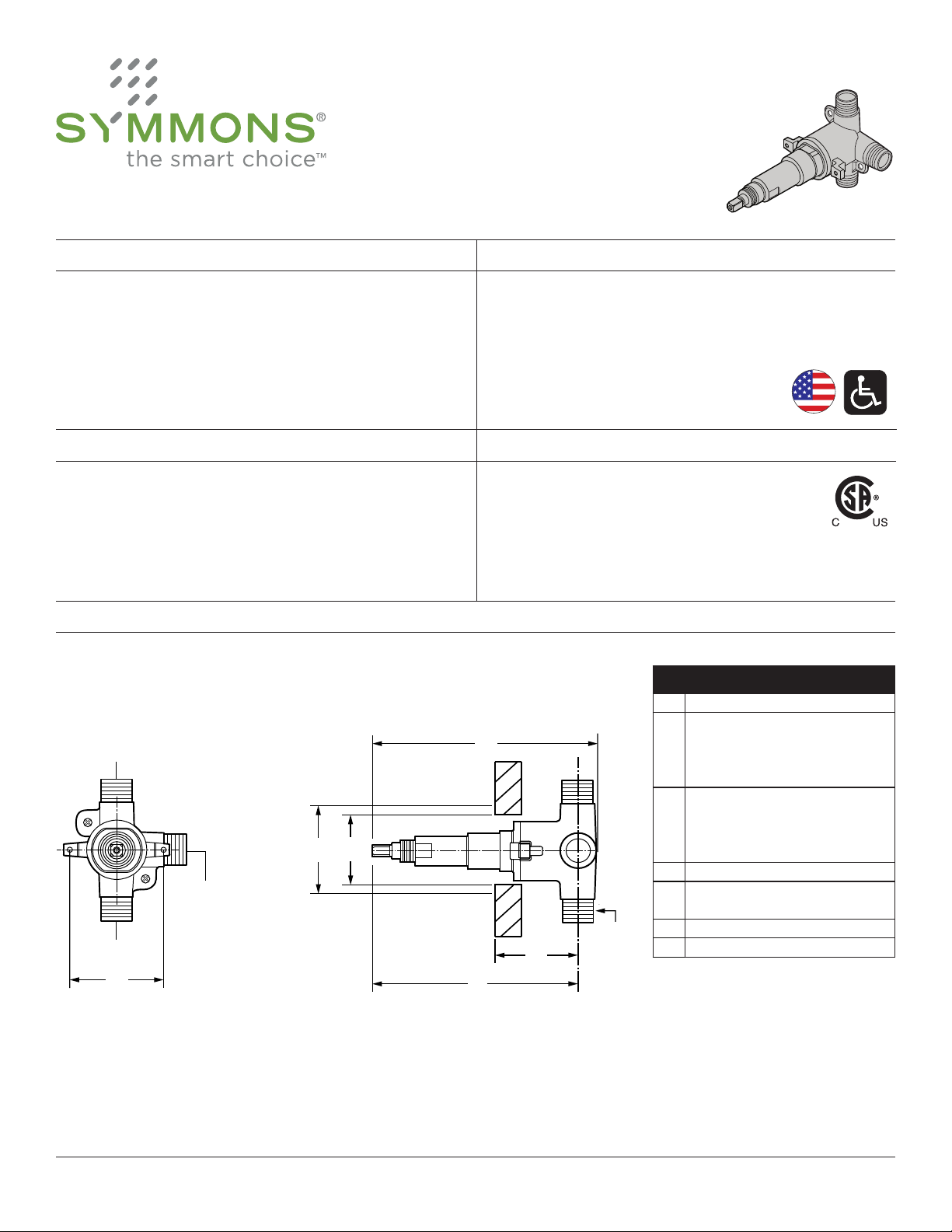

Dimensions
Notes:
1) Figure is determined by style of trim attached to shower valve. See rough-in
dimension drawing for shower valve application with diverter valve.
2) Dimensions subject to change without notice.
2DIVBODYSRT
Dual Outlet Diverter
-ASME A112.18.1/CSA B125.1
Measurements
A 2-5/8", 67 mm
B
Screwless Escutcheons
Hole Size
Min. Ø 3", 76 mm
Max. Ø 3-1/4", 83 mm
C
Screw Escutcheons
Hole Size
Min. Ø 1-3/4", 44 mm
Max. Ø 2", 51 mm
D 5-1/4", 133 mm
E(3x) 1/2" male IPS &
(3x) 1/2" sweat
F See note 1
G 4-7/8", 124 mm
DD
BB
FF
GG
EE
ININ
OUTOUT
OUTOUT
AA
CC
2

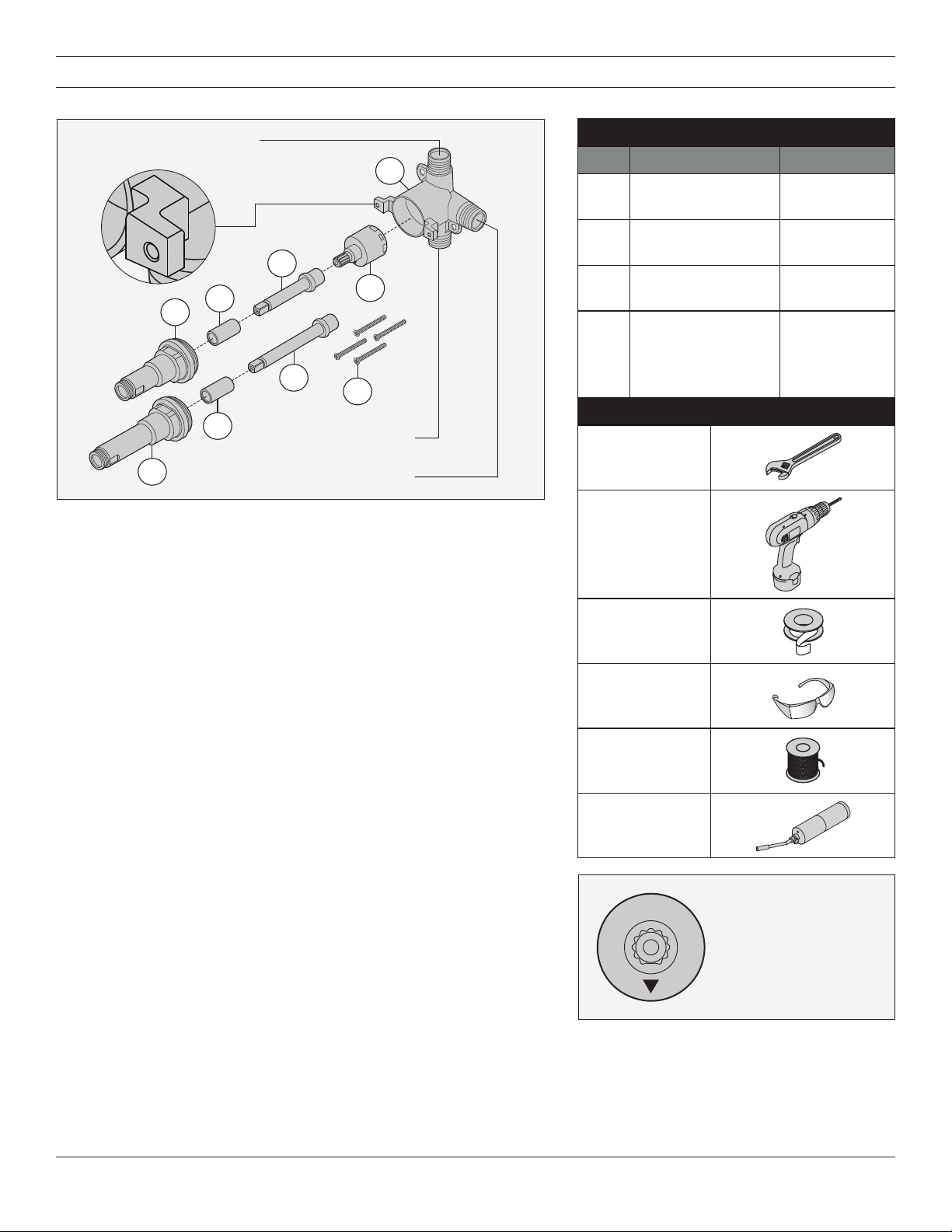

Parts Breakdown
Replacement Parts
Item Description Part Number
A Cap Assembly RTS-DIVCAP-
SRT
C Cartridge Extender RTS-DIVEXT-
SRT
D
F
Cartridge
Retaining Sleeve RTS-2DIV
B
G
H
I
Spacer
1" Cap Extender
1" Cartridge Extender
4" Mounting Screws
RTS-DIV-1EXT
Tools Required
Adjustable
Wrench
Drill (optional)
Plumber Tape
Safety Glasses
Solder
Torch
FROM SHOWER VALVE
DIVERTER FUNCTION 1
DIVERTER FUNCTION 2
E
G
H
B
I
AB
C
D
Important:
Cartridge (D)
must be installed
with arrow
facing down.
3

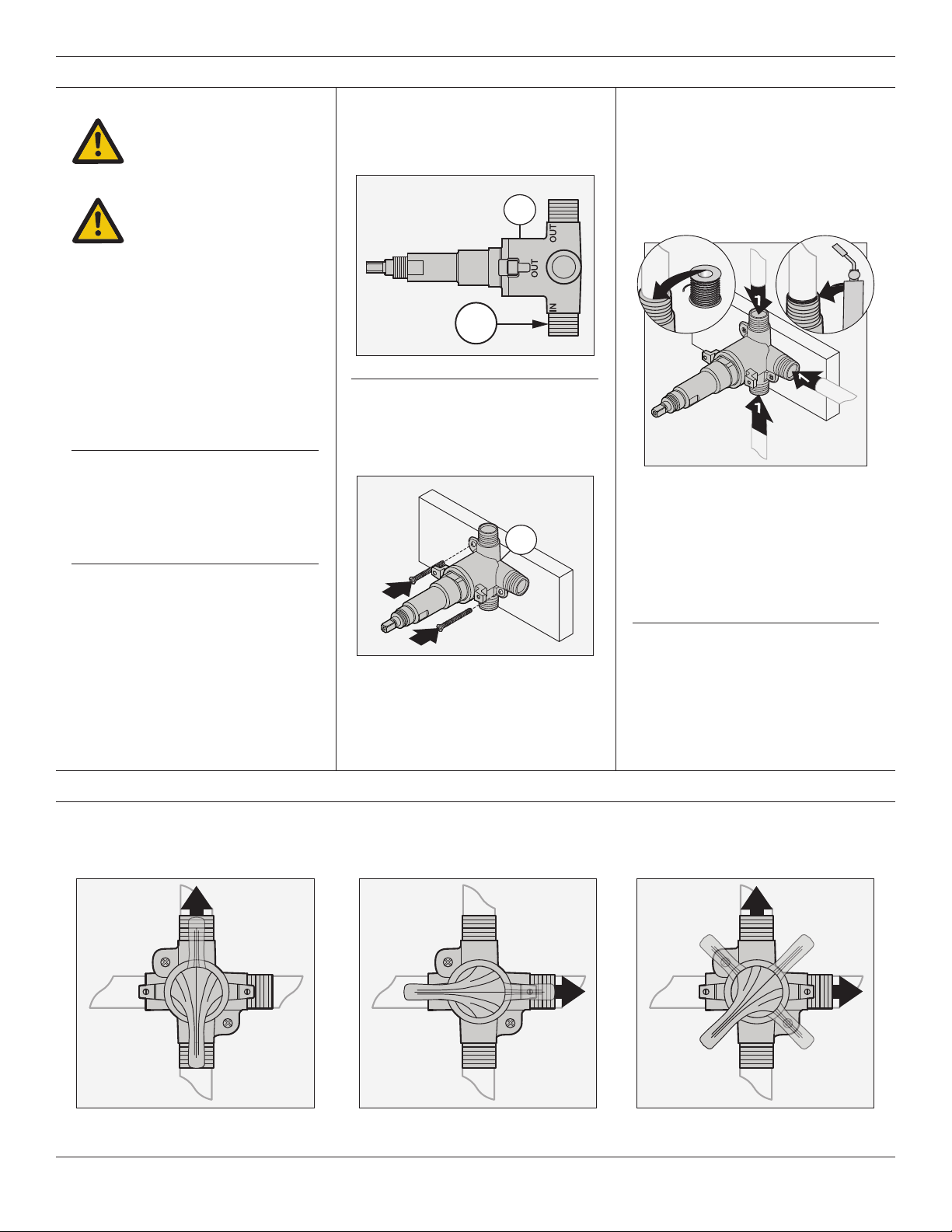

Installation
1) Reference rough-in dimension for
shower application with diverter
for proper installation of diverter
valve.
5) Sweat 1/2" copper tubing from
inlet port on diverter valve
to water source. Sweat 1/2"
copper tubing from outlet ports
to desired accessories.
Important: Do not plug
outlet ports. Do not use
diverter as shut-off valve.
2) Shut-off water supplies.
4) Secure stringer mounts on diverter
valve (E) to wood blocking for
support.
E
6) Turn on water supplies to ush
plumbing lines free of debris
.
Check for leaks.
!
E
3) Position diverter valve (E) so port
marked IN is facing down.
3
2
Optional: Apply plumber tape to
male IPS threads on the inlet and
outlet ports of diverter valve. Install
1/2"-14 NPT copper ttings to the
inlet and outlet ports. Connect
outlets to desired accessories.
Note: Securing stringer mounts is
necessary for applications where
PEX, or other non rigid tubing, is
used to install diverter valve.
Note: Diverter valve can be installed
in wall with shower valve or in an
adjoining wall to shower valve.
Important: Do not expose
diverter valve to heat for
longer than 2 minutes when
sweating in copper tubing.
Doing so may damage the
internal components of
the valve and will void the
product warranty.
Operation
1
POSITION 1
1) Cartridge is factory set to divert
to function 1.
2) Turn handle to position 2 to divert
to function 2.
3) Turn handle to position 3 to share
functions 1 and 2.
Note: Additional handle positions for same output are illustrated.
2
POSITION 2 1
2
POSITION 3
Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects, or
other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Problem Cause Solution
Diverter valve will not divert water.
Foreign matter in water supply may
cause blockages in plumbing lines and
the diverter valve cartridge.
Remove cartridge from diverter valve.
Flush lines free of foreign matter.
Inspect cartridge for debris. Replace
cartridge if necessary.
Water is leaking from the face of the
diverter valve.
Cap assembly is not fully sealed to
diverter valve.
Remove cap assembly. Inspect
threads for debris. Reinstall cap
assembly to diverter valve at
75
±
5
lbf-in of torque.
Diverter trim will not install to diverter
valve.
Diverter valve body rough-in is too
deep.
Use RTS-DIV-1EXT to extend diverter
stem 1 inch.

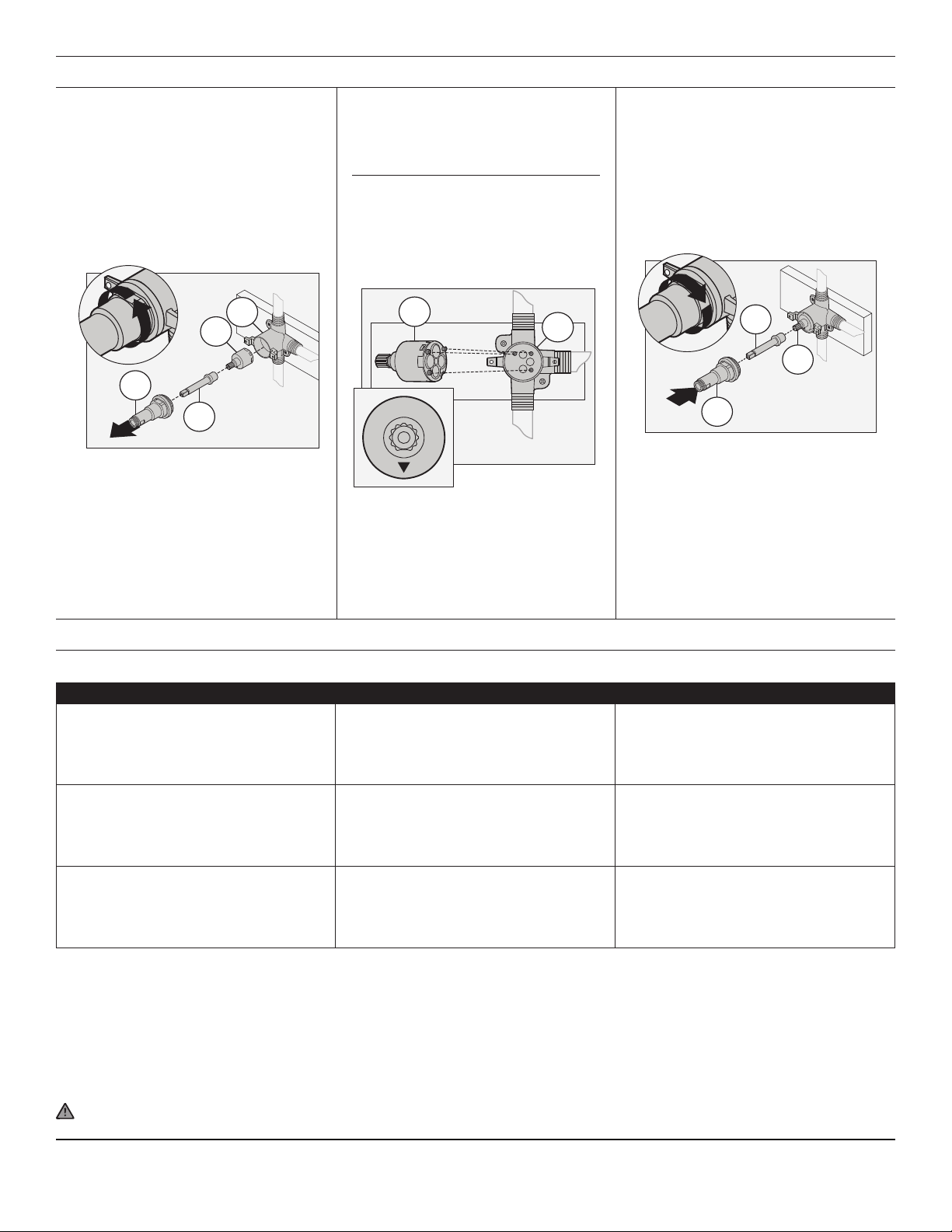

Maintenance (Cartridge Replacement)
2
A
C
D
E
1
1) Remove cap assembly (A) from
diverter valve by turning coun-
terclockwise. Remove cartridge
extender (C) and cartridge (D). For
diverter valves purchased before
November 2016, remove retaining
sleeve (F) from diverter valve.
3) Orient new cartridge (D) with
arrow facing down. Align pegs on
cartridge (D) with indents inside
diverter valve (E).
DE
2)
Inspect cartridge for debris.
Replace cartridge if necessary.
4) Align spindle extender (C) with
broach on cartridge (D). Install
spindle extender (C) and cap
assembly (A) to cartridge (D).
Secure cap assembly (A) by
turning clockwise.
D
2
1
C
A
Notes:
1) Use caution not to dislodge
cartridge from valve body when
installing cap assembly (A).
2) Tighten cap assembly (A) to
75
±
5 lbf-in of torque.
Troubleshooting Chart
Note: Spacer (B) will be seated
inside cap assembly (A).
Note: For diverter valves purchased
before November 2016, retaining
sleeve (F) must be inserted ush into
diverter valve (E) before installing
cartridge (D).
