Sylvania SMPK4600 Manuel utilisateur

SMPK4600

Sylvania is a registered trademark of OSRAM Sylvania Inc. Used under license.

Your Pocket Guide

Portable Media Player

Install Software

Get Connected

Transfer Media

Plug Your Ears & Enjoy

What’s in the blister?

Know Your Player Well

System Requirement

Software Installation

Connect & Charge

Transfer

Software Operation

Language Selection

Music Playback

Edit Lyrics

Repeat Mode

EQ Mode

Video Playback

Photo Browse

E-Book

Records

Game

Technical Data

Trouble Shooting

8-9

Using the Micro SD Card 7

10 - 13

What’s in the blister?

Portable Media Player

Earphone USB Cable

What’s in the blister?

CD-ROM containing:

Media player driver for

Windows® 98/98SE

Software for converting

.act files into .wav files.

Software for formatting

internal memory.

Your Pocket Guide

Portable Media Player

Install Software

Get Connected

Transfer Media

Plug Your Ears & Enjoy

Power On/Off

Scroll through lists

Select Option

Reset / Mic

Return to previous menu

Play/Pause songs

Jump to next song

Fast Forward

Move back to previous song

Fast Backward

Display lyrics

Stop lyrics display

Volume up

Volume down

Select image

Jump to next image

Jump to previous image

Hold

Press to Reset

long

Hold long

Quit to main menu

Hold long

Press and press

General

Music

Images

To Press

long

Hold

Hold long

Fast Backward

Play/Pause a movie

Jump to next movie

Fast Forward

Move back to previous movie

Movie

Next button

Previous button

Play/Pause button

M button

Reset/Mic

Volume button

Front View Back View

Bottom View

Earphone jack

USB port

Micro SD Card Slot

Windows® 98/98SE/ME/2000/XP/Vista

Pentium Class or faster Processor

CD-ROM Drive

64MB RAM

30MB free hard disk space

USB Port

You’ll need a computer with:

System Requirement

Insert the CD into the CD ROM drive of your PC.

Click to start driver installation.

Follow the on-screen-menu to complete the installation.

Setup.exe

Click once you reach the

screen.

Close Installation

Complete

For Windows® 98/98SE users, please install the driver in the CD-ROM before downloading any files to your player.

Software Utilities Installation

Software Installation

Connect & Charge

Connect

Your player will be charged while being connected to PC through the USB cable.

!You will see the charging animation in the bottom right hand corner of the display.

The player is fully charged when the charging animation stops.

[

Using the Micro SD card

After this unit is connected with the computer, you will find two moving disks. The first one is the built-in memory disk for this unit

and the other is the disk for the Micro SD card. If no card is inserted, the second disk cannot be opened.

Inserting and Pulling out the Micro SD card

Inserting: Put the Micro SD card face up (side with words) (with the direction of the clip side as the face), and slightly force the card

into the socket of the card, i.e. connecting the unit. Under this state, you can play the content in the Micro card.

Pulling: Slightly push the Micro SD, and it will bounce by a section, and then you can take it out.

Caution: Please perform inserting and pulling operation when power is off! Otherwise, it will lead to the loss or damage to the files

within the unit! If no card is inserted, the computer will be unable to perform read and write operation for the disk notes of the later

moving disk (Micro SD card).

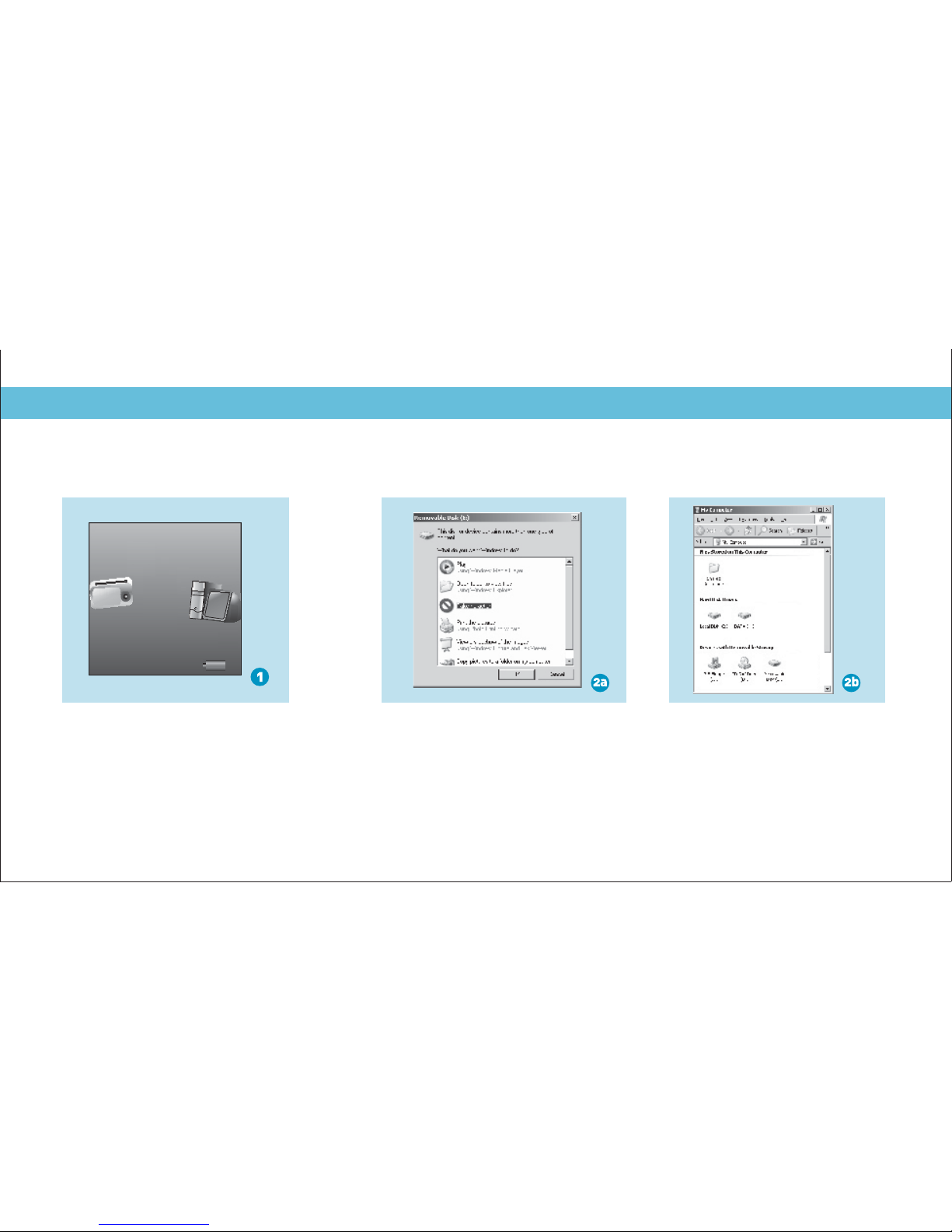

Step 1:

Set the Online Device of the player as USB Disk

(Refer to Page 6), then connect it to your PC

by USB cable. Once the connection is successfully

made, the above screen display (1) would be

shown. Try re-connecting the player if the above

screen doesn't appear.

Step 2:

The above screen (2a) would appear.

(Apply only to Windows® XP)

Choose and click

to close the window.

Ublf!op!bdujpo PL

Double click on your

desktop and the above window (2b)

would appear. Look for the

icon.

Nz!Dpnqvufs

Sfnpwbcmf!Ejtl

Get Your Player Connected

Transfer

[
