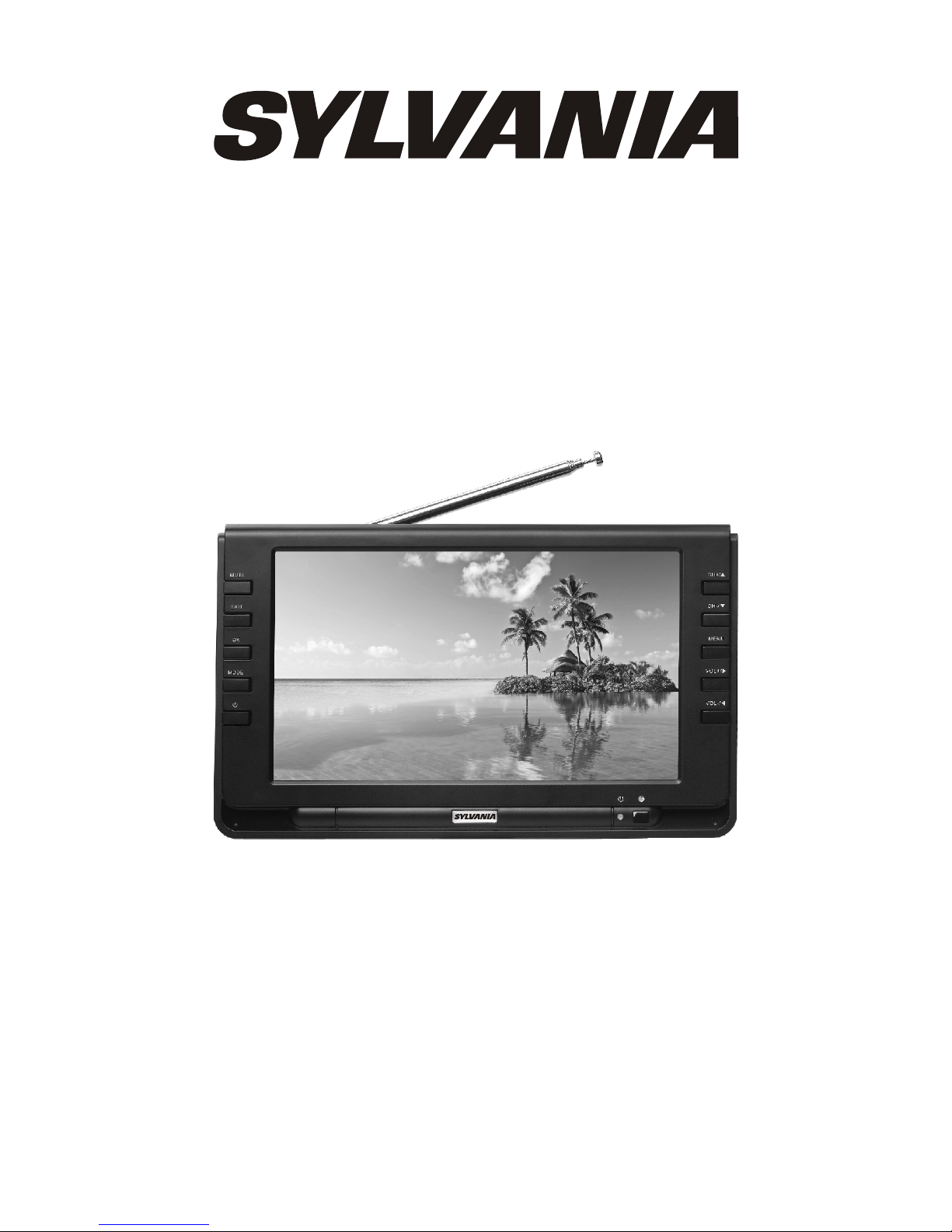

Sylvania SRT902A Manuel technique

LCD Color digital TV receiver

SRT902A

Operation Instruction

NOTE: THIS UNIT IS NOT MEANT TO BE USED IN A MOVING VEHICLE. ATSC DIGITAL

TUNERS DOES NOT RECEIVE SIGNAL WHEN IN MOTION.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Contents

I Precautions

II Accessories

III Appearance

IV Description of Panel Buttons

V Remote Controller Operation Instruction

VI Basic Operation

VII TV Menu Operation

7.1. TV/AV Image Quality Adjustment

7.2. Sound Adjustment

7.3. Time Adjustment

7.4. Settings

7.5. Program search

VIII Operations in CARD mode

IX Before Repair

X Technical Parameter

XI Stand Assemble Instruction Manual

-1-

I Precautions

1. Keep this product away from extremely hot or cold places. The

storage temperature ranges from -40 to 60 and the working

temperature from -5 to 40 .

2. Do not use this product at damp environment like bathtubs, wash

basins, kitchens, washtubs, as well as basements, swimming pools

or similar places.

3. Do not expose your TV set to high humidity, dust or oil smoke.

4. Do not throw or drop this product.

5. Do not subject this device to the inside of a case or strong vibrations,

avoiding strong collision.

6. Do not push on or scrub this product with sharp objects.

Storage

Maintenance

1. Disconnect all cables of this device at first before cleaning.

2. Wipe the enclosure, screen and keys using soft cloth with a little

soft detergent on.

3. Do not use polishing cloth, abstergent, and all types of propellants or

chemical detergents like alcohol and benzene to clean your device.

Special Notice

1. Bright spots or dark spots may appear on the screen. This is a

normal phenomenon associated with the active matrix display

technology and is not a sign of malfunction. Do not attempt to

maintain. For any failures, please turn off your TV set immediately

and contact us or your dealer. This device integrates a great deal

of fine electronic components. Disassembly or alternation may

result in damages or breaks.

2. This Unit is controlled by microcomputer. If it runs abnormally,

please restart it.

1. Do not watch television programs or turn your TV set on for your

own and others' safety.

2. It is very dangerous to watch television programs or operate the

TV set while driving.

Warning!

II Accessories

-2-

1. Car adapter

2. AC adapter

3. 75 ohm antenna conversion cable(screw connector)

4. Remote control

5. AAA type batteries

6. AV conversion cable

7. Telescopic antenna

8. User manual

* Open the package and make sure all the items are included.

III Appearance

-3-

1. Telescopic antenna

2. MUTE: Mute button

3. EXIT: Exit button

MENU: Menu button

11.

. Power indicator

Red: Standby

Flashing green: Charging

Persistent: Charged

14.

. OK: Confirm button

5. MODE: Mode shift button

6. : Standby button

7. TFT-LCD screen

8. CH+/ : Channel Select/

Upward button

9. CH-/ : Channel Select/

Downward button

10.

VOL+/ : Volume up/

Rightward button

12. VOL-/ : Volume down/

Leftward button

Remote-control receive

window

15. Antenna input Jack

16. Power on/off

17. AV Output

18. AV Input

19. Headphone jack

20. DC Input

21. SD/MMC/MS type CARD

input port

22. USB connect Jack

23. Speaker

-4-

IV Description of Panel Buttons

1. MUTE: Mute button.

2. EXIT: Exit button.

3. OK: Confirm button.

4. MODE:

5. : Standby button.

TV/AV/External storage

switch.

. CH+/ : Upward selection/Channel

increasing.

7. CH-/ : Downward selection/Channel decreasing.

8. MENU: Menu button, press to show the main menu. When system

enters a multilevel submenu, press to return the previous menu step

by step.

9. VOL+/ : Rightward selection/For volume increasing.

10. VOL-/ : Leftward selection/For volume decreasing.

-5-

1. (Power Switching Key): When you press this key, the TV set will

be turned off, and press again it will be turned on.

2. Channel Key(Number key (0-9) and ): Press relevant key directly

when you want to change channel.

3. VOL+/VOL- (Volume control key, left and right direction key):

Press VOL+ to turn up the volume. Press this key to choose menu

rightward if it is in the system menu.

Press VOL- to turn down the volume. Press this key to choose

menu leftward if it is in the system menu.

4. MENU: Menu key. When you press this key, the main menu will

display. When the system enters a multilevel submenu, press this

key and return to previous menu step by step.

5. : Play/Pause.

6. : Stop.

7. CC: Close/Open Caption.

8. SLEEP: 240 minutes sleep shutdown settings.

V Remote Controller Operation Instruction

19 20

21 22

LR03 "AAA" SIZE

-6-

9. LIST: TV program menu key. When pressing this key, you will see

the entire program list in a program list box.

10. FAVOR: Press to activate/deactivate my favorite Program list.

11. SOURCE: When pressing this key, you switch state among TV, AV

and External storage.

12. EPG: When you press this key, the system will show the program

guide menu(ATSC mode).

13. (Mute Key): When you press this key, the sound will disappear,

and press again the sound will return to normal.

14. RETURN: Press this key to return to previous channel you were

watching and press again to return to current channel.

15. CH+/CH- (Program choosing key, up and down direction key):

Press CH+ key to increase the channel. Press this key and choose

menu upward if it is in the system menu.

Press CH- key to decrease the channel. Press this key and choose

menu downward if it is in the system menu.

16. OK: Confirm button.

17. EXIT: Press this key, exit operation and return to the program.

18. / : Previous track/Next track.

19. MTS: Audio language switch key

When pressing this key, you can adjust among different Audio.

20. ZOOM: When pressing this key, you can choose among Wide,

Zoom, Cinema, Panorama and Normal image display formats.

21. PICT: Image Mode Key. Press this key to choose among the four

image modes of Standard, Dynamic, Soft and Personal.

22. INFO: When you press this key, the system will show the message

/information of present program.

VI Basic Operation

-7-

1. Connection of Power Supply:

Align the power supply plug on

AC adapter with the jack on the

machine rear cover marked with

DC.

75ohm antenna conversion line

2. Connection of Antenna Cable:

Align one end of the attached

antenna cable plug in the antenna

jack on TV set and the other end

plug in the external antenna jack.

AV conversion cable

3. Connection of AV convert Cable:

Insert the external video cord into

the yellow port of the AV convert

cable, the left sound track into the

white port and the right sound track

into the red port. Then plug the AV

convert cord in AV IN or AV OUT

jack.

Sound Mode Personal

Treble/Bass

Prefer Language English

Picture Mode Personal

Brightness 50

Contrast

Color

Sharpness

Tint

Color Mode Normal

VII TV Menu Operation

Press MENU key to enter the menu list and then press left or right key

to enter the above list. Press up and down key to choose to enter the

sub-list, press left and right key to adjust the numerical value or setup

the contents, then press MENU to confirm and return to previous list.

Press MENU again or press EXIT key on the remote controller to quit

the sub menu list directly after the adjustment of image quality.

1. There are four options of Picture Mode, which are Personal

Standard, Dynamic and Soft.

2. Brightness: Adjust the brightness of the image.

3. Contrast: Adjust the black and white contrast of the image.

4. Color: Adjust the color of the image.

5. Sharpness: Adjust the definition of the image.

6. Tint: Adjust the tint of the image.

7. There are three options of Color Mode, which are Normal, Warm,

Cool.

Precautions

7.1. TV/AV Image Quality Adjustment

7.2. Sound Adjustment

-8-
