Sylvania SLTDV7200-UK Manuel utilisateur

SLTDV7200-UK

Warning: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture.

Thanks for choosing our product.

This User Manual isdesigned to guide youthrough the functions andfeatures

of the device.And we reserve theright to change spec.without prior notice as

continuous product improvement.To ensure your properuse of the device,

please read through theManual carefully.And the descriptionin this Manual

is based on defaultsetting.Important safety and warningguidance to make

sure normal function ofthe device:

Warning

Toreduce the risk of fire orelectric shock, do not expose thisdevice in rain

or moisture.

-Please do nottry to dissemble the device byyourself

-Please do notplace the device near water,fire, dusty,high temperature

and humid environment

-Please do notdrop, or collide and shake thedevice with force, esp.

touch panel.

-Please do notclean the deviceby alcohol, orother chemical detergents,

clean the surfaceonly with soft cloth.

-Please do notcharge the device in high temperatureenvironment such as

near oven, electricwarmer etc. And do notcover the device or adaptor with

quilt, or clotheswhile charging.

-Please use onlywith supplied AC adaptor.

-Please charge the deviceregularly should the devicenot to be usedfor long

to keep batteryin good condition.

-Replace battery onlywith authorized personnel.

-Please handle thedevice with care, dropping or collisionaccidentally may

lead to devicedamage or internal data loss.

-Please do notuse the device when driving orduring walking.

-Please regularly duplicateyour data and files saved inthis device.

-You're solelyresponsible for any dataloss or damage if due to negligence on

above or repair and battery replacement and other individual reasons.

-Please do not disconnect while the deviceis formatting or in data-transmitting.

-Always keep awayfrom fire or fire source.

Other points tobe noted:

-This device iswith internal memoryof 8G, whilethe programs pre-stored

plus Androidsystem already take part of thememory. That'swhy when you

check File Managerfrom Applist and you will notice lessinternal storage.

In order to achievebetter performance or to download new programs,

please turnoff or unload programsused no more to help speeding up

demand and makeroom for new programs.

-When CPU is workingwith high speed, esp.in 3D games orplaying back HD

video long, thedevice will gethot and thisis normal, whilewe suggest to

cool down fora while.

Chapter One(overview)

Appearance

Buttons

Homepage information column

Textinput

Connections

Catalog

1.1

1.2

1.3

1.4

1.5

Chapter Two(DVD play mode)

Chapter Three (internet)

Browser

3.1

Chapter Four ( )Application

Explorer

Downloads

4.1

4.2

5.1

5.2

5.3

5.4

Chapter Six

(Rechargeable battery use)

Chapter Seven (Specification)

Chapter Five(System setting)

Wireless networks setting

Sound setting

Display setting

Date & Time setting

Main Features

*7" digital panel of higher resolution

*Built-in rechargeable Lithium polymer battery.

*Built-in one speaker.

*Support playback DVD/VCD/CD/MP3

*Support Android 4.4, Quad core,

Arm Cortex-A7 @1.3GHz, wifi: 802.11b/g/n

*Built-in internal memory of 8g

*Support HDMI, Bluetooth (Tablet mode)

*Touch control functions.

*Stand on back plate

Package

DVD player with tablet combo

AC power wall adaptor

USB cable

User manual

DC power car adaptor

Mounting straps

1.1 Appearance

Chapter One Overview

Volume+

Volume-

POWEROpen loader

MIC

HDMI

USB

RESET

TF CARD

EARPHONE

1.2 Buttons

Power button

Volume

Press / to adjust volume.

Open

Long press 2~3 seconds, screen will light up and pictures will show up until

the interface page.

Shut down

Long press , it'll ask ifyou will turn power off, press OK to shut down.

While charging, if the device isoff, press , it will show charging status.

Standby mode

In boot mode, when tapping ,the system will go into standby mode with screen

turns black, which can save power.

Tap again to goback and light up screen for further operation.

Open loader

Pull down ,user can open the loader and take in or out the disc.

Lock and unlock the screen

LOCK

You can setupsleep time in the Settings, choose Display.

The system will enter into sleepmode automatically and lock the screen to

standby mode, if without operating exceedingpreset time.

UNLOCK

Pull down and drag to unlock the screenand enter application interface.

1.3 Connections

Earphone jack: To connect external earphone

Micro USB jack: For both power supply input and connecting with PC (for the

latter, require an additional OTG cable which is notincluded in this device.)

HDMI jack: To show video to another TV with HDMI to achieve high resolution

video quality. (This requires a separateHDMI cable, which is not included in

this device.)

TF card slot: now known as Micro SD type, to insert a Micro SD perinstruction.

RESET: To restart the systemif abnormal situation happen and the device can't

be turned down. Use a thin object (like the end of apaper clip) to press RESET,

located in the middle of the right side, the device will be resetand power turns off.

Press 2~3 seconds to restart.

MIC: To recordif turned on recording function.

1.4 Home page information Column

1.5 Text Input

When use thetablet, you can use the virtualkeyboard to enter text, number,

symbols directly by touchingscreen. After selectingthe Android inputmethod,

the default keyboardshow as below:

Press to input numbers and letters and change letters in capital or small type

by pressing

?123

Back Volmue -

Volmue +

Host interface Screen shot

Recent search

WIFI Time

Battery power

Previous key PlayPause Next key Repeat Arrowsbottons

Chapter two: DVD play mode

Exit DVD mode Fast backward Fast forward Stop key A-B Repeat

DVD menu play Subtitle key MultiAngle

Dvd title play Audio key

Touch the icon in the application list to enter DVD play mode.

Press open button to load in a DVD disc, it will play.Touch screen, below

buttons will be show at the bottom.

Move the icon column further to the left, you will find 5more icons as follows:

For Arrow buttons, touch this button, a littlearrow control board will be displayed

on the screen. Youcan use it to select any item in DVD menu and play, below

diagram for ref. Only.

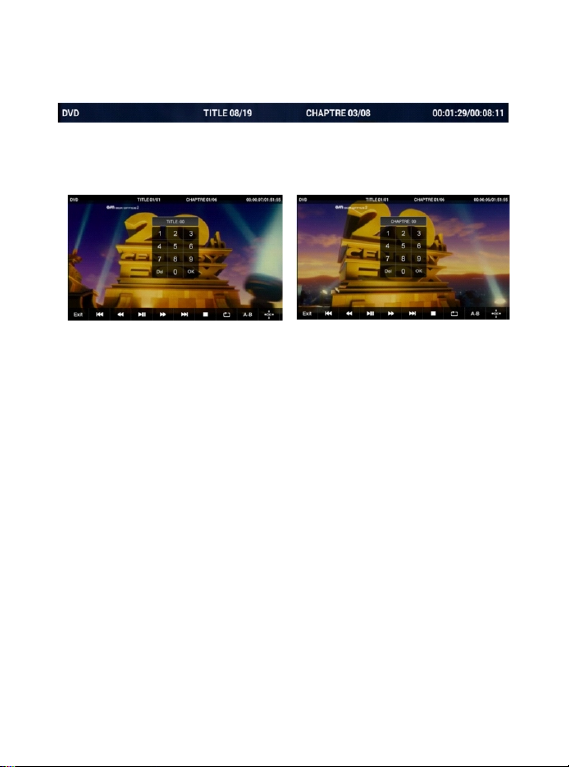

When playing DVD, touch screen, disc play info. Will show on screenas follows

(this feature varies per discs):

Touch ‘TITLE” or “CHAPTER”, a number select board will show, youcan input

number to select title or chapter to play. Below diagram for ref. Only.
