Digital Photo Frame
USER’S MANUAL
MODEL NO: SDPF717
CONTENTS
1
Chapter 1 product introduction ..............................................
1.1 Specification............................................................
1.2 package ..................................................................
Chapter 2 Operation introduction ..........................................
2.1 Operation of inserting the cards..............................
2.2 botton operation introduction for main unit..............
2.3 operation guide.......................................................
2.4 selecting mode........................................................
2.4.1 auto-play mode...........................................
2.4.2 photo...........................................................
2.4.3 clock and calendar display..........................
2.4.4 time and calendar setting ...........................
2.4.5 menu...........................................................
Chapter 3 Daily protection and maintenance.........................
3.1 Digital photo frame protection.................................
3.2 Penal cleanness......................................................
Chapter 4 Trouble shooting.....................................................
2
2
2
2
2
3
3
4
4
5
5
5
6
7
7
7
7
CHAPTER 1 product introduction
CHAPTER 2 Operation introduction
1.1 specification
1.2 packaging list
support picture format: JPEG、BMP、GIF(static state)
support SD/MMC/MS cards, this machine doesn't support music
panel: 7 inch LED screen
Power: DC5V 1.5A
Operation control: button operation control
digital photo frame 1pc
user manual 1pc
adapter 1pc
warranty card 1pc
2

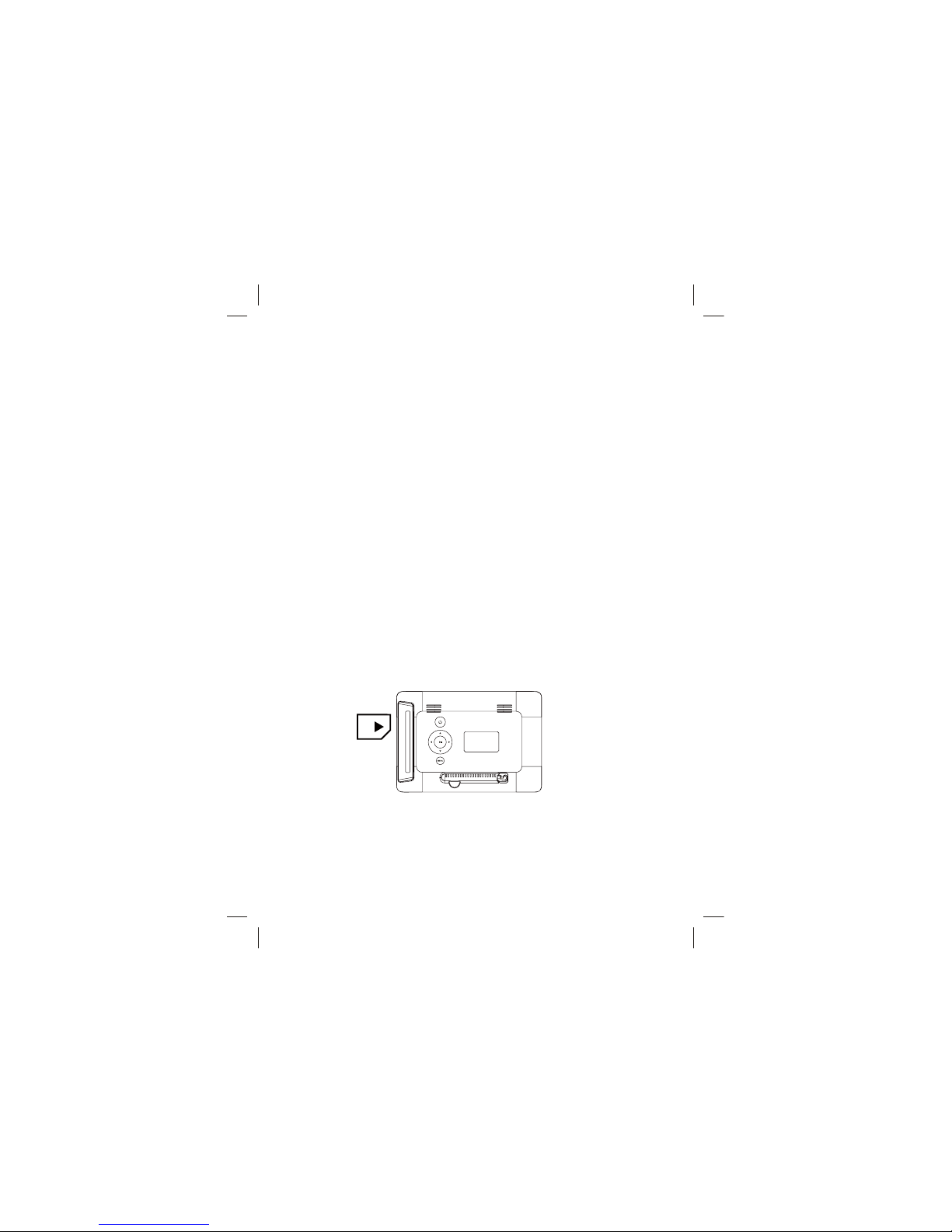

2.1 Operation of inserting the cards
SD/MMC/MS
Insert the card in correct direction like below indication:
Machine will recognize the card automatically, it can insert USB
and one of SD/MMC/MS card simultaneously

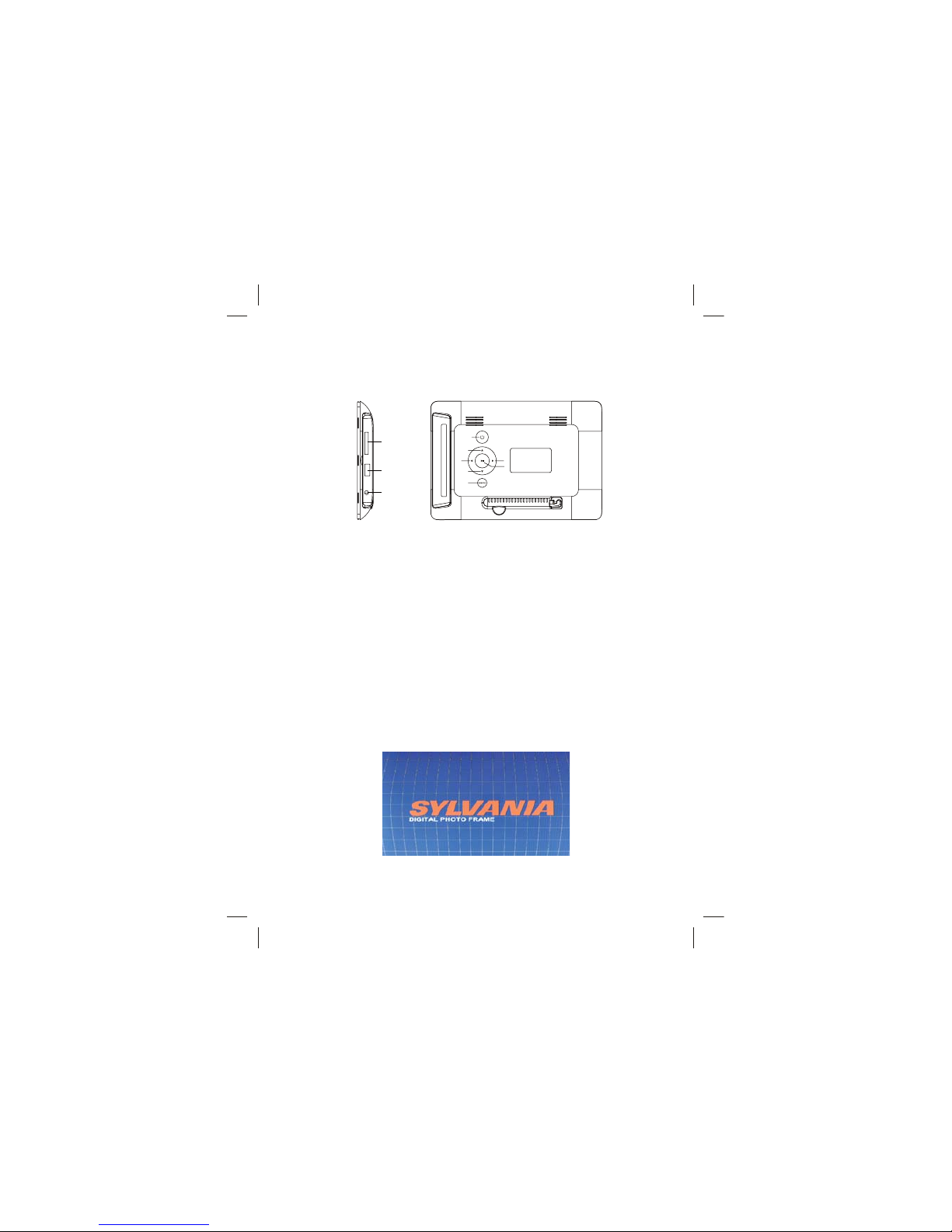

2.3 operation introduction
1. “POWER” button
2. Up button/ playing picture mode is rotating
3. “LEFT” button
4. “RIGH” button
5. “ENTER” button/ playing picture mode is normal playing /pause
6. Down button/ playing picture mode is rotating
7. “MENU ”/“SETUP” button
start up screen: power on the unit , will show the start up picture
3
1
8
9
10
2
34
5
6
7
9. USB input jack
10. Power input jack
8. Memory card slot
2.2 botton operation introduction for main unit
This product can be operated by pressing button as below:

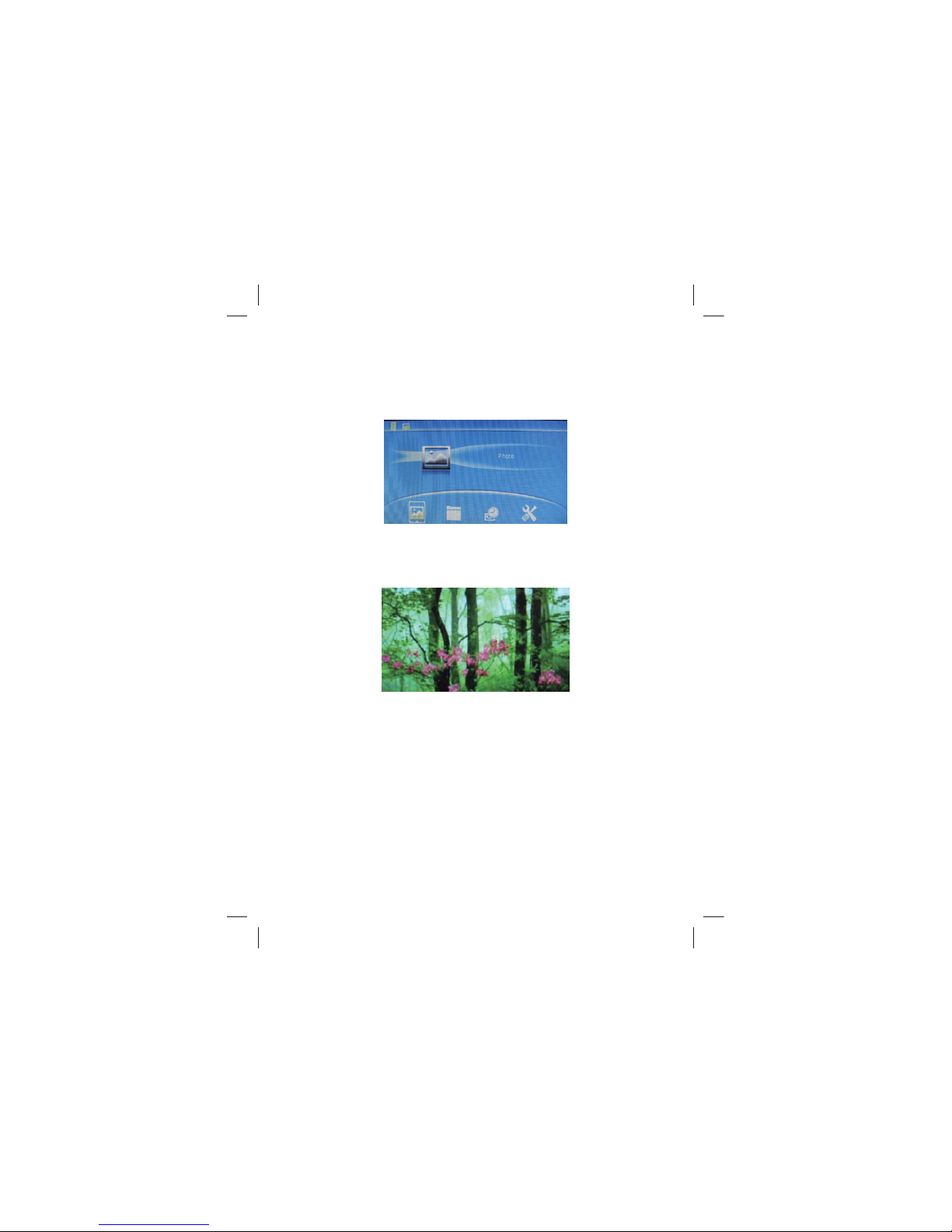

2.4 selecting mode
2.4.1 auto-play mode
under this mode:, have four function menu for selection: PHOTO,
FILE, CALENDAR, SETUP
select one function press ENTER to operate the function , press
return key to return to select card mode
This product will play automatically once insert card, when playing,
press ENTER key can pause the playing , press / key can
EURZVHWKHSKRWRSDJHE\SDJHSUHVVŸźVHOHFWEXWWRQFDQ
rotate the photo, press ENTER again return back to play mode;
press MENU key can return to photo browsing mode , press MENU
key again can return to the main menu
8QGHUEURZVHSKRWRPRGHSUHVVŸźNH\WRVHOHFWWKH
desired photo, press ENTER key to pause the browsing ,
press again ENTER key to play
4
ź
ź
ź
ź

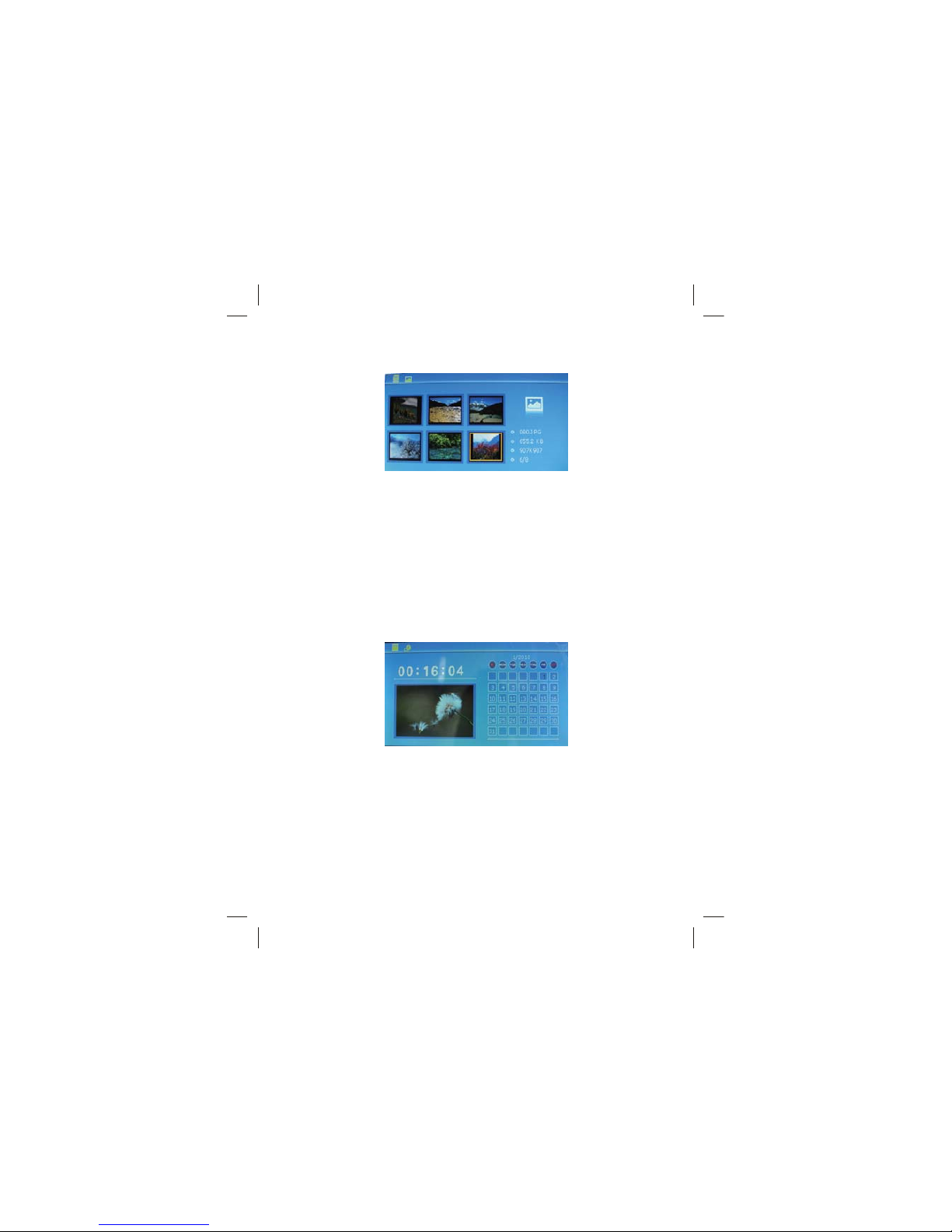

2.4.2 photo
2.4.4 time and calendar setting
6 screen image preview, select a picture after press ENTER key to
full-screen preview image, long press SETUP can pop-up setup
menu, you can set image display mode, the picture zoom / rotate /
copy / delete (the current equipment for the Memory When not be
able to choose copy) operation, the file copied to the memory
inside or removed from memory. Press MENU back to the
Select Mode.
enter to selection mode , select calendar to display the clock and
calendar
5
2.4.3 clock and calendar display
enter to selection mode , select calendar to display the clock and
calendar
2.4.5 MENU
enter to selection mode , select calendar to display the clock and
calendar
6
select SETUP menu under selection mode, it will display the setup
PHQXSUHVVŸźNH\WRHQWHUWRWLPHGDWHPHQXSUHVVŸź
NH\WRVHWXSWKHWLPHRUFDOHQGDUVHOHFWVHWWLPHWRVDYH
Select “SETUP” key to show setting menu,press “
Ÿź´
key to
VHOHFWVHWWLQJLWHPVSUHVV³´NH\WRDGMXVWRSWLRQWKHQSUHVV
³(17(5´NH\WRVDYHWKHVHWWLQJSUHVV³0(18´NH\WRUHWXUQWR
WKHILUVWOHYHOPHQXWKHQSUHVV³0(18´NH\H[LWWKHVHWWLQJPHQX
Language
Slide mode
Slide speed
Photo effect
Slide effect
Photo mode
Display
6HWWLPHGDWH
Set time format
Format built-in memory
Reset Setting
([LW
Random
Split Horizontal in
Split Horizontal out
Jalousie
Split Vertical in
Split Vertical out
Radiation
Surround
3 Seconds
5 Seconds
15 Seconds
30 Seconds
0LQXWH
0LQXWH
0LQXWH
1 Hour
English
French
Italian
German
Spanish
Portuguuese
Swedish
Dutch
Color
0RQR
Sepia
Single window
Four windos
Triple windows
Year:
0RQWK
Date:
Hour:
0LQXWH
Second:
6DYH7LPH
2010
01
01
00
44
09
Contrast
Brightness
Saturation
Tint
20
20
20
20
12
24
Are you sure?
No
Yes
Are you sure?
No
Yes
Auto Fit
Optimal
Full
3.2 Penal cleanness
Chapter 4 Trooble Shooting
The panel is broken , please take and put it gently
If the panel ‘s surface is dirty, please clean it with the soft cloth ,
if necessary , can wet the cloth with little water then clean it
7
1. Question: What kind of photos does this device support?
Answer: The frame will display digital photos that are stored in
the JPEG format, which is the standard format for nearly all digital
cameras. Some cameras allow images to be stored as TIFF or
RAW files as well as JPEG. Only the JPEG format is compatible
with the frame. Photos of up to million pixels can be displayed.
2. Question: What should I do if the system does not respond when
the power is turned on?
Answer: Please make sure the unit is properly connected to a
power source. Then turn it off, re-connect the power and turn it
on again.
3. Question: Why is the memory card not recognized?
Answer: The memory card might be inserted backwards or is not
pushed far enough. After inserting the memory card in the right
direction, if the still cannot be read, please turn off the unit and
then power it on again.
3.1 Digital photo frame protection
Chapter 3 Daily protection and maintenance
To reduce the risk of fire or electric shock, do not expose or use this
product at rainy or moisture place
Do not block the intake of the back panel
Do not place this unit under sunshine
