Swegon ESENSA Manuel utilisateur
ESENSA
DEFROST KIT
EN - Installation instructions..........2
NL - Installatie instructies..............8
FR - Instructions d’installation......14
DE - Installationsanleitung...........20
DK - Installationsanvisning...........26
2 www.swegon.com
MULTI.ESENSA.DEFROST.230821
Click here to open link
Table of content
1. Installation video
2. General information
3. Control conguration
4. Kit and recommended tools
5. Option location
6. Defrost kit installation
7. Defrost kit connection
1. Installation video
2.General information
The component of the option will be delivered separately from
the unit and must be installed by the installer.
Electrical cables must be adjusted to the unit. Connect length
to avoid any damage inside the unit.
The defrost kit will be used to continuously measure the need
to defrost the unit and activate this function as required.
3. Control configuration
In addition to installing and connecting the option, congure
the unit's option in the hand controller HMI using the
commissionning manual.
Defrost kit
The document was originally written in English.
We reserve the right to alter specifications.
www.swegon.com 3
MULTI.ESENSA.DEFROST.230821
+
-
-
+

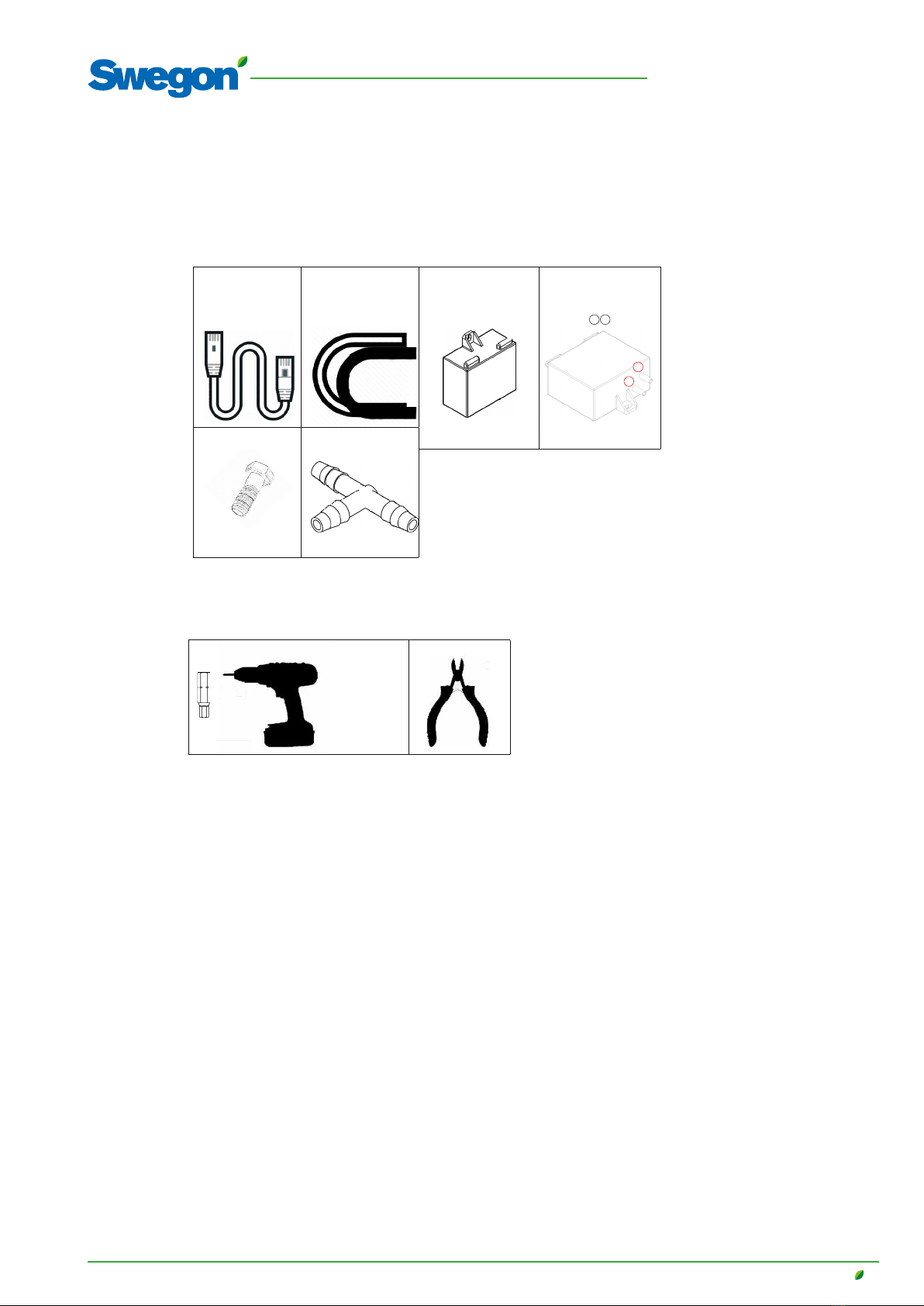

4. Kits and recommended tools
Kits delivered with the each coil,separately from the unit.
Tools not provided.
Picture 1
6. Hex drill bit and power drill 7. Wire cutter
1. RJ12
connection cable
2. Sensor hoses
(2 colours) 3. Sensor box Entries
4. M5 hex screw 5. Connector T
Components kit
Recommended tools
Picture 2
We reserve the right to alter specifications.
4 www.swegon.com
MULTI.ESENSA.DEFROST.230821
RIGHT VERSION
A
L
C1
B
C2
I2
I1
M
Q
G1
G2
R2
R1
E
D
J1
K1 J2
K2
5. Option location
Picture 3
A. Duct connection (circular or rectangular)
B. Cable gland
C1/C2. Membrane entry grommet (control cable)
D. Main board
E. Slotted DIN rail (free space for other components)
G1/G2. Pressure sensors/stats
I1/I2. Membrane entry grommet (supply cable)
J1/J2. Holding tray (control cable)
K1/K2. Holding tray (supply cable)
L. Preheating coil location (electrical)
M. Postheating coil location (electrical/water)
Q. Hydraulics connection
R1/R2. Pressure tappings
We reserve the right to alter specifications.
www.swegon.com 5
MULTI.ESENSA.DEFROST.230821
picture 5
Open the electric cabinet by unscrewing the panel (picture 4).
Place the defrost sensor box in position on the unit, provided
in the kit (kit n°3) and use the screw to x it on the threaded
tubes (already present). Use the M5 hex screw to attach the
box on the unit (kit n°4).
The cover of the box must be oriented towards the doors and
the pressure sensors entries must be positioned downwards)
(picture 5).
Open the defrost sensor box.Change the selection wheel inside.
Using a screwdriver, position the point of the arrow on the
letter "C"(picture 2).
Check the position of the pressure sensors/stats labelled "E"
(Extraction)(component G1/2 - picture 3 - page 4). It must
indicate 150 Pa (picture 6).
To connect the defrosting kit, see wiring diagram (picture 8).
picture 6
6. Defrost kit installation
picture 4
We reserve the right to alter specifications.
6 www.swegon.com
MULTI.ESENSA.DEFROST.230821
Sensor boxes Pressure stat E
Pressure tappings Pressure tappings
picture 8
RJ12
Defrost sensor box
7. Defrost kit connection
See component R2 on picture 3
BEFORE
AFTER
Sensor boxes Defrost sensor box Pressure stat E
Pressure tappings Pressure tappings
We reserve the right to alter specifications.
www.swegon.com 7
MULTI.ESENSA.DEFROST.230821
Step 1 (green hose)
Disconnect the hose between the pressure sensor/stat "E"
(component G1/2 - Picture 3) and the pressure tapping "F"
(component R1/R2 - Picture 3).
Install the T-connector provided in the kit (kit n°5).
Use the green hose supplied in the kit (kit n°2).
It must be cut to the needed length connect the two parts of
the T-connector.
• One piece of tubing connects the T-connector and the "F"
pressure tapping.
• The other piece connects the T-connector and the defrost
box on the inlet +.
Please respect the colour of the pipes.
Cut the appropriate length of pipe.
Step 3 (red control cable)
Connect the sensor box "S" and the defrost box using the RJ12
cable provided in the kit (kit n°1).
Use the free terminal insideof the sensor boxes "S" and one of
the ports on the defrost box.
Step 2 (transparent hose)
Disconnect the hose from the sensor box "E. Cut transparent
hose near the "E" sensor box to insert the T-connector
provided in the kit (kit n°5).
Use the corresponding hose supplied in the kit (kit n°2).It must
be cut to the length required to connect the two parts of the
T-connector.
• One piece of tubing connects the T-connector and the
sensor box "E".
• The other piece connects the T-connector and the defrost
box on the input -.
Observe the colour of the pipes.
Cut the necessary length of pipe.
In addition to installing and connecting the option, congure the unit's option using the commissioning manual.
We reserve the right to alter specifications.
8 www.swegon.com
MULTI.ESENSA.DEFROST.230821
Klik hier om de link te openen
1. Installatievideo
2 Algemene informatie
Deze optie wordt los meegeleverd en dient door de installateur
gemonteerd te worden.
Pas de elektrische kabels aan de unit aan. Voorzie voldoende
kabellengte om de unit niet te beschadigen.
De ontdooikit meet continu de noodzaak om de unit te
ontdooien en activeert deze functie indien nodig.
3. Configuratie van de
sturing
Naast het installeren en aansluiten van de optie dient u deze
ook in de handmatige HMI-controller te congureren. Hiertoe
kan u de handleiding over de inbedrijfstelling raadplegen.
Ontdooikit
Inhoudsopgave
1. Installatievideo
2. Algemene informatie
3. Conguratie van de sturing
4. Kits en aanbevolen gereedschappen
5. Locatie van de opties
6. Installatie van de ontdooikit
7. Aansluiting van de ontdooikit
Dit document werd oorspronkelijk in het Engels opgesteld.
We behouden ons het recht voor om specificaties te wijzigen.
www.swegon.com 9
MULTI.ESENSA.DEFROST.230821
+
-
-
+
4. Kits en aanbevolen gereedschappen
Kits los meegeleverd bij elke batterij.
Gereedschappen niet inbegrepen.
Afbeelding 1
6. Zeskantboor en boormachine 7. Kniptang
Componentenkit
Aanbevolen gereedschappen
Afbeelding 2
1. RJ12
verbindingskabel
2. Sensorslangen
(2 kleuren) 3. Sensorbox Ingangen
4.M5 zeskantschroef
5. T-connector
We behouden ons het recht voor om specificaties te wijzigen.
10 www.swegon.com
MULTI.ESENSA.DEFROST.230821
A
L
C1
B
C2
I2
I1
M
Q
G1
G2
R2
R1
E
D
J1
K1 J2
K2
5. Positie van de opties
Afbeelding 3 RECHTSE UITVOERING
We behouden ons het recht voor om specificaties te wijzigen.
A. Kanaalaansluiting (rond of rechthoekig)
B. Kabelwartel
C1/C2. Kabeldoorvoer (stuurkabel)
D. Hoofdprintplaat
E. DIN-rail met ruimte voor andere componenten
G1/G2. Druksensoren/pressostaten
I1/I2. Kabeldoorvoer (voedingskabel)
J1/J2. Kabelhouder (stuurkabel)
K1/K2. Kabelhouder (voedingskabel)
L. Positie voor voorverwarmingsbatterij (elektrisch)
M. Positie voor naverwarmingsbatterij (elektrisch/water)
Q. Hydraulische aansluiting
R1/R2. Drukmeetpunten
