SWEEX LC086 Manuel utilisateur

English version

LC086 Sweex Powerline Ethernet Adapter 85 Mbps

Introduction

• Do not expose the Sweex Powerline Ethernet Adapter 85 Mbps to extreme temperatures. Do not place the product in direct sun

light or close to heating elements.

• Do not use the Sweex Powerline Ethernet Adapter 85 Mbps in extremely dusty or moist environments.

• Prevent hard shocks or impacts of the product, as this can cause damage to the internal electronics.

• Never try to open the product yourself, this voids the warranty.

Important!

Do not connect the Sweex Powerline Ethernet Adapter 85 Mbps to a UPS or a socket with surge protection and/or filter. This can

negatively influence the quality of the signal.

Hardware Installation

Prior to installing the hardware, follow these precautionary instructions:

• Ensure that there is at least 1 free plug socket available for every adapter.

• Place the adapter in the plug socket.

• Place the second and possibly third (etc.) adapter in a different plug socket.

• Connect the adapter with the network and/or the computer by means of the network cables. There are 3 connection possibilities:

1: From /switch to PC (see image underneath)

English version

2: From PC to PC

3: From router/switch to router/switch

• Check if the LEDs are lit as indicated in the topic “LED indications”.

Software installation XP and Vista

No drivers are needed for the Sweex Powerline Ethernet Adapter. The utility that will be installed ensures extra functionality and

security. If you do not need this you do not have to install the software. Without software you can immediately use the Sweex

Powerline Ethernet Adapter.

Before you start the installation we recommend you to ensure that your operating system is up-to-date. This is easily checked by selecting

the “Extra” menu in Internet Explorer and then the option “Windows Update”.

Place the Sweex CD-ROM in the CD-ROM player. The auto run menu will start automatically.

In this menu choose “Software XP and Vista”

When this auto run menu does not appear you can start the software manually. To do this open “My Computer” and go to

X:\software\ (X is the letter of the CD-ROM drive). Here is the file ‘LC086_software’. Execute this file. Windows will install the

software automatically.

Software Power Adapter Utility

Configuring the Sweex Powerline Ethernet Adapter 85 Mbps is done with the ‘PowerPacket Utility’. These can be found as follows:

Go to START -> “All Programs” -> “Power Adapter” -> “Power Adapter Utility”

or when the classic view is being used:

Go to START -> “Programs” -> “Power Adapter” -> “Power Adapter Utility”

The following screen appears:

English version

The program will immediately search for the Powerline devices, which are connected with the powerline adapter of your computer

via the power grid. The found devices will appear in the window under “Device Name”. Here you can see the password (Default

setting empty), the quality of the connection, the effective data speed (“Rate (Mbps)”) and the MAC address of the adapter.

When you want to use the security possibilities you have to enter the password of the adapter. This password (“PWR: xxxx-xxxx-

xxxx-xxxx”) is unique for every adapter and is located on the sticker underneath the adapter under the MAC address (“MAC: xx:xx:

xx:xx:xx:xx”). We advise you to write these details on a piece of paper before you start the installation, this way you can easily

find the details.

Select the device you want to configure and click “Enter Password”. The following screen appears:

Enter the password that is on the adapter. Pay attention that the MAC address of the adapter is the same as the MAC address in

the program, so that the right password is entered!

Security

It is not necessary to configure the security for the Sweex Powerline Ethernet Adapter 85 Mbps to work properly. If someone has

access to your plug sockets, that person (when you did not setup security) could access internet via that plug socket. This is not

practical and will hardly ever occur, because the Powerline is limited to your own house. Powerline does go over all groups within

your house.

English version

Applying the security is done in the second tab. Here you can give a unique network name (default is “HomePlug”). This network

name is also the password to connect to the Powerline network. After entering a network name you have to click on “Set All

Devices”. This will only work when the “Password” of all adapters is entered. The network is now secured and can be connected to

by all adapters that have the unique network name.

When the passwords of the adapters are not entered, only the locally connected adapter can be configured. This adapter will then

be isolated from the network, because only this adapter has a unique network name.

Only adapters with the same network name can create a network together. The default network name is “HomePlug”. When you

do not need security you do not have to configure anything.

LED indications

The Sweex Powerline Ethernet Adapter 85 Mbps has 3 LEDs:

LED Indicator Status Indication

Data On An other adapter is detected on the same network.

Off No other adapter is detected in the same network.

Blinking There is activity on the Powerline network.

Power On The adapter is turned on.

Ethernet On The network port is correctly connected and ready to send/receive data.

Off The network port is not connected correctly.

Blinking The network port sends/receives data.

Warranty

For all Sweex products a warranty period of 3 years applies. We do not give support or warranty on supplied software,

rechargeable batteries and batteries. Transaction of warranty only takes place at the sales point where the product is bought.

All brand names and associated rights mentioned in this manual are and stay property of the rightful owner.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SWEEX Adaptateur

SWEEX

SWEEX LW313 Manuel utilisateur

SWEEX

SWEEX LC500 Manuel utilisateur

SWEEX

SWEEX LC086_PACK_W Manuel utilisateur

SWEEX

SWEEX LC100040 Manuel utilisateur

SWEEX

SWEEX LC206 Manuel utilisateur

SWEEX

SWEEX PA300 - QUICK_START_GUIDE Manuel utilisateur

SWEEX

SWEEX LW303 Manuel utilisateur

SWEEX

SWEEX LW154 Manuel utilisateur

SWEEX

SWEEX BT202 Manuel utilisateur

SWEEX

SWEEX LW056V2 Manuel utilisateur

SWEEX

SWEEX LC085 Manuel utilisateur

SWEEX

SWEEX BT100 Manuel utilisateur

SWEEX

SWEEX BT203V2 Manuel utilisateur

SWEEX

SWEEX BT214 Manuel utilisateur

SWEEX

SWEEX LC206 Manuel utilisateur

SWEEX

SWEEX BT211 Manuel utilisateur

SWEEX

SWEEX LC100060 Manuel utilisateur

SWEEX

SWEEX LW311 Manuel utilisateur

SWEEX

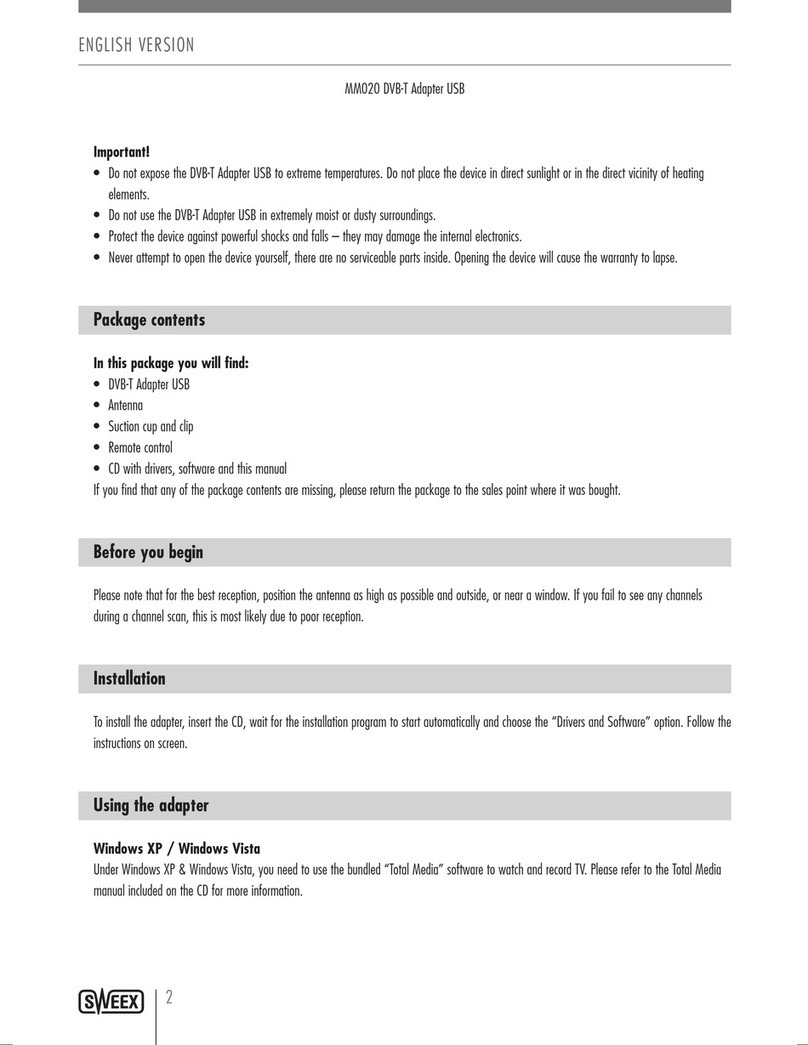

SWEEX MM020 Manuel utilisateur
