Advanced Digital Wireless

Camera and Receiver

Operating Instructions

™

Advanced security made easy

ADW-400

SW344-DWD

222

FCC Veriﬁcation:

NOTE: This equipment has been tested and found to comply with the limits for

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de-

signed to provide reasonable protection against harmful interference in a residen-

tial installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to cor-

rect the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna

· Increase the separation between the equipment and the receiver

· Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

· Consult the dealer or an experienced radio/TV technician for help

IMPORTANT NOTE: Prohibition against eavesdropping

Except for the operations of law enforcement ofﬁcers conducted under lawful

authority, no person shall use, either directly or indirectly, a device operated pursu-

ant to the provisions of this Part for the purpose of overhearing or recording the

private conversations of others unless such use is authorized by all of the parties

engaging in the conversation.

WARNING: Modiﬁcations not approved by the party responsible for compliance

could void user’s authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS:

· Make sure product is ﬁxed correctly and stable if fastened in place

· Do not operate if wires and terminals are exposed

Before You Begin

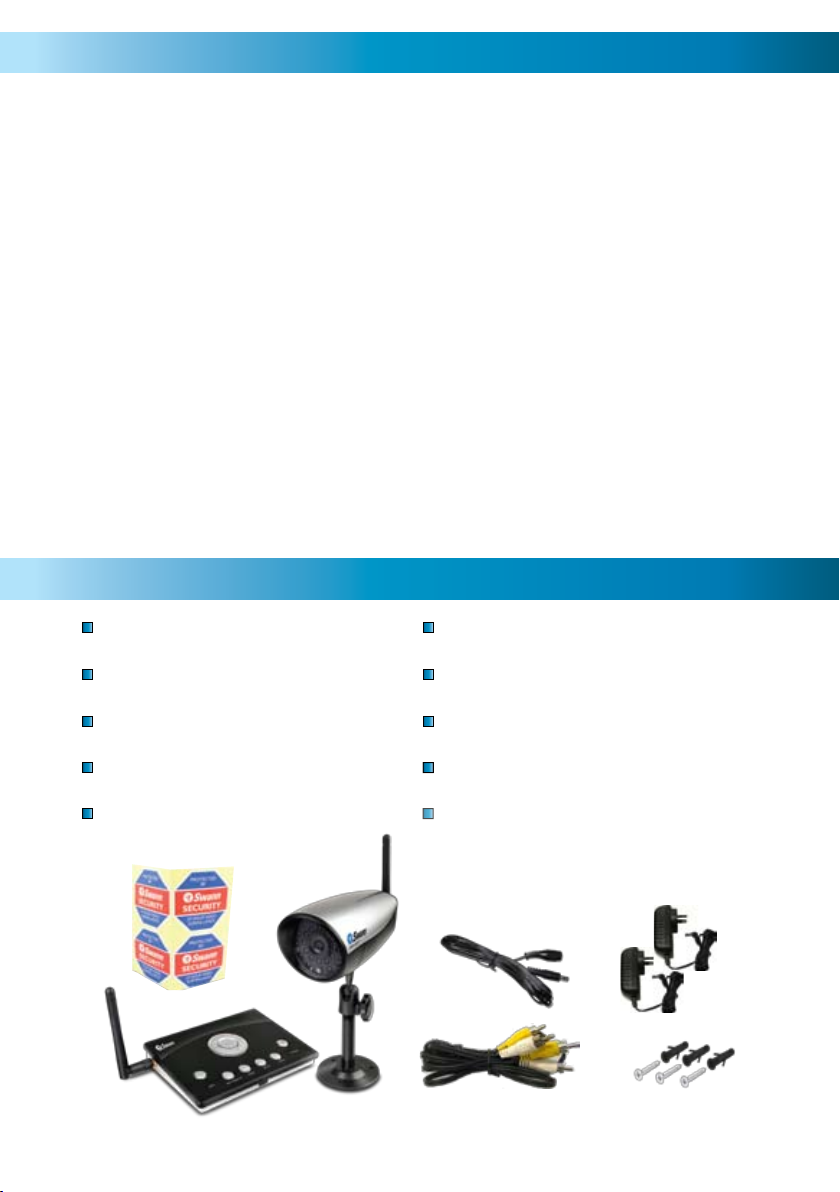

ADW-400 Camera with Stand

Receiver

A/V Cable

2 X Antennas

Power Extension Cable for Camera

Power Adapters

Operating Instructions

Security Stickers

Mounting Hardware

SD Memory Card (Optional)

Table of Contents

Package Contents

Before you Begin 2

Table of Contents 3

Package Contents 3

Overview 4

Layout of Camera 5

Layout of Receiver 6

Pairing 7

Using the Menus 8

Recording Modes 9

Connection Guide 10 - 11

Settings 12 - 13

Playback and Backup 14 - 15

Additional Features 16 - 17

Troubleshooting Guide 18

Technical Speciﬁcations 19

Technical Support Rear Cover

Warranty Information Rear Cover

444

Overview

Congratulations on your purchase of the ADW-400! You’ve chosen a reliable and

exceptionally convenient monitoring solution for your home or business. Here’s a

quick rundown on some of the great features the ADW-400 has to offer:

Digital Wireless Technology

No more interference! Unlike older analog wireless technologies which suffer

greatly from signal distortion and interference, digital wireless technology provides

clean, crisp images, even in environments with other wireless devices active.

This is in addition to all the other conveniences of wireless systems, such as not

having to install cables, and offers increased ﬂexibility for modiﬁcations to your

camera placement at a later date!

Up to four channels (Quad View)

Unlike older wireless systems which require a separate wireless receiver for each

camera, the ADW-400 receiver is capable of receiving and displaying up to four

cameras at once!

Night Vision

With twenty-four infrared LEDs built into the camera, the ADW-400 can see up

to 8m/26ft even in complete darkness, providing you with a 24 hour security

solution.

SD Card Recording

Thanks to the built in SD card recording capabilities, it can be used as a convenient

stand-alone monitoring and recording device. It features support for SD cards up

to 32GB in capacity which, when combined with it’s motion recording abilities,

allow the ADW-400 to work for months at a time.

Note: for the best results, always use high-speed, high-quality SD cards which

conform to either the SD or SDHC standards. Many lower quality SD cards with

slower read/write speeds will not produce desirable results, as they cannot ‘keep

up’ with the video being captured by the ADW-400.

Layout of Camera

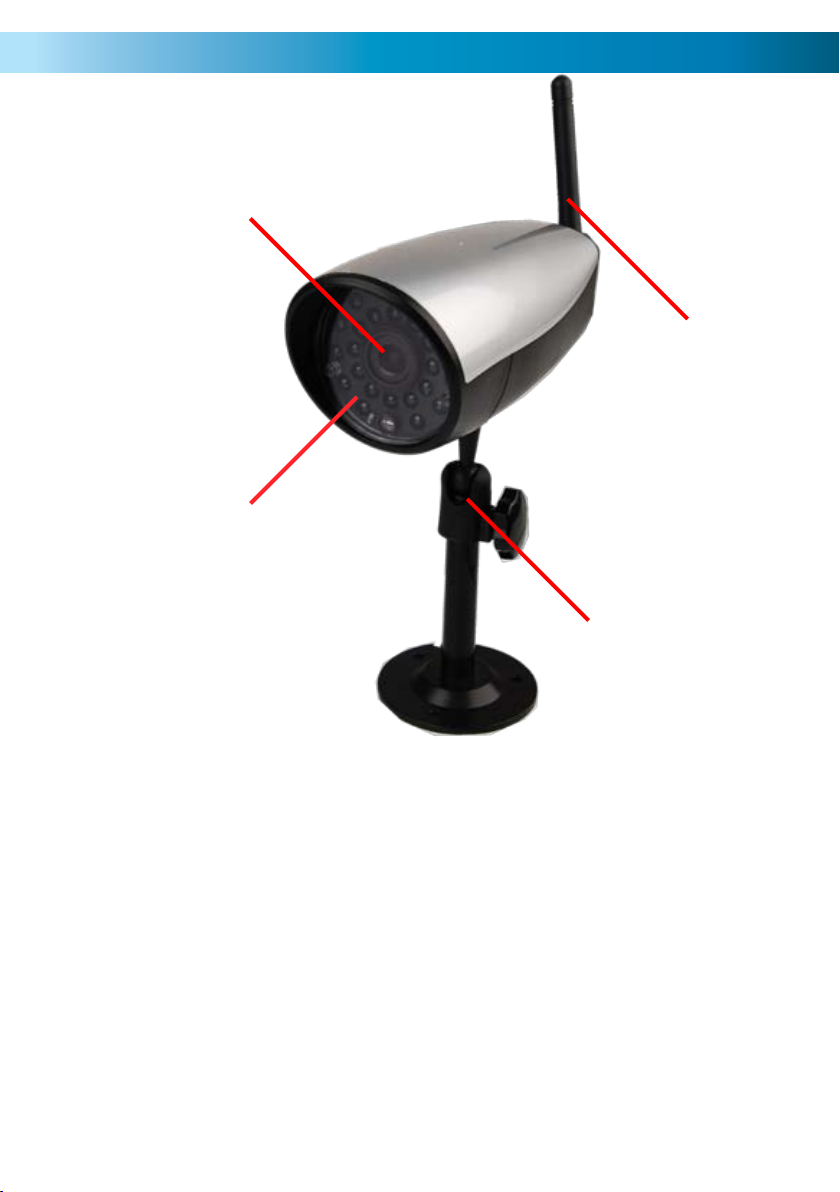

Lens: The business end of the camera. For a reliable and clear image, ensure that

the lens stays clean and unobstructed. To clean, use a dedicated lens cleaning

solution and cloth, available from all good photography stores.

Infrared LEDs: These give the camera its limited night vision capabilities. These

LEDs act like a ﬂoodlight, but use light that human eyes cannot see, but which the

camera can.

Stand: This stand can be pivoted to face any direction. Additionally, it can be

attached to the camera via the screw thread on the rear of the camera, allowing

for attachment high on a wall or to a ceiling.

Antenna: Used to transmit the wireless signal to the receiver. For the best results,

the antenna should be as unobstructed as possible - ideally having a clear line of

sight to the receiver.

Lens

Infrared LEDs

Stand

Antenna

666

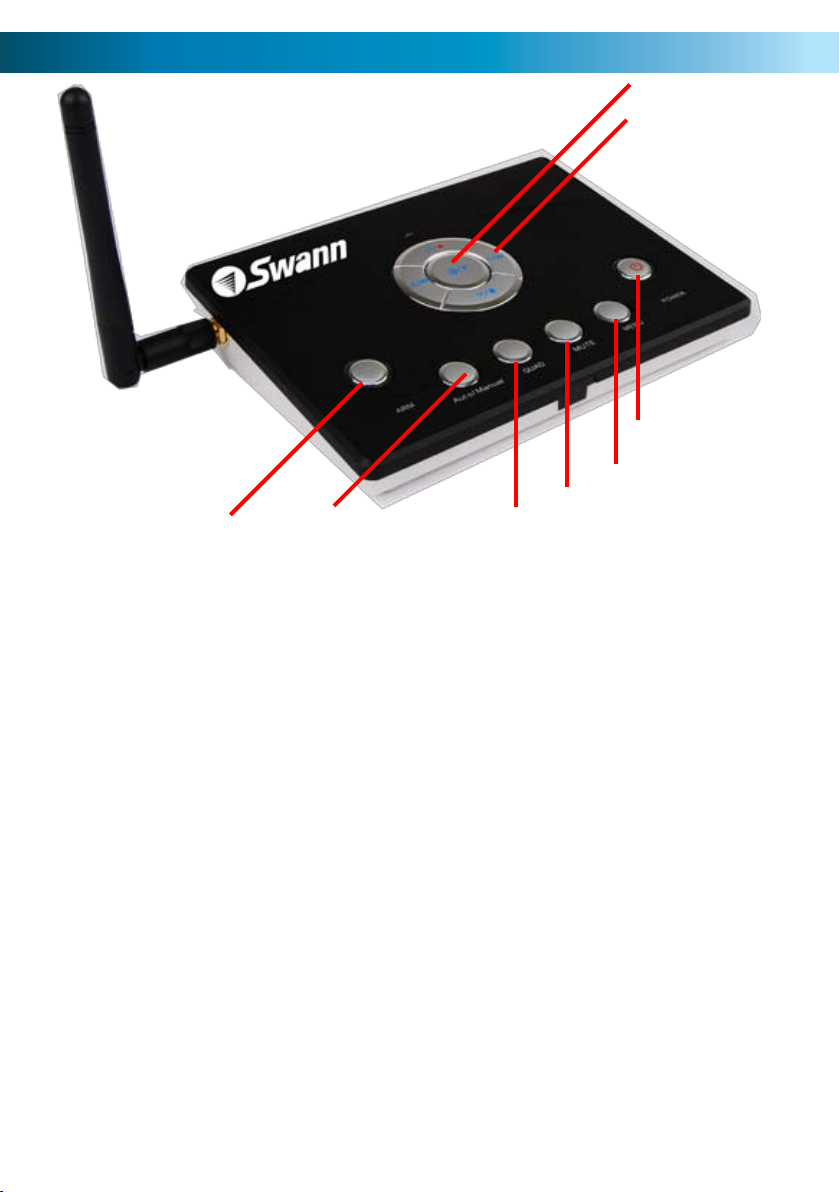

Layout of Receiver

ARM Auto/Manual QUAD

MUTE

POWER

Arrows /

Playback Controls

Play / Enter

Power: Activates and deactivates the receiver.

MENU: Opens the main menu, or goes back one step in a submenu.

MUTE: Turns the audio output on or off. Will not affect recording, only live

monitoring and playback.

QUAD: Toggles between single channel view (where the image from one camera

ﬁlls the whole screen) and quad view (where all four channels are displayed

simultaneously, each taking 1/4 of the screen).

Auto/Manual: Press to change the channel being displayed in manual switching

mode. Press and hold to toggle between manual switching and auto-switching

mode.

ARM: Turns the motion detection based recording functions on or off. When the

receiver is armed, it will automatically switch to QUAD view. You can subsequently

exit QUAD view without disarming the receiver by pressing the QUAD button. For

more information about recording and recording modes, see page 9.

Play / Enter: Starts and stops footage in playback mode. Acts as a Select / Enter

Arrows / Playback Controls: Used to navigate whilst in the menu system. In live

viewing mode, UP is a shortcut to RECORD. In playback mode, DOWN is a shortcut

to STOP, whilst LEFT and RIGHT are REWIND and FAST-FORWARD respectively.

Pairing

Pairing Instructions

You might have already noticed that there is no channel switch on the camera

– so, how do you assign the cameras to the channel you want? The answer is

“pairing”.

Pairing, in a nutshell, is a process which associates one camera with one channel,

hence “pairing” them together. There are no physical switches to worry about,

the change is handled by the software in the receiver. The camera and receiver will

retain their pairings even if the power is disconnected and restored.

To pair a camera with one channel on the receiver:

Press the MENU button on the receiver.•

Using the arrow buttons, navigate to “Pairing”.•

Press PLAY/ENTER.•

Using the LEFT and RIGHT arrows, choose the channel you would like to pair•

the camera to, from 1 to 4. Press PLAY/ENTER to conﬁrm.

Once you’ve selected the channel you’d like to pair a camera to, a countdown•

will appear on screen, counting down from 30.

Whilst this countdown is in progress, press the pairing button on the rear of•

the camera you’d like to pair with this channel.

Note: Only one camera can be paired to a channel at a time, and pairing a camera

to a channel which already has a paired camera will replace the previously paired

camera.

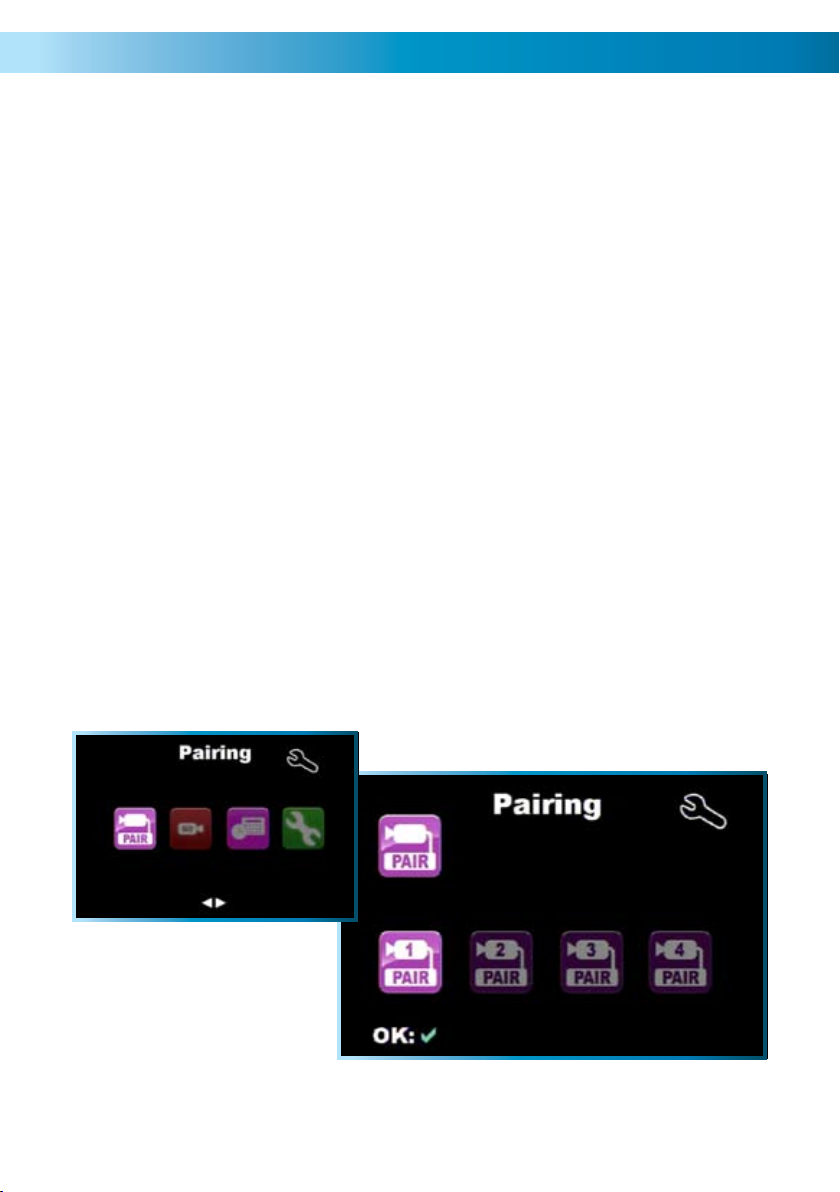

The Main Menu with the

Pairing Menu selected.

The Pairing Menu with

the Channel 1 selected.

888

Using the Menus

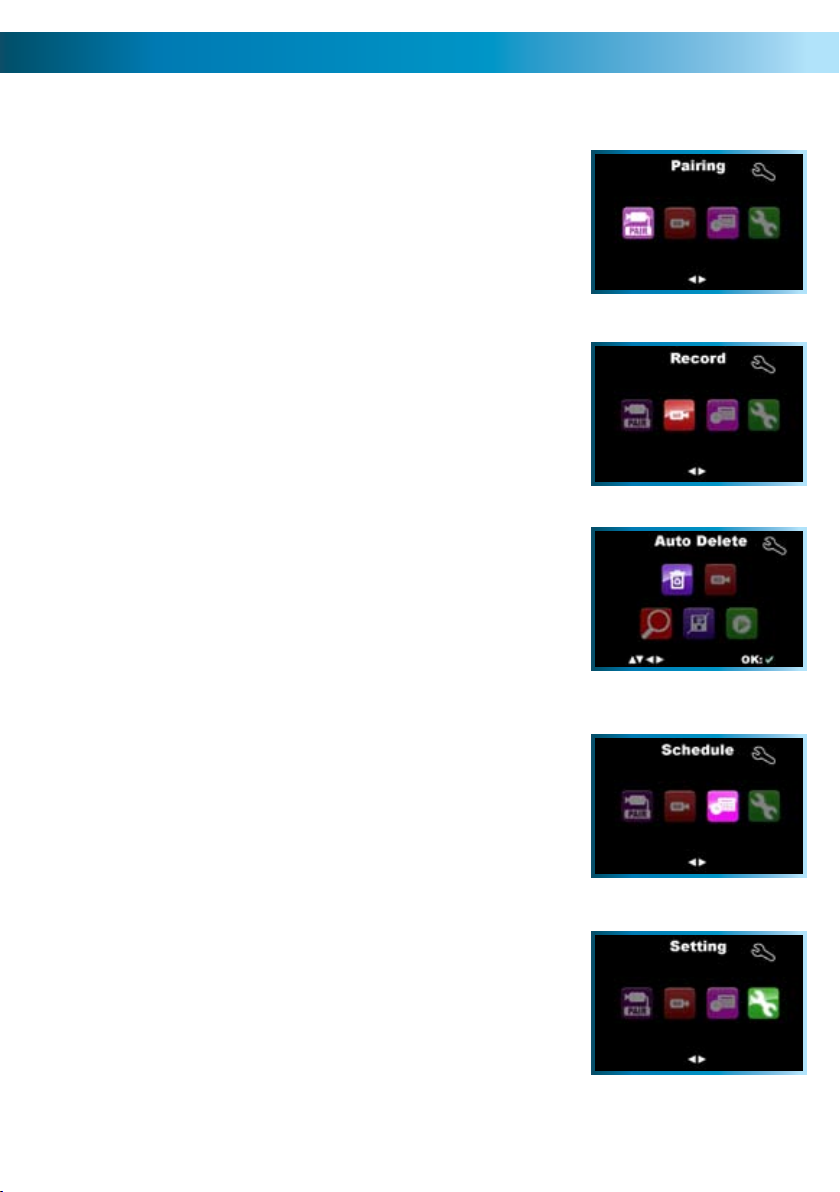

When you open the Main Menu, you will see the following

four categories, each containing several options. Here’s a

quick rundown of what you’ll see.

Pairing

This is where you pair cameras with channels in the receiver.

See page 7 for more details.

Record

Auto-Delete:• Whilst Auto-Delete is turned on, and the

SD card is full, the receiver will automatically delete the

oldest event to have space to record a new event. If

Auto-Delete is off and the SD card ﬁlls up, the receiver

will no longer record.

Alarm Record Time:• The amount of time after a

motion/alarm event that the receiver will continue to

record for. You can set this time between 3 seconds

and 10 minutes.

Time Stamp:• When Time Stamp is set to on the time

and date of a recording will be overlaid on the video.

We suggest leaving this set to on, as recording the

time and date of an event typically makes the footage

more useful.

Format:• Formats the SD card in the receiver. Formatting

removes all data and re-writes the ﬁle allocation table.

Only use this option if the SD card seems incompatible

with the receiver, and/or you really want all data on

the card to be erased.

Playback:• Enter playback mode (see pages 14 - 15).

Schedule

You can set a start and end time for the period that•

you want the receiver to record each day.

Only one recording period can be deﬁned each day.•

For the duration of the programmed schedule, the

receiver will record continuously, regardless of whether

there is movement in the camera’s line of sight.

For more information about Scheduled Recording, see•

page 11.

Setting

Here you can access and set many of the settings in the

receiver. You’ll be able to adjust the date and time, your

display settings, and alarm settings. For more details, see

pages 12 - 13. The Main Menu with the

Settings Menu selected.

The Main Menu with the

Schedule Menu selected.

The Main Menu with the

Record Menu selected.

Layout of the Record Menu

with Auto Delete selected.

The Main Menu with the

Pairing Menu selected.

Recording Modes

The ADW-400 Receiver offers two recording modes, Motion Recording and

Schedule Recording. Both of these can be used together - that is, the receiver

can always be ready to record on motion, and also record constantly for a certain

period each day.

Motion Recording

When Motion Recording is enabled, the receiver will record a short video ﬁle every

time something moves in the line of sight of the camera. You can choose how long

the receiver will continue to record for after a motion event has occurred.

Schedule Recording

You can have the receiver record constantly for a certain period each day. To set

this up, access Schedule from the main menu.

Simply enter a start and end time. Use the left/right arrows to navigate, and

up/down to change the values. Choose “On” to exit the schedule menu with

Schedule recording active, or “Off” to exit the menu leaving schedule recording

deactivated.

Note: If you set the schedule to record a long period each day, remember that

you’ll need to have a very large SD card in the receiver to store all that video data!

If the card is smaller than the total ﬁle size, then you’ll lose at least part of the

recording, and possibly all of it.

The motion detection is sensitive enough to detect a human being (or

human sized object/animal) moving at up to approximately 26ft (8m) from

the camera. Smaller objects/animals proportionally closer to the camera, as

well as larger things which are farther away. The criteria is how large things

appear on the screen and how fast they are moving.

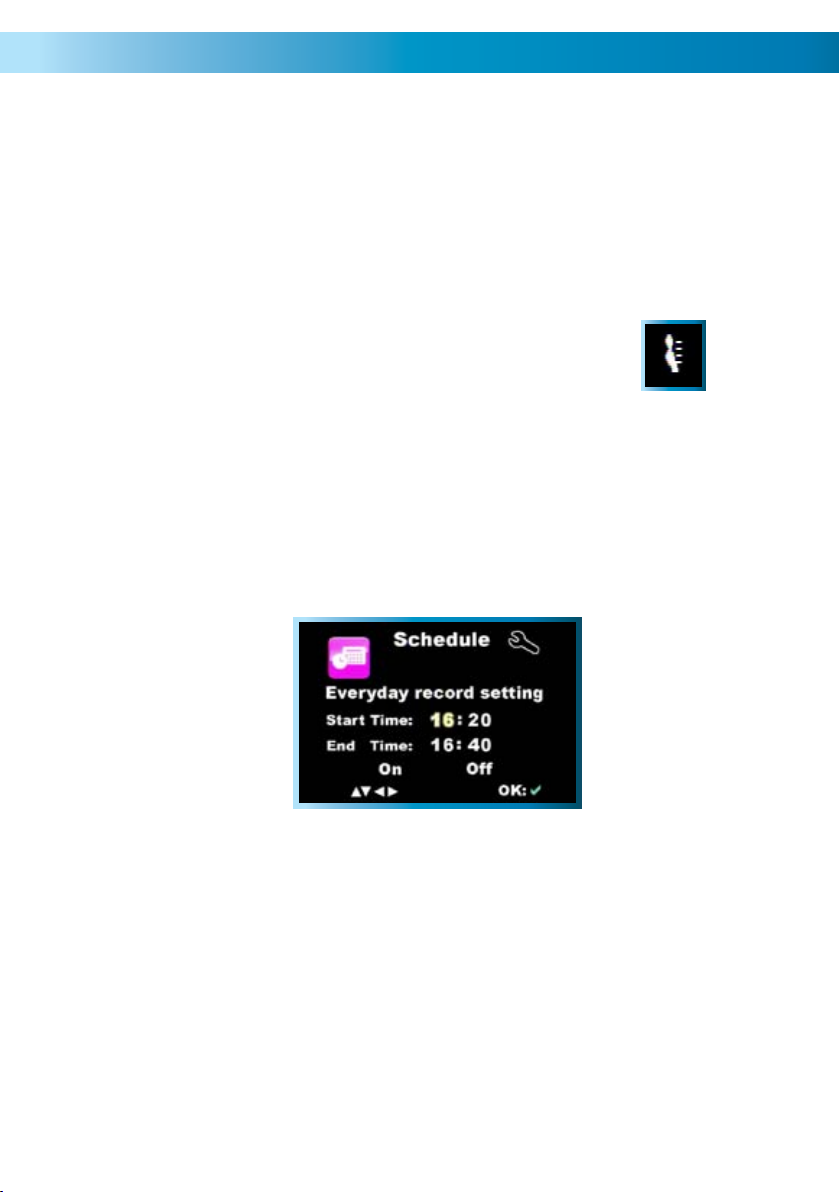

Motion Alarm: You can set the receiver to emit a high-pitch alarm tone when it

detects motion.

To turn Motion Recording ON or OFF, press the ARM button on

the top of the receiver. The Motion Icon will be displayed on

screen whilst the receiver is armed for Motion Recording. The Motion

Detection icon.

The Schedule menu.

101010

Connection Guide

INPUT

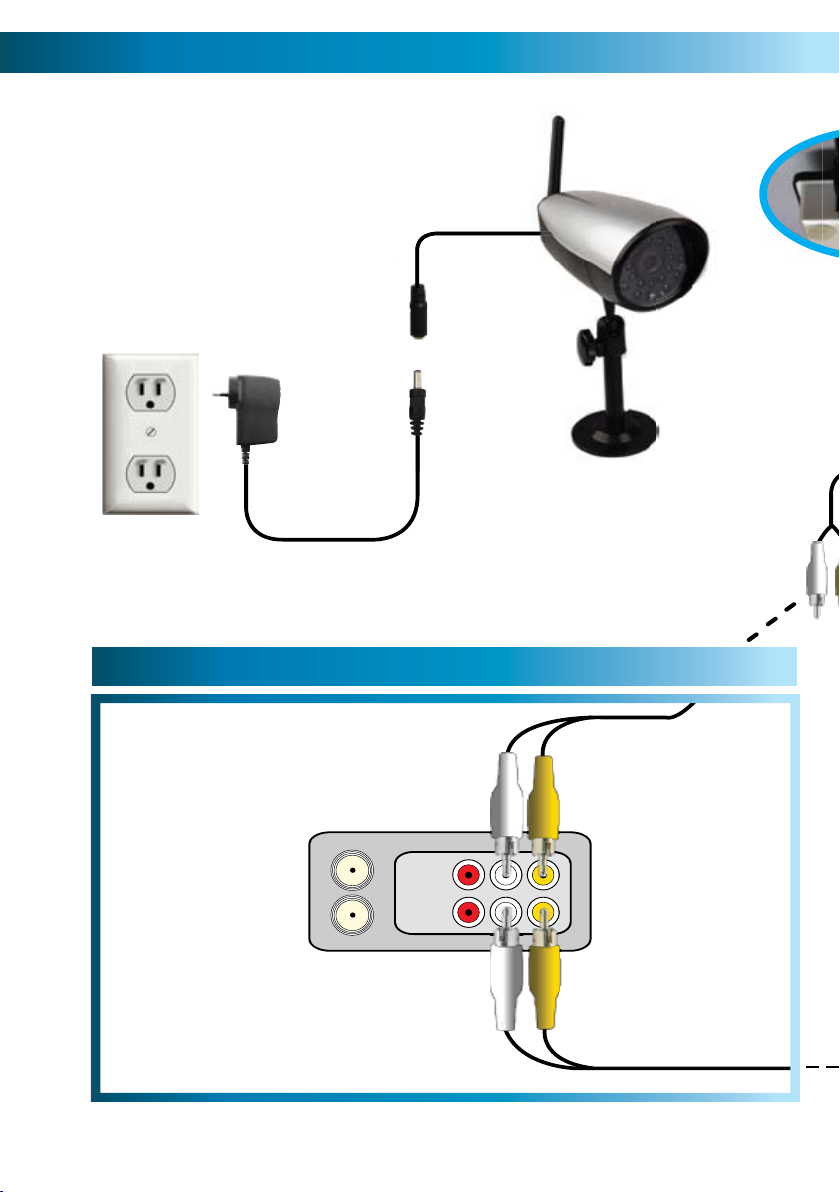

5A. Connect to VCR/DVD recorder (Optional) 5B. Connecting to TV

Connect the power

adapter plug into the power

socket attached to the

camera.

Connect the the A/V cable to your

TV or VCR

Connect the A/V cable

to the Input on the back

of the VCR/DVD recorder

If your VCR/DVD recorder is

not already connected to your

TV, connect another A/V cable

to the Output on the VCR

From ReceiverFrom Receiver

To TV

From VCR

(Optional)

Plug the camera’s

power adapter into

the wall socket.

Connect the power adapter

plug into the receiver’s

power socket.

Input

Output

Connect the A/V Cable

to a TV Input

Connect the

power

adapter into

the wall

socket.

powe

Autres manuels pour SW344-DWD

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Swann Caméra de sécurité

Swann

Swann SW322-XDW Manuel utilisateur

Swann

Swann DVR4-1000 Guide de démarrage rapide

Swann

Swann SW211-DTX Manuel utilisateur

Swann

Swann MaxiBrite SW212-MXB Manuel utilisateur

Swann

Swann SWIFI-ALERTCAM Manuel utilisateur

Swann

Swann SW-C-C510R Manuel utilisateur

Swann

Swann MAXI DAY/NIGHT CAM SR225-4MC-10006 Manuel utilisateur

Swann

Swann PRO-530 Manuel utilisateur

Swann

Swann Dummy MaxiBrite SW215-DML Manuel utilisateur

Swann

Swann CoreCam Manuel utilisateur

Swann

Swann SWIFI-SPOTCAM Manuel utilisateur

Swann

Swann ALPHA C10 Manuel utilisateur

Swann

Swann PRO-600 Manuel utilisateur

Swann

Swann Security Cam Color Video Camera Manuel utilisateur

Swann

Swann SW322-YDX Manuel utilisateur

Swann

Swann Dummy MaxiBrite SW215-DMX Manuel utilisateur

Swann

Swann Enforcer Manuel utilisateur

Swann

Swann Security Camera Manuel utilisateur

Swann

Swann PRO-750 Manuel utilisateur

Swann

Swann Advanced Quad Processor Manuel utilisateur

Swann

Swann C510R Manuel utilisateur

Swann

Swann OutdoorCam SW244-AUO Manuel utilisateur

Swann

Swann Night Vision BulletCam SW223-CBB Manuel utilisateur

Swann

Swann PRO-series Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
