Swann DVR4-1160 Manuel utilisateur

DVR4-1160™ MPEG

4 Channel Digital Video Recorder

Operating Instructions

plug&playsecurity

™

Advanced security made easy

SW342-LPM

www.swannsecurity.com

SR342-LPM-60010-200609

Operating Instructions

FCC Veriﬁcation:

NOTE: This equipment has been tested and found to comply with the limits for

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de-

signed to provide reasonable protection against harmful interference in a residen-

tial installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna

· Increase the separation between the equipment and the receiver

· Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

· Consult the dealer or an experienced radio/TV technician for help

These devices comply with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) These devices may not cause harmful interference, and

(2) These devices must accept any interference received, including interference

that may cause undesired operation.

IMPORTANT NOTE: Prohibition against eavesdropping

Except for the operations of law enforcement ofﬁcers conducted under lawful

authority, no person shall use, either directly or indirectly, a device operated pursu-

ant to the provisions of this Part for the purpose of overhearing or recording the

private conversations of others unless such use is authorized by all of the parties

engaging in the conversation.

WARNING: Modiﬁcations not approved by the party responsible for compliance

could void user’s authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS:

· Make sure product is ﬁxed correctly and stable if fastened in place

· Do not operate if wires and terminals are exposed

· Do not cover vents on the side or back of the DVR and allow adequate space for

ventilation

Before You Begin

Contents

Before You Begin 2

Contents 3

Package Contents 4

DVR Layout 5

Remote Control 6

Connecting Cameras to the DVR 7

Starting the DVR 8

Main Menu 9

Hard drive Setup 9

Setting the Time 9

Camera Setup 10

Record Setup 10

Record Framerate 10

Video Quality 11

Record Schedule 11

Sensor Setup 11

Motion Detector Setup 12

System Password 13

Image Parameters 14

Miscellaneous Setup 14-16

Recording 17

Playback 18

Installing DVR Software 19

Playback 20

Conﬁguring ActiveX 21

IP Setup 22

User Set Up 23

DxClient 24

DxClient Layout 25

Netviewer 26-28

HDD Viewer 29

HDD Viewer (continued) 30-32

Installing and changing the HDD 33

Troubleshooting 34

Warranty Information 35

DVR4-1160™ Unit

Remote Control

Operating Instructions

Easy Setup Guide

Power Adapter with Cable

Software CD

Network cable

USB cable

RCA Video Cable

RCA to BNC adapters X 4

Security Stickers (4 Pack)

If you are missing any of the components above, contact Swann Communications

for assistance.

Package Contents

Back Panel

123 4 6789

1 2

10 11 12 13 15 16 17 18

1.Rewind - Press to rewind a

recording / press to move cursor left.

2. Pause - Press to pause a record-

ing. -During display mode press

to activate sequence mode.(SEQ.

DWELL TIME must be set).

3. Play - Press to begin playing

most recent recording.

4. Fast foward - Press to fast

forward a recording / press to move

cursor right.

5. Stop - Press to stop a recording.

6. Record - Press to begin record-

ing.

Note: will not function if the cameras

are not activated in CAMERA SETUP

AND RECORD SETUP.

7. Hard drive indicator - Lights

when hard drive is active (ﬂashes

when recording, searching etc.)

8. Infra red sensor

9. Power Indicator - Lights on

when DVR powered

10. Channel 1 - Press to view

channel 1.

11. Channel 2 - Press to view

channel 2.

12. Channel 3 - Press to view

channel 3.

13. Channel 4 - Press to view

channel 4.

14. Quad Mode - Press to view all

channels in quad mode.

15. Up arrow - Move cursor up in

menus.

16. Menu/ESC - Used to enter the

main menu or exit a sub menu.

17. Down - Press to move cursor

down.

18. Select / Edit - Press to select

an option/enter a sub menu.

3 4 5 6 7

1.Audio Output

2. Audio Input

3. LAN socket

4. Video Output

5. Channel 1,2,3 & 4

6. DC power

7. Grounding Terminal

DVR Layout

Front Panel

1. 0-9 (digit key pad)

- Buttons 1-4 can be used to view channels 1-4 in indi-

vidual display mode during recording and playback.

- 0-9 can be used for a password.

- 0-9 can be used in NETWORK SETUP to change digits.

Note: cannot be used to set the time or input the time in

time search.

2. ALL

- Press to activate the entire screen for motion detection

in MOTION DETECTOR SETUP.

3 - LEFT arrow

- Move cursor left in menus.

4. REWIND/RWD

- Press to rewind a recording during playback.

5. RECORD

- Press to begin recording.

Note: will not function if the cameras are not activated in

CAMERA SETUP AND RECORD SETUP.

6. MENU

- Used to enter the main menu or exit a sub menu.

7. UP arrow

- Move cursor up in menus.

8. SELECT/SEL

-Press to select an option/enter a sub menu.

9. RIGHT arrow

- Press to move cursor right.

10. DOWN arrow

-Press to move cursor down.

11. Mute

- Press to mute audio output.

12. PLAY

- Press to begin playing most recent recording during

playback.

13. FAST FORWARD/FWD

- Press to fast forward a recording.

14. STOP

- Press to stop a recording.

15. Pause

- Press to pause a recording.

-During display mode press to activate sequence mode.

(SEQ. DWELL TIME must be set).

Remote Control

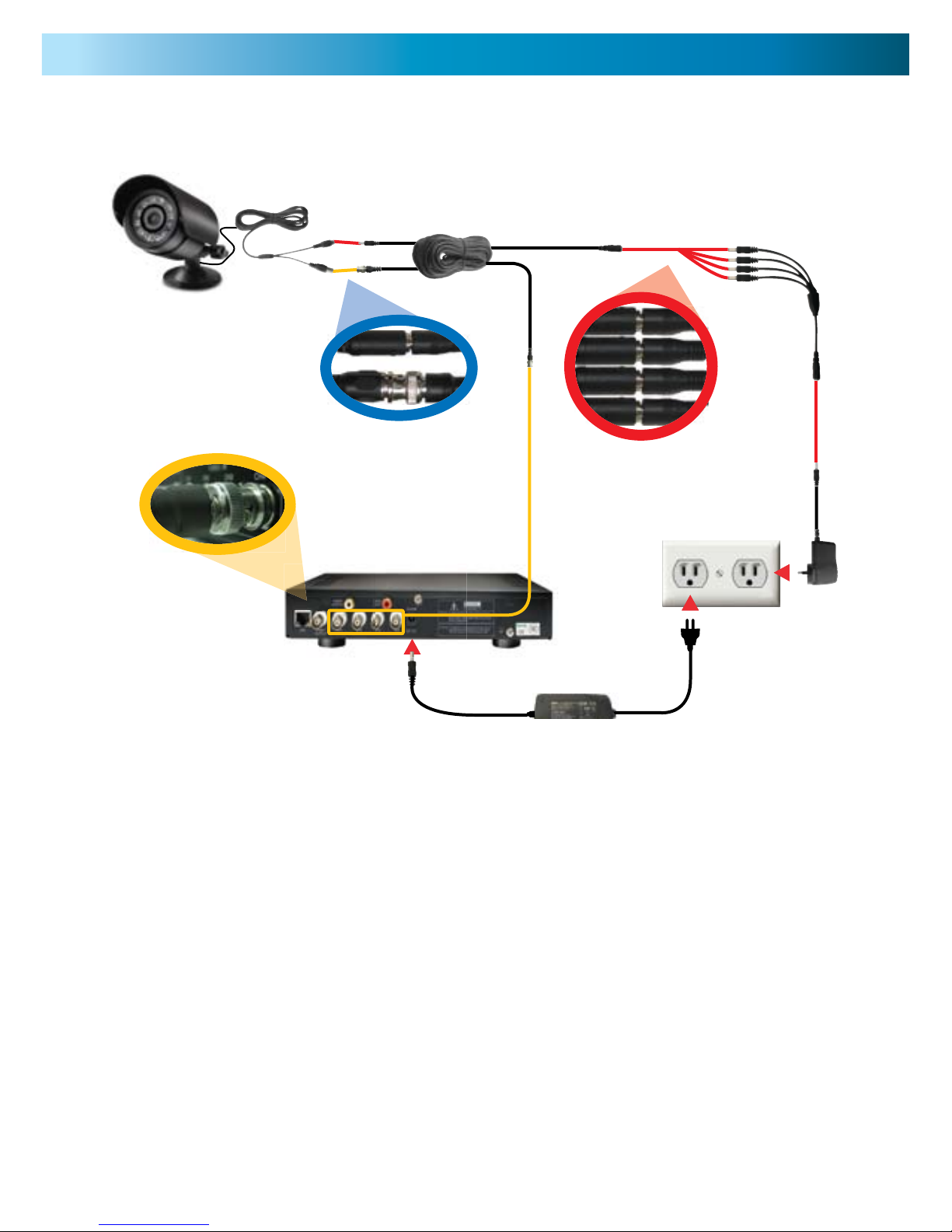

1. Connect the power and BNC ends of the security camera to an

extension cable.

2. Connect the DC end on the extension cables to the 4 way power splitter plugs.

3. Connect the camera power supply to the other end of the power splitter.

4. Connect the BNC end of the extension cables to the camera connections on the

back of the DVR unit (CH1, CH2, CH3 & CH4)

5. Connect the DVR power supply plug into the power supply socket on the back of

the DVR.

6. Plug in the camera power adapter and the DVR power adapter to mains power

outlets.

Cameras and

accessories optional

Connecting Cameras to the DVR

V2.6

G-V-MLANG

2009.XX.XX

CHECKING HDD........

MASTER [ST3250310SV]

FORMAT HDD CONFIRM

(SELECT) FORMAT / (MENU) CANCEL?

CHECKING HDD........

MASTER [ST3250310SV]

SLAVE [...... NONE]

Once you have connected the DVR and switched the power on it will begin to boot up.

During boot up you will see the following screens

This third screen will only show on ﬁrst boot up or after a new hard drive has been installed.

Push SELECT to format the hard drive or MENU to cancel the format and continue with the

start up.

Once the DVR has booted up and you have a camera connected to each channel you should be able to

see a quad screen showing all four displays (below).

31 2

1. Displays showing cameras 1 and 3.

2. Audio icon. (in this case audio in ac-

tive on camera 1)

3. Displays showing cameras 2 and 4.

4. Date stamp. (year:month:day)

5. Time stamp. (hour:minutes:seconds)

Starting the DVR

To access the main menu push the MENU button. You can scroll through the sub menus by using the UP &

DOWN buttons on the DVR front panel or the remote control.

The red arrow indicates the sub-menu or option that is currently selected.

See page 4 for DVR functions and page 5 for remote control functions.

Main Menu

The DVR date and time stamp appear on the bottom right corner of the screen.

Follow these instructions to set/change the DVR date and time.

1. Select the MISCELLANEOUS SETUP option in the main menu.

2. Scroll down to the second option SET TIME and push SELECT.

3. Below the date and time digits you will see a red arrow. Use

the LEFT and RIGHT buttons on the remote or the FWD and

RWD buttons on the front panel to move across.

4. Push the SELECT button to change the data.

Note:

The 0-9 buttons on the remote cannot be used to set the time.

Overwrite enabled - Set to ON to enable the hard drive to

overwrite the oldest ﬁles when the hard drive is full. When it is

set to OFF the DVR will stop recording once the hard drive has

reached full capacity.

Master HDD size - Total size of the hard drive installed in the DVR

Master HDD used - Amount of disc space and the percentage

currently used up on the hard drive.

HDD format - Select this option to format the hard drive then

push the SELECT button.

Hard drive Setup

Setting the Time

Record Setup allows you to choose which cameras will be recording when the record button is pushed.

Make sure all cameras are set to ON in the Camera Setup screen to enable Record.

1. Use the UP, DOWN, LEFT and RIGHT buttons (on the remote)

or the UP, DOWN, RWD (for left) & FWD (for right) buttons to

select the camera you would like to change settings on.

2. Push the SELECT button to change the setting to ON or OFF.

3. To exit the Record Setup screen push the MENU button.

Record Framerate allows you to set each cameras desired framerate.

The maximum no of frames is 50FPS (PAL systems) and 60FPS (NTSC systems) shared between 4 cameras.

1. Use the UP, DOWN, LEFT and RIGHT buttons (on the

remote) or the UP, DOWN, RWD (for left) & FWD (for right)

buttons to select the camera you would like to change set-

tings on.

2. Push the SELECT button to increase the number of FRAMES

PER SECOND and the STOP button to decrease the number

of FPS.

3. To exit the Record Setup screen push the MENU button.

Record Setup

Record Framerate

Camera Setup allows you to choose which channels will be active when the cameras are plugged into the DVR.

When a camera is set to OFF in Camera Setup you will not be able to view the display for that camera. You will also not

be able to record unless the camera is set to ON in Camera Setup.

1. Use the UP, DOWN, LEFT and RIGHT buttons (on the remote)

or the UP, DOWN, RWD (for left) & FWD (for right) buttons to

select the camera you would like to change settings on.

2. Push the SELECT button to change the setting to ON or OFF.

3. To exit the Camera Setup screen push the MENU button.

Camera Setup

Autres manuels pour DVR4-1160

Table des matières

Autres manuels Swann DVR

Swann

Swann FlashlightDVR SW244-TDV Manuel utilisateur

Swann

Swann DVR4-NET-PLUS SW243-4NU Manuel utilisateur

Swann

Swann DVR4-2500 Manuel utilisateur

Swann

Swann ADVANCED-SERIES H.264 Manuel utilisateur

Swann

Swann DVR16-4550 Manuel utilisateur

Swann

Swann RedAlert Single Channel Digital Security... Guide de démarrage rapide

Swann

Swann BlueAlert SW242-WDV Manuel utilisateur

Swann

Swann Advanced Quad Processor Guide de démarrage rapide

Swann

Swann SW242-D8U Manuel utilisateur

Swann

Swann DIGITAL GUARDIAN DVR4-NET Manuel utilisateur

Swann

Swann 4500 Series Manuel utilisateur

Swann

Swann Alpha D01 Manuel utilisateur

Swann

Swann SW244-DRC Manuel utilisateur

Swann

Swann DVR4-2500 Guide de démarrage rapide

Swann

Swann Advanced D1 series Manuel utilisateur

Swann

Swann DVRX-1550 Manuel utilisateur

Swann

Swann 4 Channel DVR4-2000 Manuel utilisateur

Swann

Swann DVR4-1160 Manuel utilisateur

Swann

Swann PRO-T853 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

Swann

Swann SW-R-DVR4NET Manuel utilisateur

Swann

Swann 4400 series Manuel utilisateur

Swann

Swann DVR8/16-8500AI Guide de démarrage rapide

Swann

Swann S243-8NU-1111 Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur

DIGIFUSION

DIGIFUSION FVRT150 Manuel utilisateur
