SVAT ClearVu Q1204 Manuel utilisateur

12" Quad System with 4 B/W CCD Cameras

Instruction Manual

www.svat.com

now you can see

Système de quadruple de 12"avec 4 appareils-photo

de CCD de B/W

Manuel D'Instruction

Q1204

www.svat.com

TABLE OF CONTENTS

ENGLISH PAGE #

Table Of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Introduction / Whats Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

How To Operate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

FRANCAIS PAGE #

Introduction/Ce qui Est Inclus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Caractéristiques du système . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Diagramme De câblage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Comment Fonctionner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Installation De Système . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Caractéristiques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

www.svat.com

INTRODUCTION

Congratulations on your purchase of SVAT’s ClearVu Q1204. You will soon

find out that this product has many applications, some that we may not

even have mentioned. The following instruction manual will go over your

products, its features, and how to install it. Please read over all of the

instructions and maintenance information so you can extend the life of

this great product.

For more information on your wired security system and on any other

SVAT product, visit www.svat.com.

Please note that SVAT does not endorse any applications of this unit for any illegal activities.

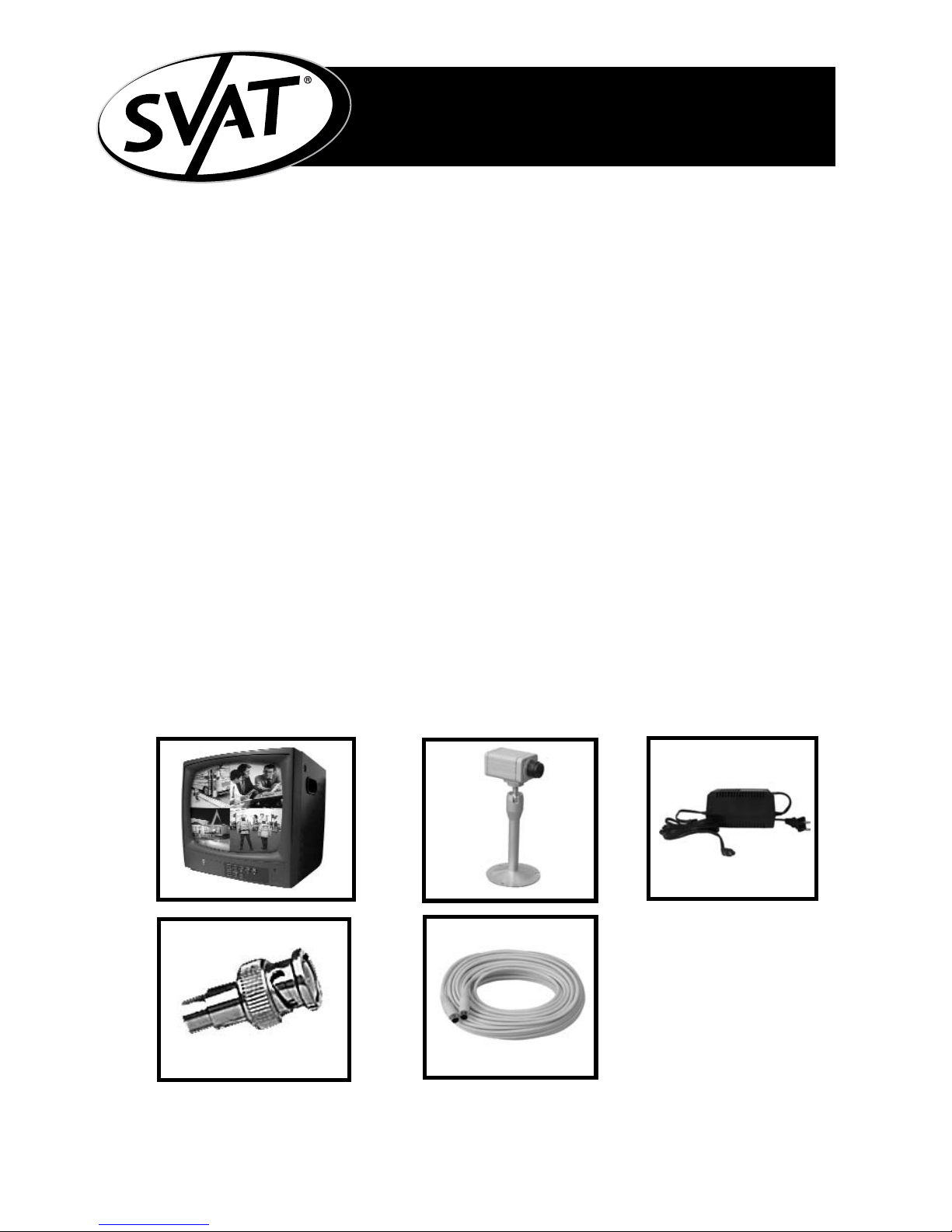

What's included:

The following components should be included with your system. Please

check that you have them all before beginning installation:

A: 12” B/W Monitor

B: 4x B/W CCD Cameras with Stand

C: 18V Power Adapter

D: 5x BNC to RCA Connectors

E: 4x 60 feet Of DIN to DIN Cable

Not Shown: Warning Stickers, Warranty Registration, Crime Stoppers insert,

and Manual

*Actual Product May Not Be Exactly As Shown

www.svat.com

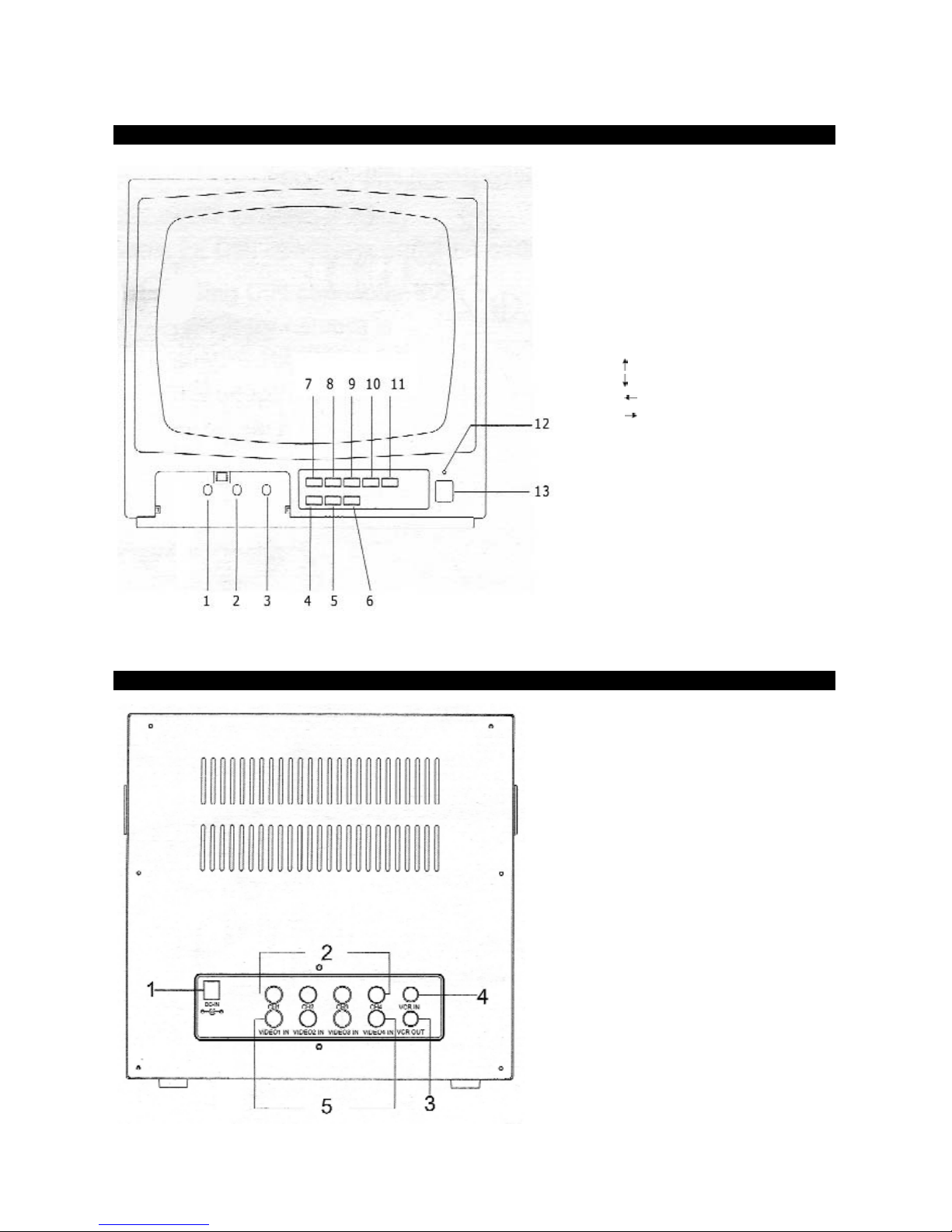

1. V-HOLD control

2. Brightness control

3. Contrast control

4. MODE/ENTER key

5. FREEZE/VCR key

6. AUTO key

7. ZOOM/SETUP key

8. CH1/ key

9. CH2/ key

10. CH3/ key

11. CH4/ key

12. Power Indicator LED

13. Power On/Off Switch

FRONT VIEW

BACK VIEW

SYSTEM FEATURES

1. DC Power Input

2. Video Input (DIN)

3. VCR Output: Video Out (BNC)

4. VCR Input (BNC)

5. Video Input (BNC)

www.svat.com

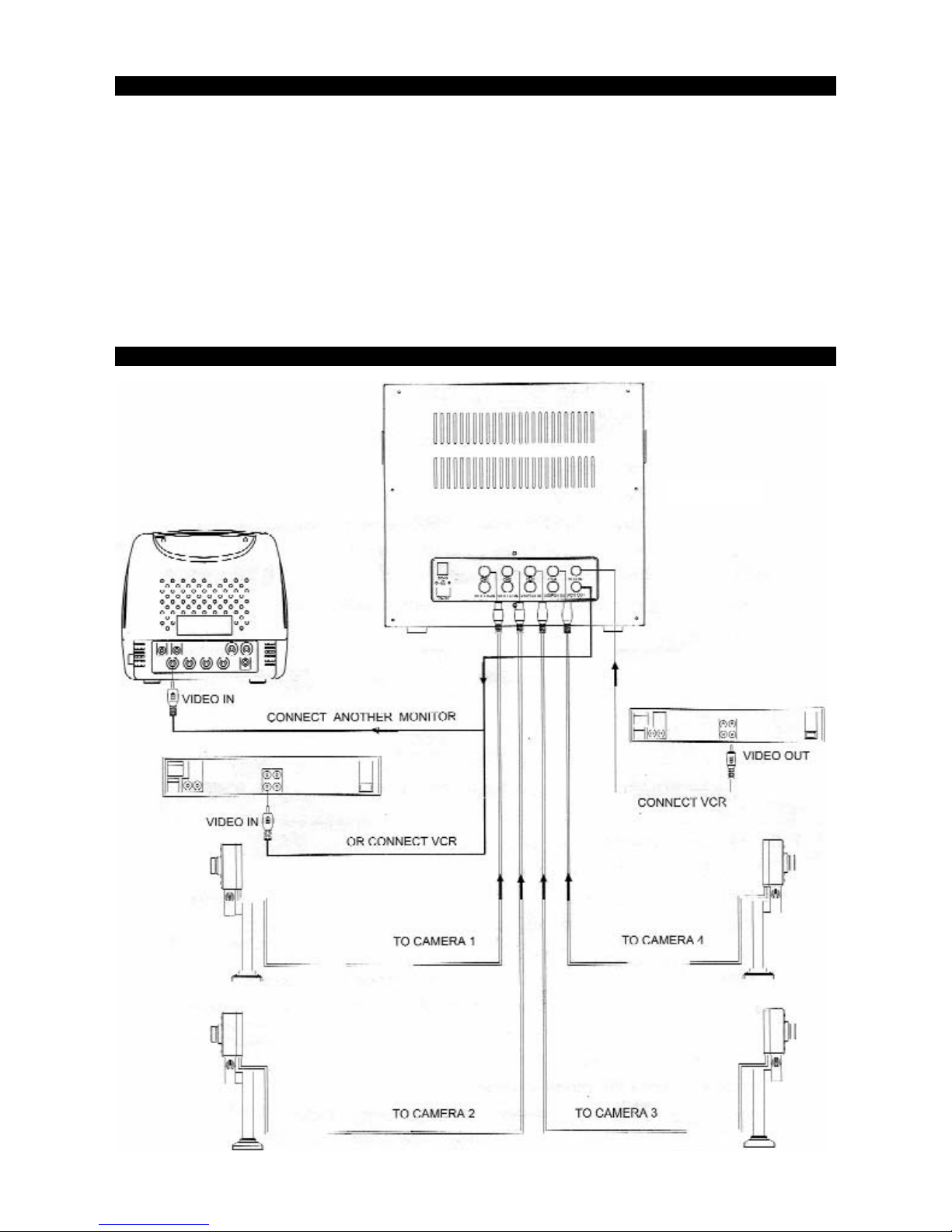

WIRING DIAGRAM

INSTALLATION

CAUTION: Before connecting the power and switching the unit ON make sure all wiring is

connected properly.

1. Connect the power adapter (supplied) to the back of the monitor.

2. Using the DIN cable connect the four cameras to the back of the monitor. Both ends of the cable

are the same and will fit in both the camera and the monitor. Align the pins on the connection

jack, do not force the plug in, it should go in freely. (FIG-1)

4. When using only 1-2-3 cameras the empty channel will remain grey.

5. Using a standard RCA Cable (not supplied) you can connect the monitor to an extra monitor/vcr

or add additional cameras (use the BNC adapters provided to convert the BNC slots to RCA)

WARNING: When using BNC camera input jacks do not connect another camera to the same channel

using a DIN connection. There is only one camera allowed per channel.

(FIG-1)

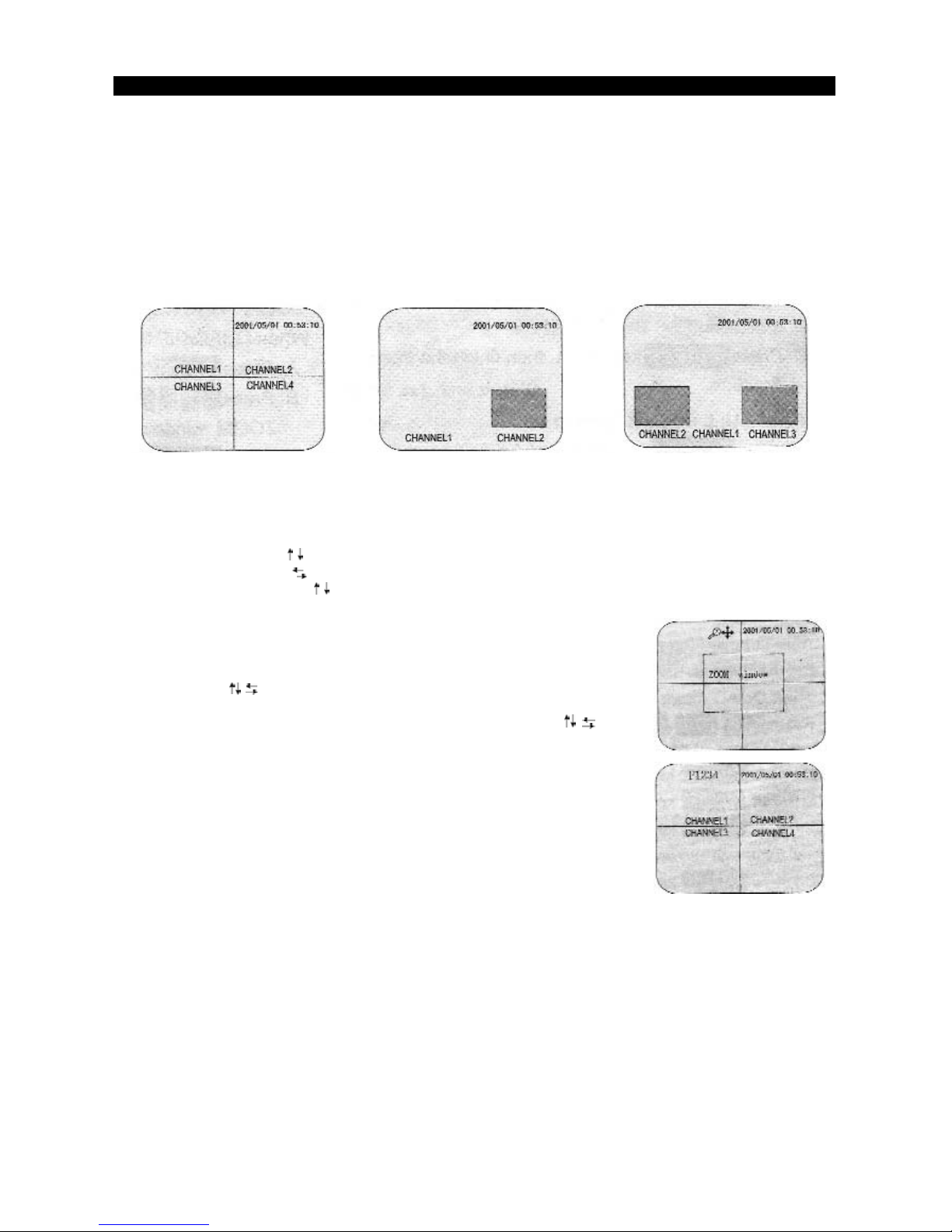

1. Turn the unit on by pressing in the button marked POWER. You may encounter a buzzing noise

when powering up. The system just reminds you that you have unused channels (no camera

connected)

2. FULL SCREEN MODE:

- Pressing CH1 - 4 key will display the desired channel in full screen

- Press MODE key to go back to QUAD mode (FIG-2)

3. PIP MODE:

- Press MODE key once will go to PIP1 mode (FIG-3)

- Press MODE key twice will go to PIP2 mode (FIG-4)

- Press MODE key three times will go back to PIP1 mode (with auto switching)

- Press MODE key four times to go back to the main QUAD screen (FIG-2)

4. DEFINING PIP CHANNELS:

- When in PIP1/PIP2 mode press and hold MODE key for 2-3 seconds, channel name should

start blinking

- Press CH1 or CH2 key to select different picture for CHANNEL 1

- Press CH3 or CH4 to switch left and right and you can change the image for the PIP

windows by pressing key

- Press MODE key again to save settings and quit

5. ZOOM FUNCTION:

*Performed in QUAD/PIP1/PIP2/FULL screen mode:

- Press the ZOOM key, a ZOOM window appears

- Press the key to adjust the position of the ZOOM window

- Press the ENTER key to zoom in the selected area

- Once zoomed in you can still adjust the area by using the key

- Press the ZOOM key again to zoom out

6. FREEZE FUNCTION:

*Performed in QUAD/PIP1/PIP2 screen mode:

- Press the FREEZE key, F1234 is displayed in the top left corner

- Press the CH1 - CH4 keys to freeze the desired camera.

- Pressing the same CH key will unfreeze it

- Press FREEZE again to unfreeze all cameras

*Performed in FULL screen mode:

- Press the FREEZE key, F1234 is displayed in the top left corner

- Press FREEZE again to unfreeze current camera

7. AUTO SWITCHING FUNCTION:

- Press the AUTO key, signal will automatically switch between QUAD-CH1-CH2-CH3-CH4-QUAD

- Press the MODE key to disable auto switching and go back to QUAD mode

(Time delay can be adjusted in SYSTEM SETUP, see below)

www.svat.com

(FIG-2) (FIG-3) (FIG-4)

HOW TO OPERATE

www.svat.com

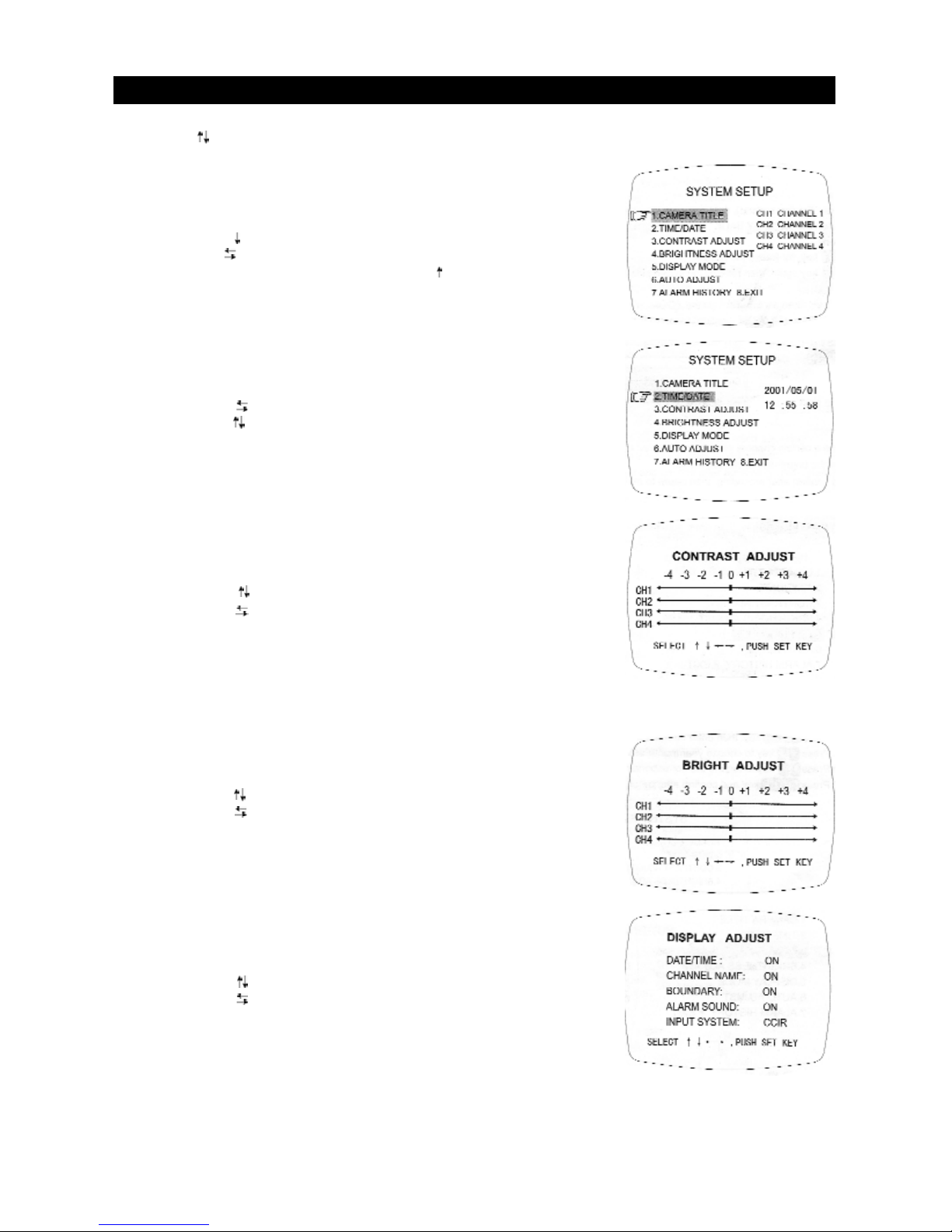

* Press and hold the SETUP key for 2-3 seconds

* Use the keys to navigate through the menus

1. CAMERA TITLE

- Press SETUP key to enter the CAMERA TITLE sub-menu

- Press the key to choose the desired camera

- Use the key to change the characters

- To move to the next character use the key

- Press the SETUP key to save and go back to the main menu

2. TIME/DATE

- Press SETUP key to enter the TIME/DATE sub-menu

- Press the keys to choose year/month/day/hour/minute/second

- Press the keys to change the value of each item

- Press the SETUP key to save and go back to the main menu

3. CONTRAST ADJUST

- Press SETUP key to enter the CONTRAST ADJUST sub-menu

- Press the keys to choose desired camera channel

- Press the keys to change the contrast of each camera

- Press the SETUP key to save and go back to the main menu

* You can also adjust the contrast of all for cameras by using the

control knob found under the flap on the front of the monitor

4. BRIGHTNESS ADJUST

- Press SETUP key to enter the BRIGHTNESS ADJUST sub-menu

- Press the keys to choose desired camera channel

- Press the keys to change the brightness of each camera

- Press the SETUP key to save and go back to the main menu

* You can also adjust the brightness of all for cameras by using the

control knob found under the flap on the front of the monitor

5. DISPLAY MODE

- Press SETUP key to enter the DISPLAY MODE sub-menu

- Press the keys to choose desired item that needs adjusting

- Press the keys to change the value of each item

- Press the SETUP key to save and go back to the main menu

SYSTEM SETUP

www.svat.com

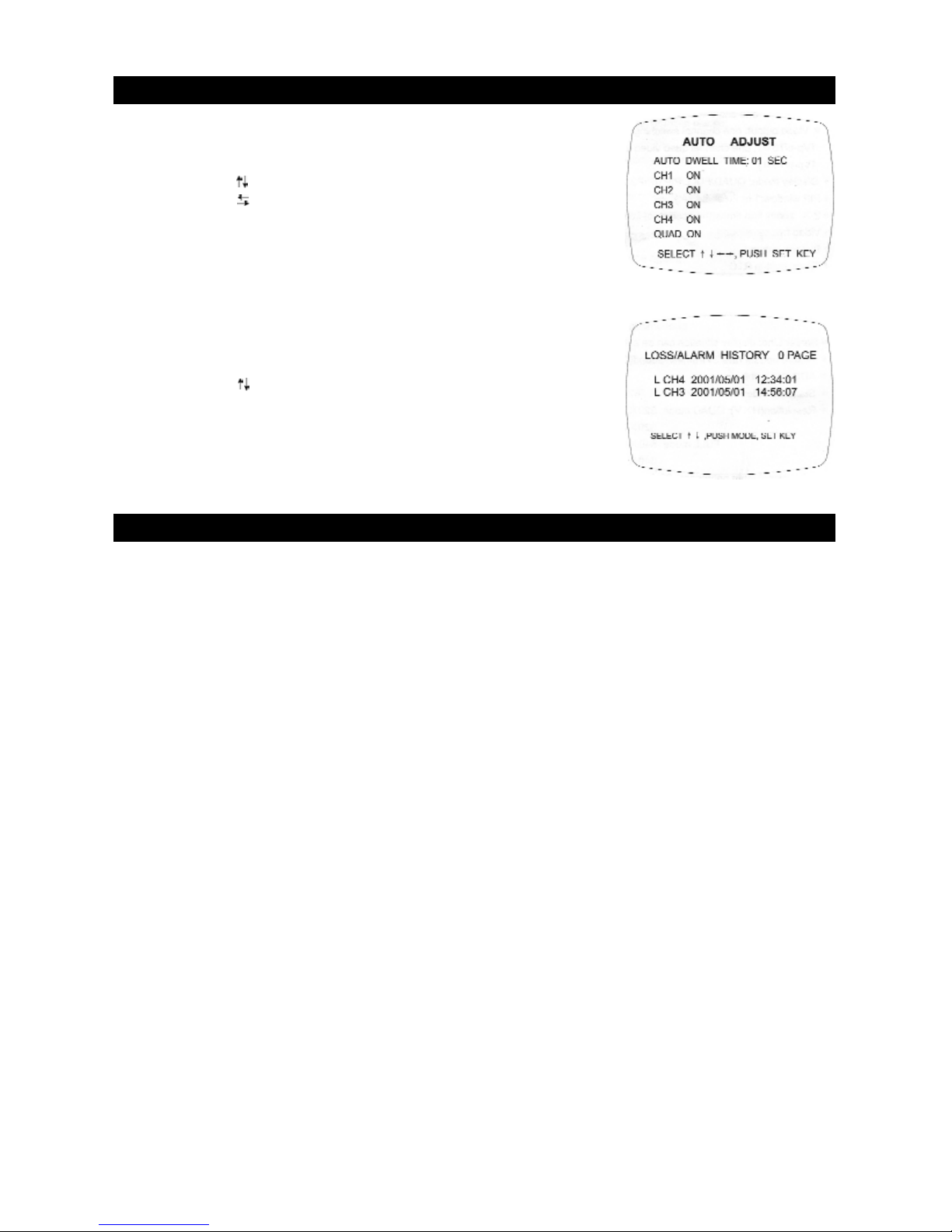

6. AUTO ADJUST

- Press SETUP key to enter the AUTO ADJUST sub-menu

- Press the keys to choose desired item that needs adjusting

- Press the keys to change the value of each item

- Press the SETUP key to save and go back to the main menu

7. ALARM HISTORY

- Press SETUP key to enter the ALARM HISTORY sub-menu

- Press the keys to scroll through different pages

- Press the MODE button to clear the history records

- Press the SETUP key to save and go back to the main menu

8. EXIT

- Press SETUP key to exit the system setup

Please read this manual carefully before using this product. If you have any difficulties using this unit,

please consult the following checklist.

No Picture or Sound:

- Make sure the power adapter is properly plugged in. LED light should be on.

- Try adjusting the brightness as it may be turned all the way down.

- Double check all the camera wiring is plugged in correctly.

- Press any of the four channel buttons CH1-CH4 to turn switch to a desired camera.

Care and maintenance

• Keep all parts and accessories out of reach of young children.

• Do not attempt to open the case. Non-expert handling of the device

may damage it.

• Do not use or store in dusty, dirty or moist areas. This is an indoor unit.

• Do not store in hot areas. High temperatures can shorten the life of

electronic devices and warp or melt certain plastics.

• Do not store in very cold areas. When the system warms up

(to its normal temperature), moisture can form inside the case, which

may damage electronic circuit boards.

• Do not drop, knock, or shake it. Rough handling can break internal

circuit boards.

• Do not use harsh chemicals, cleaning solvents, or strong detergents

when cleaning.

• Operate this product using only the power supply included with it or

provided as an accessory.

SYSTEM SETUP (continued)

TROUBLESHOOTING

www.svat.com

Monitor (12” Quad)

Video input . . . . . . . . . . . . . . . . . . . . . . . . . 4 channels CVBS input 1Vp-p/75 Ohm

Video output . . . . . . . . . . . . . . . . . . . . . . . . 1 channel CVBS output 1Vp-p/75 Ohm

Display Modes: . . . . . . . . . . . . . . . . . . . . . . Single

. . . . . . . . . . . . . . . . . . . . . . Quad

. . . . . . . . . . . . . . . . . . . . . . Picture in Picture

. . . . . . . . . . . . . . . . . . . . . . ZOOM

. . . . . . . . . . . . . . . . . . . . . . AUTO Sequence (1-60 sec)

PIP window . . . . . . . . . . . . . . . . . . . . . . . . . 1 or 2

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2x (position can be adjusted)

Video Feeze . . . . . . . . . . . . . . . . . . . . . . . . Support

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Built in Real Time Clock

A/V Loss Detection . . . . . . . . . . . . . . . . . . . Support

Alarm Record . . . . . . . . . . . . . . . . . . . . . . . Support

Picture Update . . . . . . . . . . . . . . . . . . . . . . 30frames/sec (EIA)

Standard Video Format . . . . . . . . . . . . . . . EIA 762x525 @ 30 frames per sec

Resolution (H x V) . . . . . . . . . . . . . . . . . . . . Quad Mode 320 x 240

. . . . . . . . . . . . . . . . . . . . Full Mode 640 x 480

Power Supply . . . . . . . . . . . . . . . . . . . . . . . 18V DC 2400mA

Power Output For Camera . . . . . . . . . . . . . 12V

Power Consumption . . . . . . . . . . . . . . . . . . <35W

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.5Kg

Operating Temperature . . . . . . . . . . . . . . . 0-45 C

Camera (ClearVu 30)

Image sensor . . . . . . . . . . . . . . . . . . . . . . . . 1/3 CCD B/W Lens

Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . 420 TV Lines

Infrared LEDS . . . . . . . . . . . . . . . . . . . . . . . . 12

Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 mm

Effective Pixels . . . . . . . . . . . . . . . . . . . . . . . CCIR: 500 x 582

. . . . . . . . . . . . . . . . . . . . . . . EIA: 512 x 492

Min Illumination . . . . . . . . . . . . . . . . . . . . . . 0.1 LUX @ F1.2

Electronic Shutter . . . . . . . . . . . . . . . . . . . . 1/60-1/10,000

Signal/Noise Ratio . . . . . . . . . . . . . . . . . . . . 48 dB

Video Out . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0Vp-p 75Ohm

Audio Out . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5Vp-p 10k Ohm

Camera Input . . . . . . . . . . . . . . . . . . . . . . . 12V DC

Camera Power Consumption . . . . . . . . . . . 1.5W

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3Kg

Operating Temperature . . . . . . . . . . . . . . . 0-45 C

SPECIFICATIONS

www.svat.com

PRODUCT WARRANTY

We take quality very seriously. This is why all of our products

come with a one year warranty from the original purchase date

against defects in workmanship and materials.

If you have warranty or support issues please contact us using any of the following methods:

SVAT Electronics USA SVAT Electronics Canada Phone: 866.946.7828

2315 Whirlpool St., Unit 333 4080 Montrose Road Fax: 888.771.1701

NIagara Falls, New York Niagara Falls, ON Email: [email protected]

USA 14305 Canada L2H 1J9 Website: www.svat.com

Warranty Terms

1. SVAT products are guaranteed for a period of one year from the date of purchase against defects in

workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price

at SVAT's option.

2. When service is required, the warranty is validated by the submission of a fully completed warranty card.

3. This warranty becomes void if the product shows evidence of having been misused, mishandled or tampered

with contrary to the applicable instruction manual.

4. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered under the terms of this

warranty.

5. The warranty expressly provided for herein is the sole warranty provided in connection with the product itself

and no other warranty, expressed or implied is provided. SVAT assumes no responsibilities for any other

claims not specifically mentioned in this warranty.

6. This warranty does not cover the shipping cost, insurance or any other incidental charges.

7. You MUST call SVAT before sending any product back for repair. You will be given a Return Authorization

number. When returning the product for warranty service, please pack it carefully in the original box with all

supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem

(include RA #).

8. This warranty is valid only in Canada and the U.S.A.

9. This warranty card cannot be re-issued.

CAUTION

RISK OF ELECTRIC SHOCK, DO NOT OPEN

Graphic Symbol Explanation:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to per-

sons.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating maintenance (servicing) instructions in the literature

accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

Table des matières

Langues :

Autres manuels SVAT Système de sécurité

SVAT

SVAT PI1000 Manuel utilisateur

SVAT

SVAT CV0204DVR Manuel utilisateur

SVAT

SVAT GX301 Manuel utilisateur

SVAT

SVAT CV503-8CH Manuel utilisateur

SVAT

SVAT qxd600 Manuel utilisateur

SVAT

SVAT CV301-8CH Manuel utilisateur

SVAT

SVAT CLEARVU4 Manuel utilisateur

SVAT

SVAT ClearVu Q1404 Manuel utilisateur

SVAT

SVAT CVQ1000 Manuel utilisateur

SVAT

SVAT Do-It-Yourself Compact DVR Security System... Manuel utilisateur

SVAT

SVAT Clearvu S400 Manuel utilisateur

SVAT

SVAT ClearVu 1202 Manuel utilisateur

SVAT

SVAT CV300-4CH-001 Manuel utilisateur

SVAT

SVAT Compact Security System CLEARVU6 Manuel utilisateur

SVAT

SVAT 2.4 GHz Wireless B/W Security System Manuel utilisateur

SVAT

SVAT GX5201 Manuel utilisateur

SVAT

SVAT CLEARVU3 Manuel utilisateur

SVAT

SVAT CLEARVU3 Manuel utilisateur

SVAT

SVAT CLEARVU11 Manuel utilisateur

SVAT

SVAT CV500-4CH-002 Manuel utilisateur

SVAT

SVAT Do-It-Yourself Compact DVR Security System... Manuel utilisateur

SVAT

SVAT VIS101 Manuel utilisateur

SVAT

SVAT Compact Security System CLEARVU5 Manuel utilisateur

SVAT

SVAT CLEARVU11 Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
